AAP01 OMEGA KIT

Hi,

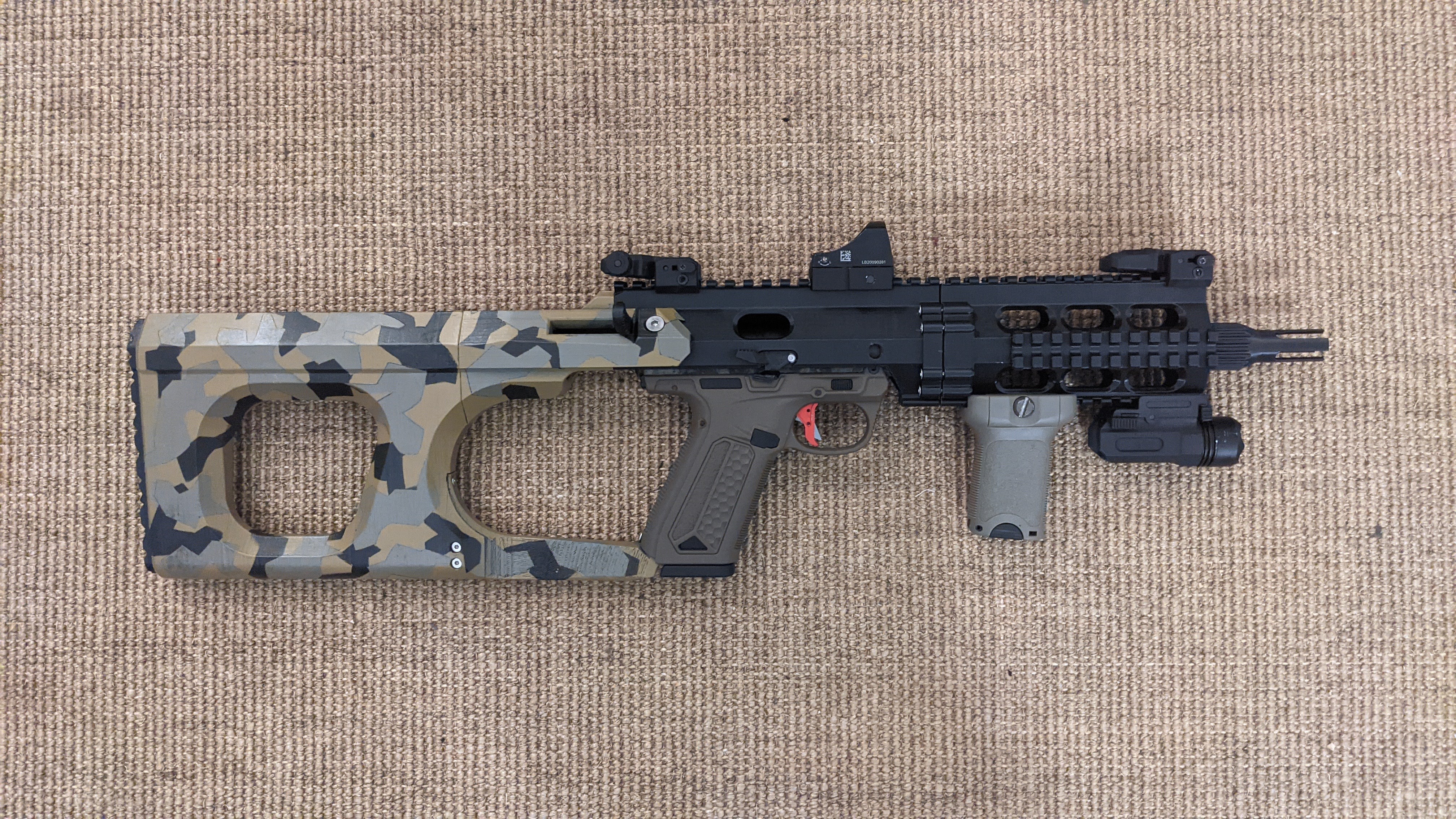

This is a carbine kit for the Action Army AAP-01 airsoft. Turn your AAP into a functional GBB smg.

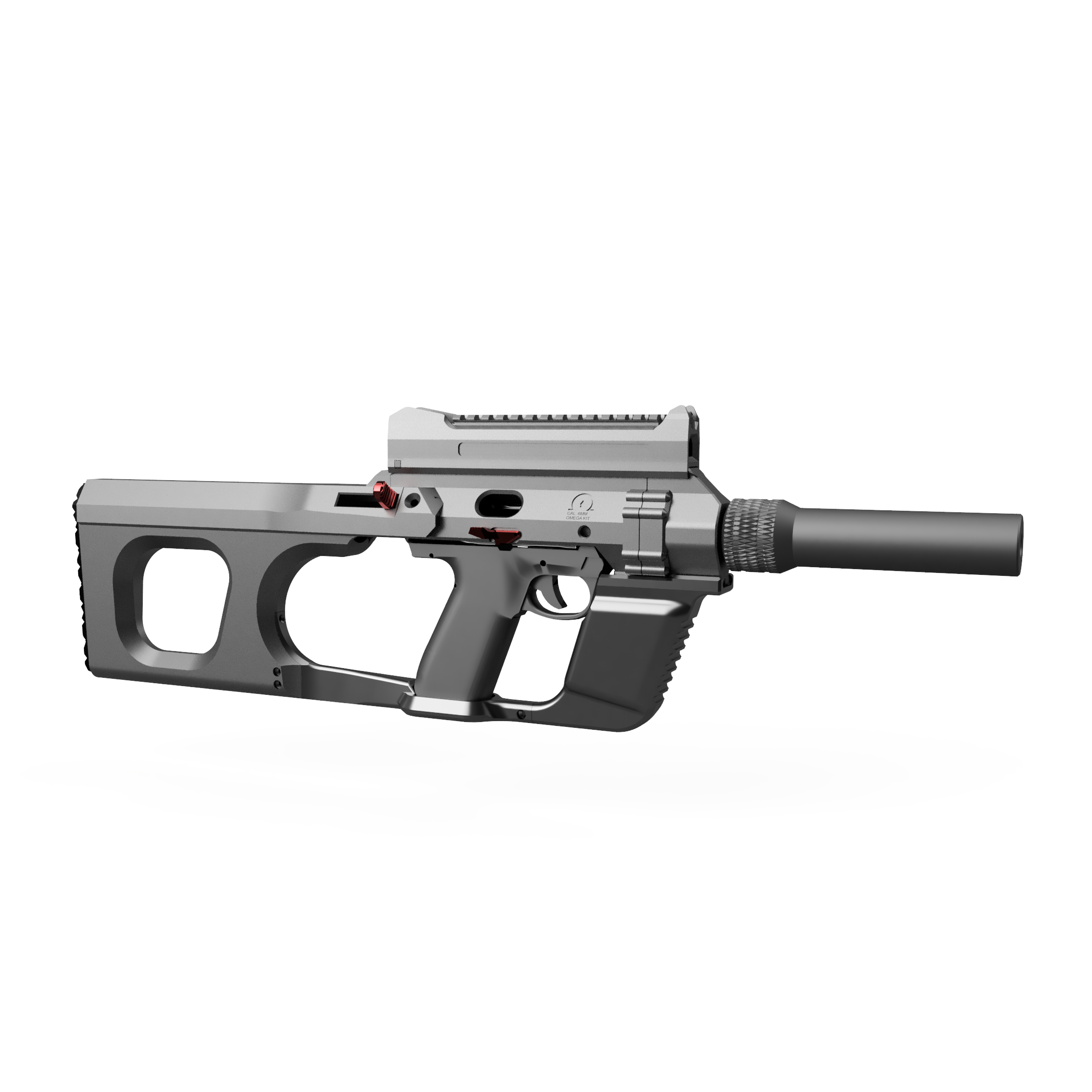

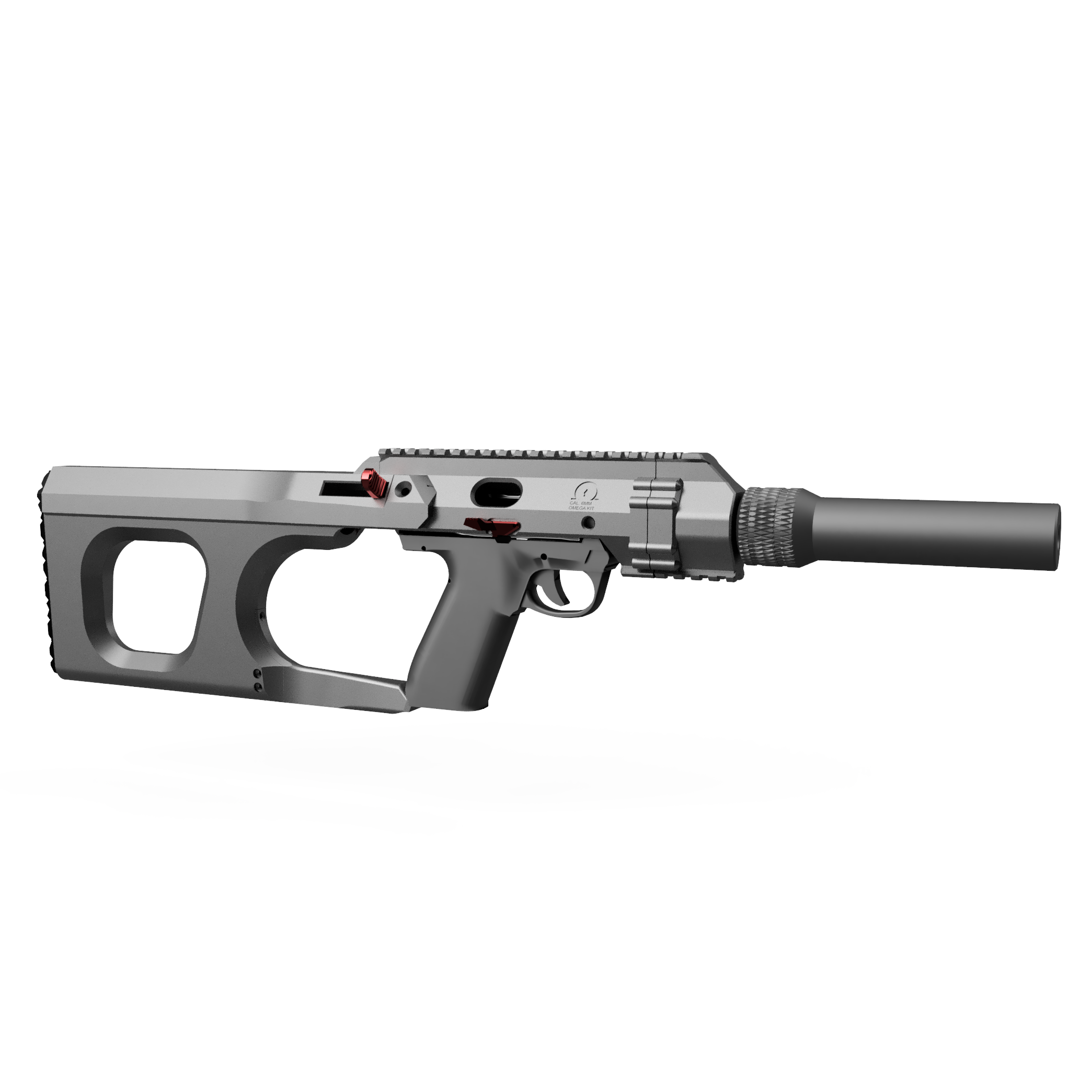

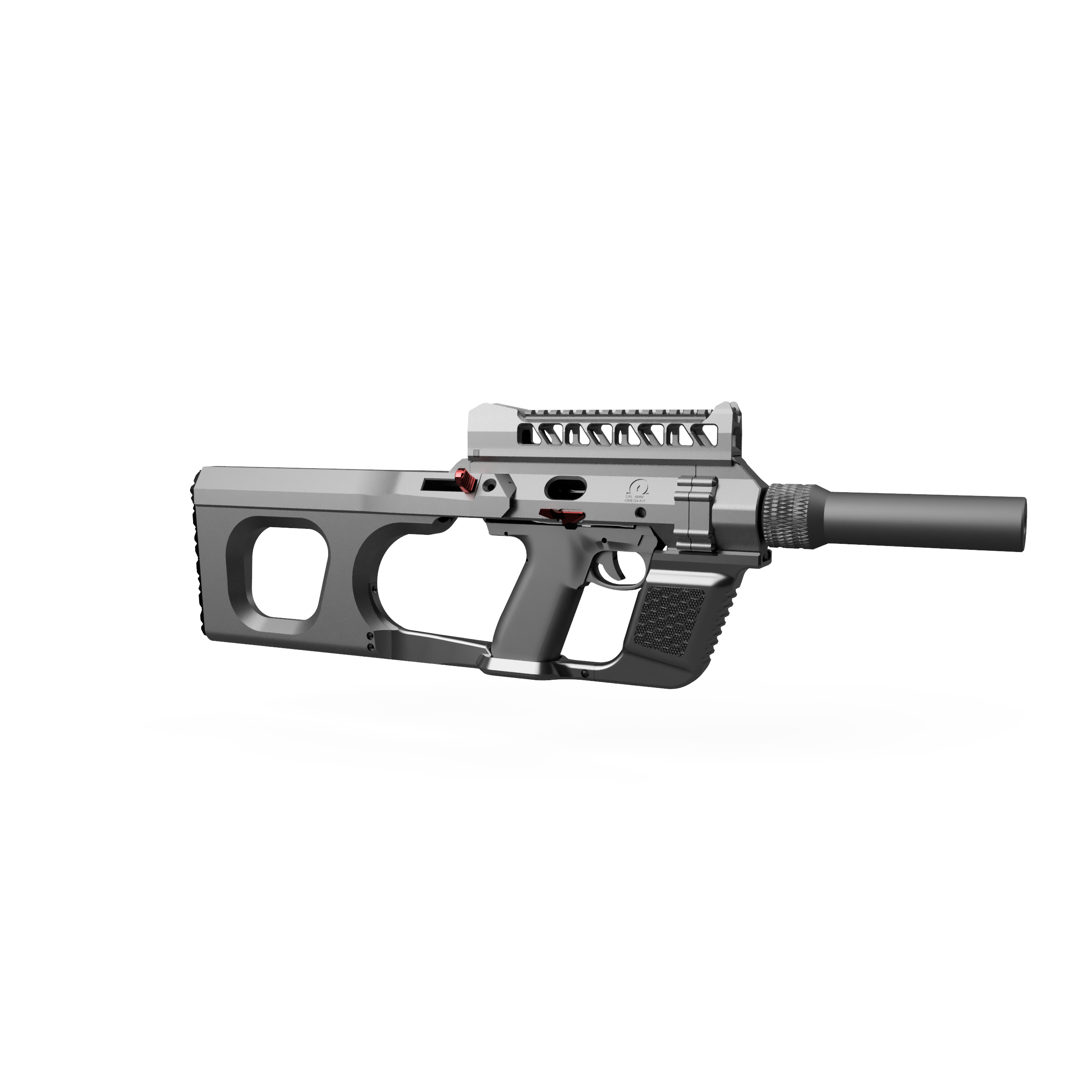

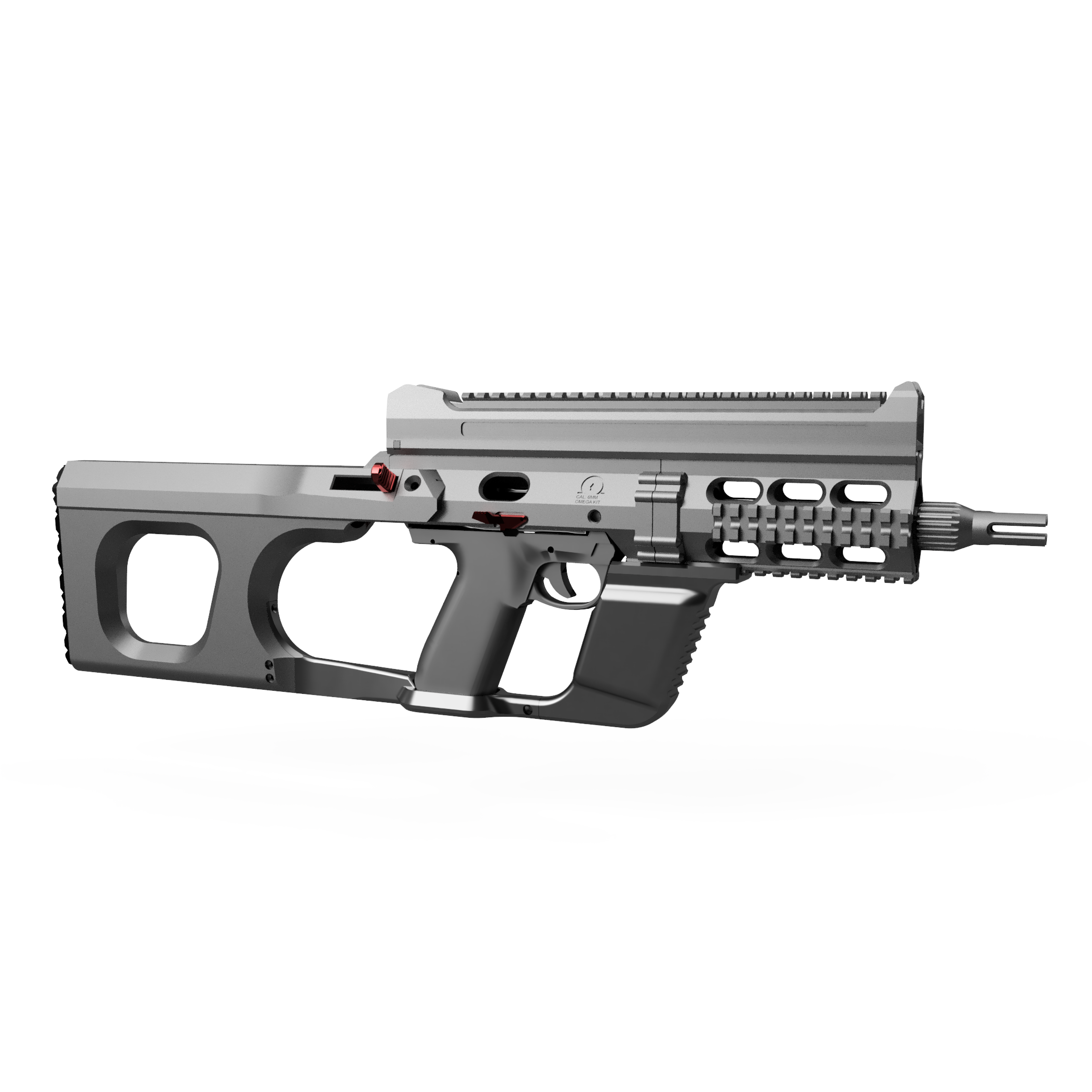

You can choose between different variations to customize your kit (see pictures)

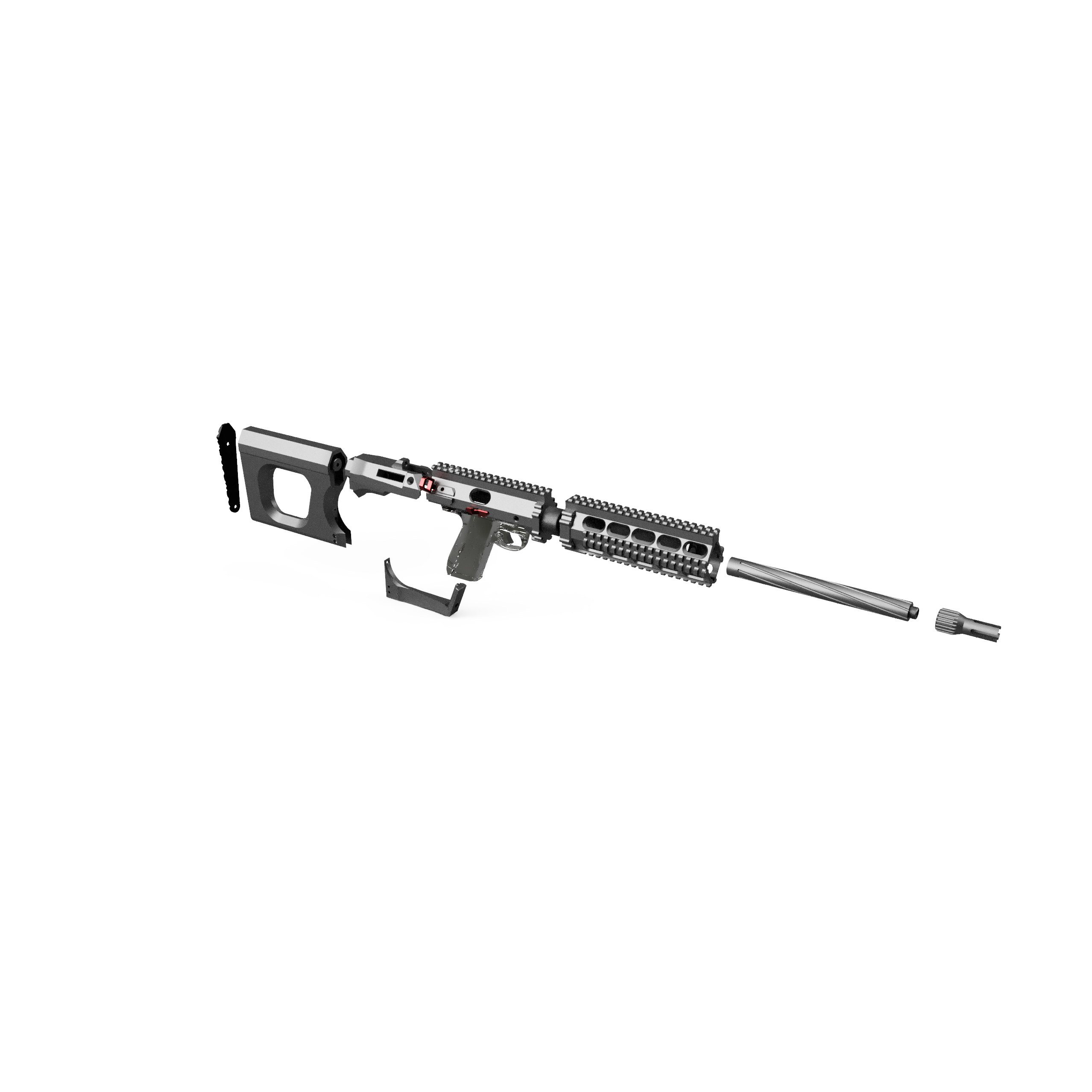

Parts included in the current version :

• Receiver
• Bolthousing
• Boltpin
• Charginghandle V1
• Charginghandle V2
• Charginghandle V3
• Stock
• Griprod
• Buttplate
• Boltcatch (short)
• Boltcatch (long)

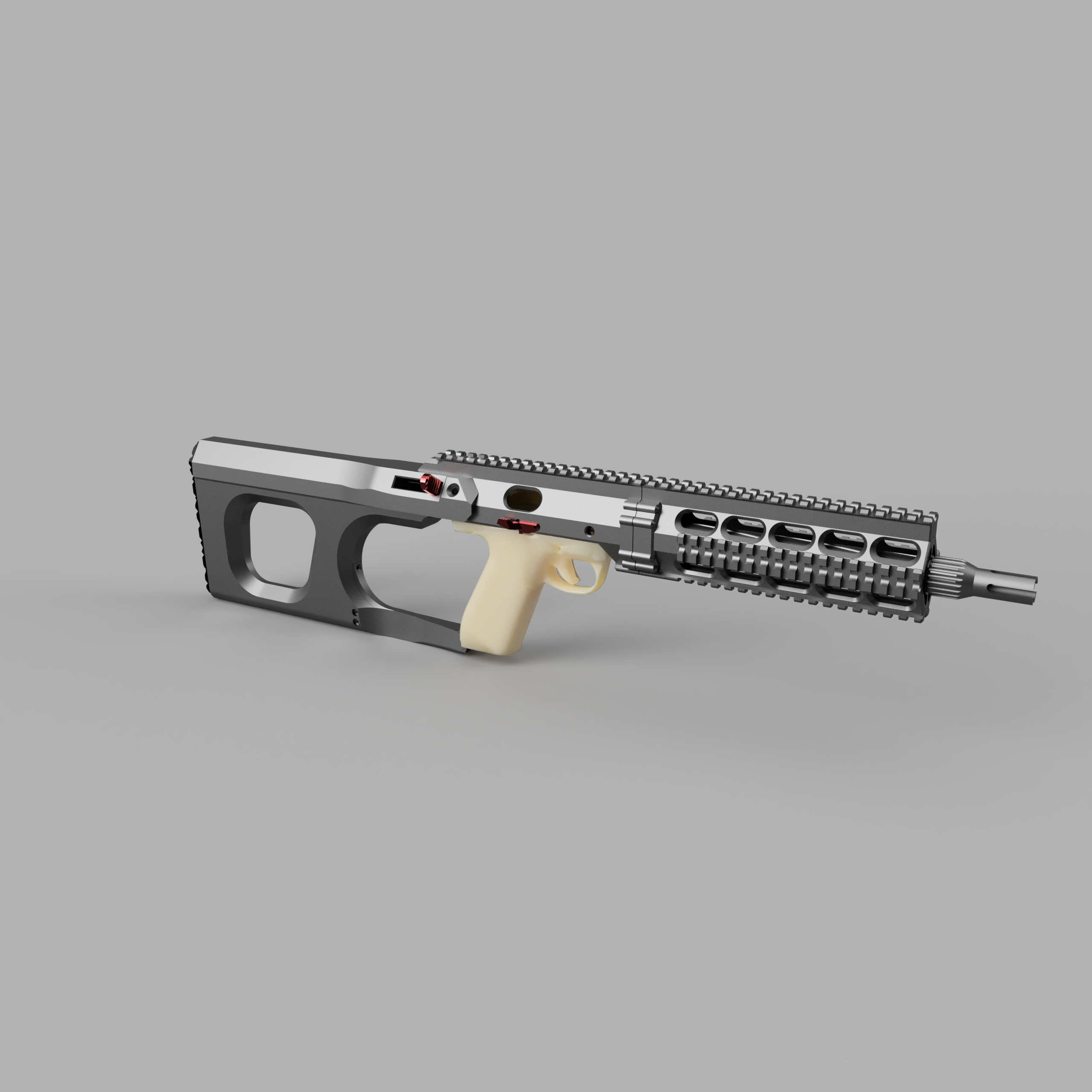

• Handguard (long)

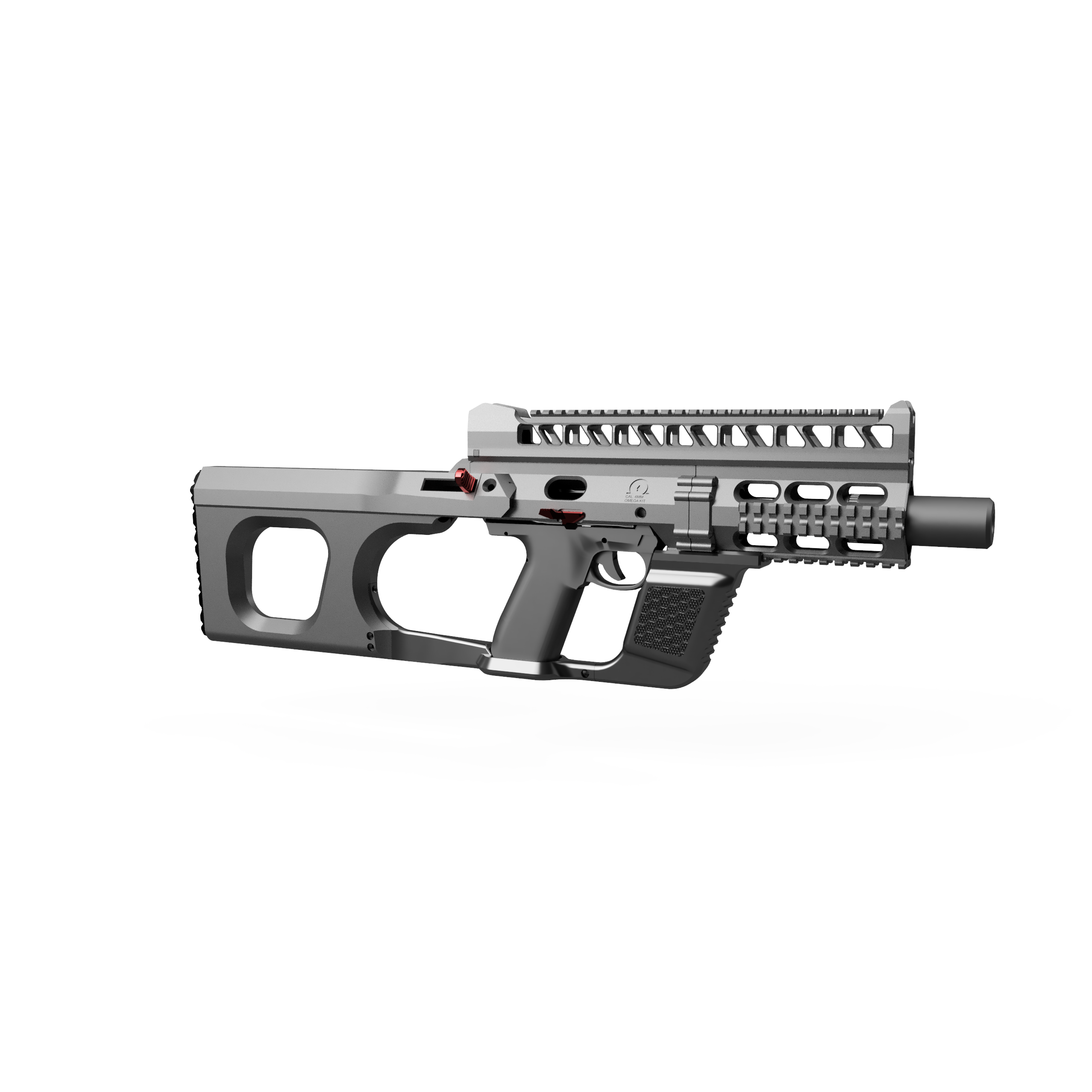

• Handguard (medium)

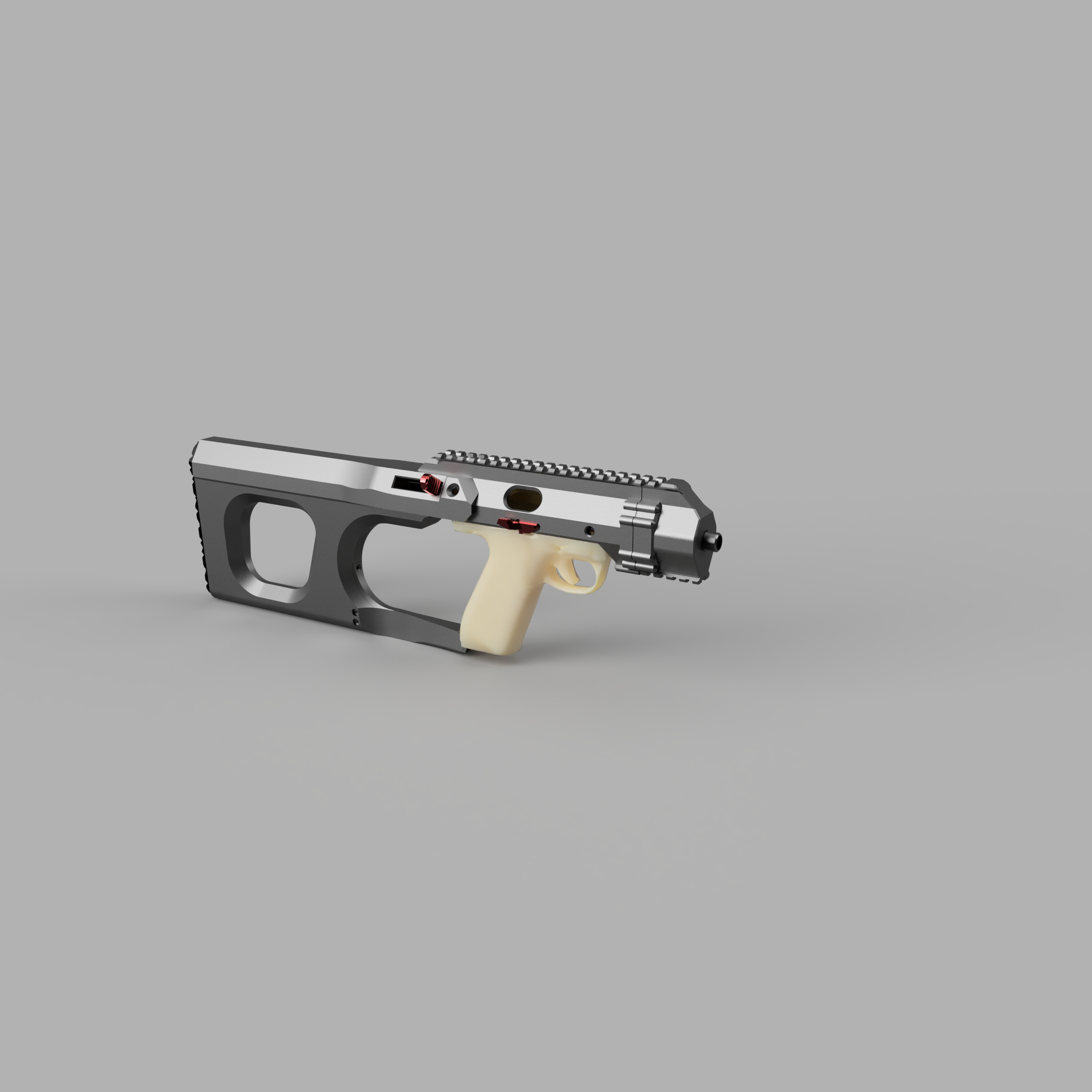

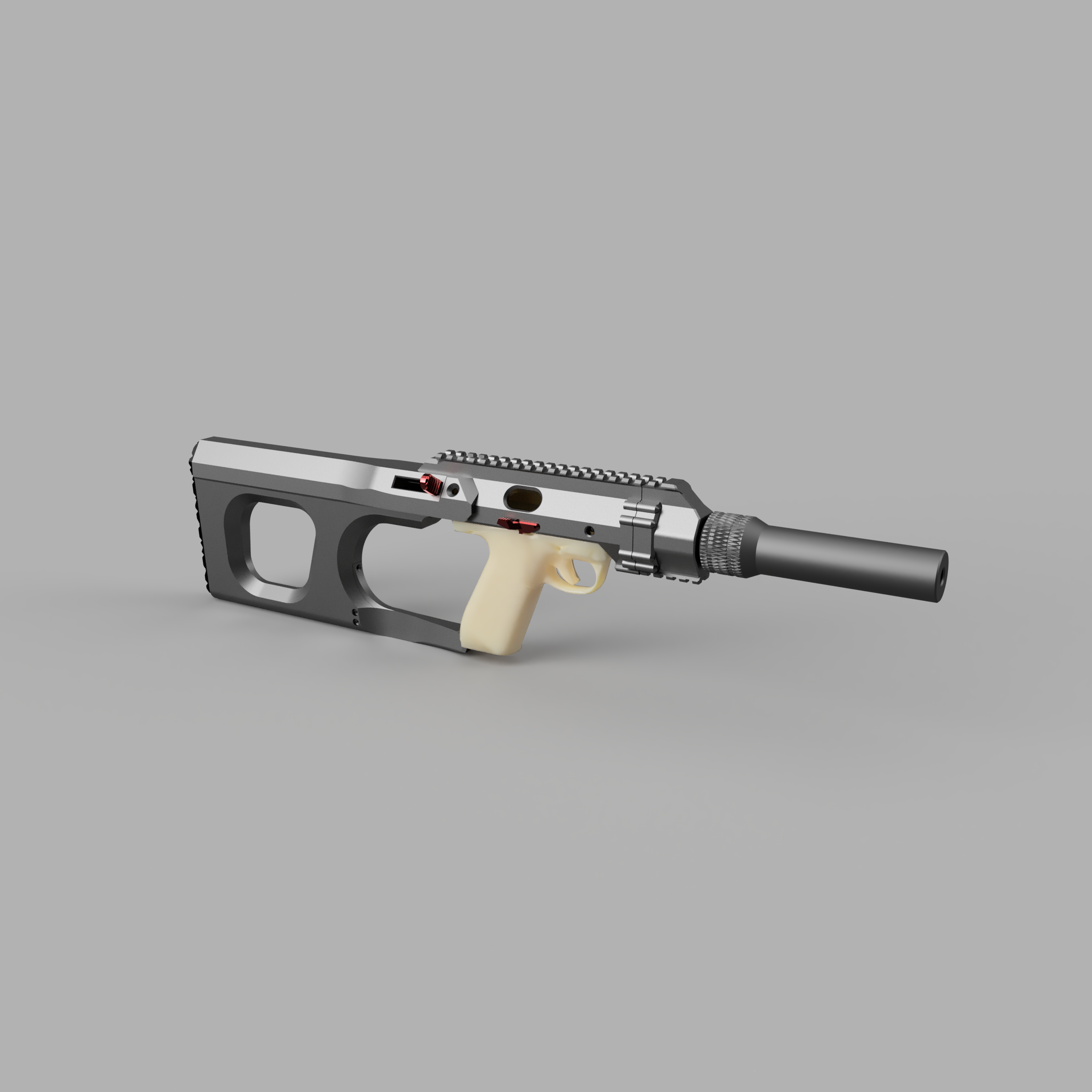

• Handguard (short) for supressor use
• Fluted barrel (long)
• Fluted barrel (medium)
• Barrelstabilizer
• Flashhider
• Mocksupressor

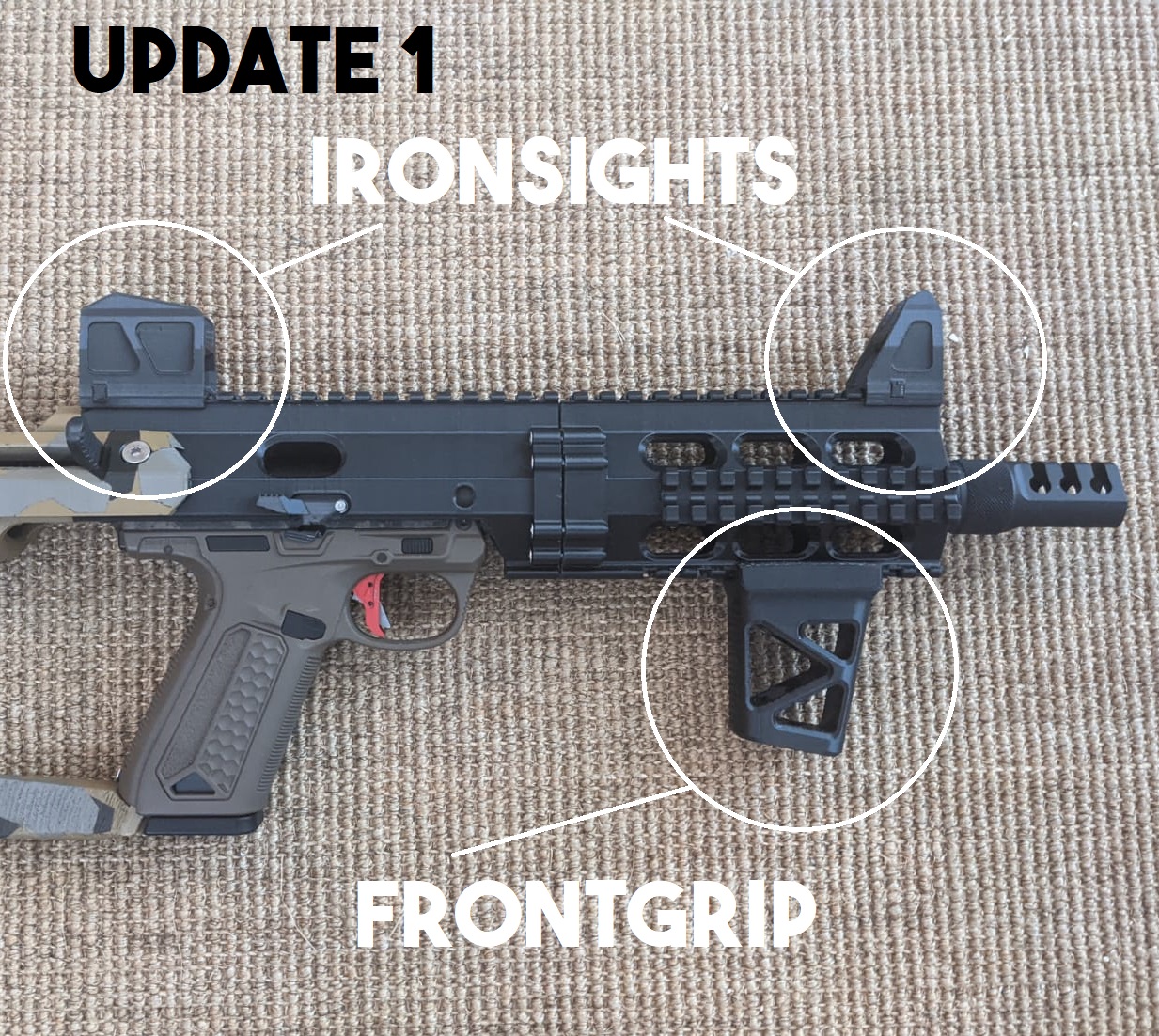

Update 1:

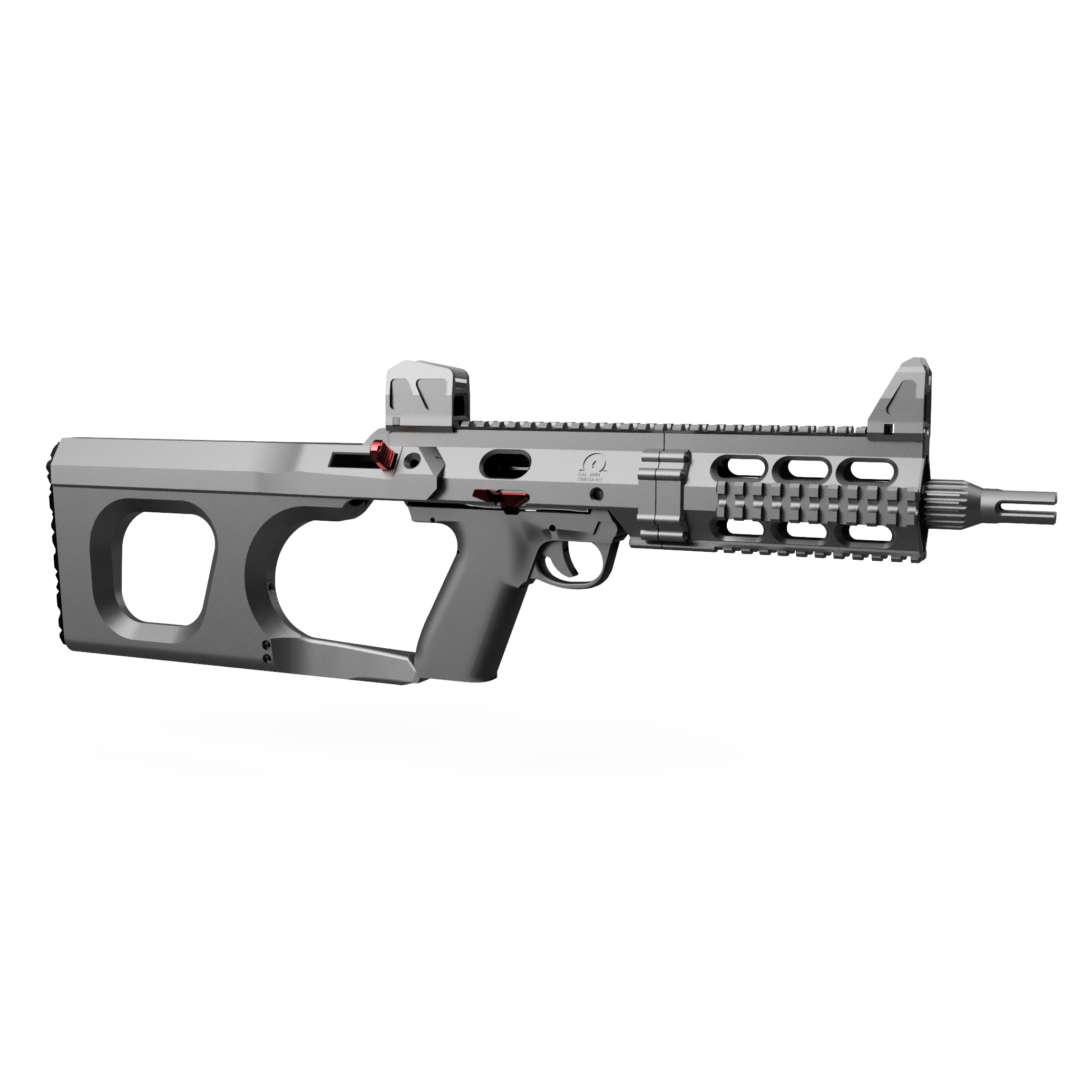

• Ironsights
• Frontgrip
• Improved flashhider

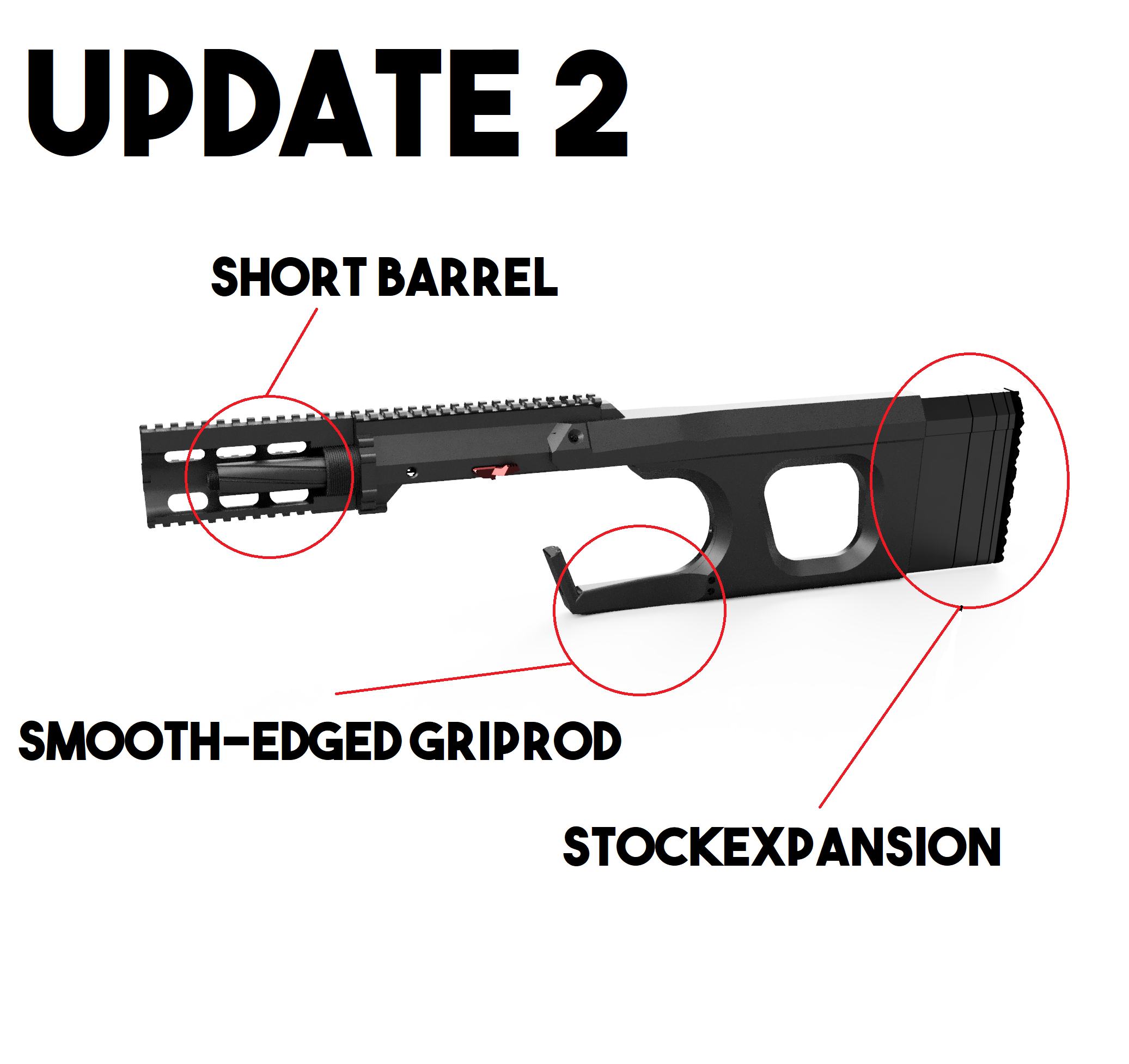

Update 2:

• Short barrel
• Smoother Griprod
• Stockextentions/Spacers

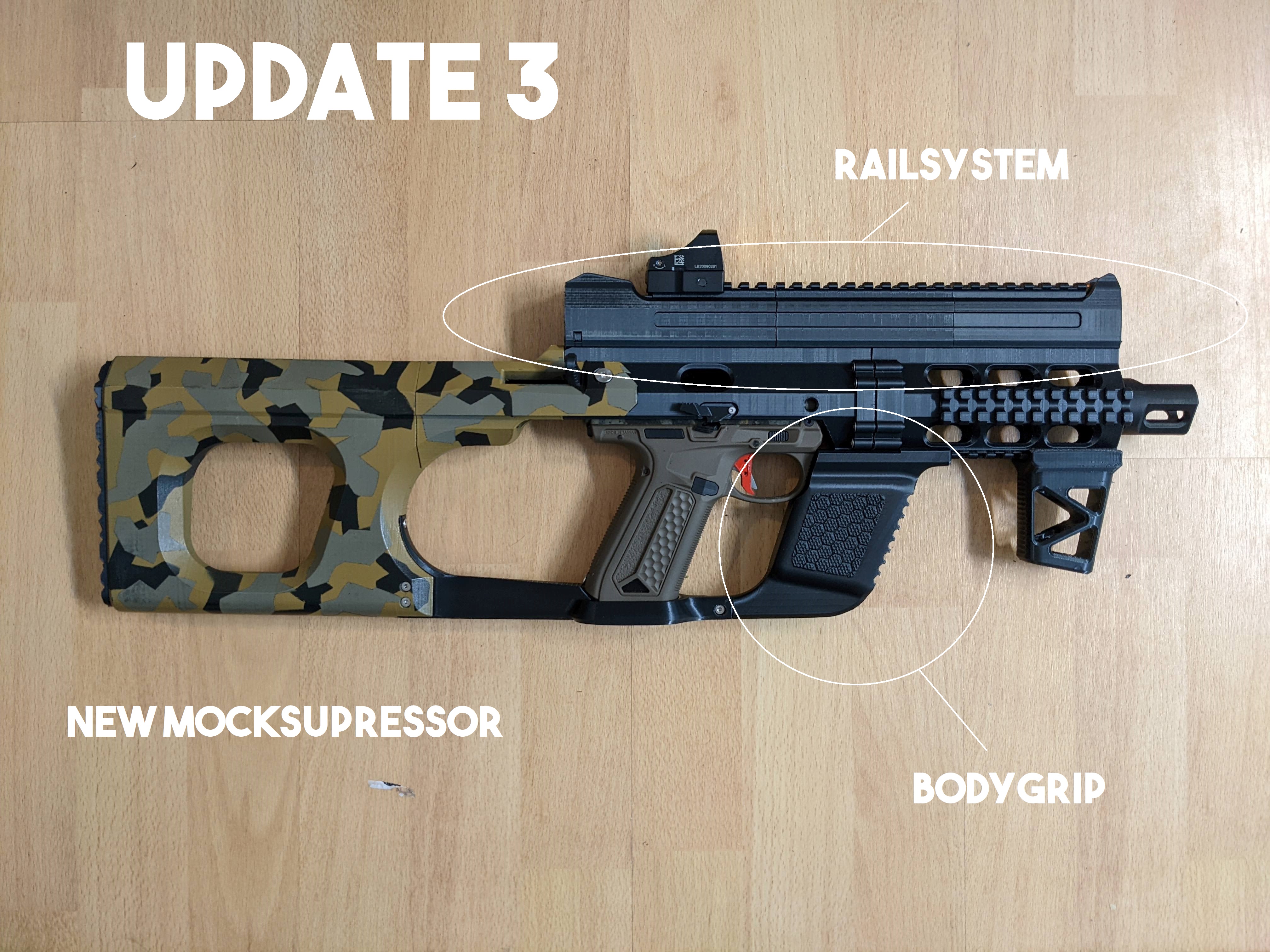

Update 3:

• Railsystem
• Bodygrip
• Mocksupressor variety

For more information about the updates read the update notes!

Parts coming soon:

• More variations of the charginghandle
• More variations of flashhiders

PLEASE BE AWARE OF POSSIBLE RESTRICTIONS ON FABRICATING ANY OF THE LISTED PARTS IN YOUR LOCATION!

Please read the printsettings for more information

I will add variation of parts in the future so keep an eye out for file updates.

E-Mail me with questions, suggestions or if you need help with the files!

bfmic3d@gmail.com

Assembly Video:

https://youtu.be/a-aQ11IGGas

Important note:

Due to the nature of downlaodable content, I do not offer a refund in the event of an "accidental purchase","redecision" or similar. If you have questions regarding a refund, please check the cults3d refund policy or text the cults3d support. Thank you for understanding.

I recommend printing all the parts with support and extra adhesion settings.

Small parts where I recommend using 100% infill:

• Boltpin
• Boltcatch
• Stabilizer
• Charginghandle

High density components:

The following parts should be printed with at least 70% infill and left in the orientation provided in the files:

• Griprod
• Bolthousing

Low density parts with at least 20% infill:

• Stock
• Barrel
• Buttplate

Other parts where it really is up to you how sturdy you want them to be:

• Handguard (40% infill worked really well for me)
• Supressor
• Flashhider

You will need the following hardware to complete the build:

Countersunk screws:

• 2 M5x20
• 2 M5x16
• 2 M5x12

• 1 M5x8

• 1 M4x12

• 4 M3x20

• 8 M3x16

• 1 M3x12

• 1 M3x10

• 2 M2x8

Nuts:

• 4 M5 (3,7mm width)
• 1 M4 (3,0mm width)
• 2 M3 (2,3mm width)
• 2 M2 (1,6mm width)

Washers:

• 2 M2

Additionally you will need to use 2 M3x8 screws that come with the AAP-01.

I recommend getting a screwkit for this build if you don't already have one.

You will also need a 90 degree angled M5 Hexkey.
