18mm Li-ion Battery Magnetic Connector

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

Hi!

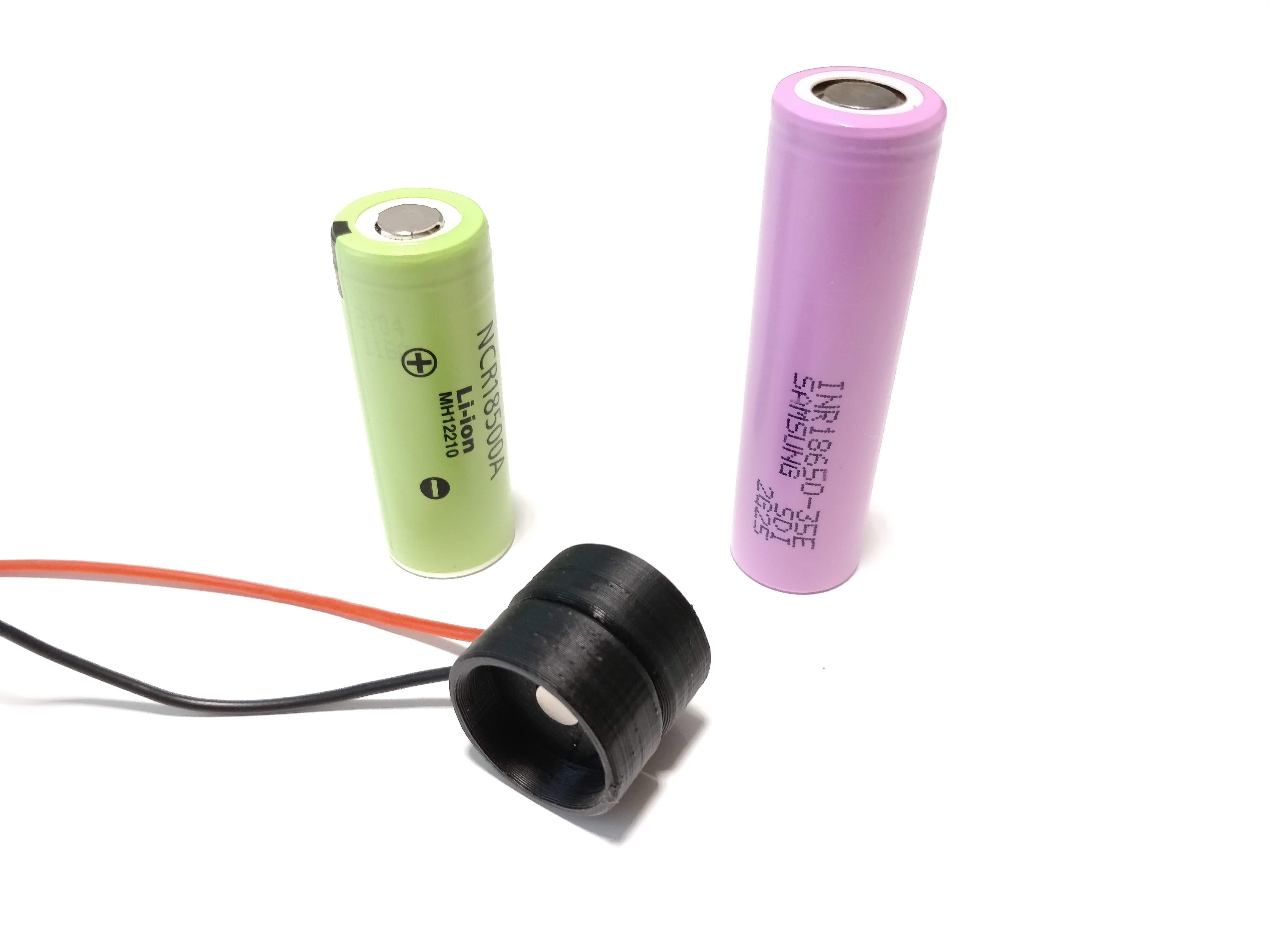

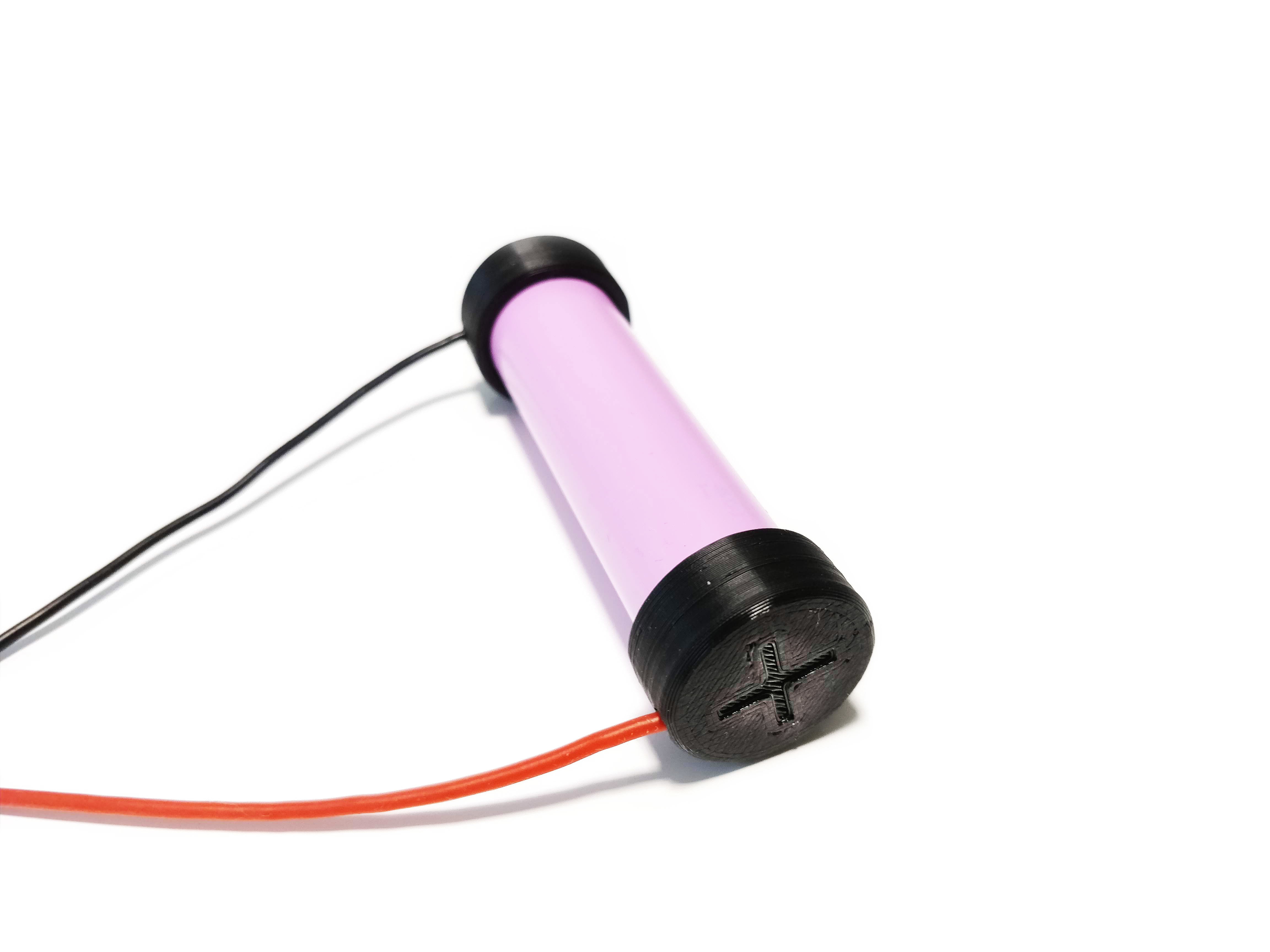

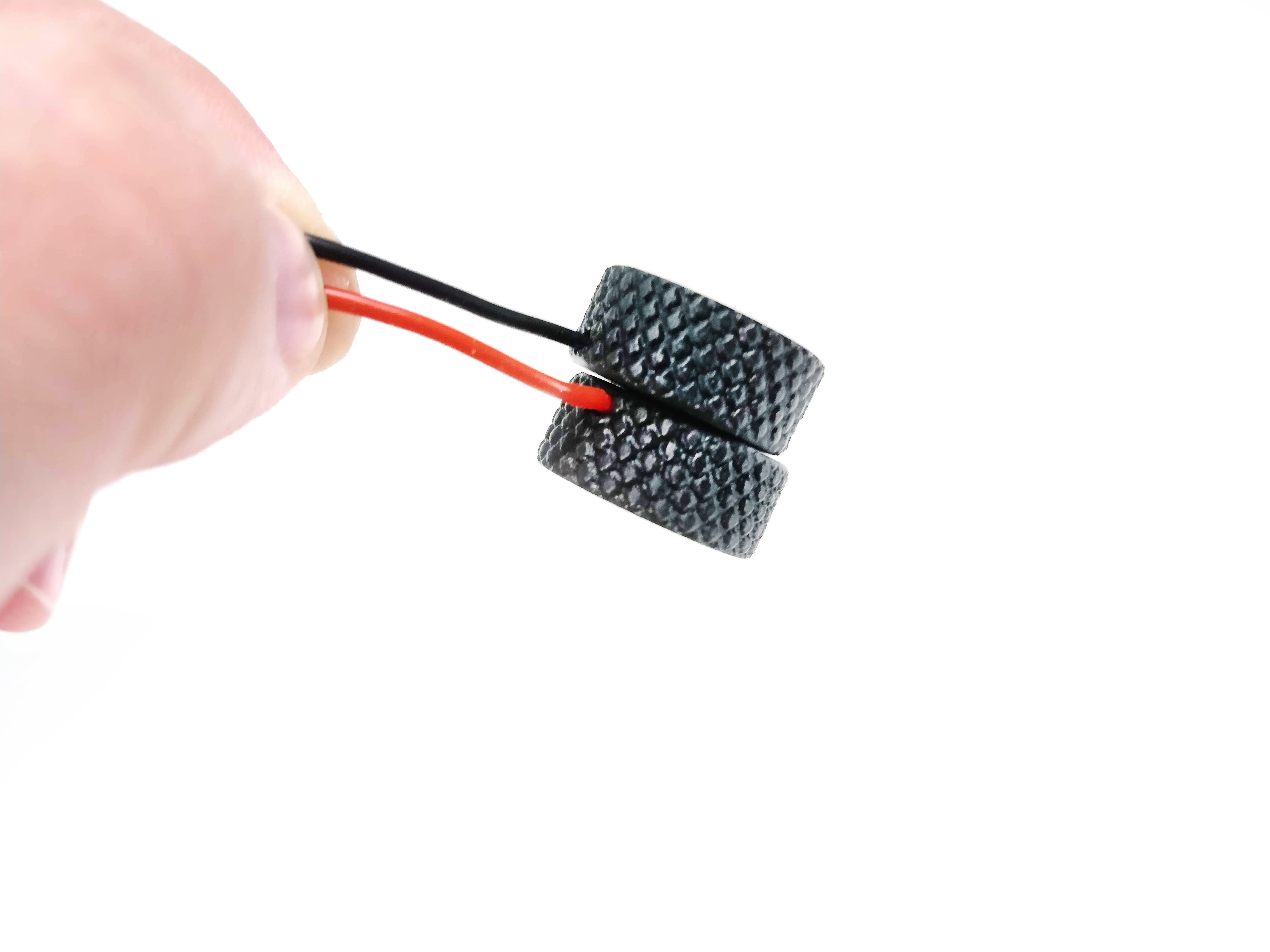

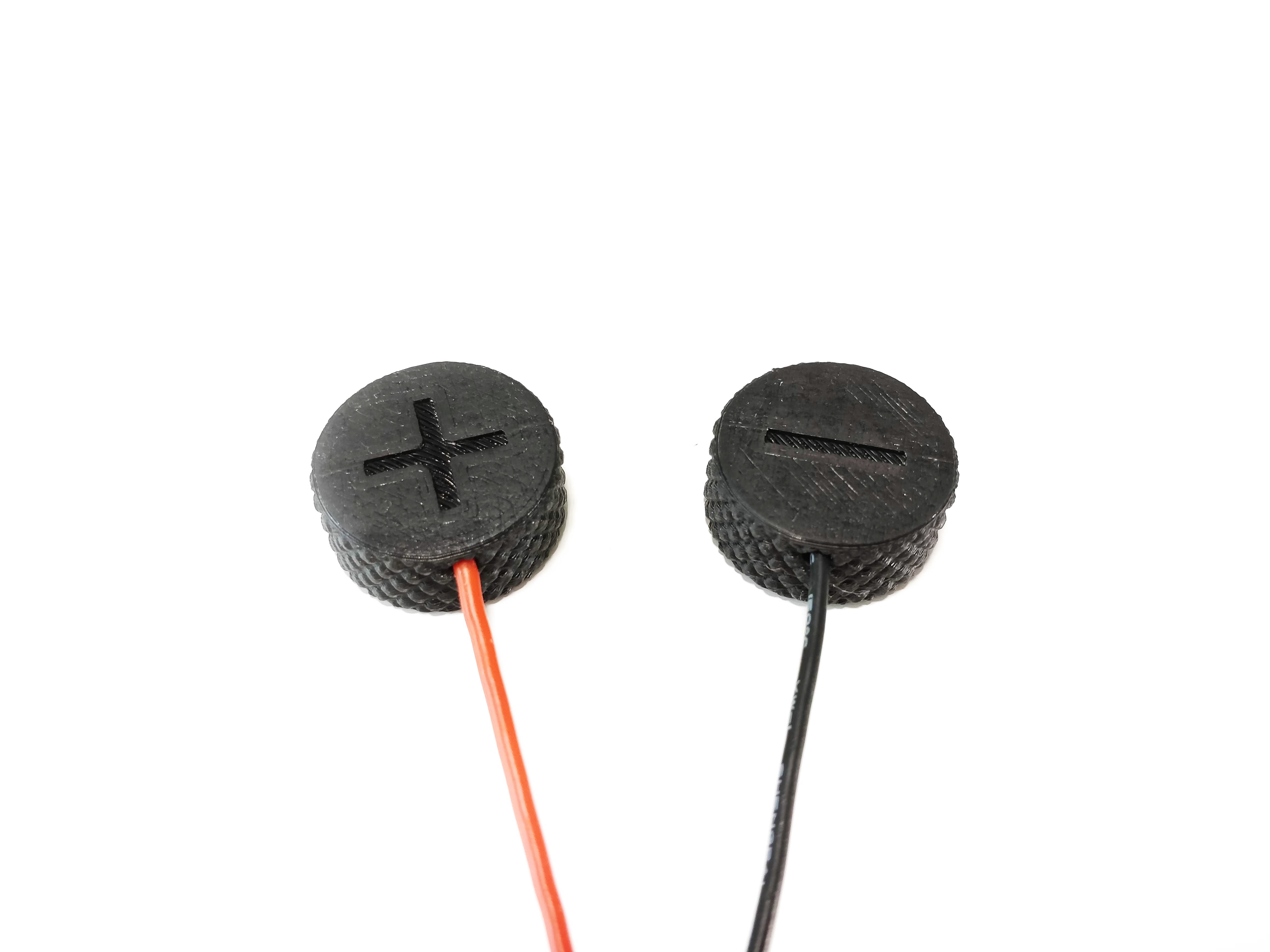

This is a very simple and very usefull thing for 18mm diameter batteries! Universal magnetic
battery connector. Easy to use and due to strong neodym magnets it has safe and good
electrical contact to your battery.

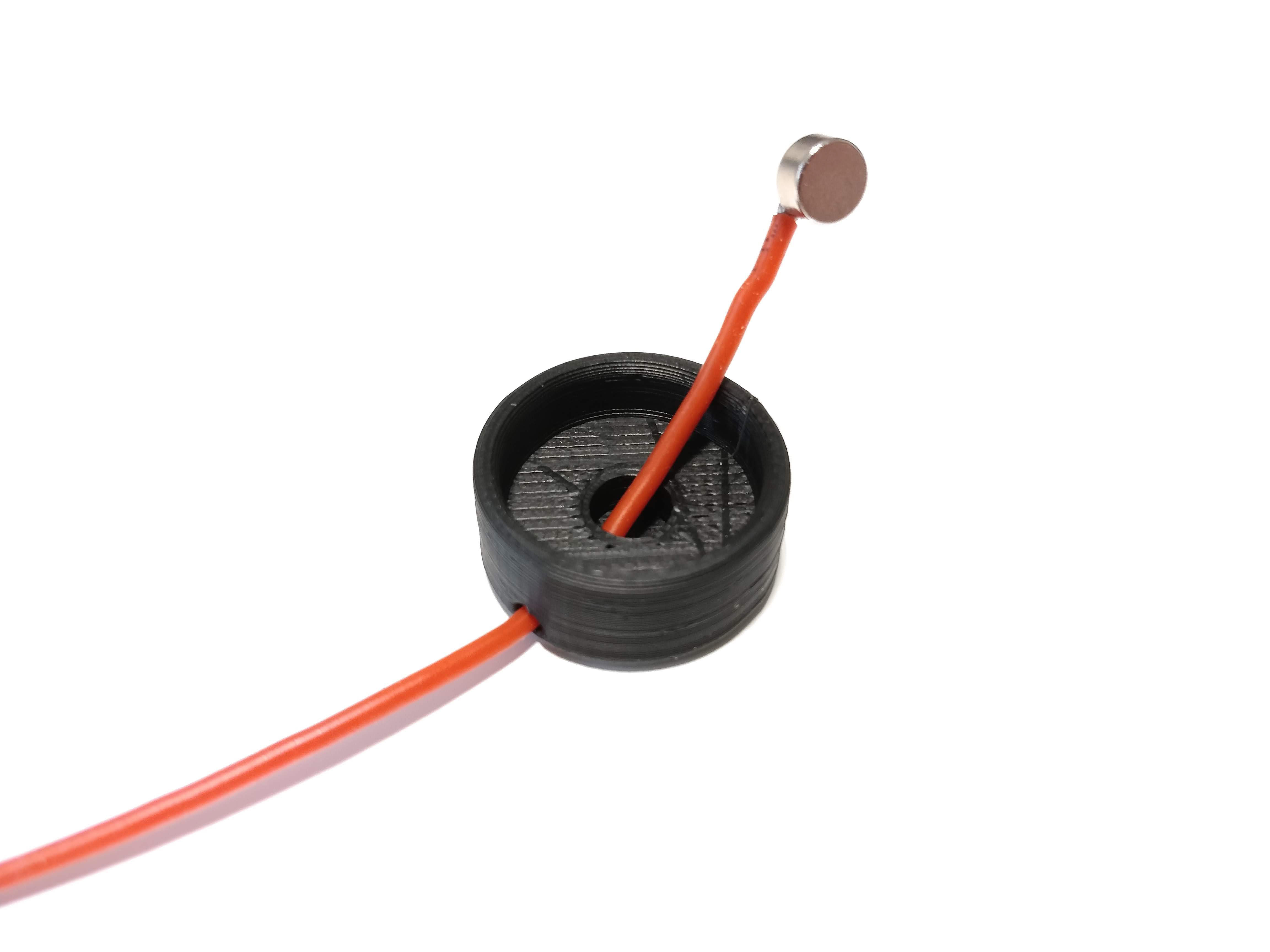

For assembly you will need:

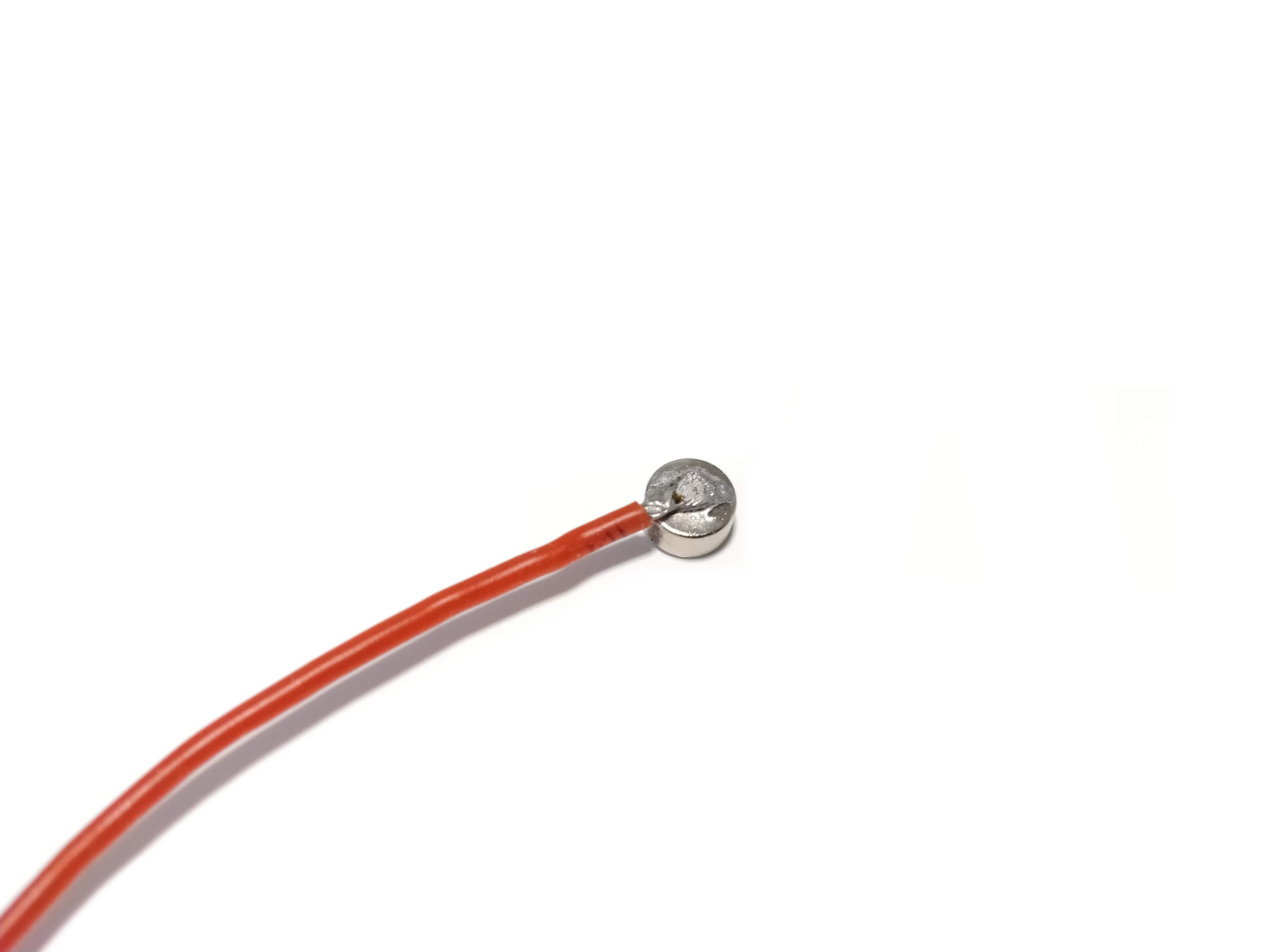

- 2pcs 6mm x 3mm (diameter x thickness) neodym magnets
- 2pcs wires (max 2mm diameter with isolation)

I also added a .step file, so you can edit this design for use with other types of batteries if you want.

Don't be so shy and post your makes! :D
Have fun!

3D printer file information

  • 3D design format: STEP and STL Folder details Close
    • Battery_Connector.step

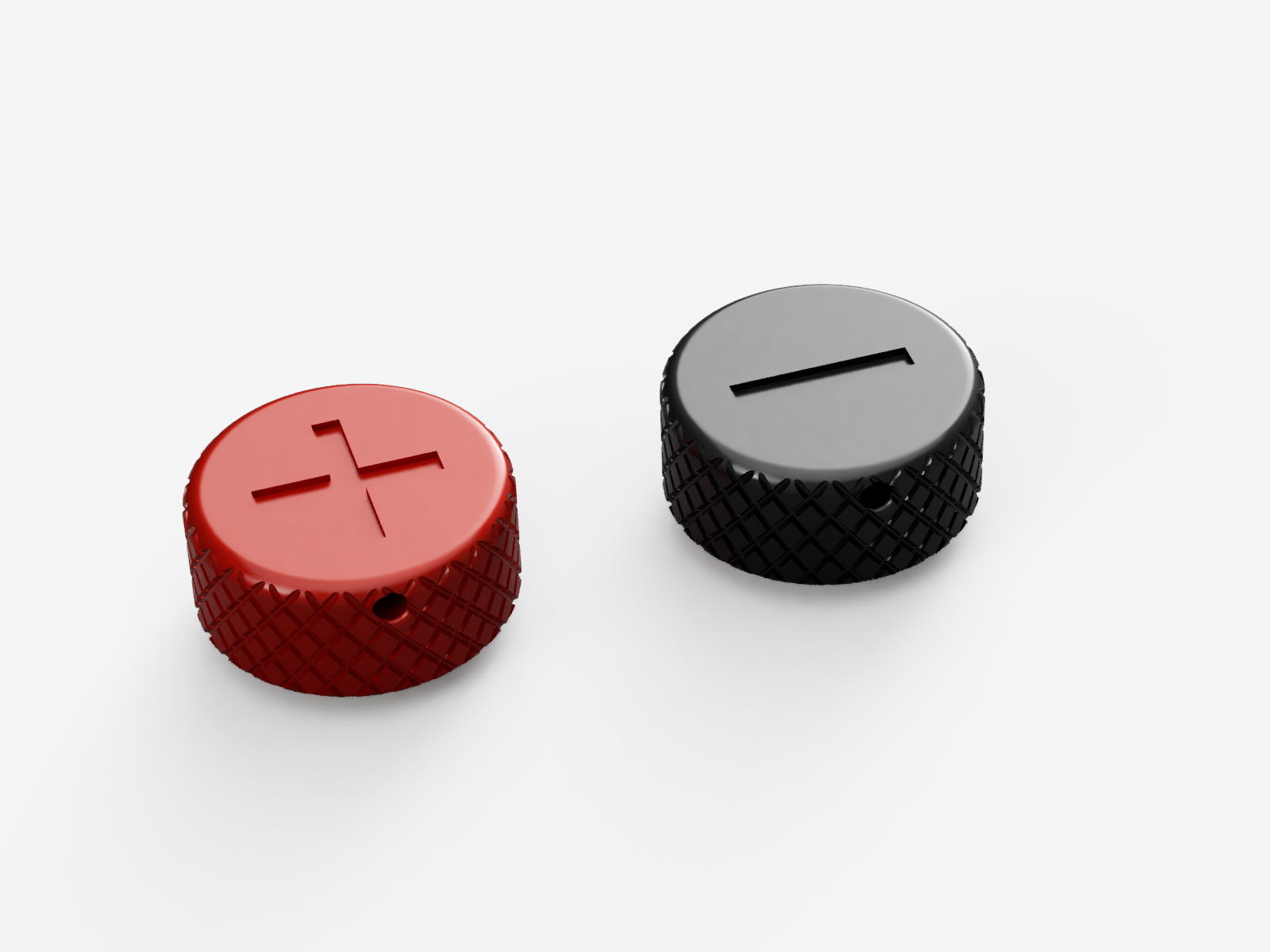

    • Battery_Connector_knurled.step
    • Cap%2B.stl
    • Cap%2B_knurled.stl
    • Cap-.stl
    • Cap-_knurled.stl

    Learn more about the formats

  • Publication date: 2019-11-28 at 13:51
    ?
    Published to Thingiverse on: 2019-05-08 at 17:58

License

CC BY SA
