Multifunctional Curve Board

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 957 views
  • 3 likes
  • 25 downloads

3D model description

Please check out the pictures which explain everything.

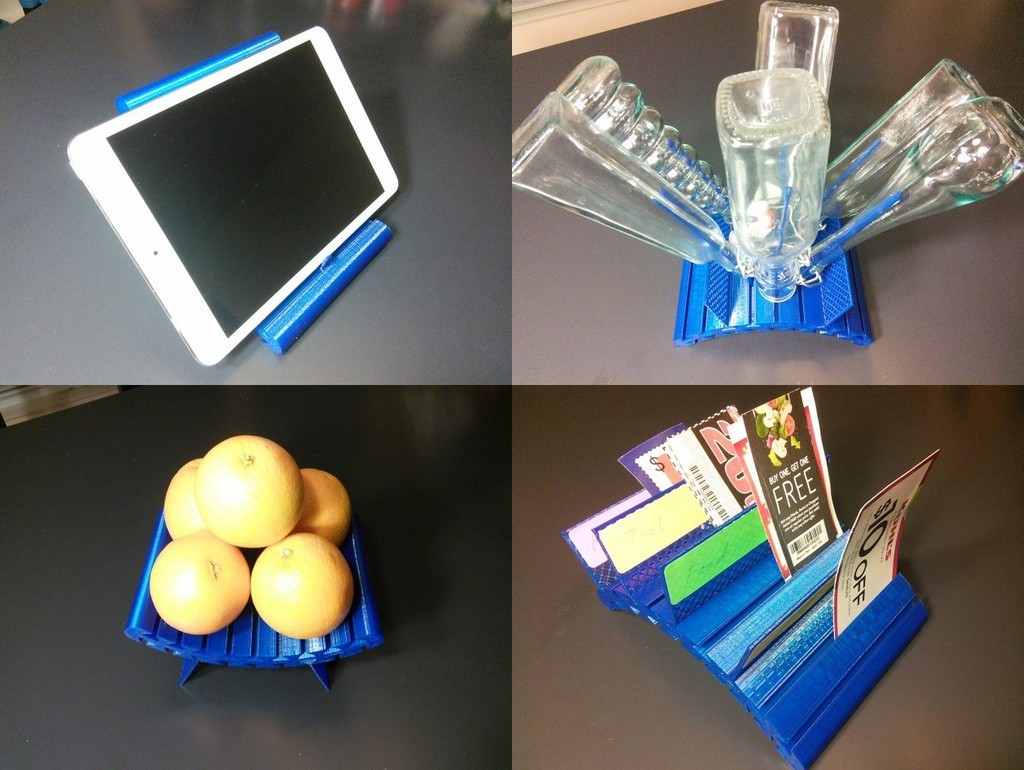

The curve board can be used as:

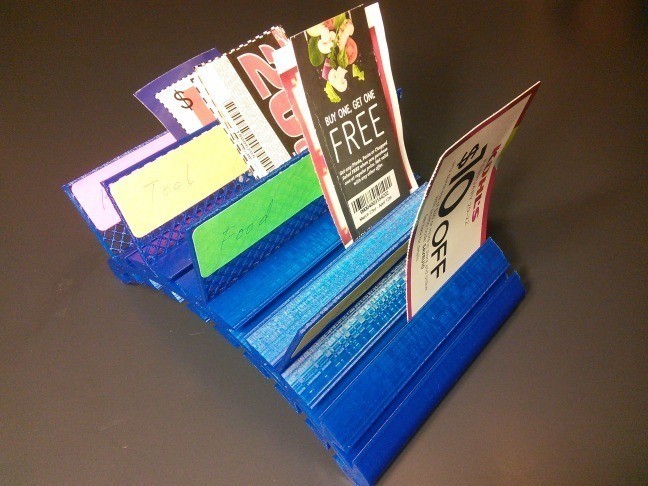

Paper(e,g, coupons, letters. bills...) Organizer

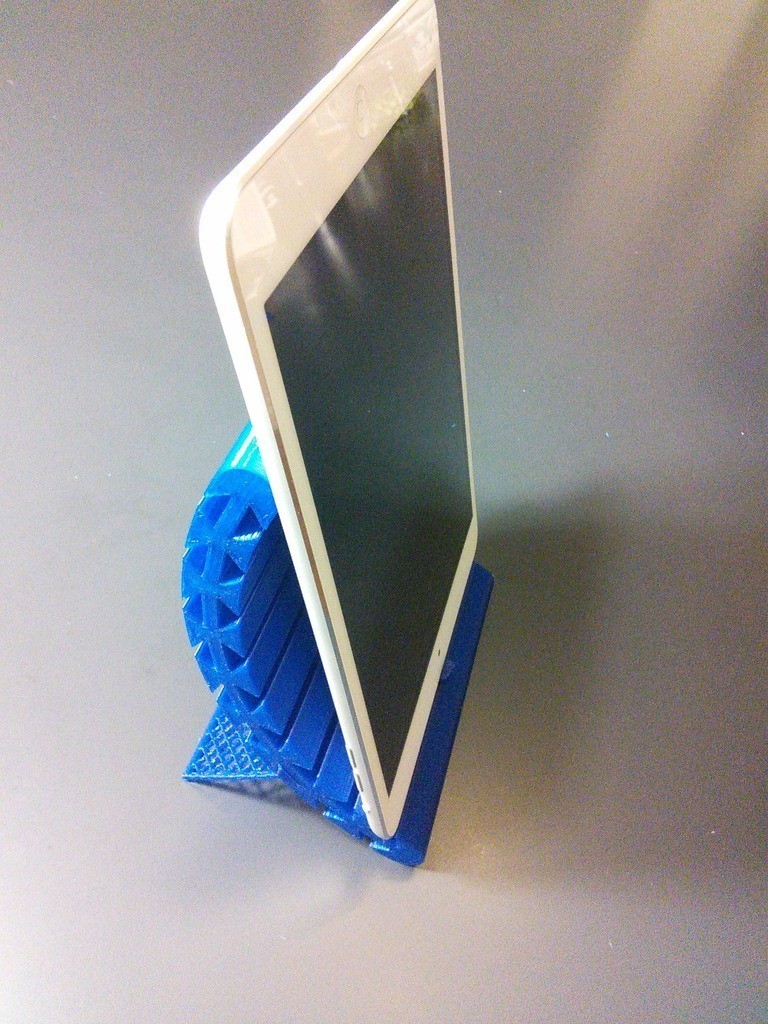

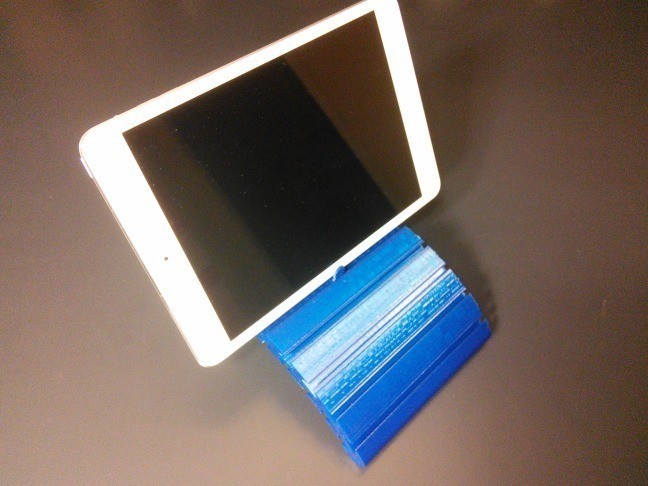

Angle Adjustable Tablet/Phone Stand

Bottle Dryer

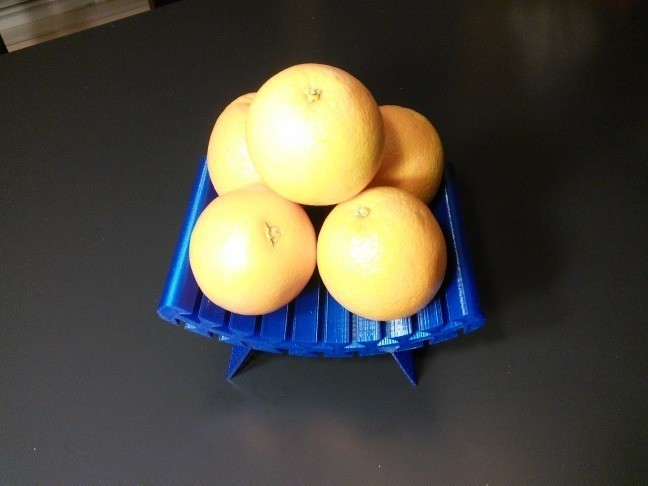

Fruit Rack

Any ideas and recommendations are welcome!

3D printing settings

None of the models requires support to print.

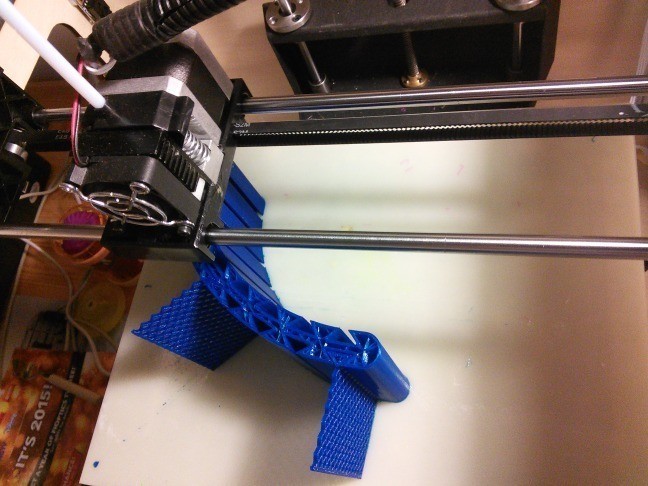

Those in the pictures were prints with the following parameters


Fill: 10%
Plastic: 1.75mm PLA
Layer Height: 0.27mm
Number of shells: 1
Feedrate: 80 mm/s
Travel Feedrate: 56 mm/s

What to print?

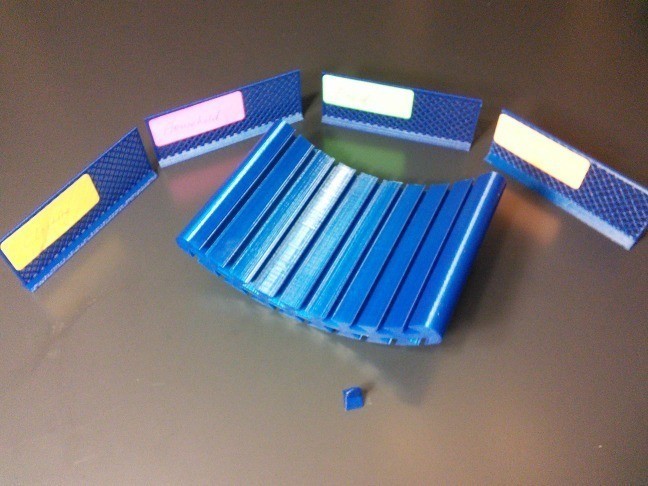

Coupon Organizer needs
1 base_100x120.stl
0+ divider_45x120_diamond.stl

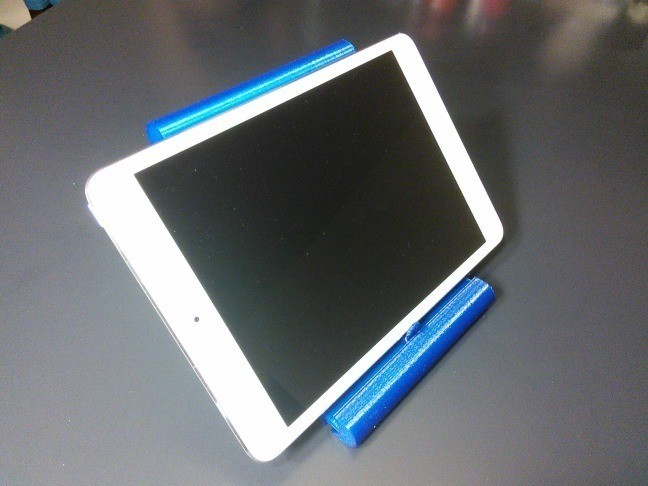

Tablet Stand needs
1 base_100x120.stl
1 divider_45x120_diamond.stl
1 stop.stl


Bottle Dryer needs
1 base_100x120.stl
2 divider_45x120_diamond.stl
1+ 3_sticks_8x120mm.stl



Fruit Rack
1 base_100x120.stl
2 divider_45x120_diamond.stl


STL files Explanation:


base_100x120.stl


a single base with radius=100mm, width=120mm


base_100x120_with_3_dividers.stl


a single base + 3 dividers


divider_45x120_diamond.stl


a divider with height=45mm, width=120mm.


stop.stl

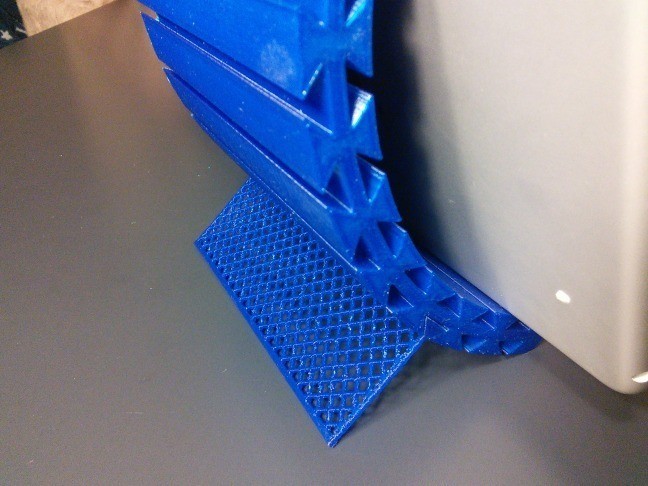

a stop used to prevent tablet from slipping


3_sticks_8x120mm.stl


three sticks for Bottle Dryer


connector_with_cover_24mm_height.stl


a short covered connector for slotting two bases.


inner_outer_connectors_24mm_height.stl


short uncovered connectors


inner_outer_connectors_120mm_height.stl


full length uncovered connectors


2_connected_bases.stl


a demonstration of how 2 connected bases look like.
