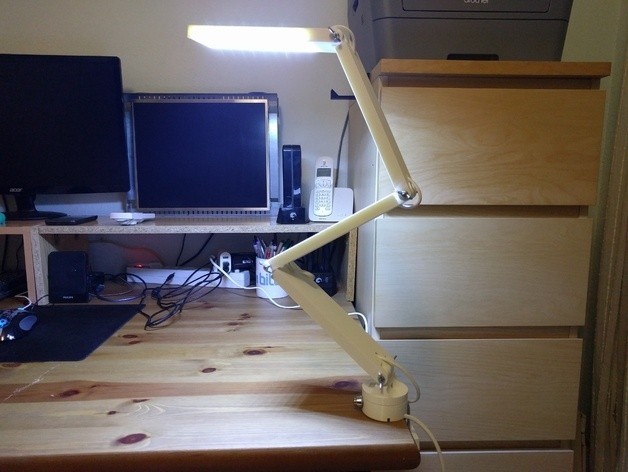

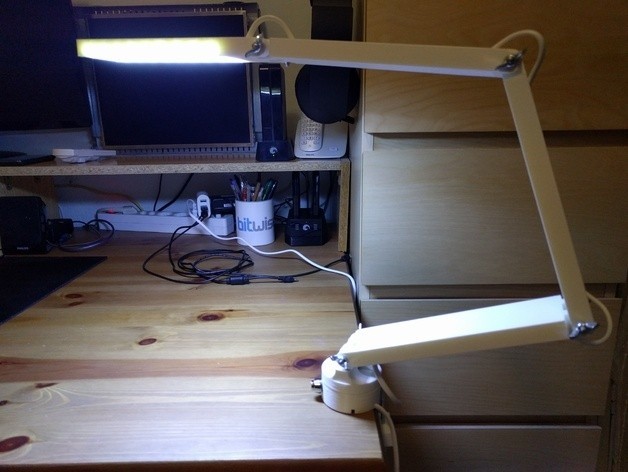

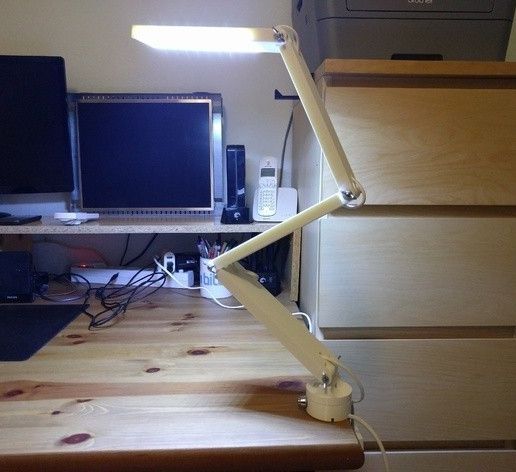

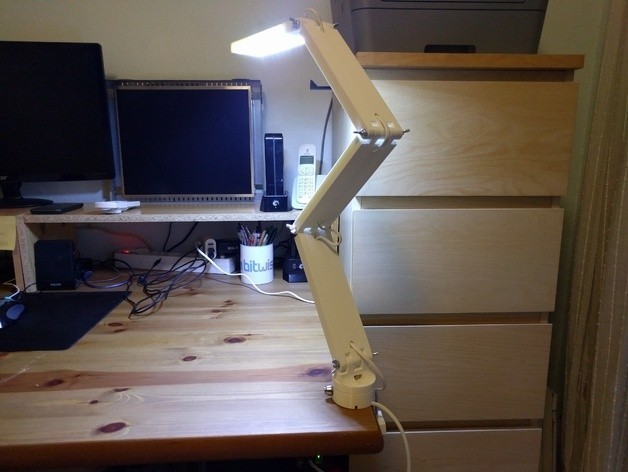

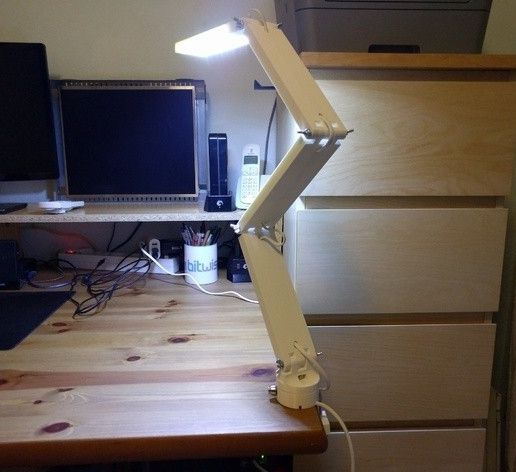

Modular flexo led lamp

3D model description

Printable modular flexo led lamp designed with openscad.

Dimensions (mm):

Arm 55x210x15.

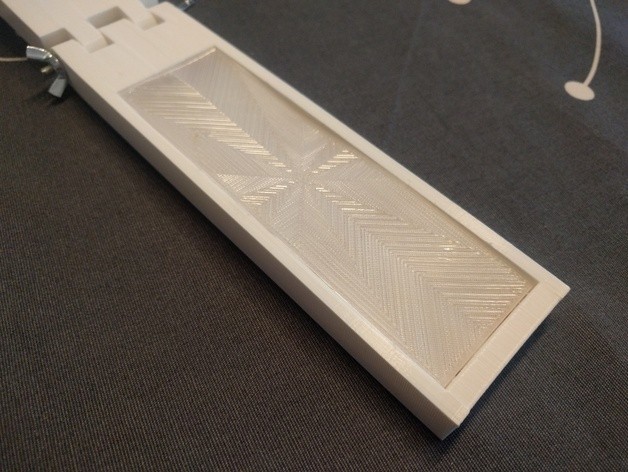

Lamp 55x200x15 (150x45 led usable area)

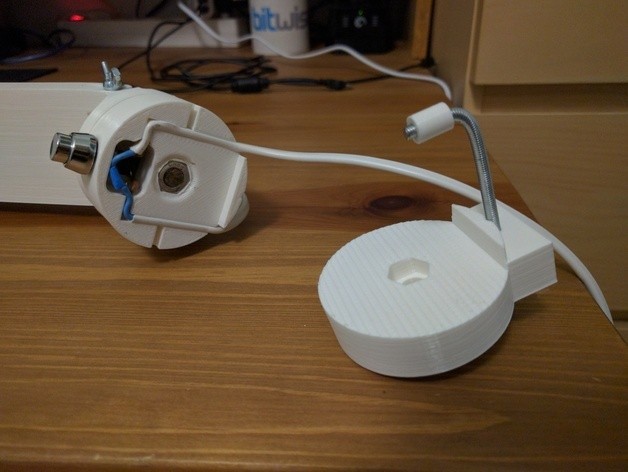

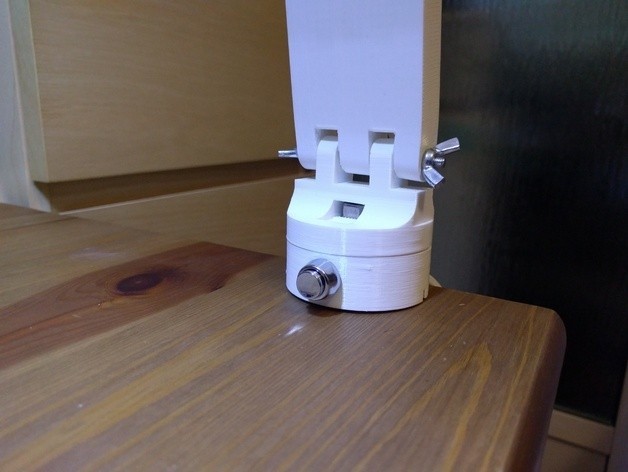

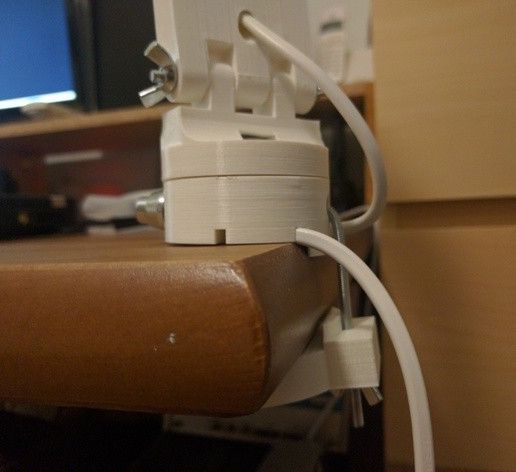

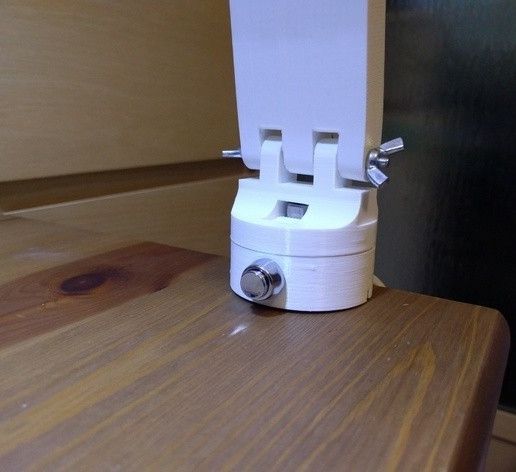

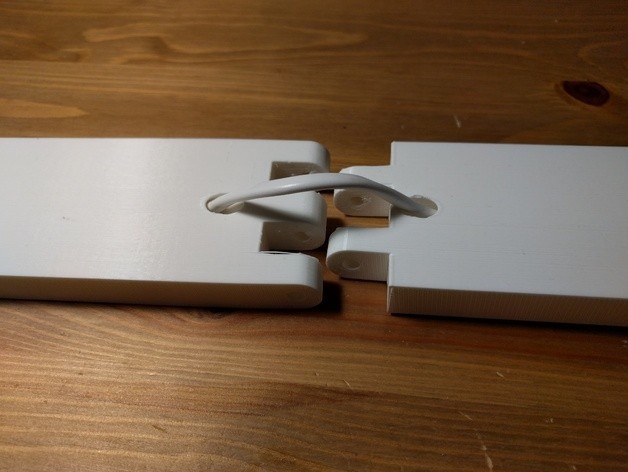

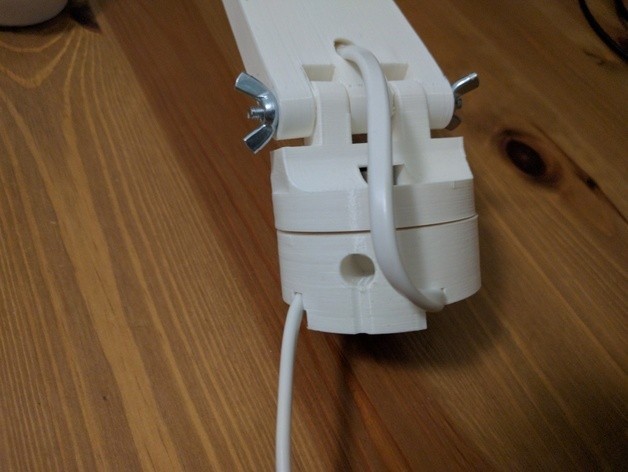

Use M4 threaded rod with some wing nut to connect each part and 4mm or 8mm threaded rod to connect clamp and base pieces. I used a 22mm bearing to allow easy movement of the clamp and flexo arm.

Sources included for modifications and enhancements.

Modify, use, share and enjoy it!!

3D printing settings

Printer Brand:
RepRap

Printer:
steel i3

Supports:
Yes

Resolution:
0.2

Infill:
40%

  • 3D file format: STL and ZIP

Tags

Creator

License

CC BY NC SA


Best sellers of the category Home


Add a comment

One comment

Hi friend, nice design, can you tell me LED model you use? Thnks.
