The Product:

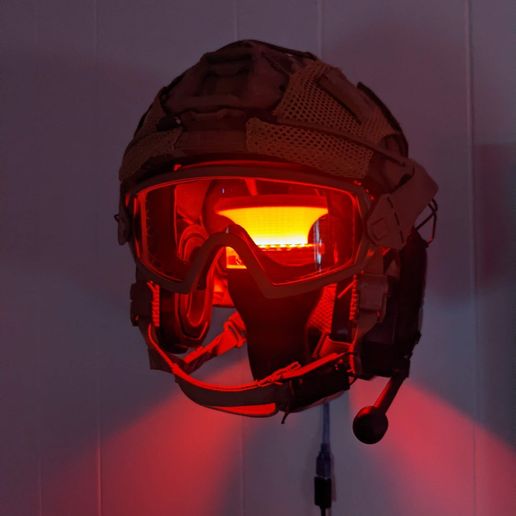

This is a custom 3D-Printed wall sconce which also serves as a unique helmet display stand. Uniquely showcase your headgear when not in use, be it tactical, sport, or collectible! A great addition to your home office, gaming set-up, or even garage.

Specifications:
Helmet height position can be adjusted roughly 1.75" to accommodate various examples of headgear.

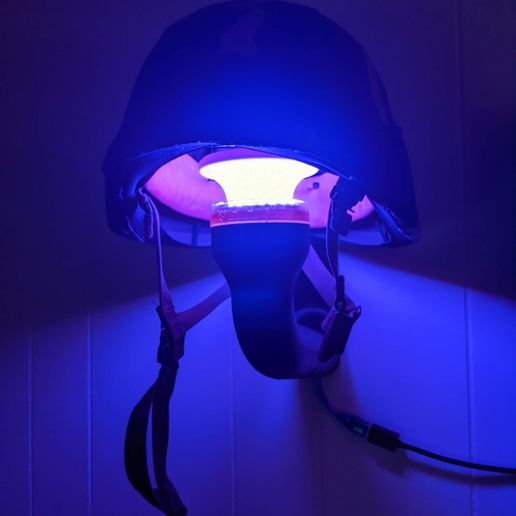

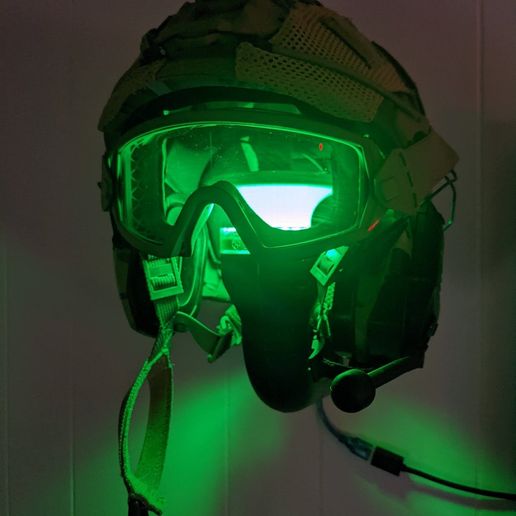

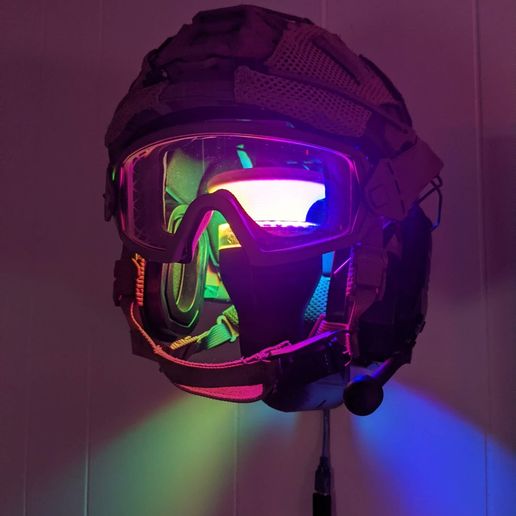

24 individually addressable RGB LEDs light up in 11 different modes/colors.
Change modes with the discrete momentary push-button on the back.
Lighting function is controlled by an Arduino Nano microcontroller.
Powered by a 5V USB cord, the unit uses very little power (19mA). Yes! You can power this from a PC!
Recommend Printing in PLA+ for strength
Recommend Resin printing the LED cup for lighting, but can be FDM printed as well.
Lamp height (retracted) is 9-7/8"
Base Width is 2"
Diffuser Diameter is 3.9" (100mm)

Product Disclaimer:
You will need to know how to solder wires and load an Arduino program on to an Arduino Nano board. The Arduino program, wiring diagram, and required hardware details are all included.

Ideally, the LED cup is to be resin printed in clear, but can be FDM printed if needed.

Purchase Parts:
1. CJMCU 24 Bit WS2812 5050 RGB LED
https://usa.banggood.com/CJMCU-24-Bit-WS2812-5050-RGB-LED-Driver-Development-Board-p-974188.html?rmmds=myorder&cur_warehouse=CN
2. Arduino Nano Board
https://www.amazon.com/Deegoo-ATmega328P-Microcontroller-Board-Arduino/dp/B07R9VWD39/ref=asc_df_B07R9VWD39/?tag=hyprod-20&linkCode=df0&hvadid=459728334703&hvpos=&hvnetw=g&hvrand=8956249749825360537&hvpone=&hvptwo=&hvqmt=&hvdev=c&hvdvcmdl=&hvlocint=&hvlocphy=9017438&hvtargid=pla-945070251730&psc=1
3. Momentary Push Button
https://www.amazon.com/gp/product/B08B1NN65J/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
4. M4 x 20mm SHCS
https://www.amazon.com/iExcell-Socket-Screws-Grade-Finish/dp/B08B1T7K14/ref=sr_1_11?keywords=m4+20mm&qid=1666047549&qu=eyJxc2MiOiI0LjkwIiwicXNhIjoiNC41MSIsInFzcCI6IjQuMDkifQ%3D%3D&sr=8-11
5. M4 x 0.7mm Nut
https://www.amazon.com/Uxcell-a16033100ux0565-Carbon-Steel-Hexagon/dp/B01HGIY1N0/ref=sr_1_3?crid=3NS73QYLGYQZT&keywords=m4+nut&qid=1666047654&qu=eyJxc2MiOiI0LjU5IiwicXNhIjoiMy44OCIsInFzcCI6IjMuODgifQ%3D%3D&sprefix=m4+nut%2Caps%2C90&sr=8-3
6. #6 Screws to mount to your wall
7. 18 AWG Wire

3D printing settings

Settings in documentation

Categories

All categories › Home › Office
