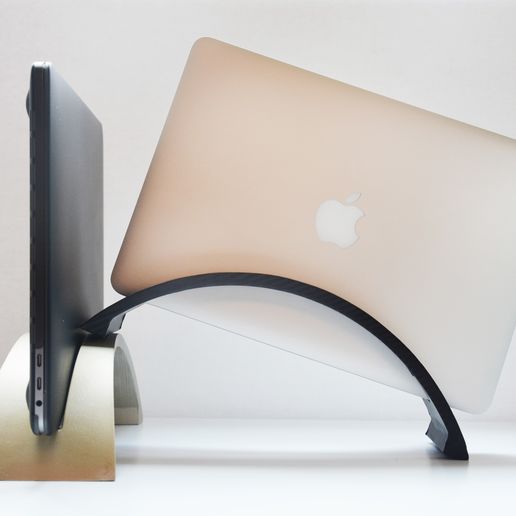

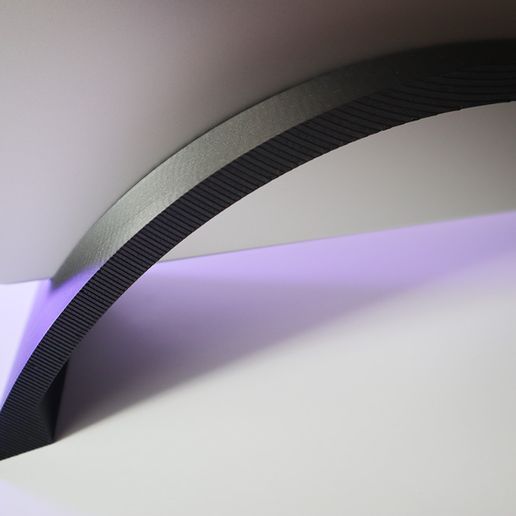

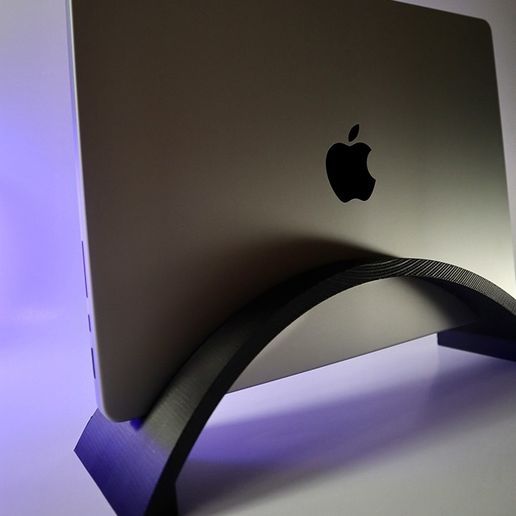

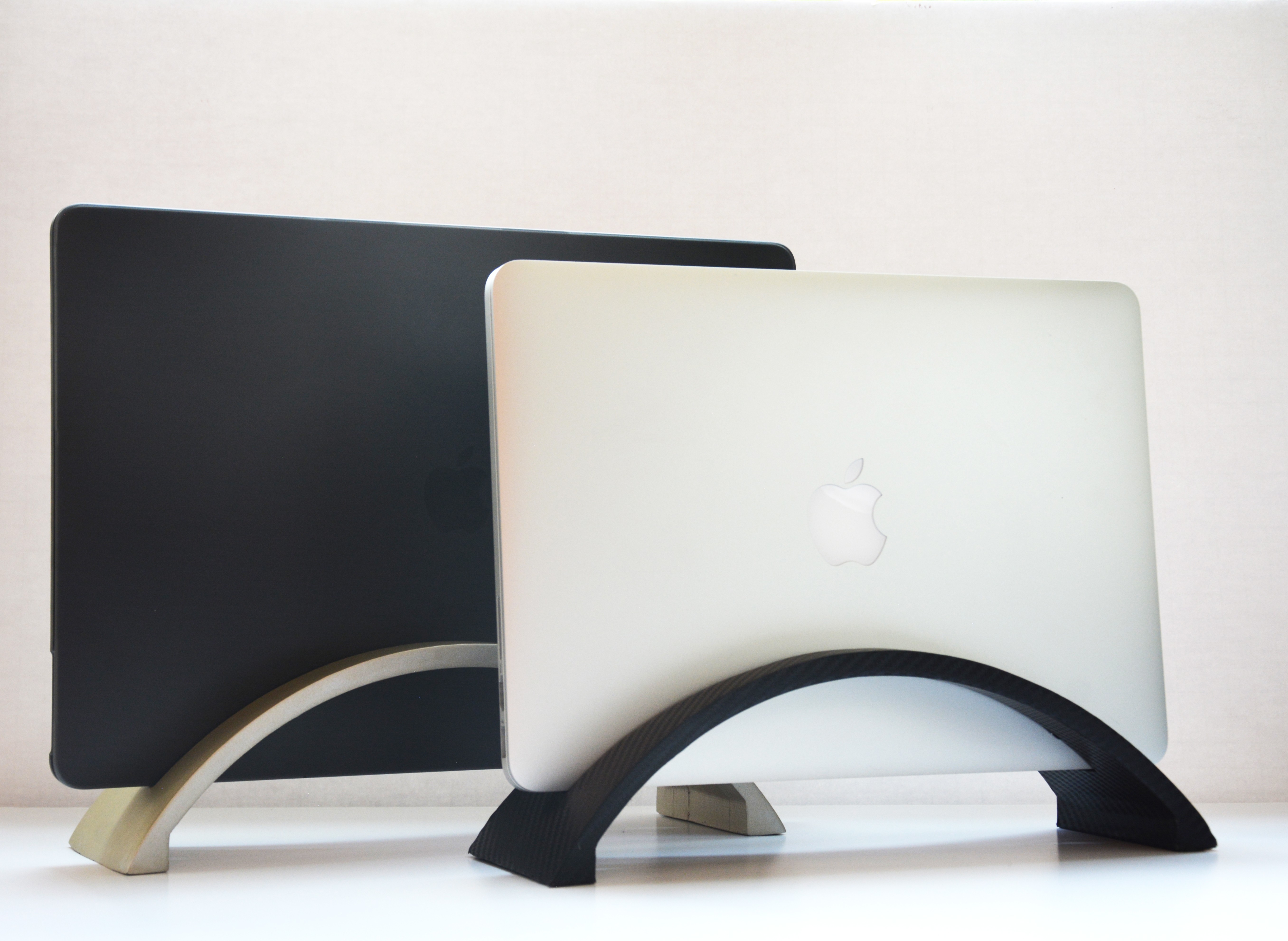

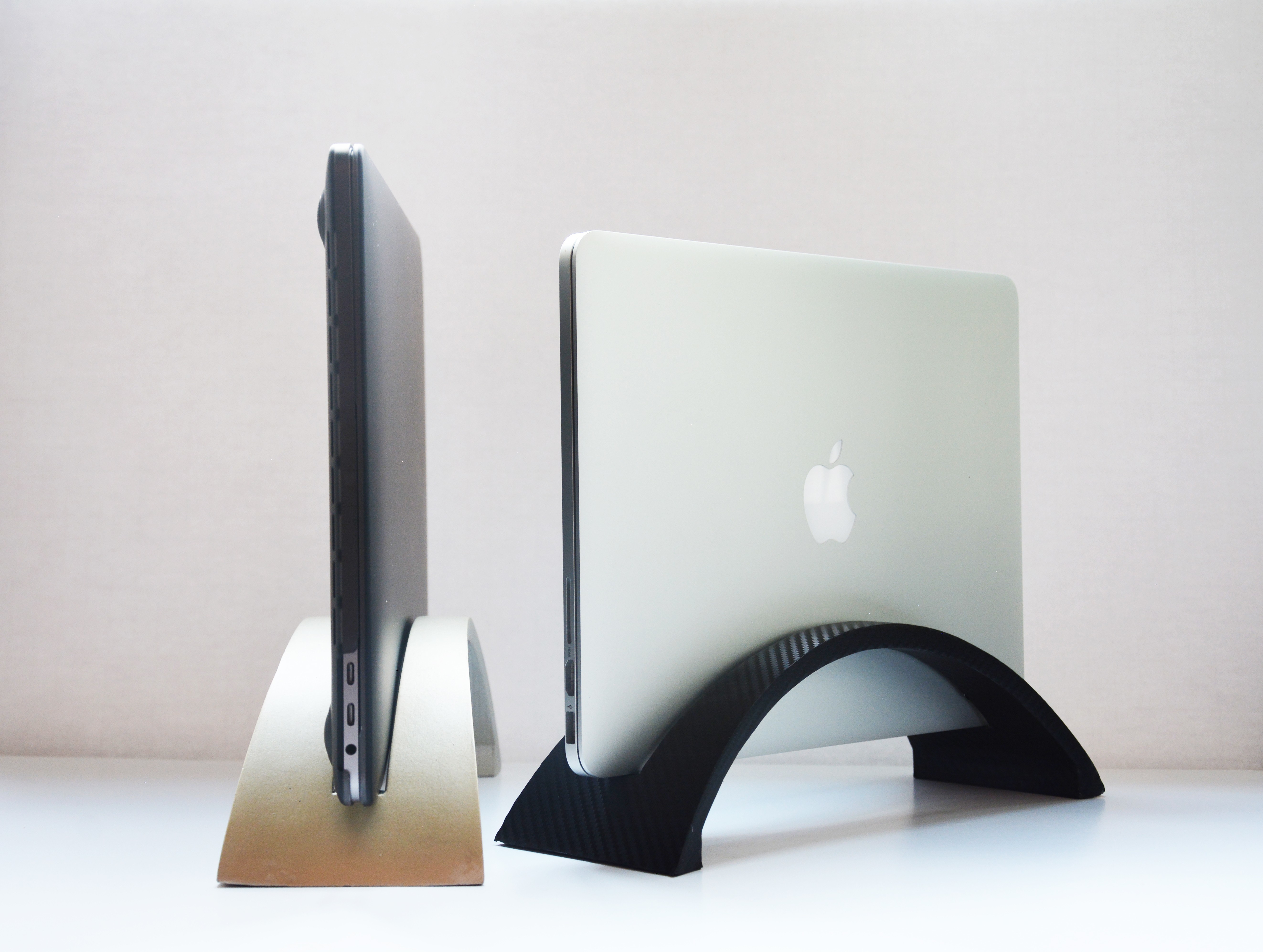

The Infinity Laptop Arc is part of my Infinity Series of office/desk accessories (Headphone Stand and Phone Stand are the other 2 designs). This design is intended to be simple and elegant.
Current variations include:
2012 Macbook Pro
2014 Macbook Pro
2016/2017 Macbook Pro (variants with and without shell.
Razer Blade Stealth.
If you would like a custom width, please contact me and I will create you a custom file. If you are unsure are using a case please use some software tool to measure the width before printing.
This is a challenging print. I have tried several orientations and none are really ideal. I typically print this upside down to prevent too much warp in the material (vs. laying on its side). I print at a higher infill % to increase weight and sturdiness. This stand is quite large and barely fits in one piece on the large Taz 5 bed so it will likely need to be split into 2 parts.
Visit my website to see more designs and work I have done. www.adylinn.com
Files included: Print and Finishing Info (.txt and PDF) and License (PDF)
Recommended Print Settings:
Filament choice is not important (PLA, ABS, HIPS, PETG etc all options, however, I would avoid material that is prone to warping or shrinking like ABS).
Use recommended temperature settings for filament chosen (~210 / 70 PLA, ~240 / 110 ABS).
Support required- laptop slot and overhangs.
Infill - 50-70% (stand is lightweight so extra infill helps increase weight)
Layer Height - 0.1 - 0.3mm
Speed - 50-80 mm/s or whatever you are comfortable with.
Orientation - this is a very tricky print, I have had success on it's side (your slicer should load in this position) as well as upside down.Due to the size you may need to print it at roughly 45 degree angle.
Material usage - 227g / 33.34m build and support material.
Print time - depends on slicer settings but on average I would estimate 20 hours.
