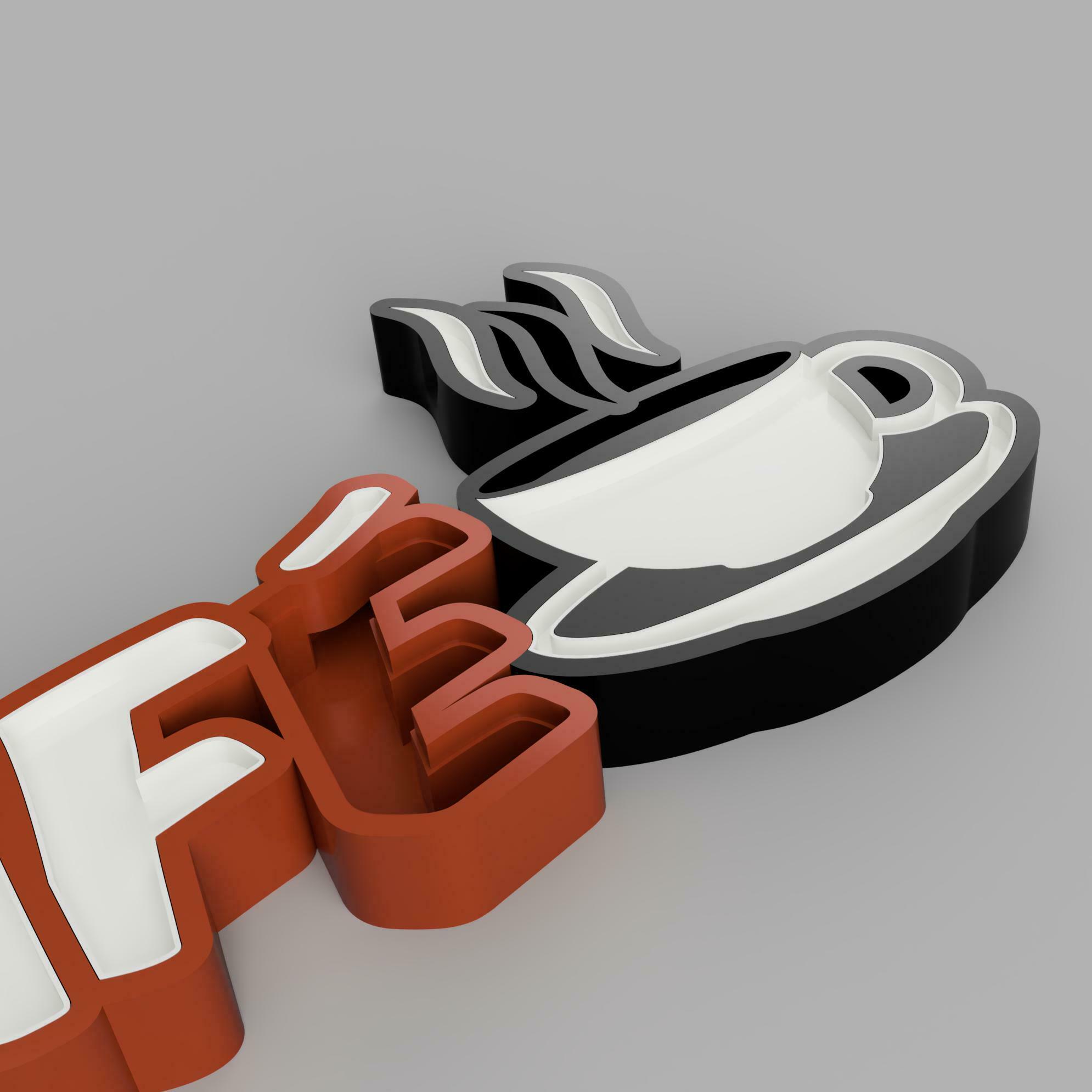

CAFÉ & CUP - LED LAMP WITH NAME (NAMELED)
- 2.5k views
- 15 likes
- 14 downloads
- 1 make
3D model description

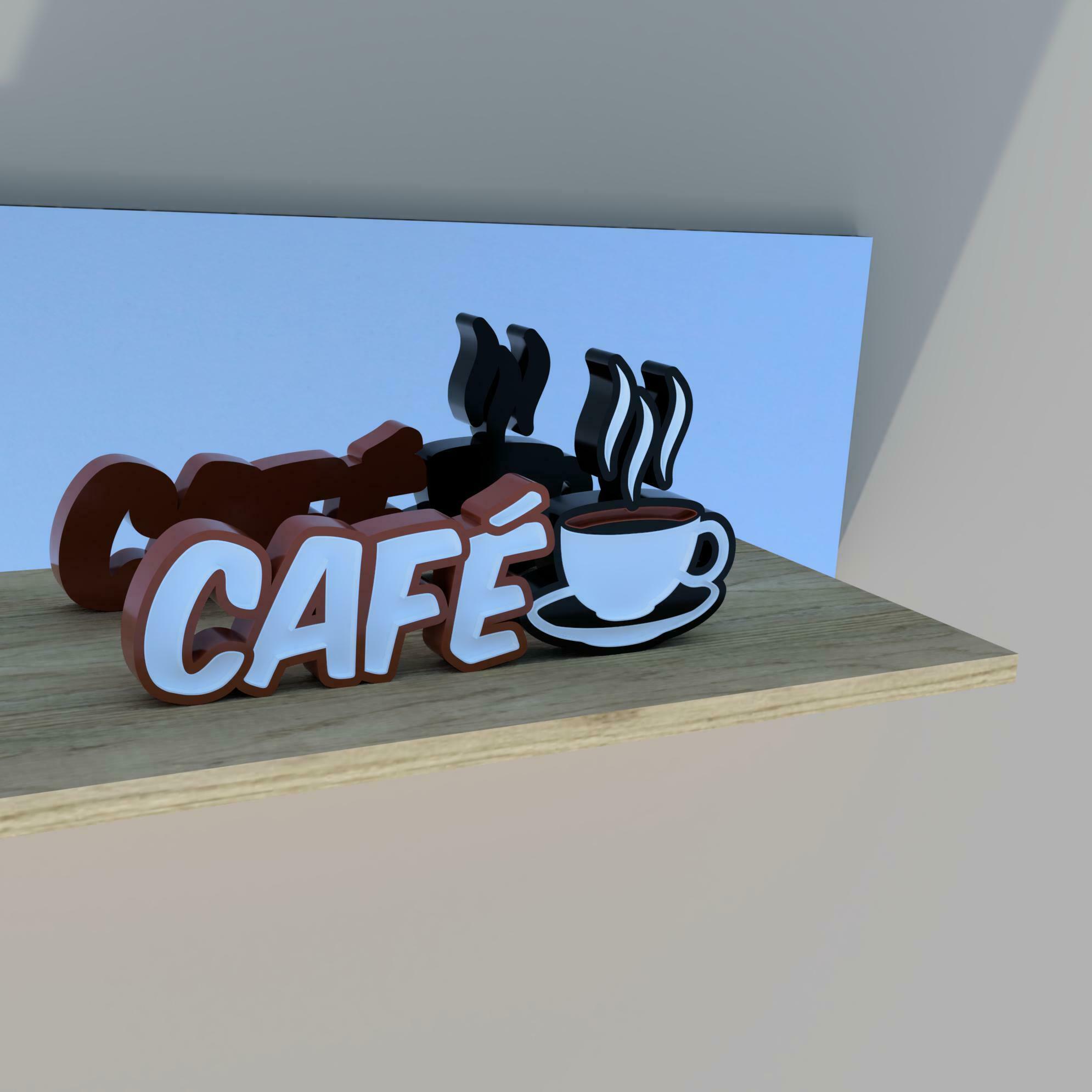

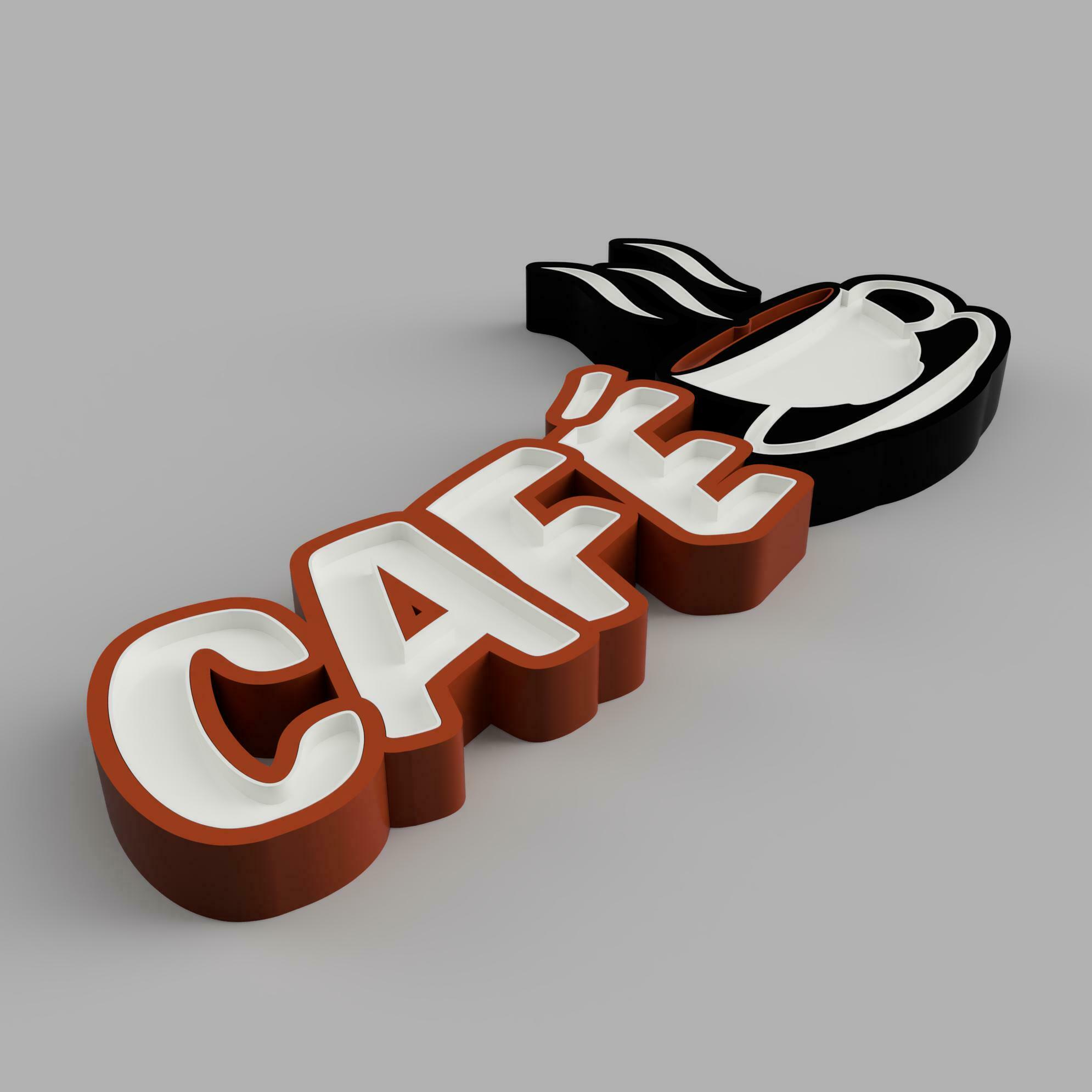

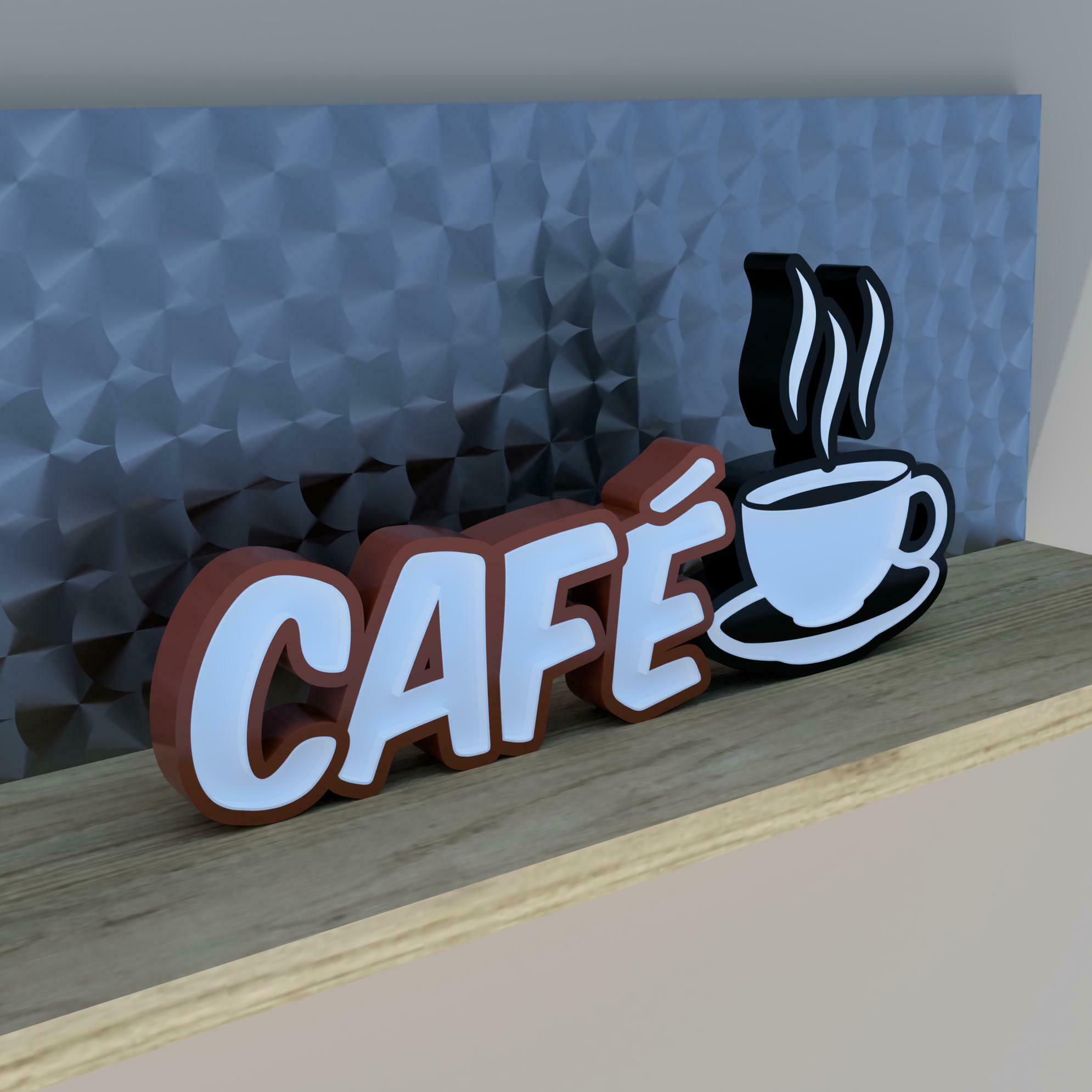

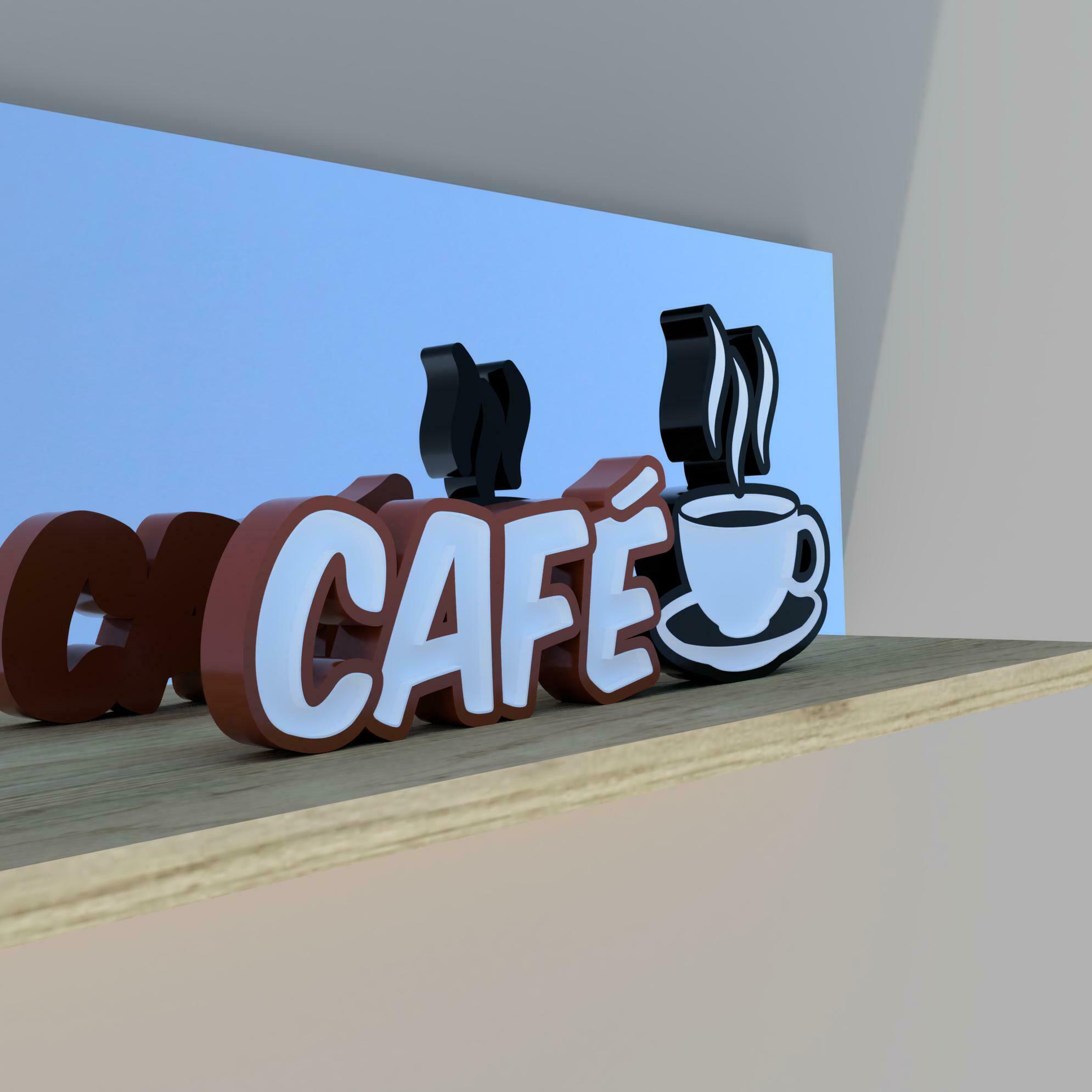

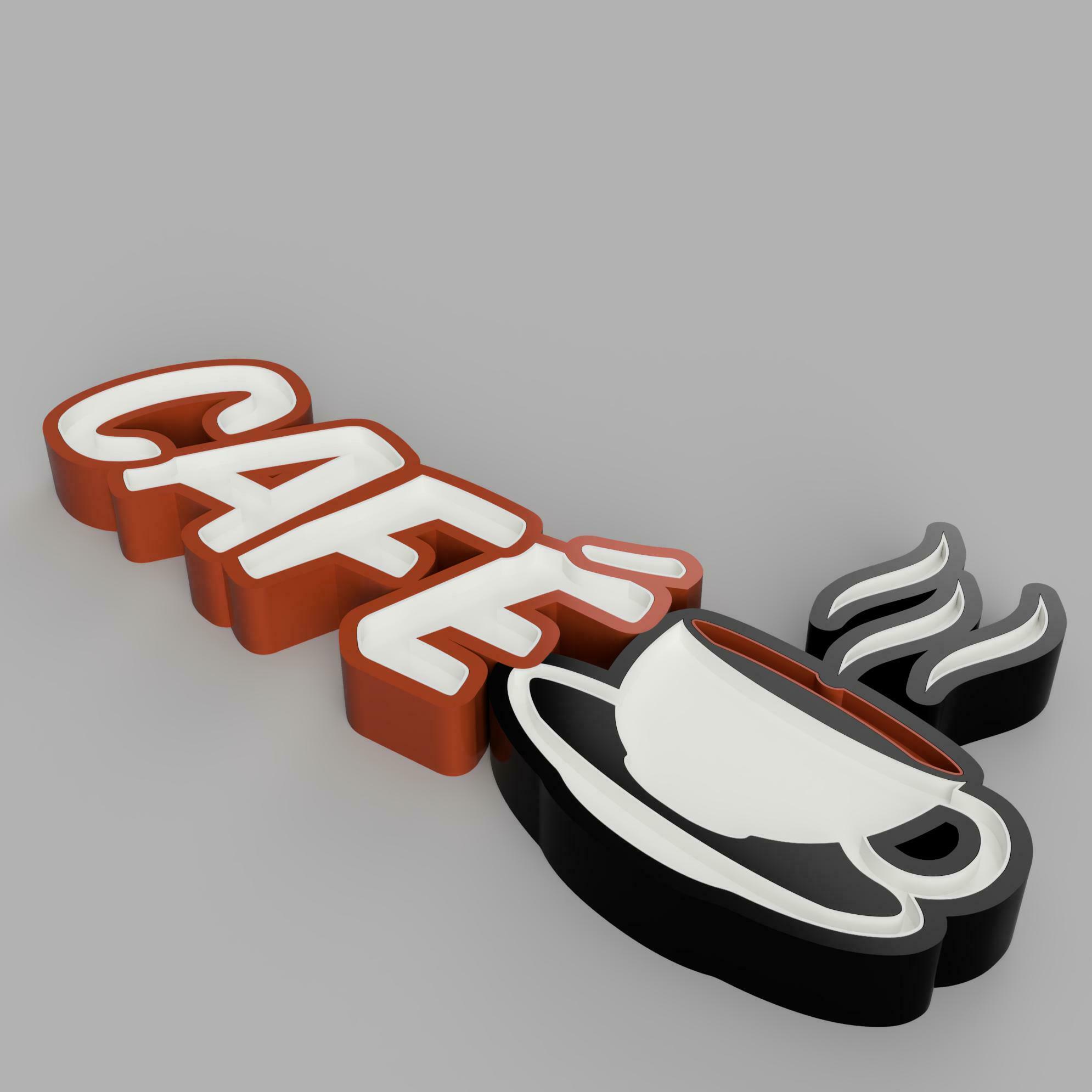

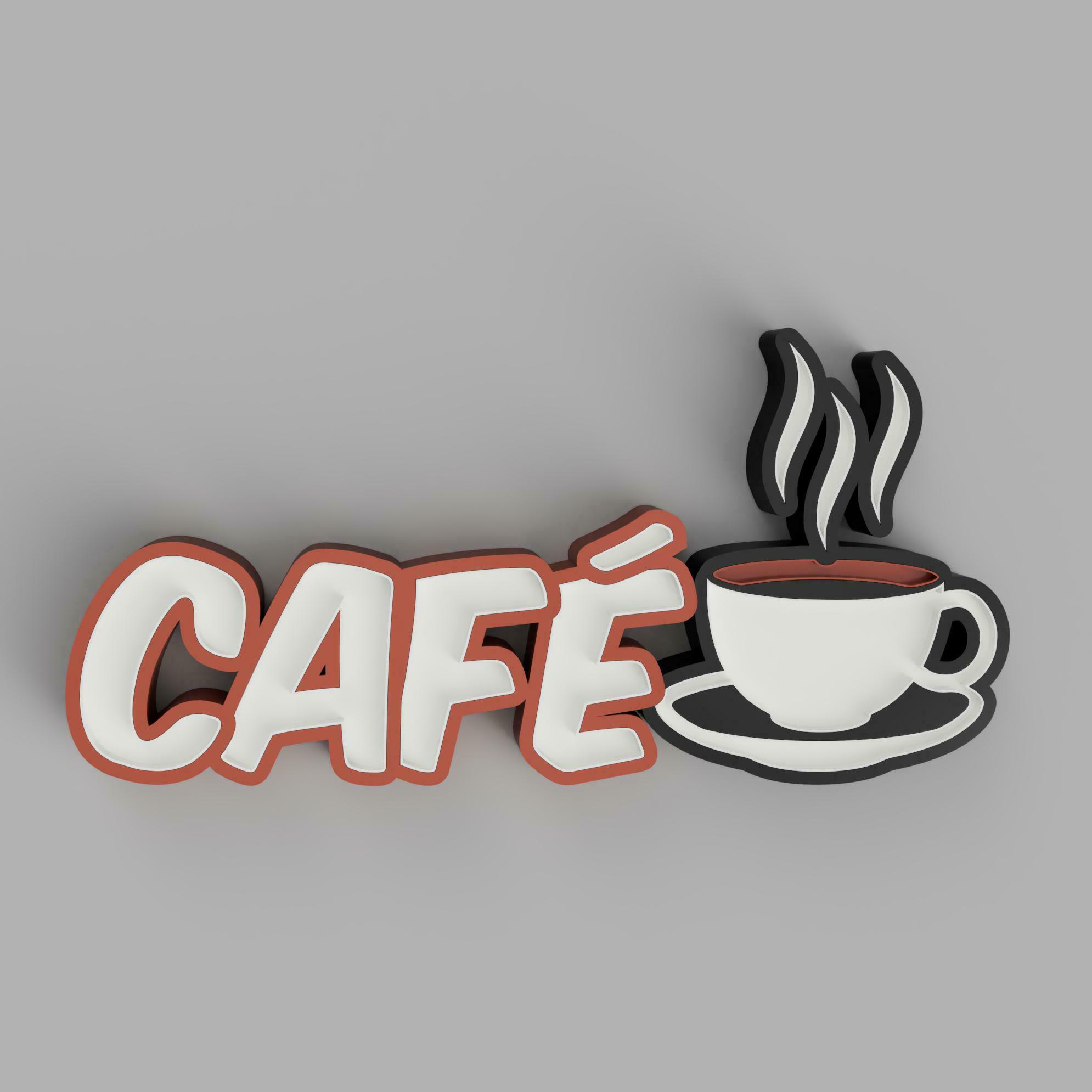

A modular lamp that can have integrated LED strips. You can choose a control system with a command or even via WI-FI on your mobile phone.
Print all the letters separately, so it fits well on a normal printer, and then glued with plastic glue on the identified inserts in a very simple way.

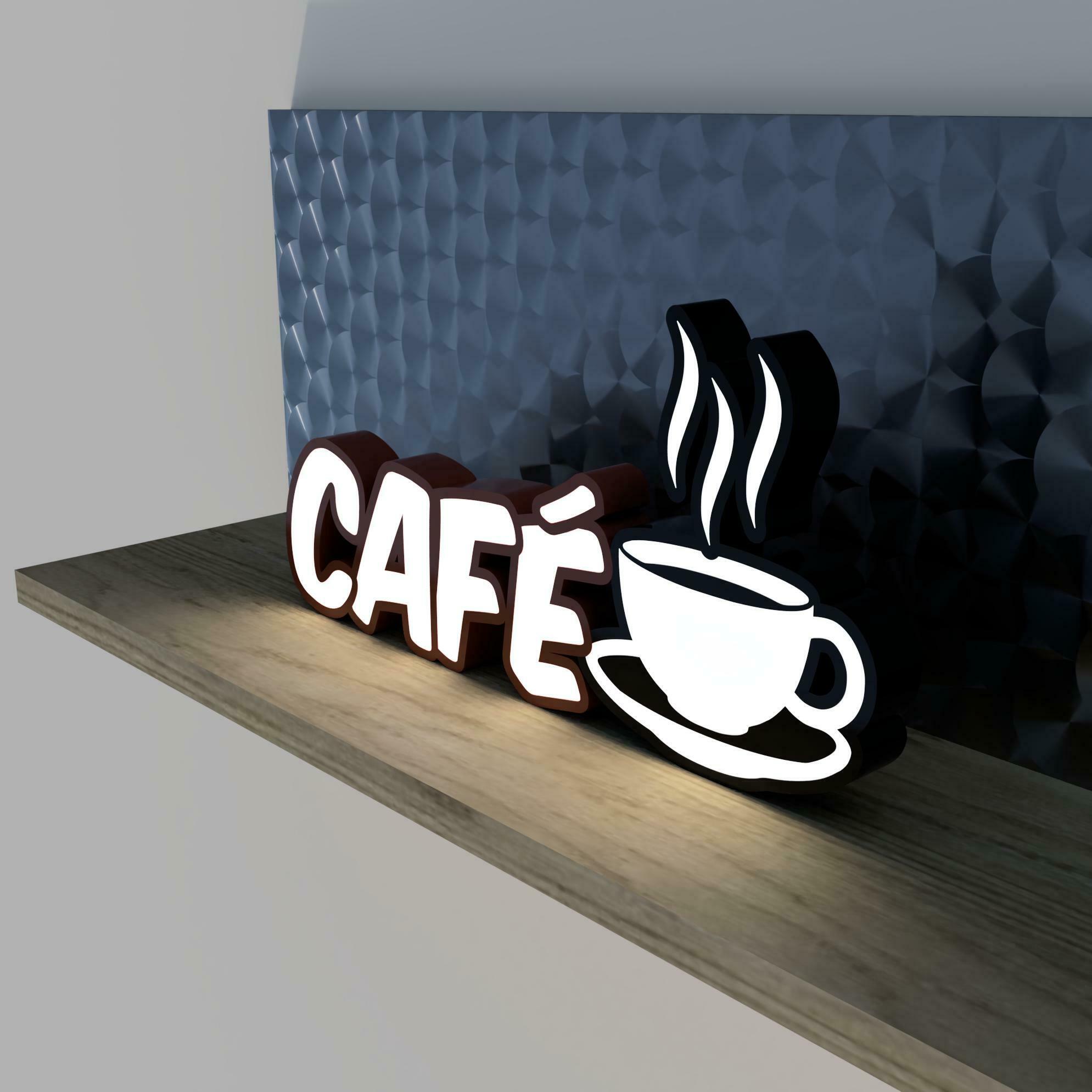

The letter covers are printed on a clear material, which is translucent and illuminates. Cover parts are not glued, they are just fitted.
Leds must be glued to the inner wall of the letters and pass between them in the existing holes.
The entire printing is prepared with printing clearances, so that there are no problems.
One letter have diferent versions, to allow different electrical connections. An existing hole on the side, behind, support for command with 3 buttons or even without a hole to be able to drill wherever you want, or even use the letters only as an ornament, without light.
Size: 14cm height (5.51 in)
CUSTOMIZING ANOTHER NAME If you want another personalized name with a Nameled lamp, contact by email to email@example.com and indicate the name you want. The name will be quickly created to be able to print.
Can see here all names already available: Creations
Summary of Assembly Steps:
1. Print letter one by one (fit in your printer without problems)
2. Print letter covers one by one (white or translucent)
3. Glue the letters in the correct order and in the existing notch
4. Glue a led strip to the inner edge, passing through the channels (Led 5050 model).
5. Make an electrical connection according to the model you are going to use.
6. Press the covers in place (they have a tolerance)
7. Place on the table or hang
8. Enjoy the magic. ---
To help, I leave here the indication of some parts that I use in the project:
3D PRINTING SETTINGS
Infill - 8%
Height - 0.3mm (nozzle 4mm) or 0,4mm (nozzle 6mm - preferred)
Opaque color for letters, white color for covers.
3D printer file information
3D design format: ZIP Folder details Close
- CAFE (CUP).zip
- Publication date: 2021-04-21 at 06:21
- name led
- led lamp
- night light
3D Design Specialist
Send me your ideas... I'll make the printing model :)
Names, Symbols and Logos.
You can try a free version of NAMELED with a name: https://cults3d.com/en/3d-model/home/led-lamp-with-name-free-version-try
NEW: See and share your print photos here: https://www.facebook.com/groups/nameledphotos/
See a video about nameled to understand construction: https://youtu.be/XRLiO2gVfuo
Buy LED 5050 and complete kit components:
12V power supply: https://s.click.aliexpress.com/e/_9JpHNn
