Discover the 1:10 RC Car Setup System, a 3D model designed by MRC Studio

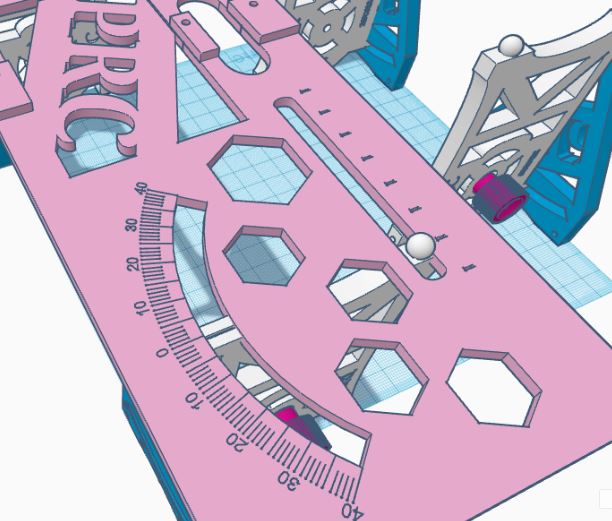

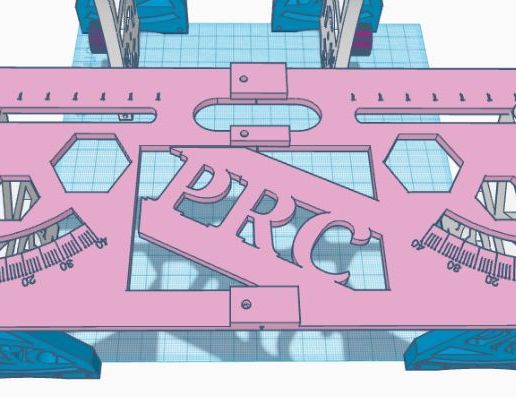

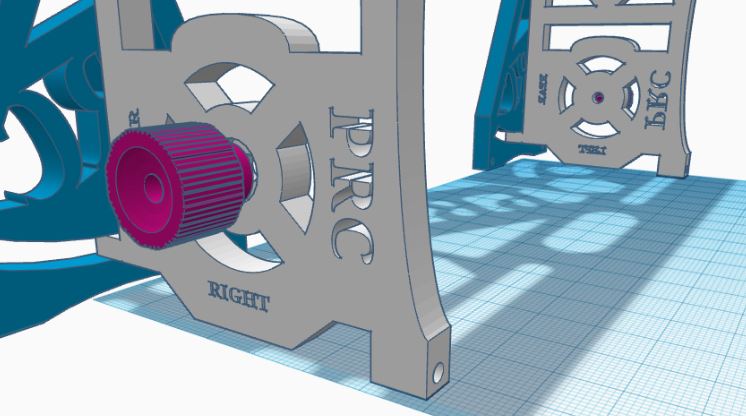

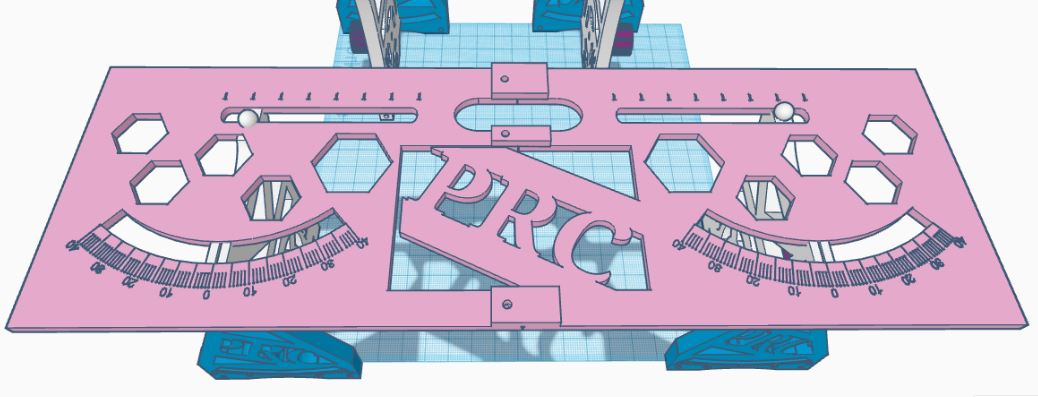

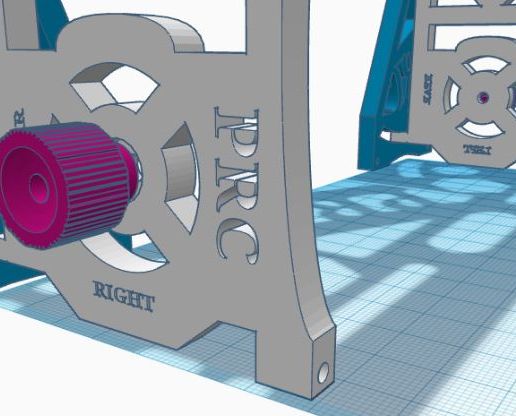

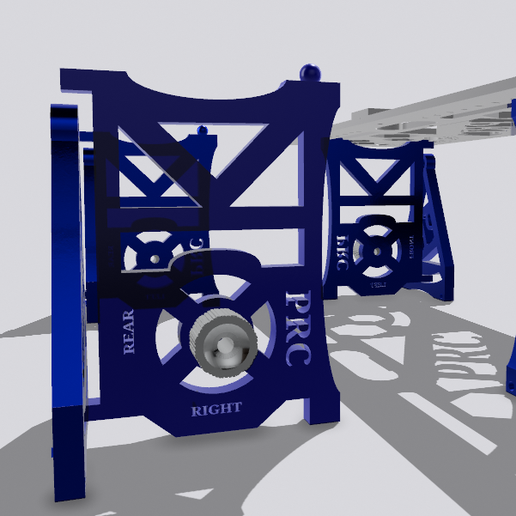

Required for all RC car hobbyists, this 3D model accurately measures your RC car's camber and toe, potentially revolutionizing the way you operate your 1:10 scale RC car.

No need to buy expensive equipment or borrow from someone else - this budget-friendly option is designed for easy printing.

In addition to the 3D printed parts, all you need for assembly are mini ball bearings, various M3 screws and nuts. This 3D model has undergone various updates, ensuring more depth for the M3 screw hole on the bearing stay and additional toe gauge height for extra clearance from the ground.

Remember to print at slow speed for clarity on the ruler part, ideally in grey color for easy reading. This might just be the tool you need to enhance the tuning precision of your RC 1:10 car.

Additional item to complete assembly (minimal requirement) :
@20 Mini Ball Bearing 7x3x3 (OD x ID x THICK)
M3 Phillip Screw and Nut 12mm @8pc, 6mm @4pc, 15mm @4pc, 8mm @11pc

UPDATE:
-Revision 19/02/2022 :
Add more depth for M3 screw hole on the bottom bearing stay

-Add On 19 February 2022!
New STL file! Toe Gauge without top ball, change to M3 Hole to give liberty choosing real ball stud (Folder name: Toe Gauge Without Top Ball)

-Add On 14 January2023!
New STL File! Add toe gauge height +10 mm from its original ground clearance to adequate some chassis that might touching the floor while using the setup system (Folder Name: Add On 14012023)

Check for more useful tool here :
-RC 1/10 Stack Chassis Stand
https://cults3d.com/en/3d-model/game/rc-1-10-stack-chassis-stand

-RC 1/10 Drift Car Towing
https://cults3d.com/en/3d-model/game/rc-car-racing-towing-1-10

3D printing settings

print with low speed and set a fine pitch for ruler part

Better print/paint it with grey colour so you don't have trouble reading the measurement

Most important is your 3d printer must be free from elephant foot effect
