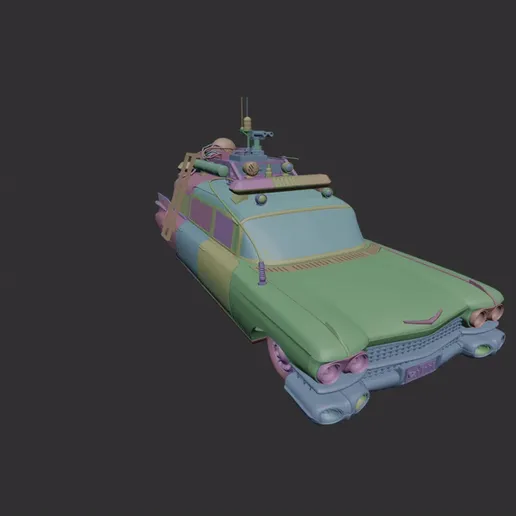

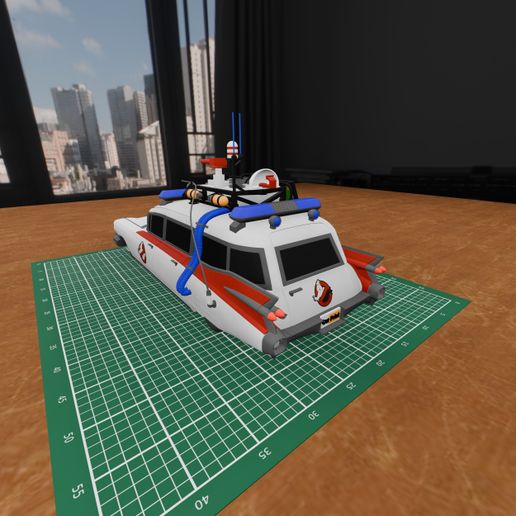

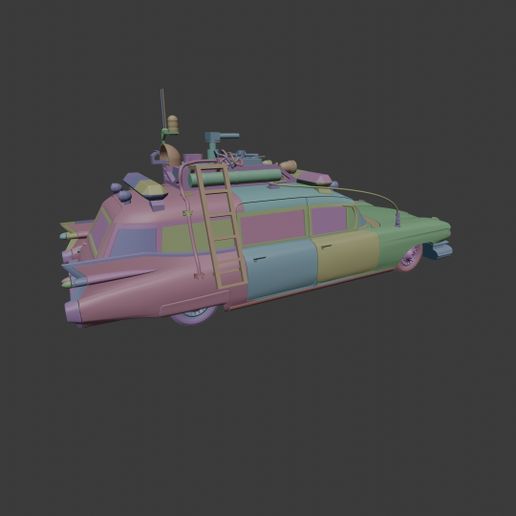

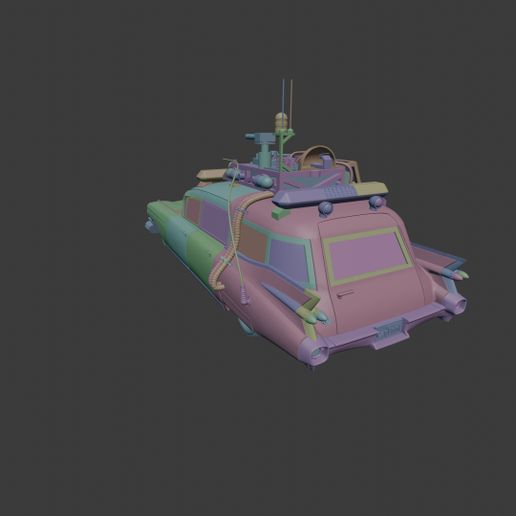

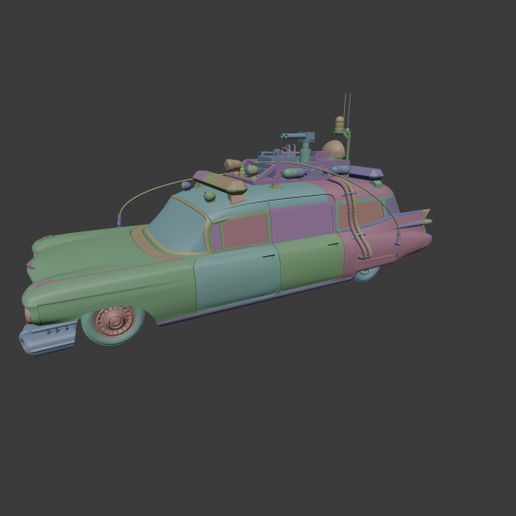

RC 1/10 Ecto 1 Ghostbusters

Bodywork based on the Ecto-1 from Ghostbusters 1 and Cadillac Ambulance Miller Meteor 1959

137 PRINTED PIECES

Functional headlights, taillights and blinker: LEDs 5mm/3mm

Assembled Size:
Length: 570 mm
Width: 241 mm
Height: 267 mm

Wheelbase: 355 mm

You need:

-53 units.- Flat Head Screws M3 x 12 mm
-16 units.- Flat Head Screws M3 x 20 mm Used only in Skirt_L/R, ROOF_RACK *and LIGHTBARS
-8 units.– Countersunk disc magnets 12 x 3mm

Check the Assembly Manual Here

The use of adhesive can be helpful with small parts.

This bodywork is compatible with Free! Chassis 1/10 Adaptable - DKS-Basic

An extension piece (included in the files) is required for the DukeDoks chassis

This body is NOT compatible with the Dks-Pro chassis

Visit other designs by designer dukedoks

RC 1/10 Dodge Challenger: HERE

Back to the Future DMC Delorean: HERE

DMC Delorean: HERE

Many thanks to @dukedoks for letting me use his Chassis.
Use authorized by dukedoks

This printed design can weigh a little over 3kg, so try to get more powerful gears and a strong motor

The design only includes the RC 1/10 bodywork Ectomobile and tires

See the base version.
https://cults3d.com/:1955685

Includes: Wall support

CarPrint

Wall support - RC bodyworks

• 2k views
• 12 likes
• 14 downloads
• 1 collection
• 1 comment
• 1 make

Download Open priced

Minimum print area tested, 220 x 220 x 250 mm / 8,6" x 8,6" x 10,6" inches

Resolution: 0.2mm

Perimeters: 3
Bottom layers: 3
Top layers: 4

Infill: 10%
Supports: Organic or Tree
Adhesion: Use raft or additional supports if you have adhesion issues.

Using low speeds reduces printing defects, it is recommended to use less than 50% of the total speed of your machine.

If you plan to do post-processing of the paint, use 4 or more perimeters

Flexible Tires:
TPU

Low speed: approximately 20mm/s
Perimeters: 3
Lower layers: 3
Upper layers: 5
Filling: 0%
Adhesion: No
