*update 04.11.2023
I added a motor clamp and a centering ring to the PULSAR S. TITAN fits in the front box with the battery, but the trigger is triggered via the MCU connector and switch.

*update 06.06.2023
I added 3 files to install the inferno engine. Unfortunately, the size of the engine affected the dimensions and the mod was extended by 12mm.

1.Korpus-FDM INFERNO
2.P_Dopychacz INFERNO
3.S_STABILIZATOR KOMORY INFERNO

Hello,
I would like to introduce you to a model of a small pistol based on Polarstar - F2, Jack, Wolverine - Inferno, Reap,

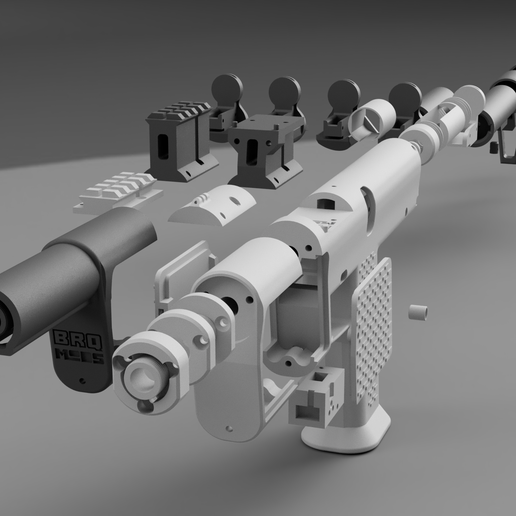

Included stl files allow you to create a basic version of a small pistol for a 141mm barrel (elements of this set are marked in white on the visualization). In another offer on this portal I have an extension to the basic version (marked in black on the visualization). The extension allows you to build a pistol with a 208mm barrel with a straight, 15 and 20 degree angled stock.

The offered model was prepared for hundreds of hours in order to ensure the best efficiency and adapt the model to printouts on the FDM printer.

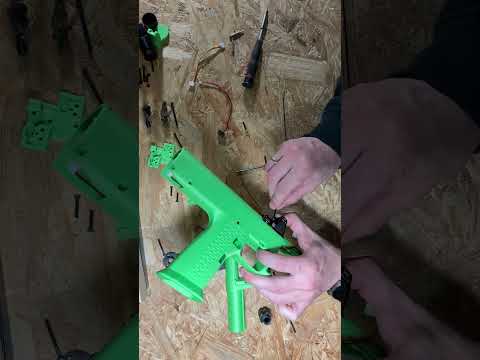

video link on how to do it:
https://youtu.be/HnJfmeaAT9c

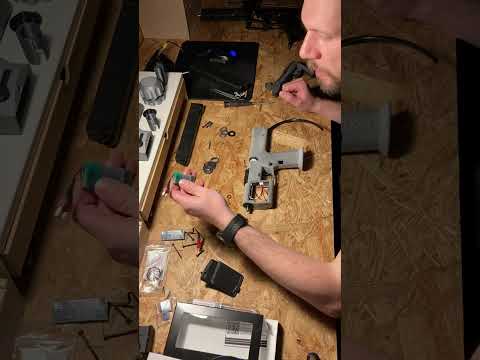

video link on how to set it up:
https://youtu.be/oX6D3LiEy3I

Mod9s (short version) you need:
screws:

-7 Allen screws M3x25 (connecting and twisting the body)
-1 Allen screw M3x30 (screwing the electronics covers in the front part of the body)
-1 Allen screw M3x40 (which you cut to the size of the magazine release)
-2 M3x10 set screws (trigger adjustment)
-1 clamping screw M3x20 (reinforcement of the back of the body)
-2 Philips M3x30 screws (screwing the thread on the tracer)
-1 Philips screw M3x10 (screwing the thread on the tracer)
-2 Philips M3x16 screws (RMR collimator, RIS rails, end caps)
-1 any M3 screw as tdc to the hop-up chamber

electronics:

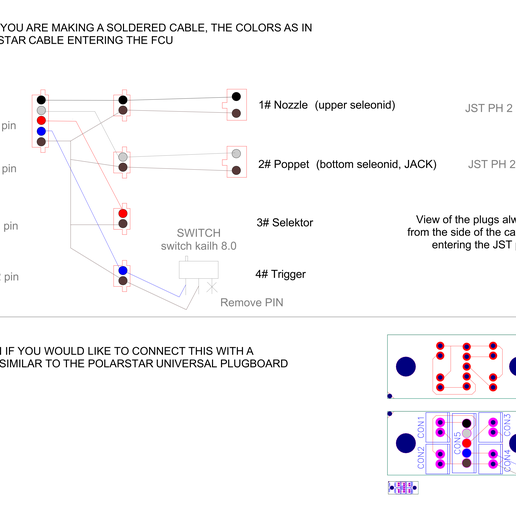

The model is adapted to the switch from a regular mouse, you only need to break one unnecessary pin
You connect the cables using the Universal Plugboard pd Polarstar or solder it rigidly.
If you need a schematic, write to me, but it's easily available on the Internet)

The print should be inserted along the axis (as in one photo) to get the axis between the motor and the hop-up chamber

Magazines:
ARP magazines that have a side window for the magazine release are suitable, i.e. (Classic Army, Well, new G&G)

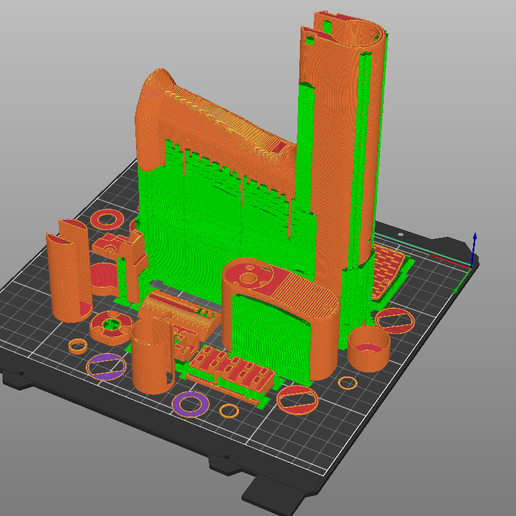

The Fiberlogy Fibresatin filament for the body, for elements reinforced with petg or pla impact works best for me. 5 walls, 50% infill and 5 horizontal layers on top and bottom. The model may require sawing - it all depends on the calibration of your printer. For me, on Prusa Mk3s+, it comes in practically without modification.

3D printing settings

The Fiberlogy Fibresatin filament for the body, for elements reinforced with petg or pla impact works best for me. 5 walls, 50% infill and 5 horizontal layers on top and bottom

Categories

All categories β€Ί Game β€Ί Airsoft

Tags
