1/350 IJN E13A1 Type 0 Recon Seaplane "Jake" [STL]

Product Overview

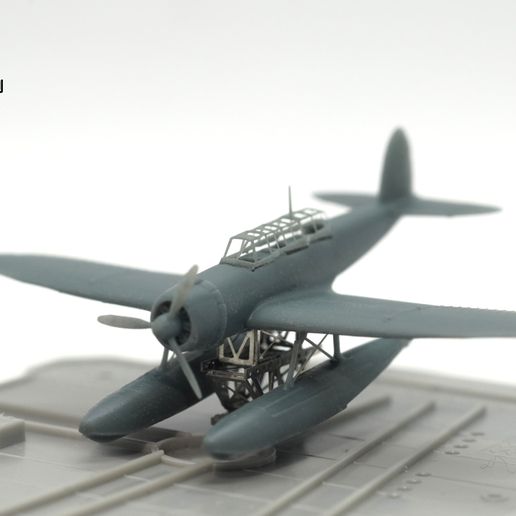

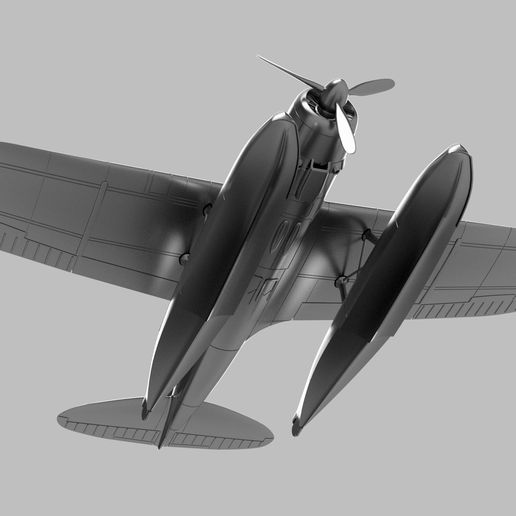

A highly detailed 3D model of the Type 0 Reconnaissance Seaplane (E13A1 "Jake"), the standard reconnaissance aircraft carried by many Imperial Japanese Navy warships.

Designed by a professional mechanical engineer, this model offers options for wing folding and flap positions to suit your diorama needs.

Key Features

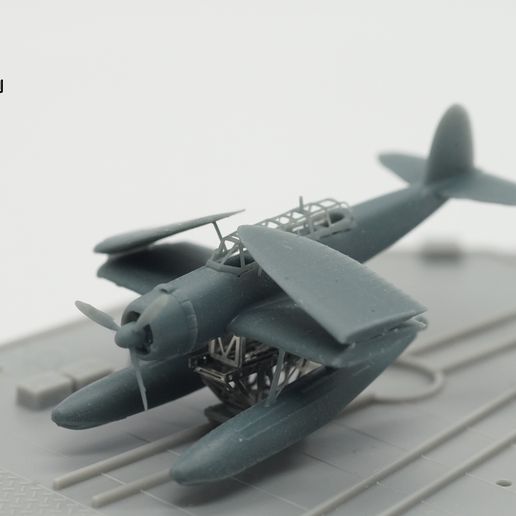

• Selectable Wing States: Choose between "Wings Extended" or "Wings Folded".
• Flap Options: Includes a "Flaps Down" version (Added Nov 2025).
• Canopy Options: Includes two versions:
  1. Integrated Canopy: Recommended for a cleaner finish and easier printing.
  2. Separate Canopy: Included for advanced modelers, but please note that the printed frame is extremely fragile.

🔍 Historical Accuracy Note (Wing Fold):
You may notice that the cross-section of the folded wing appears smooth without rib details. This is intentional.
Historical photos show that these joint areas were covered with canvas for rust prevention on the actual aircraft. We have faithfully reproduced this "canvas-covered" look rather than adding incorrect internal structures.

Update History (Log)

[Latest Update: Nov 08, 2025]
* Flaps Down Version Added: Added fuselage data with flaps in the down position.

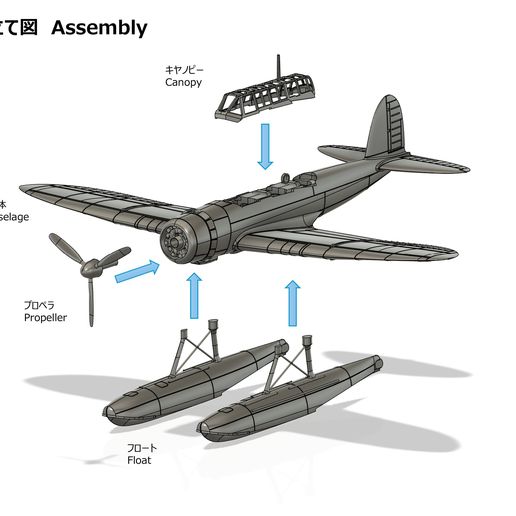

Included Files (12 Files)

[Fuselage - Extended Wings]
* E13A_body_no_canopy (Flaps Up / No Canopy)
* E13A_body_with_canopy (Flaps Up / With Canopy)
* E13A_body_flap_dwn_no_canopy (Flaps Down / No Canopy)
* E13A_body_flap_dwn_with_canopy (Flaps Down / With Canopy)

[Fuselage - Folded Wings]
* E13A_body_fold_wing_no_canopy (Folded / No Canopy)
* E13A_body_fold_wing_with_canopy (Folded / With Canopy)

[Wings & Accessories]
* E13A_fold_wing_right (Folded Right Wing)
* E13A_fold_wing_left (Folded Left Wing)
* E13A_body_propeller (Propeller)
* E13A_canopy (Separate Canopy Part)
* E13A_float_right (Right Float)
* E13A_float_left (Left Float)

[Terms of Use & Disclaimer]

1. Personal Use Only:
   Purchase of this 3D file grants a license for personal use only. Any commercial use, including selling the printed models or redistributing the digital files, is strictly prohibited.

2. No Sharing:
   Do not share, upload, or distribute the STL files on any other websites or platforms.

3. Printing Disclaimer:
   These files have been tested for printability. However, due to variations in 3D printers and resins, we cannot guarantee successful prints on every machine. The user is responsible for printer settings and support generation.

4. Refund Policy:
   Due to the nature of digital products, all sales are final. No refunds will be issued once the files have been downloaded.

Copyright © BAGO_Works. All Rights Reserved.

[Printing Settings]
* Printer Type: UV Resin (LCD / DLP / SLA)
* Layer Height: 0.01mm - 0.03mm

[Important Notes]
* FDM (Filament) printers are NOT recommended due to the extremely fine details.

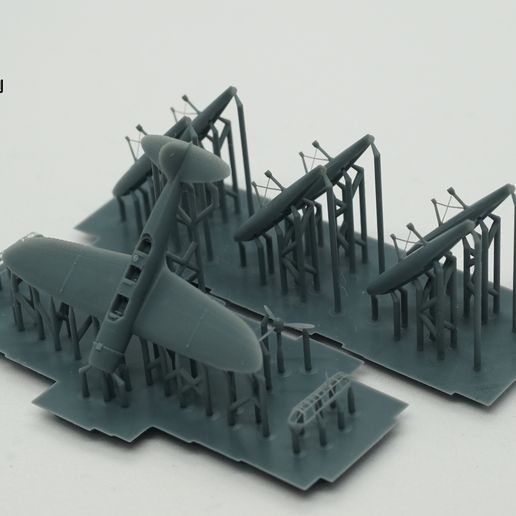

* Supports are required. Please place supports carefully to avoid damaging the delicate details (especially the gun barrel and sights).
* We recommend using Chitubox or Lychee Slicer for best results.
