Helicopter Collective for sim. with Arduino

Collective_manual.jpg Helicopter Collective for sim. with Arduino
Ronin-Collective.webp Helicopter Collective for sim. with Arduino
Collective_photo_W.jpg Helicopter Collective for sim. with Arduino
Collective_photo_UP.jpg Helicopter Collective for sim. with Arduino
Collective_E.jpg Helicopter Collective for sim. with Arduino
Collective_UP.jpg Helicopter Collective for sim. with Arduino
Collective_W.jpg Helicopter Collective for sim. with Arduino
Collective_manual.jpg Helicopter Collective for sim. with Arduino
Ronin-Collective.webp Helicopter Collective for sim. with Arduino
Collective_photo_W.jpg Helicopter Collective for sim. with Arduino
Collective_photo_UP.jpg Helicopter Collective for sim. with Arduino
Collective_E.jpg Helicopter Collective for sim. with Arduino
Collective_UP.jpg Helicopter Collective for sim. with Arduino
Collective_W.jpg Helicopter Collective for sim. with Arduino
Advertising
Make an offer
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
1 file (ZIP) Close
  • Ronin_Collective_V1.zip
    • HARDWARE/ACCESSORIES/1_HAT.STL
    • HARDWARE/ACCESSORIES/2_HAT.STL
    • HARDWARE/ACCESSORIES/3_HAT.STL
    • HARDWARE/ACCESSORIES/Analog hat.STL
    • HARDWARE/ACCESSORIES/BaseButton.STL
    • HARDWARE/ACCESSORIES/button.STL
    • HARDWARE/ACCESSORIES/Buttonhat.STL
    • HARDWARE/ACCESSORIES/Plate.STL
    • HARDWARE/BOTONERA/Accelerator.STL
    • HARDWARE/BOTONERA/ButtonBox.STL
    • HARDWARE/BOTONERA/ButtonBoxCover.STL
    • HARDWARE/BOTONERA/ButtonBoxUnderCover.STL
    • HARDWARE/COLLECTIVE BOX/Base.STL
    • HARDWARE/COLLECTIVE BOX/Break.STL
    • HARDWARE/COLLECTIVE BOX/CollectiveCover.STL
    • HARDWARE/COLLECTIVE BOX/DopleAxis.STL
    • HARDWARE/COLLECTIVE BOX/Guide.STL
    • HARDWARE/COLLECTIVE BOX/Key.STL
    • HARDWARE/COLLECTIVE BOX/LeftHolder.STL
    • HARDWARE/COLLECTIVE BOX/RightHolder.STL
    • HARDWARE/Only for reference_collective.3mf
    • MANUAL_V1.pdf
    • SOFTWARE/COLLECTIVE_V1/COLLECTIVE_V1_change_to_dot_ino.txt

Learn more about the formats
Publication date
Design number 1945856
_Ronin_

_Ronin_

Issue with this design? Report a problem.

3D printer file info

3D model description

Universal Helicopter Collective is a functional simulation collective that uses Arduino, consisting of a base and a control box.

Although you can use a LeoBodnar board (about $75 with diodes), I have preferred to use Arduino (about $10 for the electronics) to keep the cost down In total, the finished project made with Arduino should not exceed 50-70$

The manual specifies the hardware, 3D printing, as well as the software example and the electronics example.

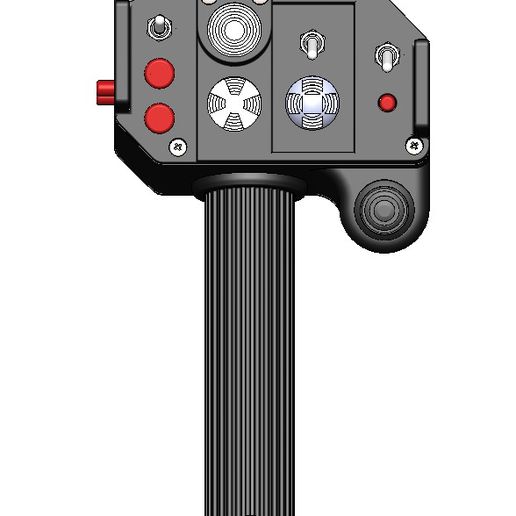

The buttons box, by default includes an analog sensor hat with a push button, 3 hat switches with a central button, as well as 8 buttons or switches that you can easily adapt.

The base features spring weight compensation in addition to the brake for optimal adjustment and an angle sensor for maximum collective precision.

It can also accommodate, as needed—configurable switches and buttons.
By default, there are 2 on the base and 24 in the buttons box.

It is compatible with all games in general, such as MSFS, DCS, ARMA III, etc.

3D printing settings

In general standar PLA 0.2 layer

The manual help you to print all the parts with pictures and *.3mf file for details.
