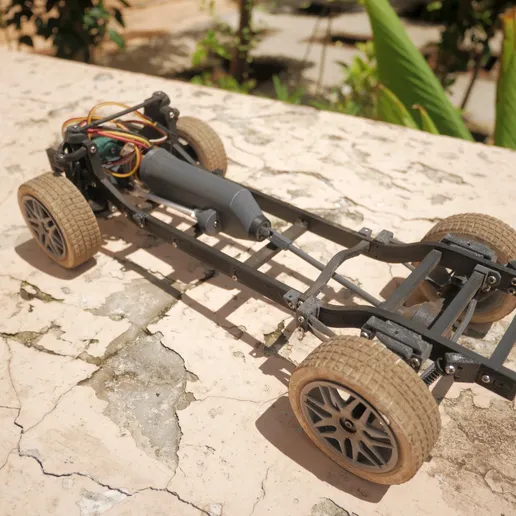

topside.webp G-Wagon - 3D printed 4x4 RC car
backchassis.webp G-Wagon - 3D printed 4x4 RC car
nightgrass.webp G-Wagon - 3D printed 4x4 RC car
junglephoto.webp G-Wagon - 3D printed 4x4 RC car
frontperspective.webp G-Wagon - 3D printed 4x4 RC car
frontchassis.webp G-Wagon - 3D printed 4x4 RC car
Shock-Absorber.-Assembledwebp.webp G-Wagon - 3D printed 4x4 RC car
Shock-Absorber-Parts.webp G-Wagon - 3D printed 4x4 RC car
Shock-Absorber-Assembly.webp G-Wagon - 3D printed 4x4 RC car
Advertising
Share
Add to
Make
?
Creation quality: 5/5 (3 votes)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
2 files (ZIP) Close
  • g-wagon-3d-printed-4x4-rc-car-body-model_files.zip
    • Main Body/engine-bay.3mf
    • Main Body/body-split-rear.3mf
    • Main Body/body-split-front.3mf
    • Main Body/bumpers.3mf
    • Main Body/roof.3mf
    • Main Body/fenders.3mf
    • Main Body/bonnet.3mf
    • Main Body/body-for-large-printer.3mf
    • Main Body/bumper-parts-grey.3mf
    • Main Body/side-step-black.3mf
    • Windows/windshield-black-or-grey.3mf
    • Windows/side-windows-black-or-grey.3mf
    • Windows/liners-grey.3mf
    • Accessories/spare-wheel-orange.3mf
    • Accessories/spare-wheel-logo-black-and-white.3mf
    • Accessories/front-grill-black-and-white.3mf
    • Accessories/wheel-cover-bumper-side-mirror-orange.3mf
    • Accessories/number-plate-white.3mf
    • Accessories/wipers-side-mirror-mount-black.3mf
    • Accessories/body-mount-any-colour.3mf
    • Lights/lights-clear.3mf
    • Lights/headlight-black.3mf
    • Lights/side-mirror-base-tpu.3mf
    • Lights/light-masks-hinges-black.3mf
    • 308760-g-wagon-3d-printed-4x4-rc-car-body-9f49702c-afec-4705-b471-640f27dea4b3.pdf
  • g-wagon-3d-printed-4x4-rc-car-chassis-model_files.zip
    • Part 1 - Chassis frame & Rear suspension assembly/frame.3mf
    • Part 1 - Chassis frame & Rear suspension assembly/frame-split.3mf
    • Part 1 - Chassis frame & Rear suspension assembly/cross-members.3mf
    • Part 1 - Chassis frame & Rear suspension assembly/rear-differential-components.3mf
    • Part 1 - Chassis frame & Rear suspension assembly/differential-casings.3mf
    • Part 1 - Chassis frame & Rear suspension assembly/rear-suspension-components.3mf
    • Part 1 - Chassis frame & Rear suspension assembly/shock-absorbers-rear.3mf
    • Part 2 - Motor drive assembly/gearbox-center-differential-components.3mf
    • Part 2 - Motor drive assembly/gearbox-casing.3mf
    • Part 3 - Steering and Front differential assembly/steering-components.3mf
    • Part 3 - Steering and Front differential assembly/front-differential-components.3mf
    • Part 3 - Steering and Front differential assembly/steering-pinion-small-hole.stl
    • Part 4 - Front suspension & final assembly/front-suspension-components.3mf
    • Part 4 - Front suspension & final assembly/drive-shafts.3mf
    • Part 4 - Front suspension & final assembly/rims.3mf
    • Part 4 - Front suspension & final assembly/rims-original.3mf
    • Part 4 - Front suspension & final assembly/tyre-x4.3mf
    • Part 4 - Front suspension & final assembly/shock-absorbers-front.3mf
    • 295474-g-wagon-3d-printed-4x4-rc-car-chassis-83e466a7-1f25-4e84-9c86-3b3d176b301e.pdf

Learn more about the formats
Last update
Publication date
Design number 1020771
RamBros

RamBros

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

G wagon - True scale model

A Performance RC model with offroad capabilities. The chassis has ~150 printed parts.

Join our Discord

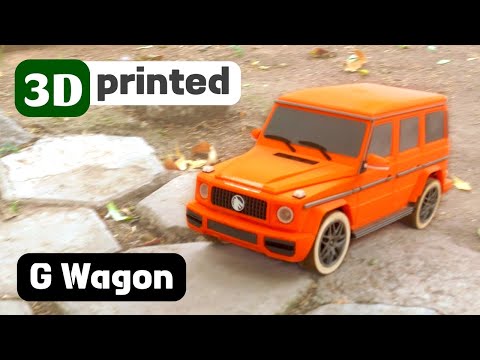

Check Our Youtube Video
https://www.youtube.com/watch?v=W5CV9I5o9b8

Features:
- Accurate 1/12 Scale
- Fully 3D printed (including shock absorbers)
- AWD power transmission
- Open Differentials
- Independent front suspension (IFS)
- 30kmph Top speed
- 100% slope climbing

Complete parts list

CHASSIS ASSEMBLY:

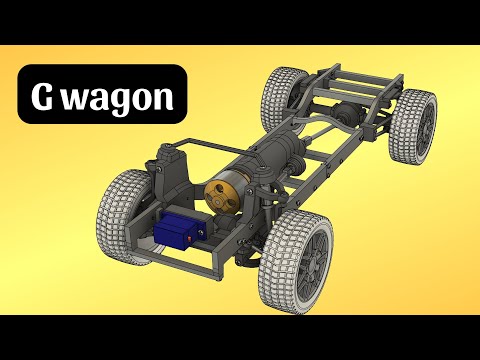

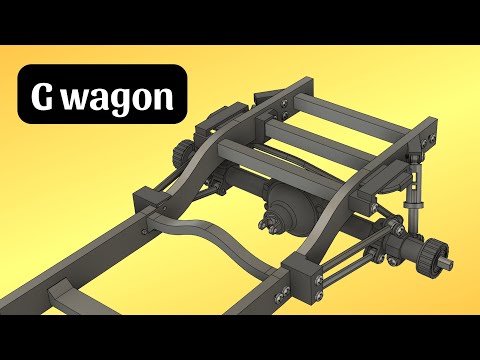

- Part 1 - Chassis frame & Rear suspension assembly
https://www.youtube.com/watch?v=3sX3j1g-W7k

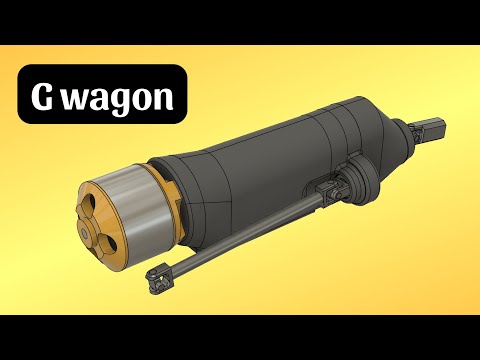

- Part 2 - Motor drive assembly
https://www.youtube.com/watch?v=OycBHnFQ_IQ

- Part 3 - Steering and Front differential assembly
https://www.youtube.com/watch?v=me7LyPrq4uA

- Part 4 - Front suspension & final assembly
https://www.youtube.com/watch?v=ugaXeY6qLCo

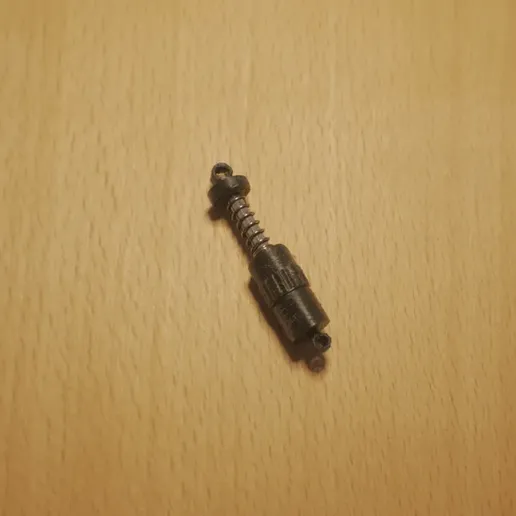

- Shock Absorbers:
The 3d printed shock absorbers need a M2 20mm screw and a pen spring.

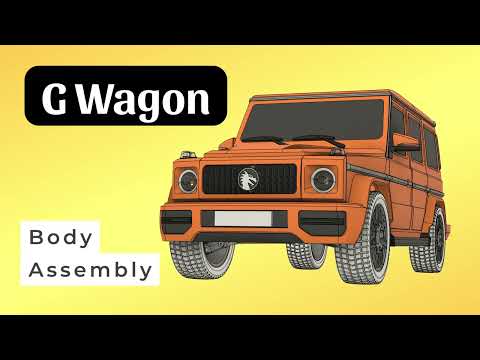

Body Assembly:
https://www.youtube.com/watch?v=E4CGuJMLb_Y

Notes:
- With a 3S battery, this model can reach upto 30kmph! before the gears start melting. So it is recommended to use 2S battery and low KV (1000-1400) motor. Lubrication recommended for the gears.

Body Assembly:
https://youtu.be/E4CGuJMLb_Y?feature=shared

Realistic Lights and Sounds were made possible by TheDIYGuy999 - Recommended for experienced users, This adds a new level of realism to your model
Available here: https://github.com/TheDIYGuy999/Rc_Engine_Sound_ESP32

Looking forward to your feedback and suggestions ;)

Notes:
- The Files are named with the recommended colours, feel free to change the colours as per you preferences
- Cura 5.0 above is the recommended slicer for this model. Rafts and Supports are generally better in Cura.
- The 3mf files were generated with Cura Slicer.
- The provided files have support blockers which may open as normal models in other slicers. You may have to manually assign them as support blockers.

Car Body design derived from Shaylesh Roy's model, available at Grabcad

If you are happy, Buymeacoffee!!

3D printing settings

  • The Files are named with the recommended colours, feel free to - change the colours as per you preferences
  • Cura 5.0 above is the recommended slicer for this model. Rafts and Supports are generally better in Cura.
  • The 3mf files were generated with Cura Slicer.
  • The provided files have support blockers which may open as - normal models in other slicers. You may have to manually assign them as support blockers.
