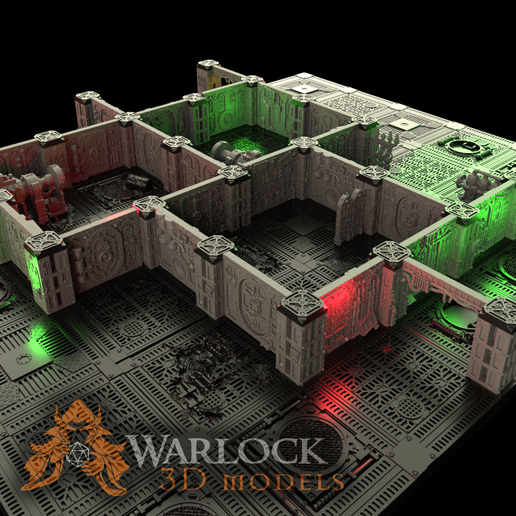

Derelict damaged space ship compatible Killer team or Hulks out in space or action of boarding games

This is my current WIP for you folks! For all of your murder team and ship boarding needs!

-12 Tormented variant walls
-6 Tormented Pillars with 7 Tormented caps
-13 double sided walls and the corresponding doors and hinges
-21 joining pillars- to accommodate all the angles needed
-4 wall end pillars.
-Apparatus sets 1,2,3 and 4!
-Twisted tiles!
-4 different pillar locking caps.
-3 Barricades

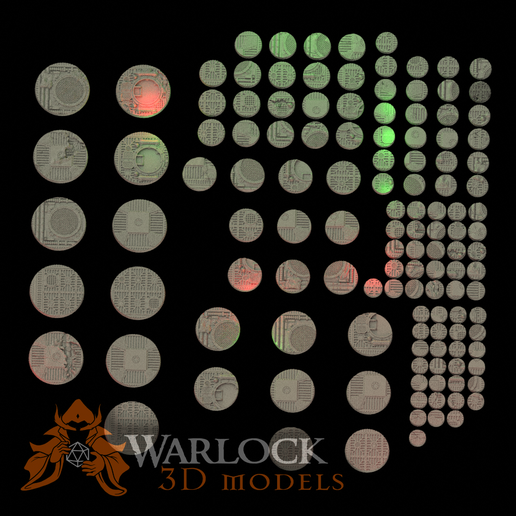

-50+ themed bases of sizes 25mm-80mm
ALL optimized to print with FDM with MINIMAL supports.
Supported for Resin now included.

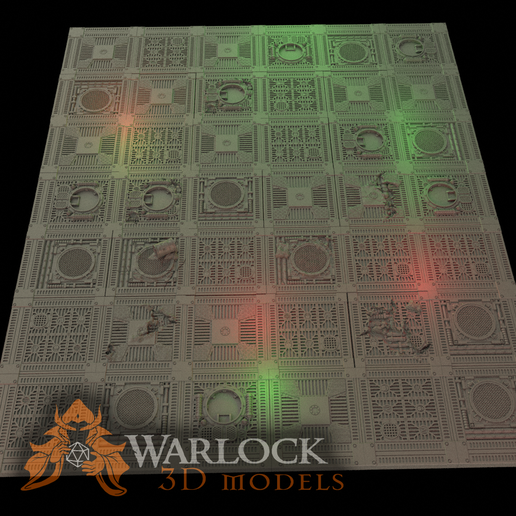

I included Bonus floor panels (28 panels total)

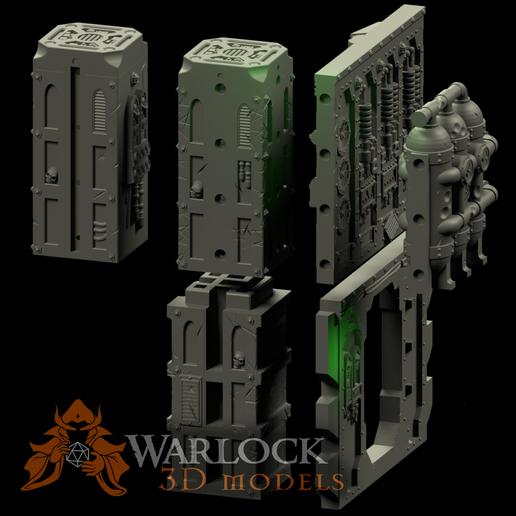

•V1- 7mm magnet slots and a basic square cut out connection method.
•V2- 7mmMagnet slots hollowed for Resin printing
•V3- extra flat to conserve the most resin

Every thing is FULLY compatible with the box sets.

To do list:
-Chaos apparatus

11/07/2023 Note
Added the Tormented walls set.
Thank you for your patience and support!

As always, please send in any or all feedback or requests for this set. If this one goes well, I will be doing similar “alien” themed sets as well.

NOTE
These files are for personal use under a non commercial license in place for all the models I release on my website. -Creative commons Attribution-NonCommercial-NoDerivsCC BY-NC-ND

Print suggestions:
KT:
•Walls without doors x14
•Walls with doors x10 Print doors and hinges corresponding to the doors you choose.
•Wall caps x30
•End pillars x2
•Joining Pillars fourway x24 (print the others only if you want alternate options. Ex:I printed 4x90° angle for when I want corners.)
•Apparatuses:
-For ITD x2 each (valve for C3 and C5 needs to be printed x4.)
-For SV x2 each, except only one of each robot.
•Barricades x2 of each

BA:
Is 2x most of the parts except for the apparatuses and barricades. you wont need either unless you want them.
•Walls without doors x28
•Walls with doors x20 Print doors and hinges corresponding to the doors you choose.
•Wall caps x60
•End Pillars x4
•Joining pillars fourwayx48

Volume estimates for resin (these estimates are per one unit):
•Wall:25ml
•Pillar:20ml
•doors and hinges supported:10ml
•barricades supported: 10-15ml
•caps supported: 3ml
•floor tiles: 35-55ml

If you are printing with FDM (plastic extrusion):
Very few files will need supports at all. The walls and details on the walls were designed with FDM in mind so most have an angle on the underside. But, Doorways and some of the apparatuses might need minimal support.

If you are printing With SLA (Resin):
I added Presupported files for most sections. I've test printed all of them with full success. But I know everyone has the potential of a finicky printer, so if you have issues, contact me on cults or send me an Email, Warlock3dmodels@gmail.com. I will try to help the best I can.

Note: All of the files are designed with FDM in mind, so almost all of the files will also print directly on the print bed(walls and Pillars at very least will easily print directly on the bed), though you may end up with elephants foot on the models. Printing directly on the print bed can be difficult to remove if you don't have a flex bed.

The wall sections with the doors and few of the apparatus will likely need supports in the doorway but the rest of the set should print without supports on FDM printers. The split doors are for FDM and the whole doors are for resin printing. (pre-supported still to come)

If you are printing with Resin, any bit of over exposure will increase the thickness of the tabs too much so I have also included "Resin fitting" file with smaller tabs to help.
