Crossbow for match V2

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 5.9k views
  • 33 likes
  • 763 downloads

3D model description

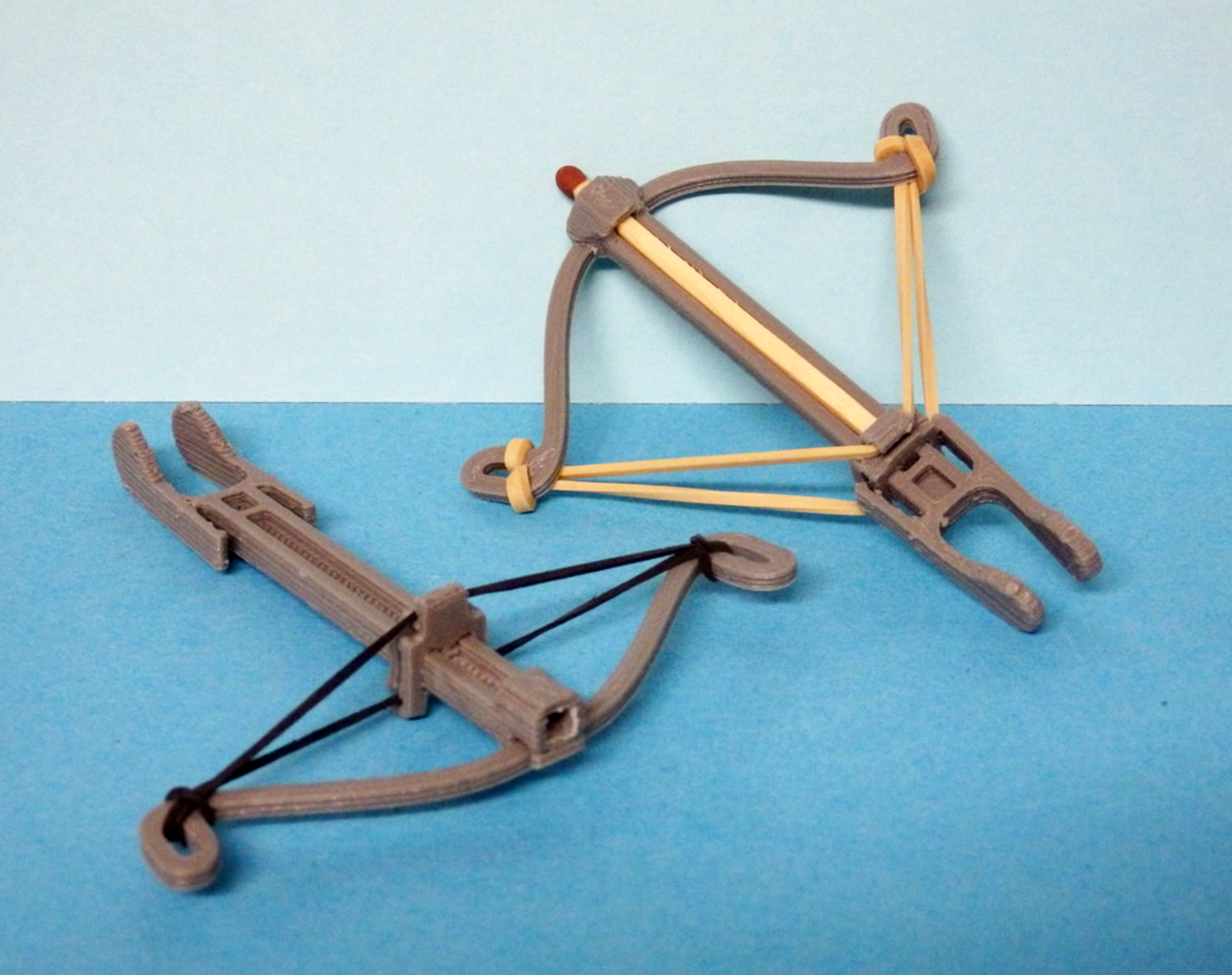

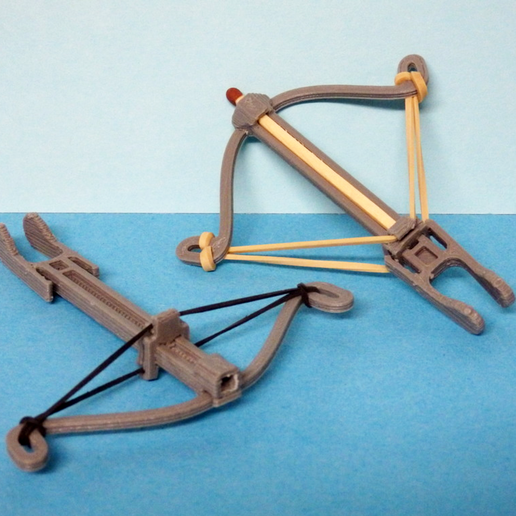

Crossbow for match V2

Here is a crossbow for match.

After cleaning the parts.

You need a rubber band, you have to go through the holes of the bow and go around the loop to stretch it.

Clipped this one under the body of the crossbow.

Clip the trolley on the body and pass the high elastic above and below which will balance the thrust.

A pressure on the two ears frees the cart and propels the match

The dimensions of the assembled crossbow are: length = 7,31cm, width = 7,7 cm, height = 8,04 cm

Enjoy the game.

Layer thickness 0.2

Shell thickness 1

Fill rate 25

Print temperature 220C °

Support type everywhere

3D printer file information

  • 3D design format: STL Folder details Close
    • arbalete.stl

    Learn more about the formats

  • Last update: 2017/05/29 at 15:01
  • Publication date: 2017/05/26 at 15:27

License

CC BY NC ND

Creator

I am a novice maker
