3D printed lock

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.1k views
  • 3 likes
  • 24 downloads

3D model description

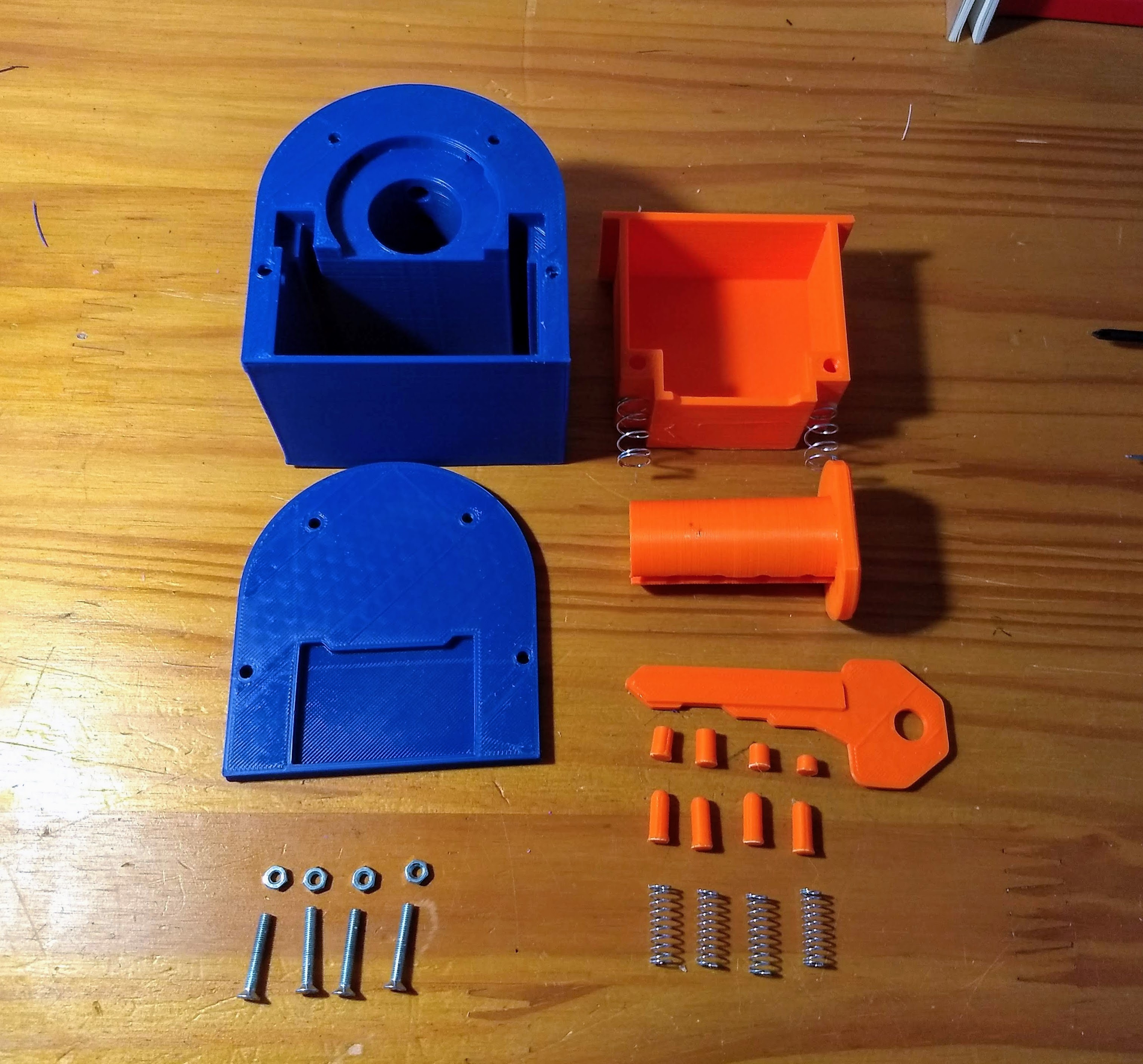

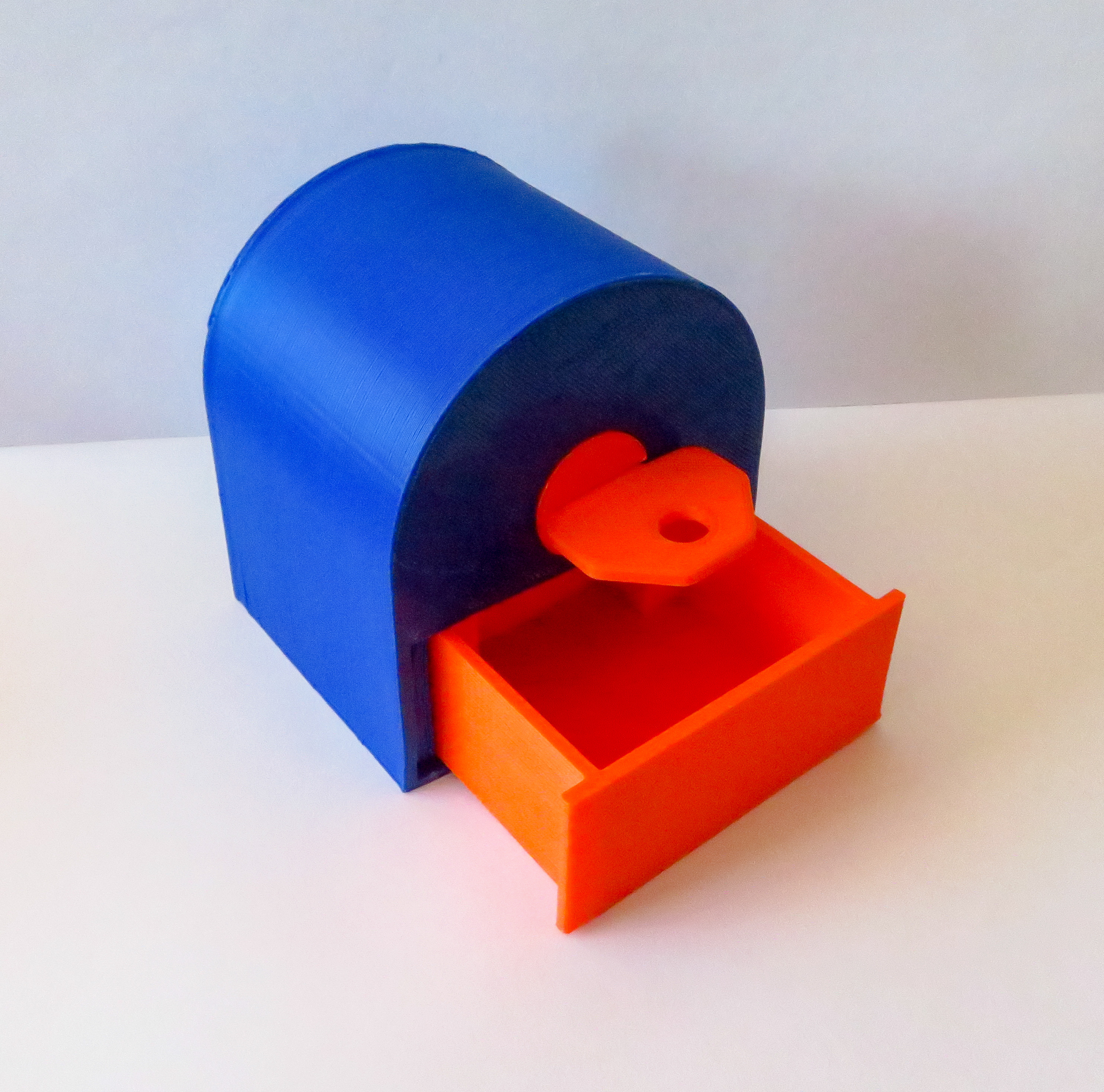

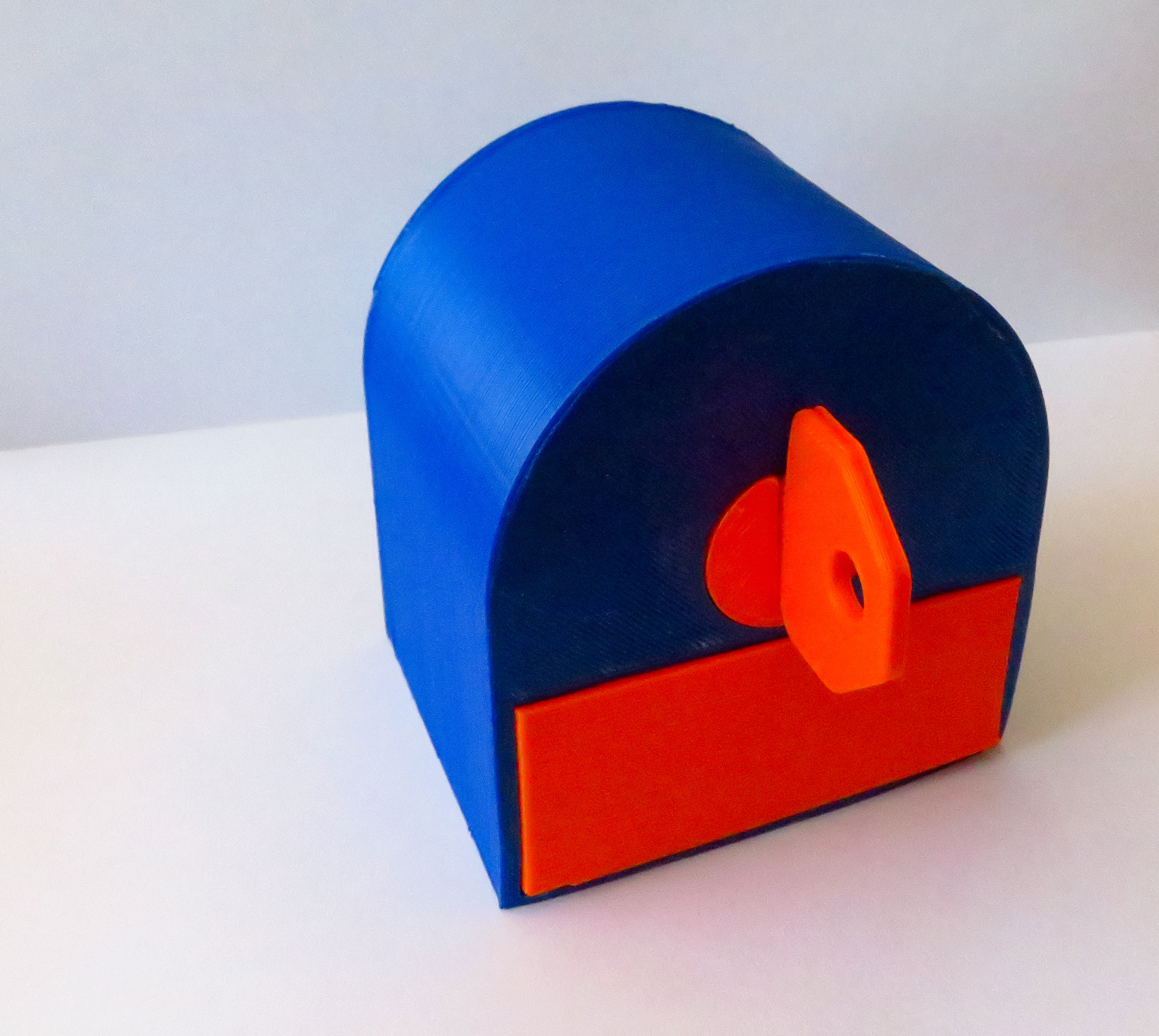

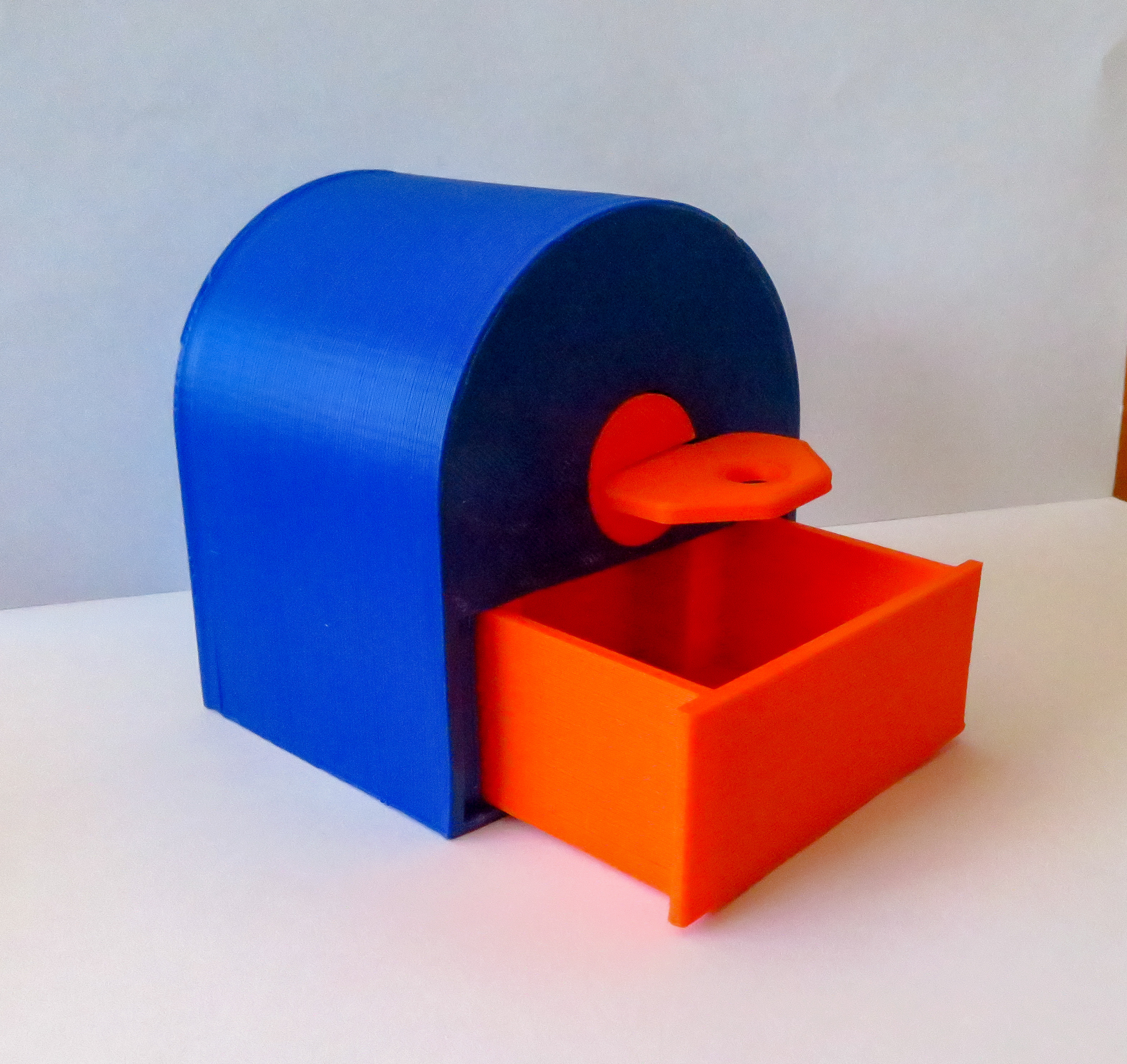

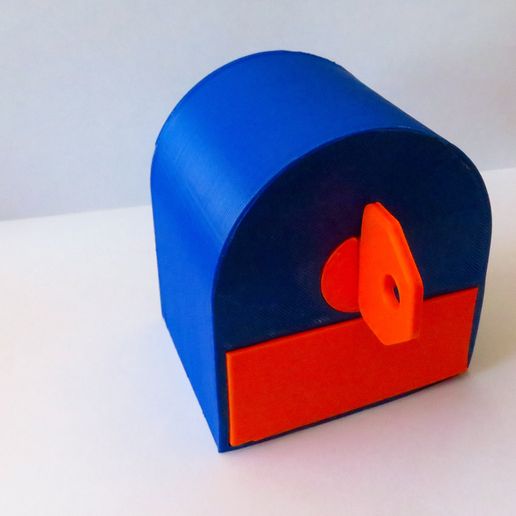

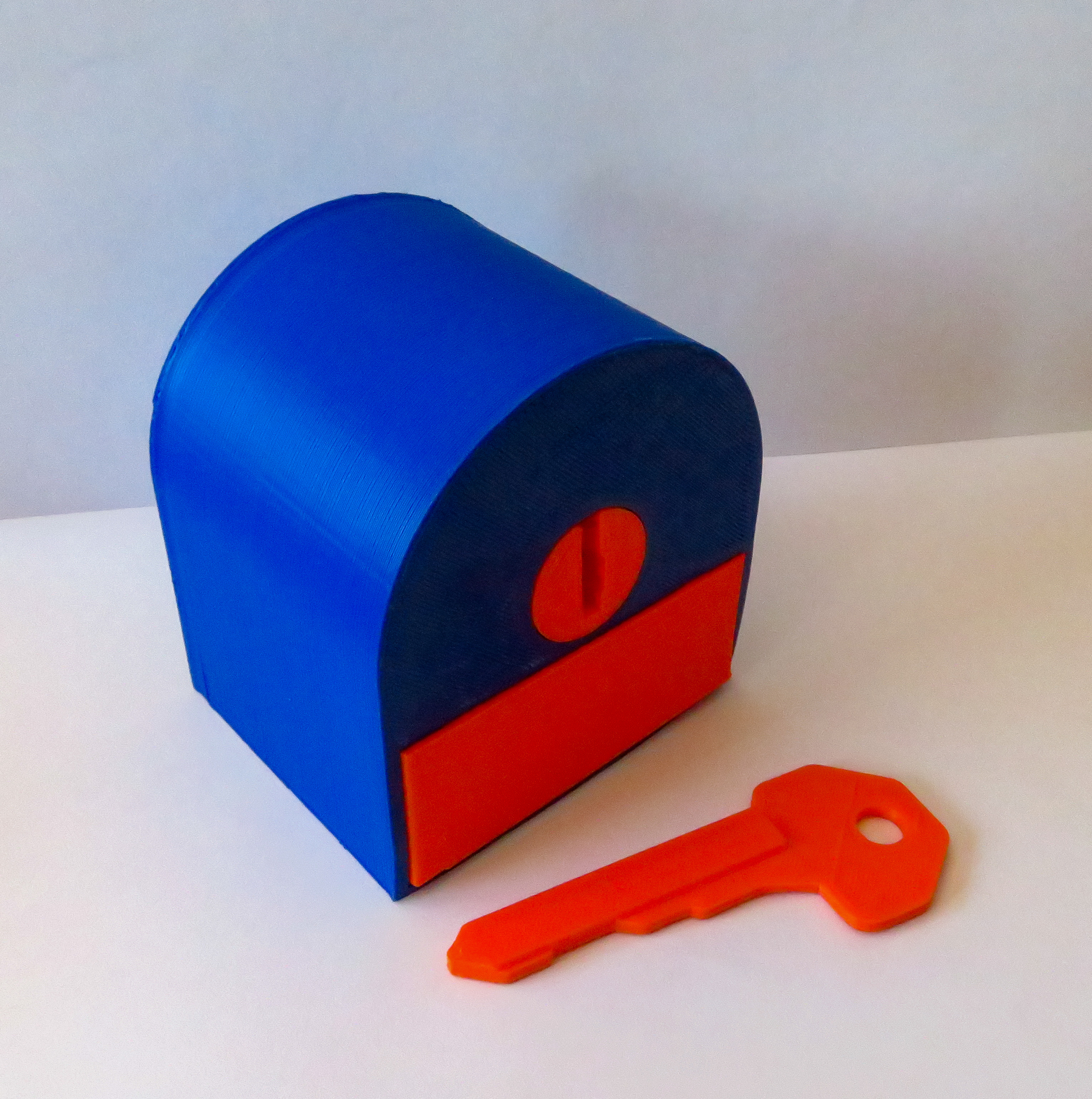

This is a 3d printed lock, with a slightly bigger compartment than my last lock. Inside there are 4 pins, which can be 3d printed. For this design you also will need some springs. 4 above the pins. These need a diameter of 5 mm and a lenght between 15 and 20 mm. If you want to springload the drawer you need two springs with diameter 6 to 8 mm and a lenght between 10 and 25 mm. You also will need four m3 screws and nuts. In the drawer there are two holes for two 4 mm pins of length 10 mm, if you want the drawer to stop jumping out.

  • 3D file format: STL
  • Publication date: 2019/10/31 at 11:27

Tags

Creator

Designs 11
Downloads 861
Followers 21

License

CC BY


Best sellers of the category Game


Add a comment

One comment

where exactly would I find the right springs if I were to by them?
