15 X 12 Curved N Scale Turnout Build System

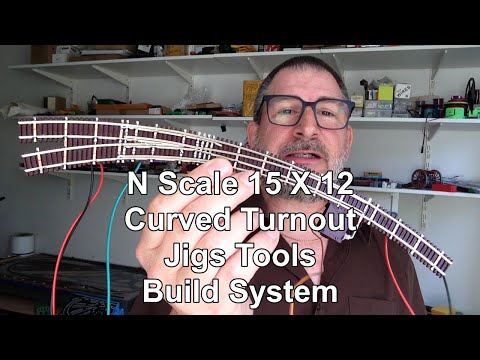

15 X 12 Curved N Scale Turnout Build System with jigs, tools, tie beds and clamps. This is my ninth turnout design so far. Was asked to make a 15 x 12 curved turnout. Pretty sure I can use one as well. The piece came out longer than I expected. The lines and curves create the shape, I just fill in the gaps. I prefer a smooth transition in either direction. Some turnout have a harder curve into a straight. Never liked that unless you are doing a double reversing turnout i.e. a runaround. Here is a video describing the build of the 15x12 curved turnout: https://youtu.be/SWgYFWsGTBM

The build is the same as all my other turnouts and I would watch this video to see the entire process described. This is a #6 turnout build: https://youtu.be/0vMZFOuBc0c
Or the ASMR version real time: https://youtu.be/abWzY6cBm_c

The best tool I've ever made is included; PCB Tie Gapper / Cutter. Frog Jig to hold the frog rails while soldering the point. Frog / Point File Tool and Stock Rail File Tool for the ends of the frog, diverging and stock rails. Tiebeds as well with one designed for the under micro servo I am now using, as well as one for a drilled throw bar setup. Isolation Gap Guide & Sacrificial Support for the Jewelers Saw to hold the track in a vice. The sacrificial part really helps the saw through the rails, especially the flanges. Three Clamp Sizes and a pile of Clamp Blocks.

I did make some minor changes to the length of some of the PCB ties since the one I built and tested the one Left 15 x 12 in the video. Have not tested those changes since I don't need a second one. Did not make any right turnouts, just the one left. If something seems very wrong with the PBC ties alignment or gap position, contact me, maybe it is wrong... Happy to fix them.

Here is my tools used link list:
Here are the tools and where I bought them from:
Dieter Schmid's Fine Tools:
Set of 12 needle files https://www.fine-tools.com/feile4.html (the triangle file)
Saw blades: https://www.fine-tools.com/blitz-tornado-finis.html
Saw Handle: https://www.fine-tools.com/grobet-laubsaege.html

FastTracks:
Big File: https://handlaidtrack.com/product/tl-0007/?v=796834e7a283
Xuron's rail cutter: https://handlaidtrack.com/product/769-2175b/?v=1a13105b7e4e
PCB Ties: https://handlaidtrack.com/product/ch-n-c/?v=796834e7a283
Code 55 Rails: https://handlaidtrack.com/product/17-055/?v=796834e7a283
Rail Joiners: https://handlaidtrack.com/product/26-055/?v=796834e7a283
3 Point Track Alignment Tool: https://handlaidtrack.com/product/tri-n-s-me55/?v=796834e7a283
Pliobond Adhesive: https://handlaidtrack.com/product/sp-0001/?v=796834e7a283

Found the solder here: https://installatiegereedschap.nl/product/stannol-soldeertin-hs10-2510-sn60pb40-07mm-100g-519242/

Micro Servos: https://nl.aliexpress.com/item/1005005196721833.html?spm=a2g0o.order_list.order_list_main.51.2faa79d2BC6xhB&gatewayAdapt=glo2nld The 2G version.

Medium servo:
https://nl.aliexpress.com/item/32680024453.html?spm=a2g0o.order_list.order_list_main.98.2faa79d2BC6xhB&gatewayAdapt=glo2nld

M1.4 4mm screws:
https://nl.aliexpress.com/item/1005003255909759.html?spm=a2g0o.order_list.order_list_main.103.2faa79d2BC6xhB&gatewayAdapt=glo2nld

The jig uses support for the clamp edges. I've done the filing blocks nut side with and without, both work. The nuts barley fit since they need to be very tight to work. M8 bolts 25mm long, washers and lock nuts for the filing blocks. I use my Small Rail Roller for the curved tracks: https://cults3d.com/en/3d-model/game/smaller-rail-roller-bender-make-curved-n-scale-tracks-or-other-curved-rods
