Wheel offset fitment tool 14"-20" or 14"-22"

Creation quality: 3.6/5 (4 votes)
Evaluation of members on the printability, utility, level of detail, etc.


3D model description

This wheel offset tool was designed and patented by me based on others that I seen on the internet. Those I saw are not printable via their files but mainly to be purchased online which I totally understand.

Therefore i came up with my own and offering it to you as a buyable file. I printed this with my MSLA ELEGOO SATURN S out off ABS LIKE RESIN mix so: 40% Siraya Tenacious for a bit of flexibility and 60% Siraya Fast for the strength with no support Also printed it with my CREALITY ENDER 3 PRO w/o support at 20% infill and also turn out great.
Good for most common hub bolt pattern. Tried 5x120 -5x114.3 -5x112 -4x110 -4x100 and center hub is 76.3mm max!

This offset tool is purposely designed to give us an idea of the maximum offset without sticking past your fenders. I also used my DeWalt laser to get more of a precise line up to my inner fender.
There are methods to put proper weight on the A-arm/hub when you are checking to make sure car is well/evenly seated. It is very accurate but can be within (+/-) 1-3mm depending on your prints but can still be close enough!

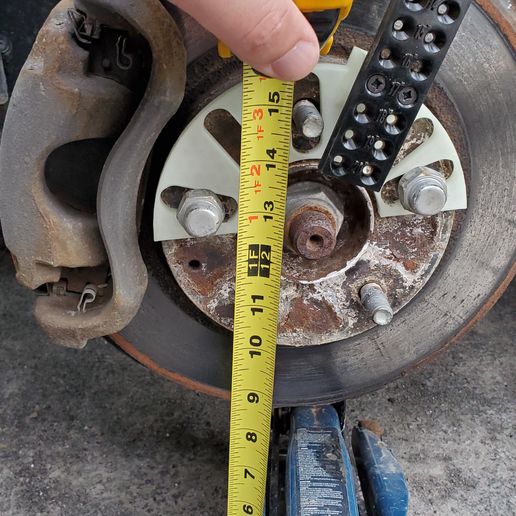

(I measured from ground the center hub wheel when sitting normally then lowered floor jack with another jack under A-arm until at precisely same height to center hub without wheel then check with this tool) DO NOT JUST PUT A BRICK UNDER IT..... DEFINITELY NOT THE PROPER RIDE HEIGHT UNLESS YOU HAVE A BRICK UNDER EACH WHEEL!!!!BUT STRONGLY DOUBT IT.

If you need more in depth dimensions in regards to how your tire will sit and end up being like, this is not the right tool for you.

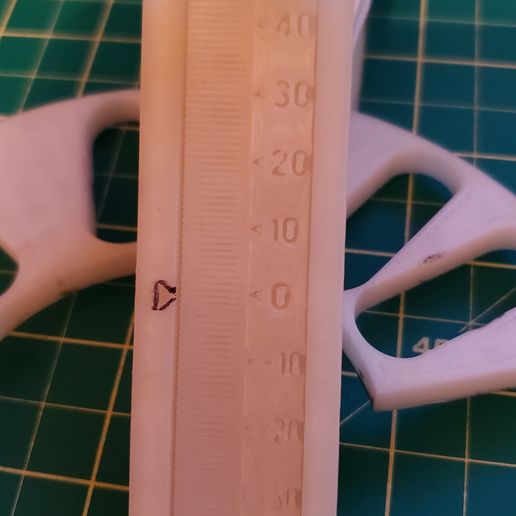

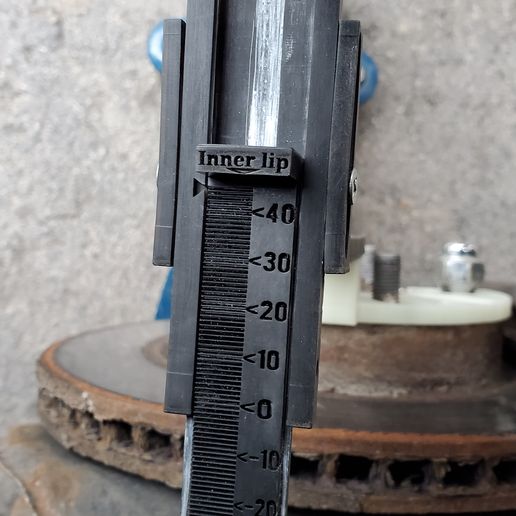

Offset: +45 /-45

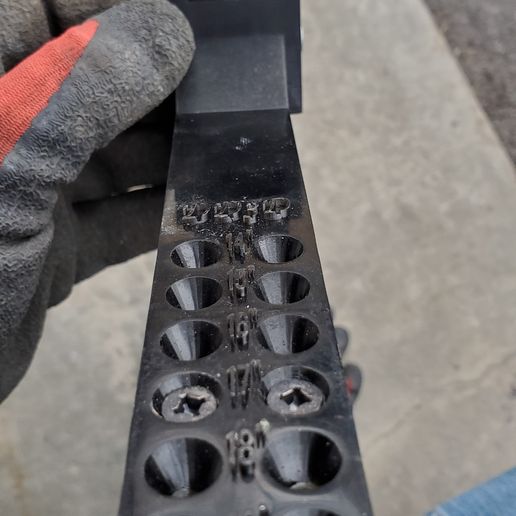

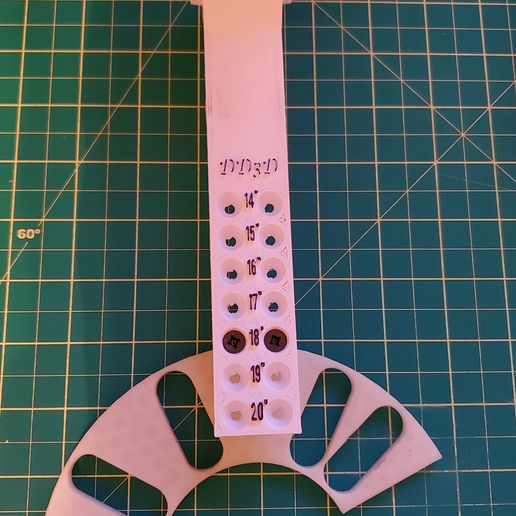

Wheel diameter: 14"-20" or 14"-22"
Wheel width: 6"-12" WIDE

3D printing settings

As per description

3D printer file information

  • Design number: 1188221
  • 3D design format: STL Folder details Close
    • Wheel Offset Tool 20in_22in.stl
    • Wheel Offset Tool kit.stl

    Learn more about the formats

  • Last update: 2023-06-22 at 05:03
  • Publication date: 2023-04-26 at 07:08
