THE ONE - Vertical GPU Mount ALL TOWERS AND MOBOS!!!

🖥 Vertical GPU Mount - Optimized & Reinforced Version

This is an improved remix of the original model, redesigned to provide greater strength, better usability, and a smoother printing experience. All modifications were made with durability, case compatibility, and printability in mind.

🧩 Compatibility with Cases and Motherboards

This vertical GPU mount was designed for full compatibility across nearly all PC case sizes and every major motherboard form factor - ensuring proper alignment, flexibility, and easy installation in almost any setup.

🖥 Compatible with all case sizes:

Super Tower - maximum internal space for extreme builds

Full Tower - ideal for very large GPUs or complex cooling loops

Mid Tower - the most common layout; fits perfectly

Mini Tower (micro ATX)

Note: final compatibility depends on whether your specific case includes vertical PCI openings.

🔩 Compatible with all motherboard sizes:

XL-ATX

E-ATX

ATX

micro-ATX (mATX)

Mini-ITX (ITX)

The redesigned mounting points provide:

Better tolerance across different PCIe slot positions

More flexibility with screw choice

Fine-adjustment capability for perfect vertical GPU alignment

🔧 Changes & Improvements

1. Reinforced upper anti-sag support

The upper anti-sag section has been strengthened to better handle larger and heavier GPUs. The updated geometry minimizes flex, increases rigidity, and improves overall stability for vertical GPU setups.

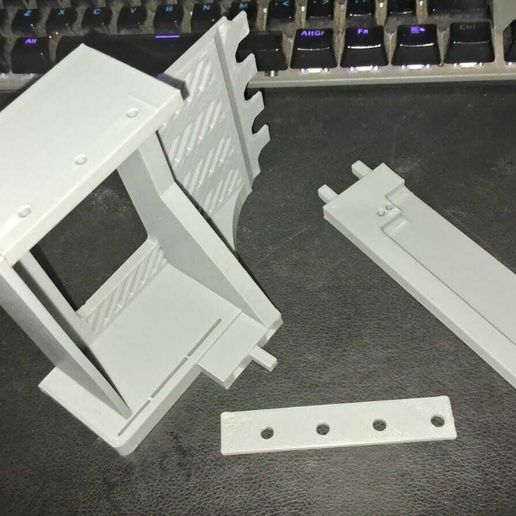

1. Model split into parts for easier printing

The model has been divided into smaller sections to allow cleaner prints with significantly fewer supports.

Precision-fit joints between parts

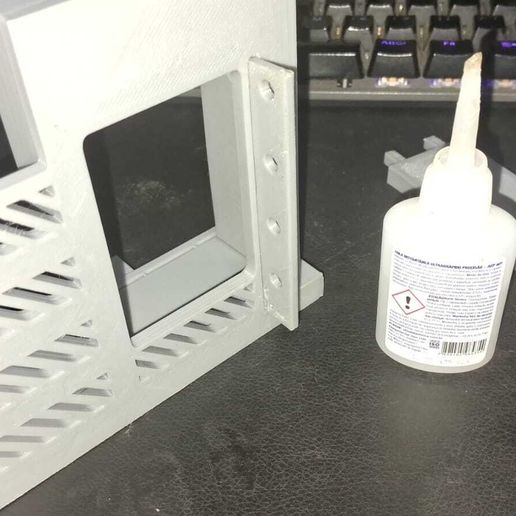

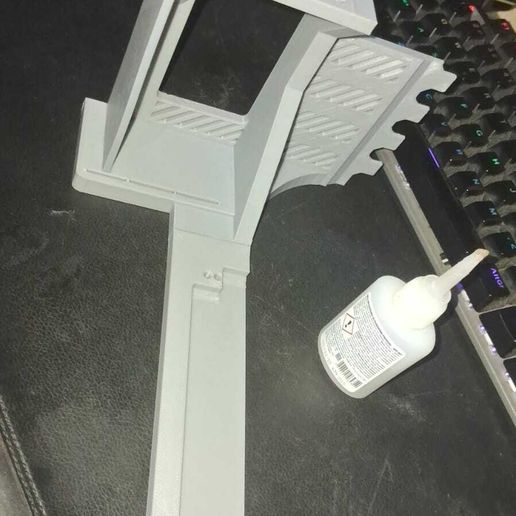

Easy assembly: simply slot the pieces together and glue

Structural strength preserved even in modular form

For those who prefer single-piece printing, the full one-piece updated version is also included.

1. Removal of non-structural elements

Non-essential components that didn't contribute to rigidity were removed. This reduces material usage and print time without affecting durability or functionality.

1. Improved case-mounting points

The mounting points that attach to the PC case were redesigned to provide:

More freedom when choosing screws

Better tolerance for different case models

Fine-adjustment capability during installation

This ensures improved compatibility and easier alignment of the GPU.

🔌 Clean cable-management design

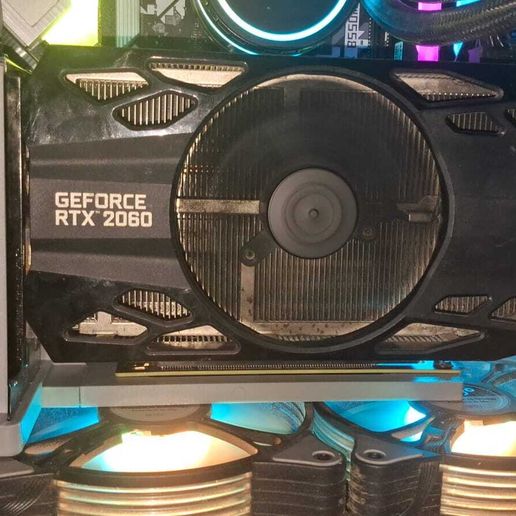

This mount was designed to allow a fully clean installation, ensuring no visible cables in front of the GPU when mounted vertically.

The geometry and spacing make it easy to route all PCIe power cables behind the GPU and the bracket.

🧩 Included Files

Split-part version (recommended for printing)

One-piece version with all upgrades applied

Files provided in .STL format, compatible with all slicers

📌 Why This Optimized Version Is Better

Stronger and more rigid

More compatible with different cases

Easier and cleaner to print

Lower material usage

Simple assembly process

Includes modular and one-piece versions

Reinforced anti-sag support

More flexible and adjustable mounting points

🖨 Print Recommendations

Material: PETG or ABS/ASA for best strength (PLA works but has lower heat resistance, if your case doesnt have a good flow, it would warp)

Walls/Perimeters: 2-3 walls

Infill: 15%-35%

Layer height: 0.20 mm

Supports: minimal or none, depending on the version

Orientation: optimized in the split-part version
