TRX4M Tracks

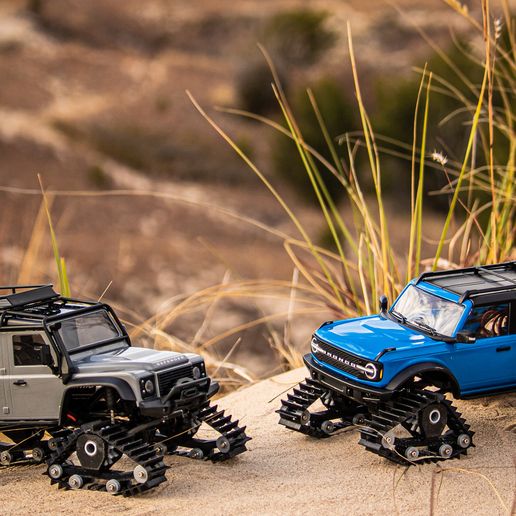

Functioning tracks for the Traxxas TRX4M crawler. I wanted to be able to drive my TRX4 through softer terrain including snow and sand so I created these. See my YouTube channel Cinemoto for running videos!

You will need the following for a set of 4 tracks.

M2x8mm bolts x 32
M2X10mm Bolts x 16
2x6x3 Bearings x 32
10x15x4 Bearings x 8
PLA of your Choice
Ninjaflex TPU

Print this quantity of items for a set of 4 tracks.

Small Runner x 24
Large Runner x 8
Chassis Cap Outer x 4
Chassis Cap Inner Rear x 1
Chassis Cap Inner Rear MIRRORED x 1
Chassis Cap Inner Front x 1
Chassis Cap Inner Front MIRRORED x 1
Chassis Rear x 1
Chassis Rear MIRRORED x 1
Chassis Front x 1
Chassis Front MIRRORED x 1
Main Cog x 4
Nut Driver x 1
Track Extreme Terrain x 4 *

*Print in Ninjaflex TPU

All PLA Items:
.4 Nozzle
.2 Layer Height
100% infill on all parts except chassis I printed chassis at 20% infill to reduce weight.
Use supports when needed.

For the tracks print those in ninjaflex with the following settings.
.3 Nozzle
.2 layer height
0 top layers
0 bottom layers
Wall line count of 3
