Triangular computer case

ProduitsPascal2-09.jpg Triangular computer case
ProduitsPascal2-10.jpg Triangular computer case
ProduitsPascal2-12.jpg Triangular computer case
ProduitsPascal2-14.jpg Triangular computer case
ProduitsPascal2-16.jpg Triangular computer case
Advertising
Make an offer
Share
Add to
Make
?
Creation quality: 0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
2 files (PDF and ZIP) Close
  • assembly instruction.pdf
  • triangular Computer case.zip
    • cable routing holder.STL
    • corner.STL
    • double fan support offselt for bottom slot.STL
    • double fan support offset for bottom complete.STL
    • double radiator mount complete.STL
    • double radiator mount slot.STL
    • frame side.STL
    • GPU bracket.STL
    • Motherbard tray bottom.STL
    • Motherbard tray top.STL
    • motherboard tray joint.STL
    • mounting frame complete.STL
    • power supply mount.STL
    • side pannel.STL
    • single fan support for back complete.STL
    • single fan support for back slot.STL
    • single fan support offselt for bottom slot.STL
    • single fan support offset for bottom complete.STL
    • single radiator mount complete.STL
    • single radiator mount slot.STL

Learn more about the formats
Publication date
Design number 2669119
tweakymoss

tweakymoss

Issue with this design? Report a problem.

3D printer file info

3D model description

This is a complete PC case that is open and triangle.
Made to fit a ATX motherboard and power supply.

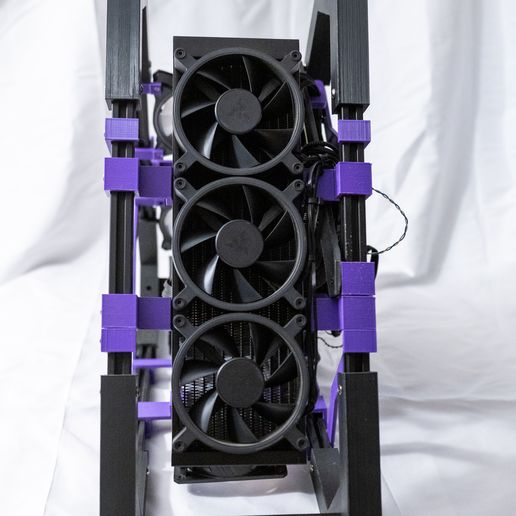

There are mount to put fan in the front, back and bottom. Also fit AIO in the front
It can also fit big graphic cards (one picture show it with a 4070)

You would need to buy 6 20mm x 20mm aluminum extrusion 30 cm long. you will also need minimum 27 bolts and nut that fit in the extrusion (that doesn't count fan and graphic card mounting) I recommend drop in nut. It make it easier to plan.

you will also need minimum 17 case fan screw for the assembly, preferably 28 without counting the one who will be needed for the fans.

The motherboard tray is in 3 pieces, which need a 300mm build plate. if you need a smaller version, contact me I can create a new one.

3D printing settings

Printed on ender3 Max. designed to be fully FDM printed
