Solar Tracker

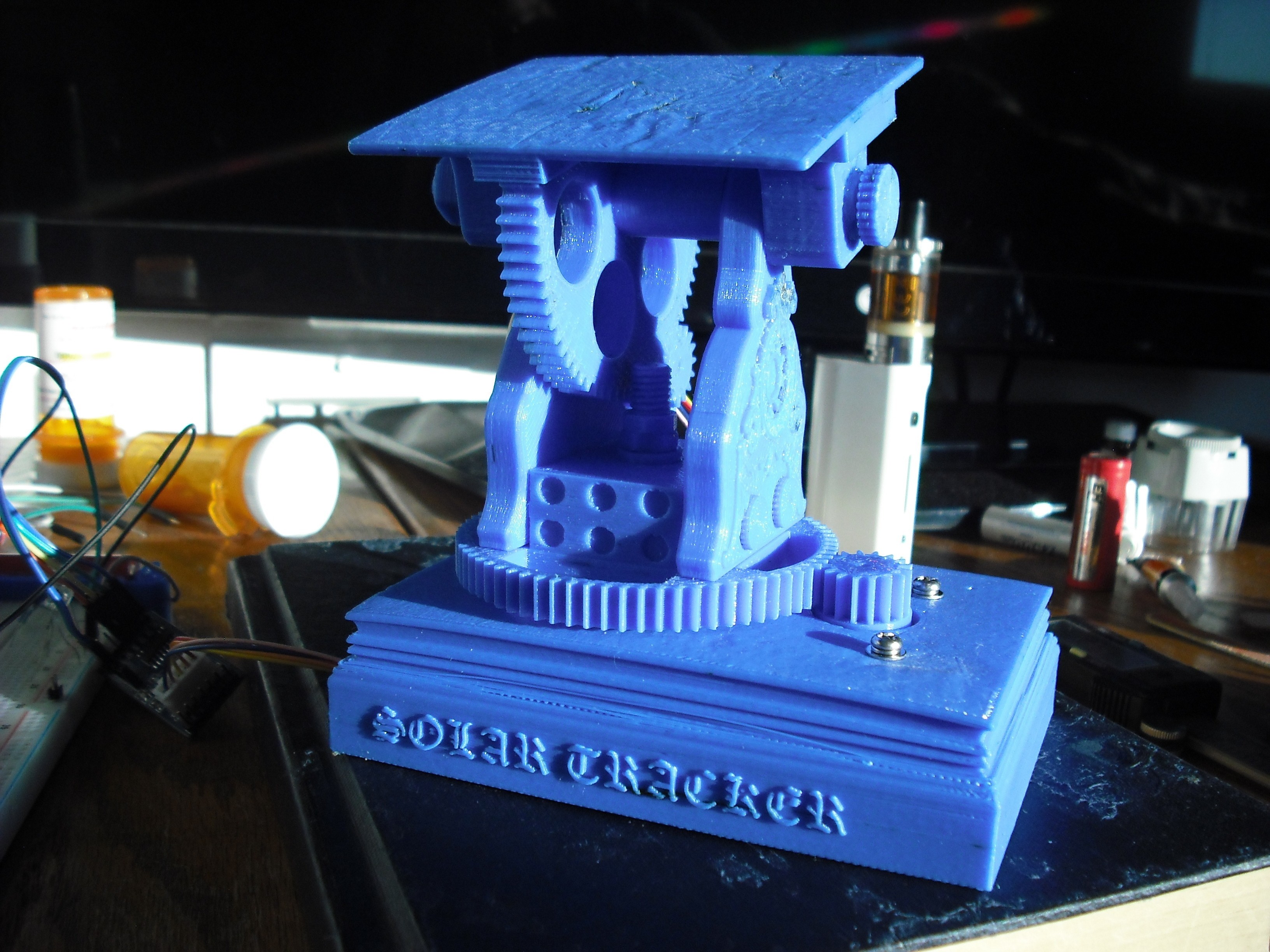

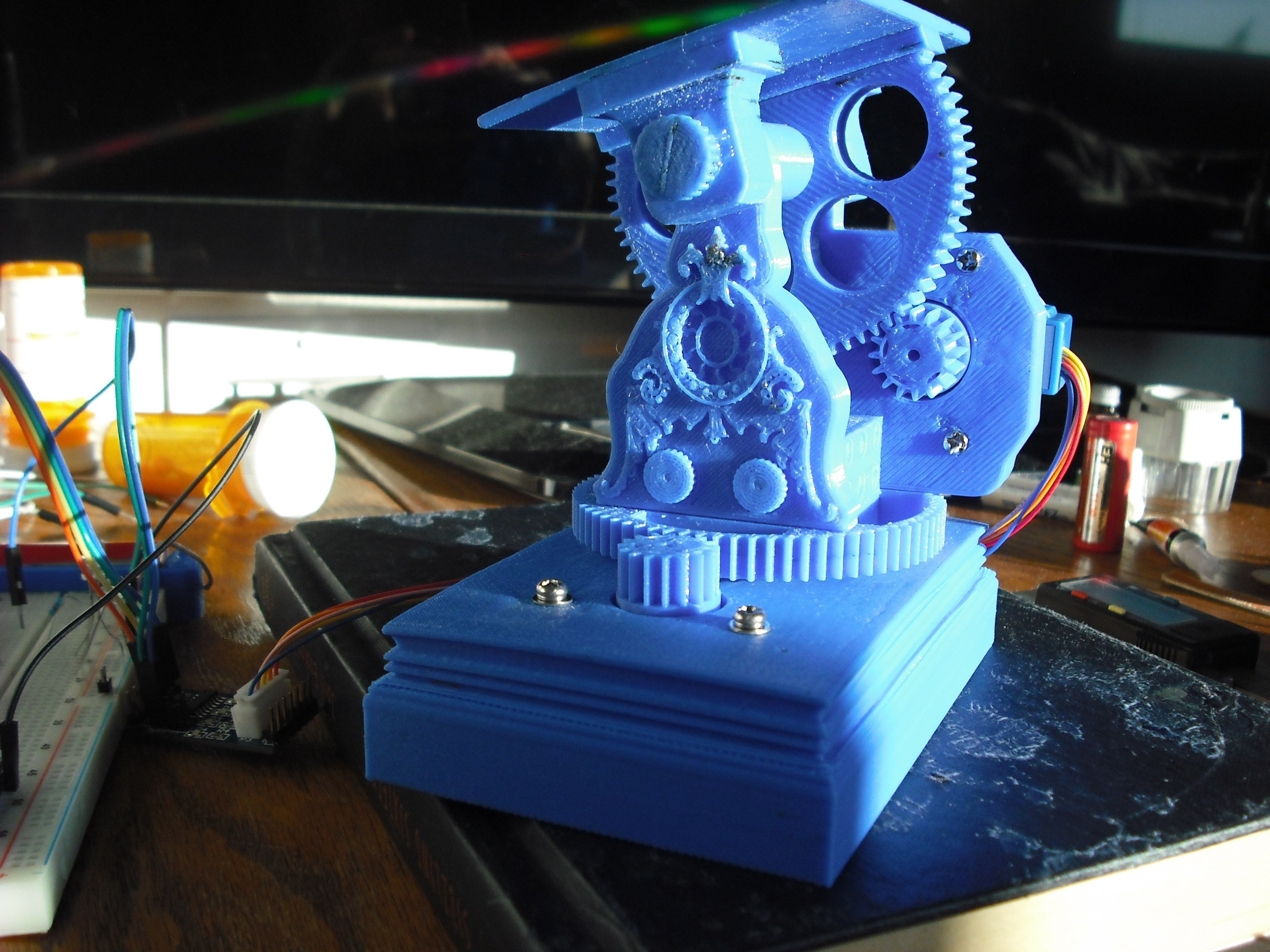

DSCF0440.JPG STL file Solar Tracker・Design to download and 3D print
DSCF0441.JPG STL file Solar Tracker・Design to download and 3D print
DSCF0442.JPG STL file Solar Tracker・Design to download and 3D print

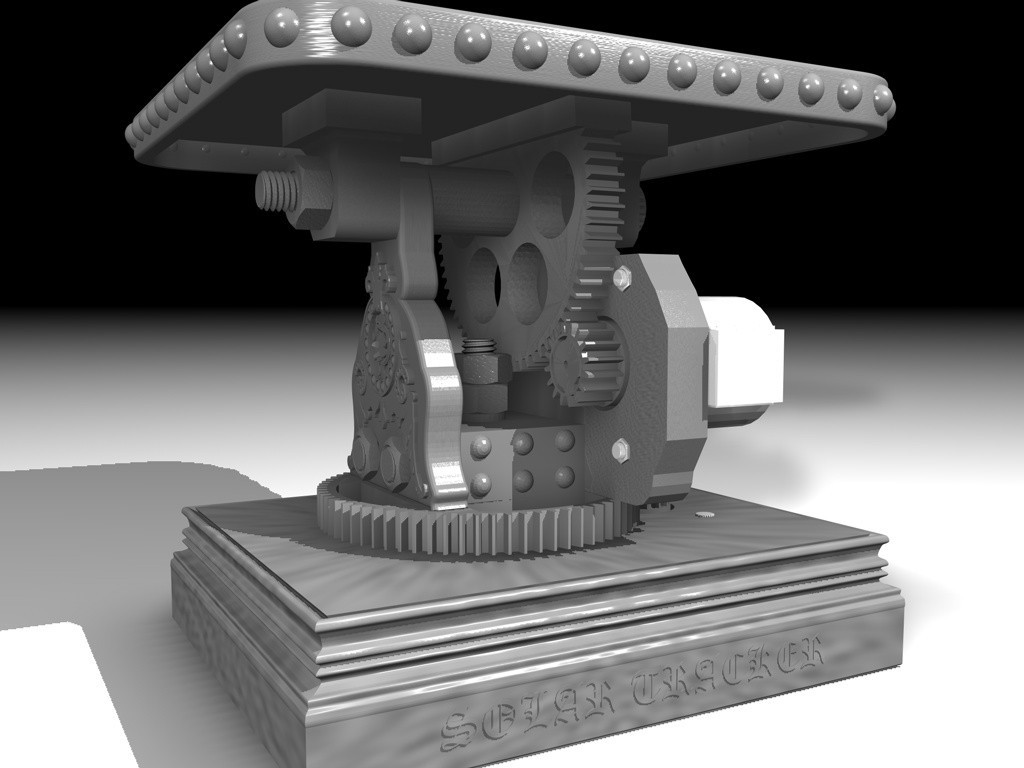

ST-1_0002.jpg STL file Solar Tracker・Design to download and 3D print
ST-2_0002.jpg STL file Solar Tracker・Design to download and 3D print

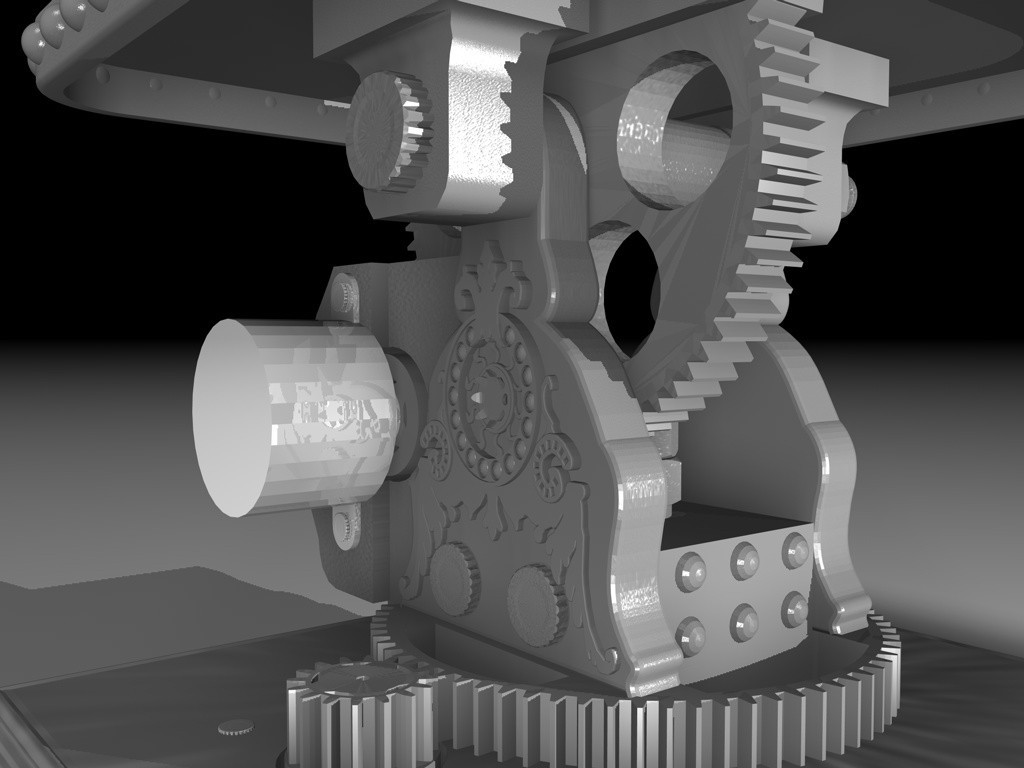

ST-3_0002.jpg STL file Solar Tracker・Design to download and 3D print
ST-4_0002.jpg STL file Solar Tracker・Design to download and 3D print

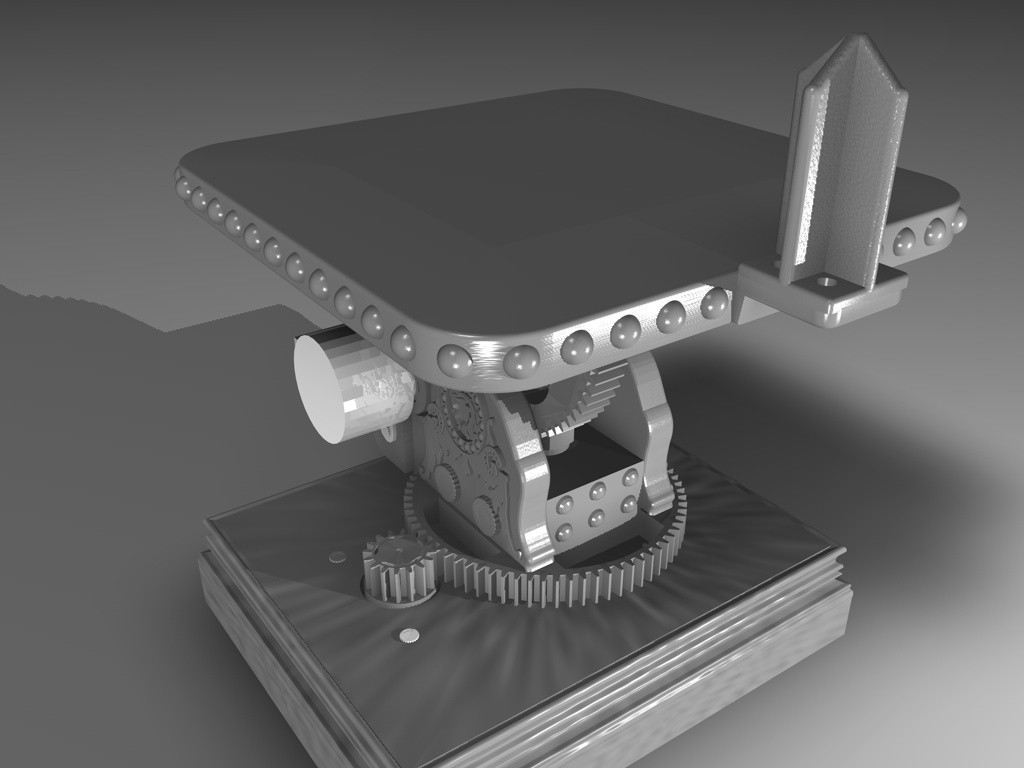

ST-5_0002.jpg STL file Solar Tracker・Design to download and 3D print
ST-6_0002.jpg STL file Solar Tracker・Design to download and 3D print
ST-camera-mount.stl STL file Solar Tracker・Design to download and 3D print
ST-GANTRY-Base.stl STL file Solar Tracker・Design to download and 3D print
ST-GANTRY-CENTER-BOLT-x1.stl STL file Solar Tracker・Design to download and 3D print
ST-GANTRY-CENTER-TOP-BOLT-SPACER.stl STL file Solar Tracker・Design to download and 3D print
ST-GANTRY-CENTER-TOP-BOLT-x1.stl STL file Solar Tracker・Design to download and 3D print
ST-GANTRY-LEFT.stl STL file Solar Tracker・Design to download and 3D print
ST-GANTRY-LOWER-GEAR.stl STL file Solar Tracker・Design to download and 3D print
ST-GANTRY-PEG-x2.stl STL file Solar Tracker・Design to download and 3D print
ST-GANTRY-PLATFORM.stl STL file Solar Tracker・Design to download and 3D print
ST-GANTRY-RIGHT.stl STL file Solar Tracker・Design to download and 3D print
ST-GANTRY-SMALLER-BASE.stl STL file Solar Tracker・Design to download and 3D print
ST-GANTRY-UPPER-GEAR.stl STL file Solar Tracker・Design to download and 3D print
ST-INDEX-PIN-x2.stl STL file Solar Tracker・Design to download and 3D print
ST-LDR-DIVIDER.stl STL file Solar Tracker・Design to download and 3D print
ST-NUT-x2.stl STL file Solar Tracker・Design to download and 3D print
ST-THIN-LOCKNUT-x2.stl STL file Solar Tracker・Design to download and 3D print
ST-THIN-NUT-x2.stl STL file Solar Tracker・Design to download and 3D print
ST-ULN2003-motor-GEAR-x2.stl STL file Solar Tracker・Design to download and 3D print
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

pumpkinhead3d

pumpkinhead3d

3D model description

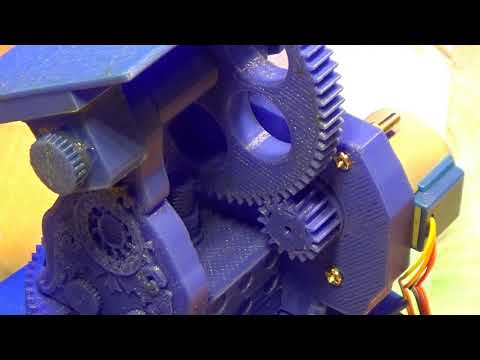

Youtube video...... https://youtu.be/aJjqQPRCP54

You will need ......... x2 Stepper Motor DC 5V 28BYJ-48+ULN2003 Stepper Motor Driver Module for Arduino

https://www.ebay.com/itm/Stepper-Motor-DC-5V-28BYJ-48-ULN2003-Stepper-Motor-Driver-Module-for-Arduino-HP/263100711657?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2057872.m2749.l2649

x1

1PCS 6001-2RS 6001RS Deep Groove Rubber Shielded Ball Bearing (12mm28mm8mm)
https://www.ebay.com/itm/1PCS-6001-2RS-6001RS-Deep-Groove-Rubber-Shielded-Ball-Bearing-12mm-28mm-8mm/261497880518?_trkparms=aid%3D222007%26algo%3DSIM.MBE%26ao%3D2%26asc%3D44040%26meid%3D87fddd7d49a14dcdad96cfca60445817%26pid%3D100005%26rk%3D5%26rkt%3D6%26sd%3D272281636200%26itm%3D261497880518&_trksid=p2047675.c100005.m1851

Some black electrical tape to size in the main shaft.

Arduino....... nano uno etc.
I use the one i made with a webcam, a IR sensor on the nano and a old ir tv remote to keep an eye on my 3d printer.
https://www.ebay.com/itm/10X-Integration-IR-Infrared-Control-Receiver-TL1838-VS1838B-Head-HLCA/282818664269?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2057872.m2749.l2649

3D printing settings

Most are clean prints...... no support.
20% infill
