This is an enclosure for a mechanical single 18650 mod. It includes the button and the door with holes for 2 magnets.

Magnet size is 5mm diameter 2mm height.
Negative contact should be made using .5mm copper strip / plate

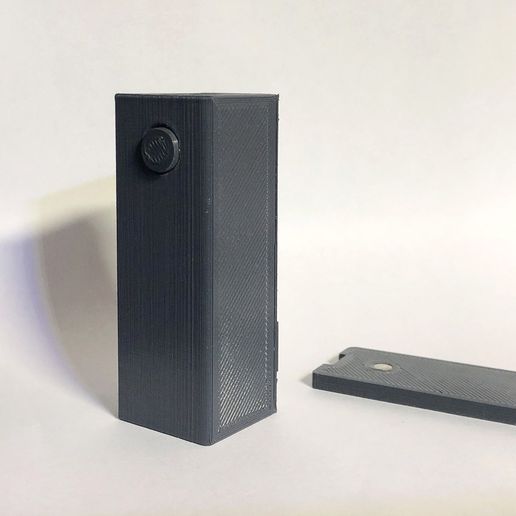

Positive contact should be 15x15mm 2mm thickness. You will need to drill it for your standard 510 attomizer with a 6.5mm bit and tap it using M7 .5mm tap. Photo of a finished product is included.

3D printing settings

Recommended but not necessary:
Filament: PLA/PLA+
2.0 Layer height
100% infill
50C - Bed temperature
Nozzle temp. - refer to your filament specs.
3 walls and 3 top/bottom layers.
Please feel free to ask questions.
