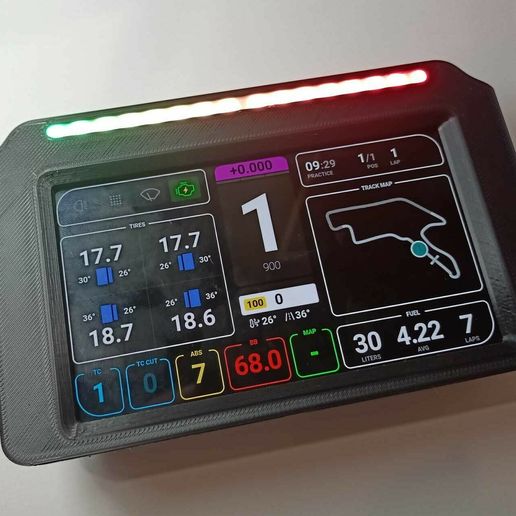

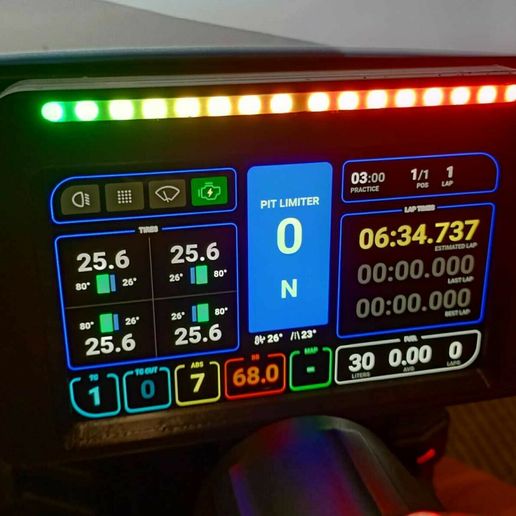

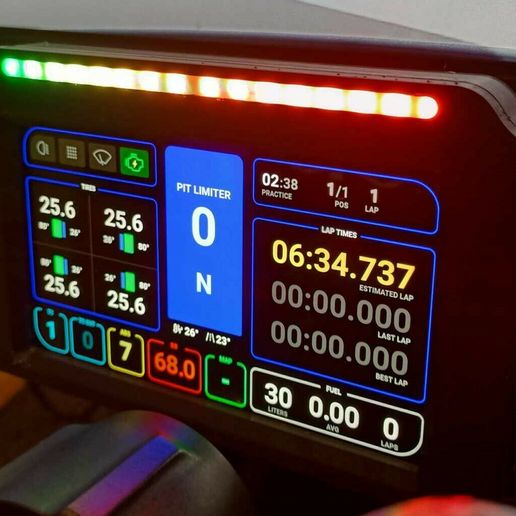

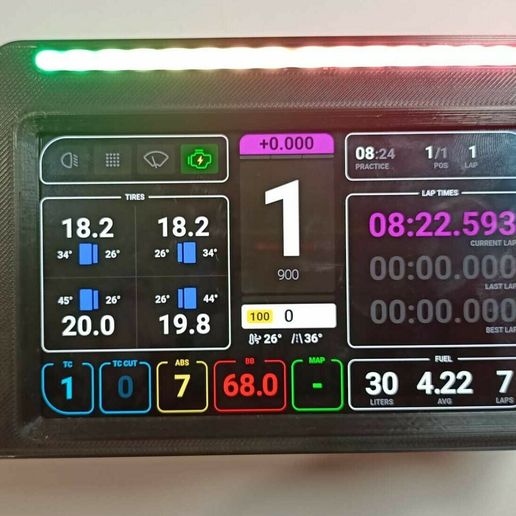

Digital files for a sim racing dash. Made using a Samsung Galaxy S5, amstudio rev light tutorial on YouTube, Arduino Nano + USB cable, 2x WS2812 5050 RGB LED, a few small wires, soldering iron + ~0.8mm solder, 3D printer + filament, super glue, baking paper, 2x M6x10mm countersunk bolts, and 2x M4x16mm nuts and bolts.

Only designed for Samsung Galaxy S5 and CSL DD, though if you have some design skills you could probably make your own mount to a different wheelbase.

What you get:
4x .stl files
.PDF file including instructions + links for making it.
My SimHub LED Profile

FOR PERSONAL USE ONLY - NON COMMERCIAL - NOT FOR RESALE

You cannot sell the digital model, a derivative or adaptation of the model, nor can you sell prints of the model

3D printing settings

0.2mm layer height, shouldn't need supports but check in the slicer, ~20-40% infill. These are just suggestions and you are not limited to them.
