Raspberry Pi B+ with integral 2.5" HDD

Introducing my latest design, inspired by some of the work I have seen here and elsewhere.

Features

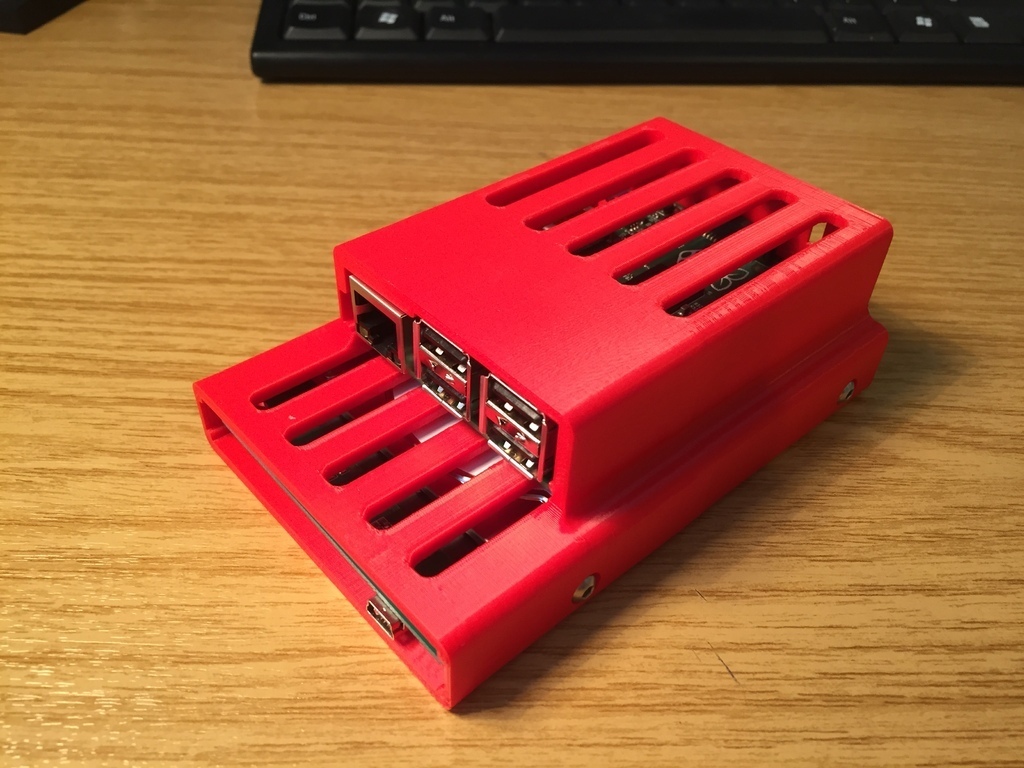

  • Suitable for PI B+ and a 2.5" HDD

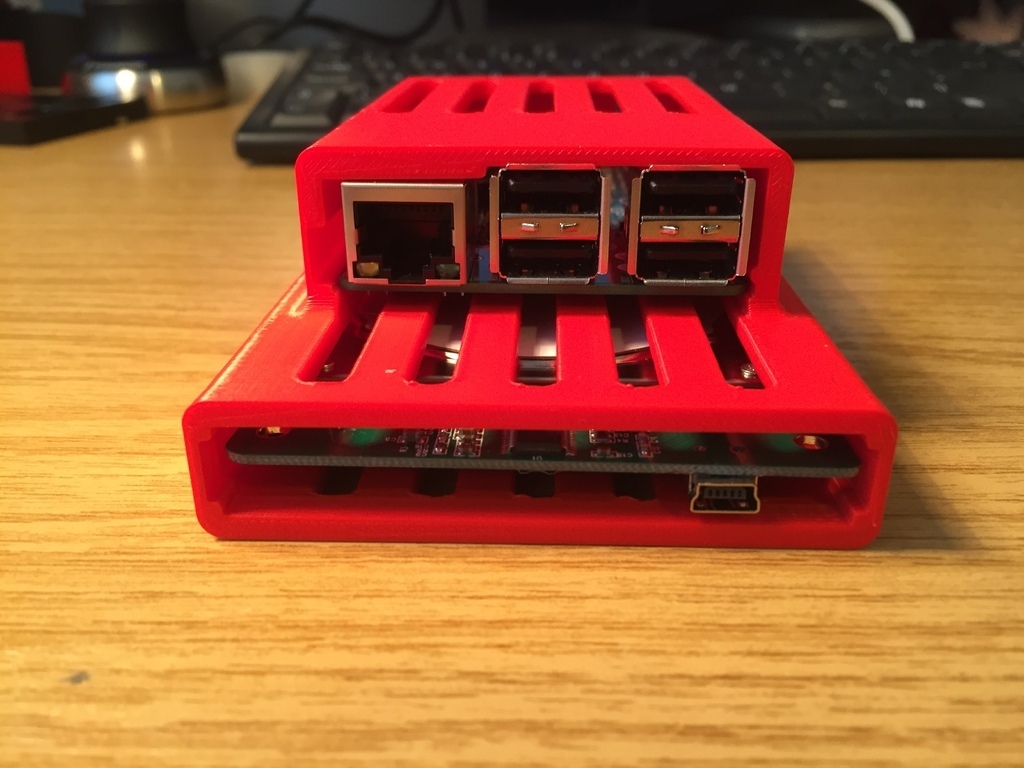

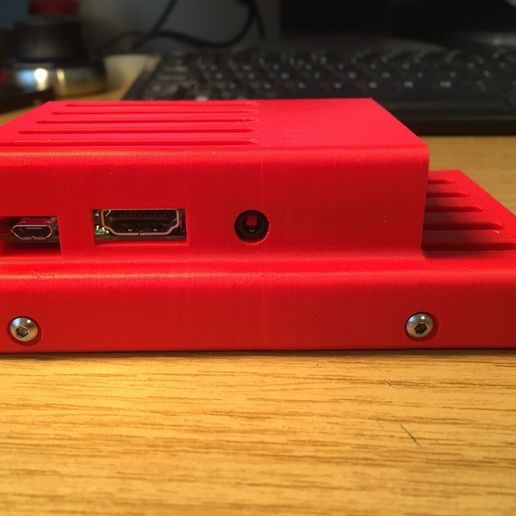

  • Access to power, HDMI and AV ports as well as all USB and RJ45
  • Full height case, locks PI in place using the protrusions on the top of the USB ports

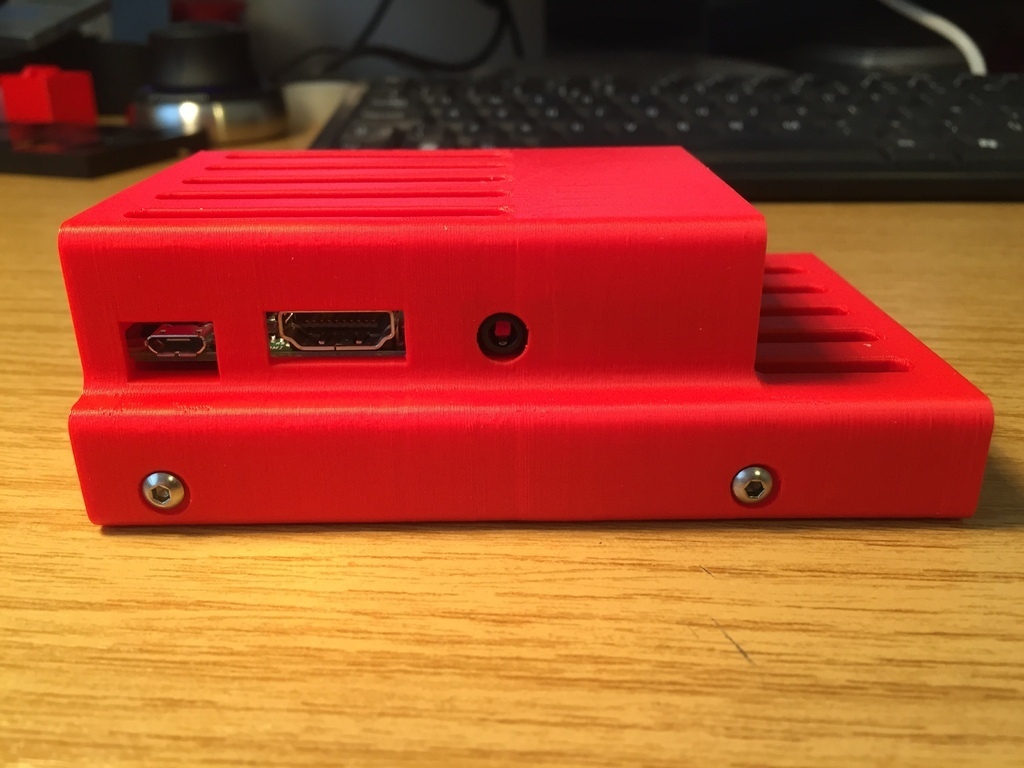

  • Bolt holes in the side to secure the HDD
  • Space at the back of the HDD to include a SATA to USB adapter

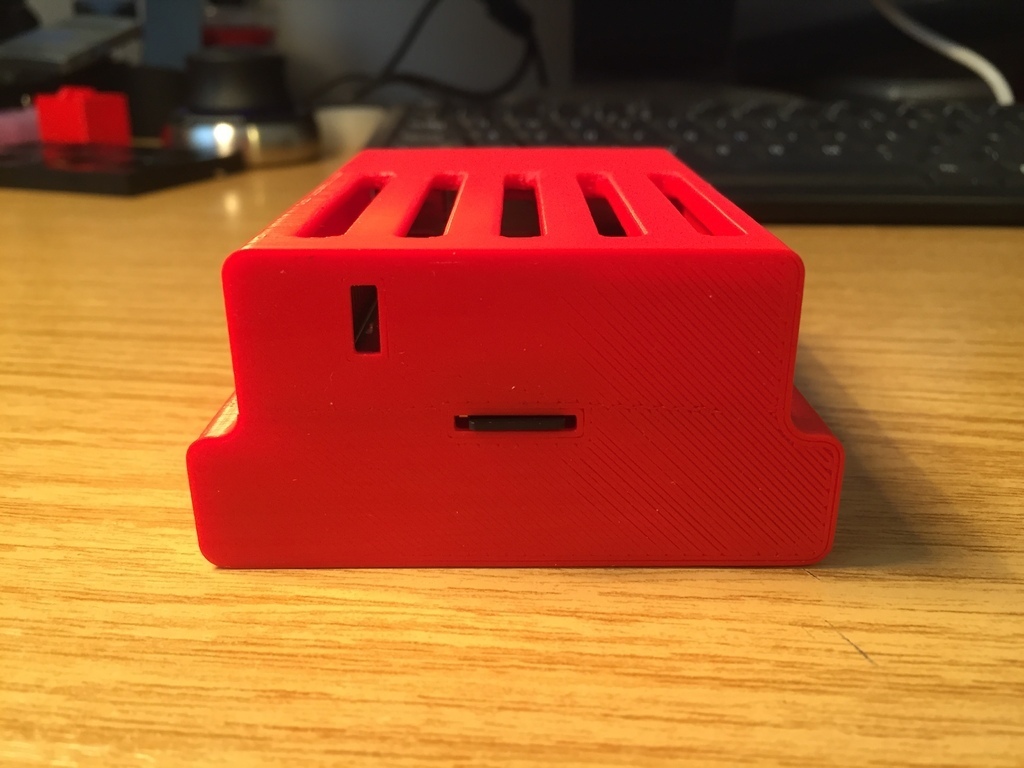

  • Available Vented and Unvented
  • Available with extra opening in the end to pass cables out through, for example to incorporate an IR sensor.

This case is designed to cover the PI completely, right up to the height of the USB connectors. This is so that I could attach an IR sensor to the pins inside the case without having wires coming out of the top.

It is available in 4 configurations:

Sleeve + HDD.stl - This has no vents and no gap for the IR sensor to stick out of
Sleeve + HDD Vented.stl - Vented top and bottom with no IR sensor gap

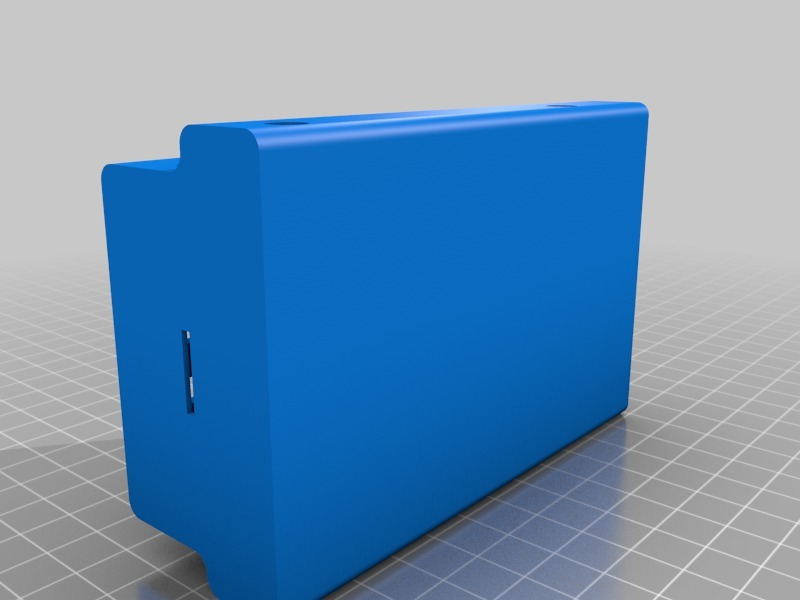

Sleeve + HDD Top Vents Only - This has vents only for the PI, and not for the HDD
Sleeve + HDD + IR Vented - Fully vented and with a small window in the end for an IR sensor to pass out though.
