Meshbot 2

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.5k views
  • 4 likes
  • 66 downloads

3D model description

Second iteration of Meshbot. Now with more sensors!

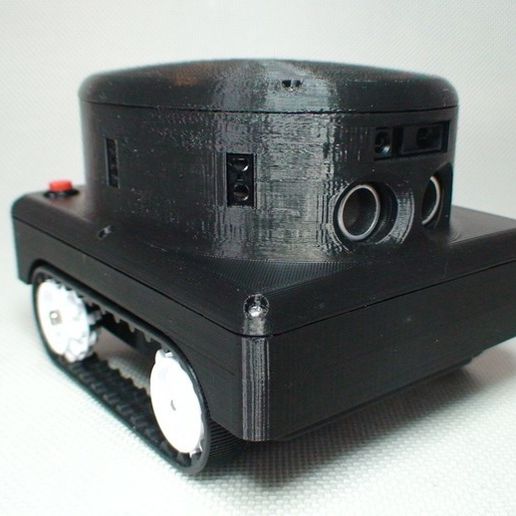

Front and back edge detection sensors, one front ultrasonic ping sensor, front long distance IR sensor, and four IR proximity sensors for wall detection.

This bot is designed to work with the following parts:

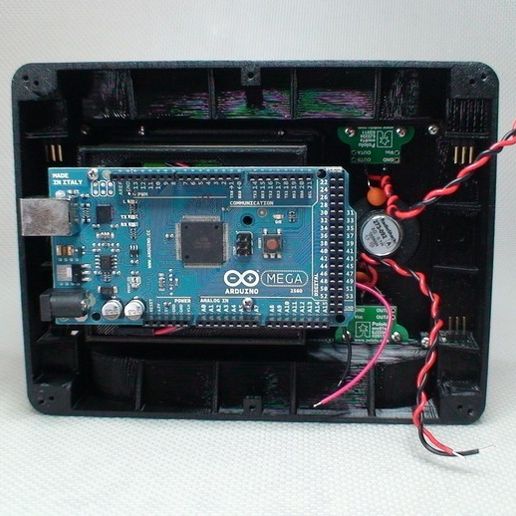

Arduino Mega

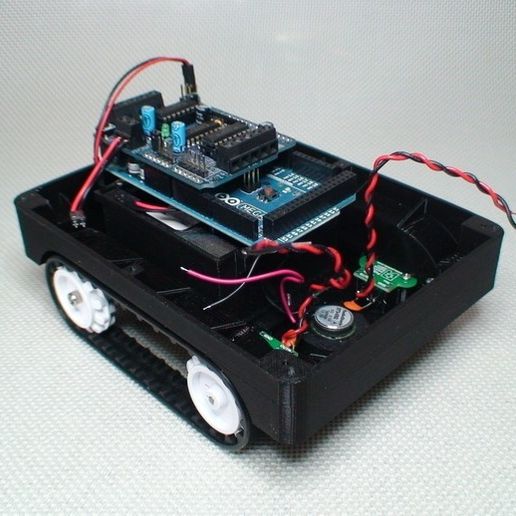

Adafruit motor controller (or similar), a voltage controller, and a bunch of sensors

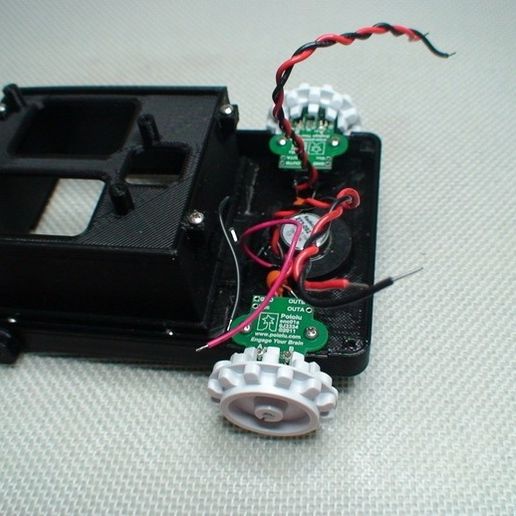

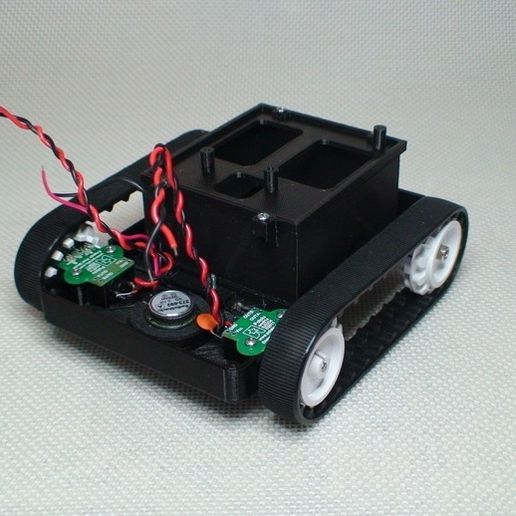

Pololu motors, quadrature encoder, 30T track set and sprockets

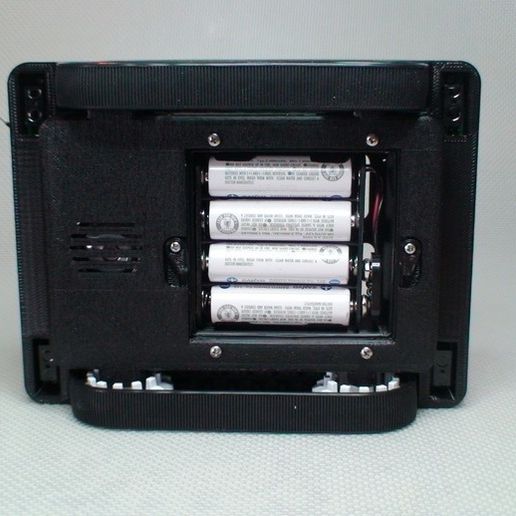

Radio shack 8AA battery holder
Radio shack 8ohm speaker

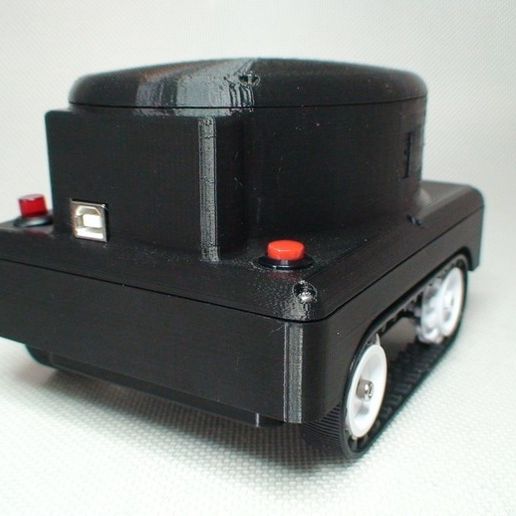

Radio shack lighted on/off switch
Radio shack red interrupt switch (for resets)
If anybody is interested I can provide more part details and general information.

This bot is called "Meshbot" because I use the mesh features of the Xbee antenna product family to allow robot-to-robot and robot-to-operator communications.


3D printing settings

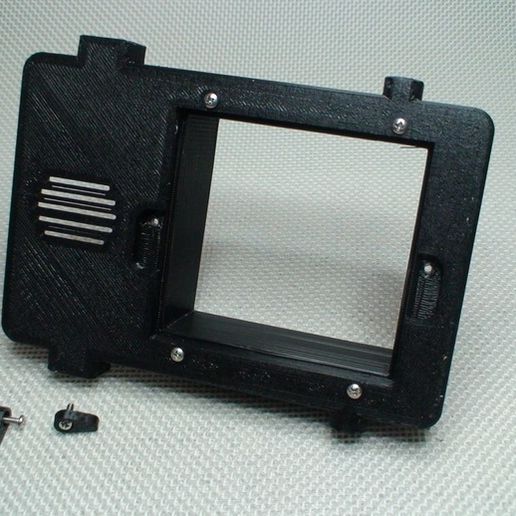

Most parts are designed to be printed without supports or raft. The battery lid tabs are fairly small so you might want to use a raft there if build plate adhesion is a problem for you.

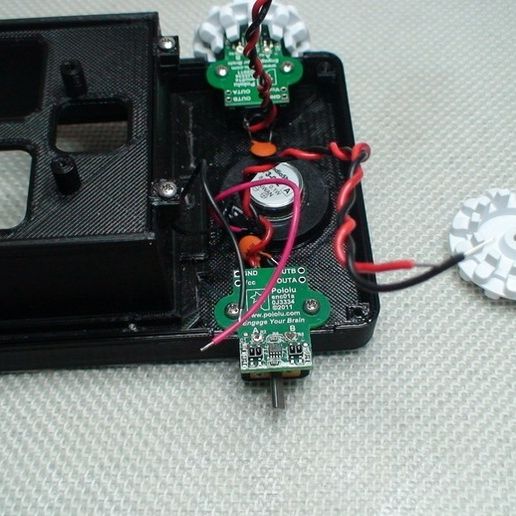

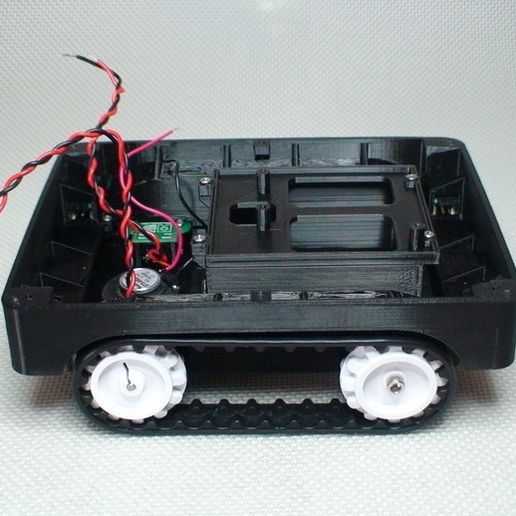

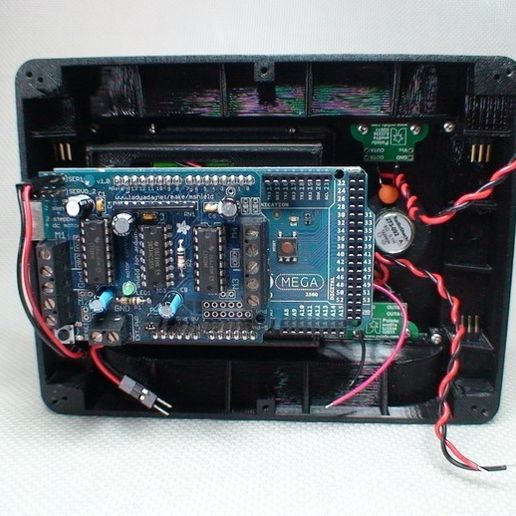

The pictures should show the assembly process, but I'm happy to add more details.

I'm working on an Arduino shield that is specific to this project, I'll release it here as soon as I can, along with the software.

Here are the parts involved:

30T track set: http://www.pololu.com/catalog/product/1416
Two motors: http://www.pololu.com/catalog/product/2361
Ping sensor: http://www.amazon.com/SainSmart-Ultrasonic-Distance-Mega2560-Duemilanove/dp/B004U8TOE6/ref=sr_1_1?ie=UTF8&qid=1379275910&sr=8-1&keywords=ping+sensor
Four 10cm Sharp distance sensors: http://www.pololu.com/catalog/product/1134
Sharp 10cm distance sensor: http://www.pololu.com/catalog/product/136
Screws, #2-56 x 1/2" http://www.boltdepot.com/Product-Details.aspx?product=7655
Screws, #2-56 x 3/8" http://www.boltdepot.com/Product-Details.aspx?product=7653
Speaker: http://www.radioshack.com/product/index.jsp?productId=2062406
Motor Controller: http://www.adafruit.com/products/81
Arduino Mega: http://www.adafruit.com/products/191

3D printer file information

  • 3D design format: STL Folder details Close
    • Battery_Case_5.0.stl
    • Battery_Lid_5.2.stl
    • Body_Lower_5.2.1.stl
    • Body_Upper_5.2.stl
    • Controller_Mount_5.2.stl
    • Rounded_Lid_5.2.stl
    • Tread_Housing_5.1.1.stl

    Learn more about the formats

  • Publication date: 2017/07/26 at 13:52

License

CC BY SA

Creator

Founder of Chicago Robotics Corp.
Application architect, roboticist, technology generalist, and lover of finely designed things.

Here is my company Chicago Robotics.
Here is my Personal website.
Here are my Videos.
You can follow me on Twitter.
