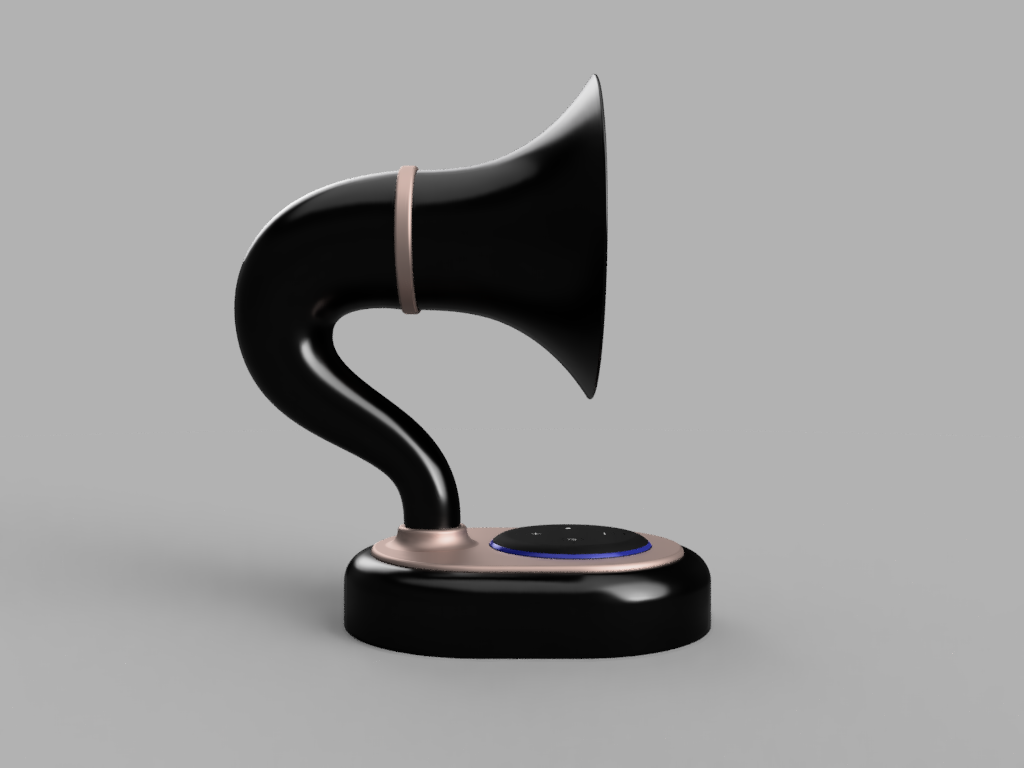

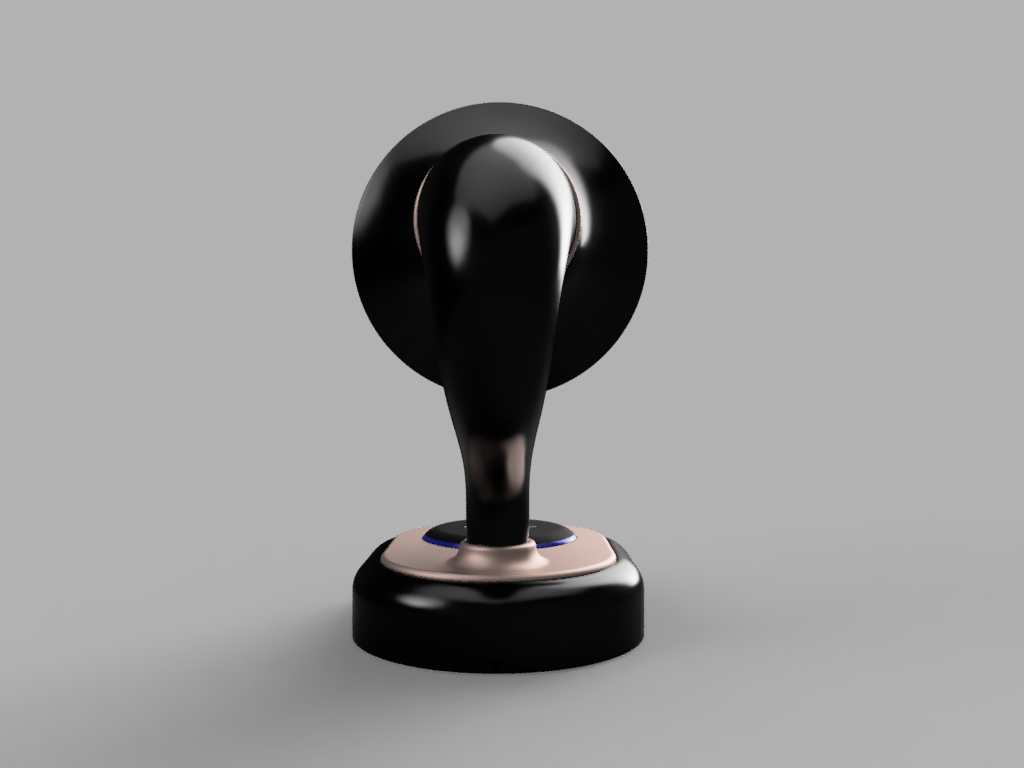

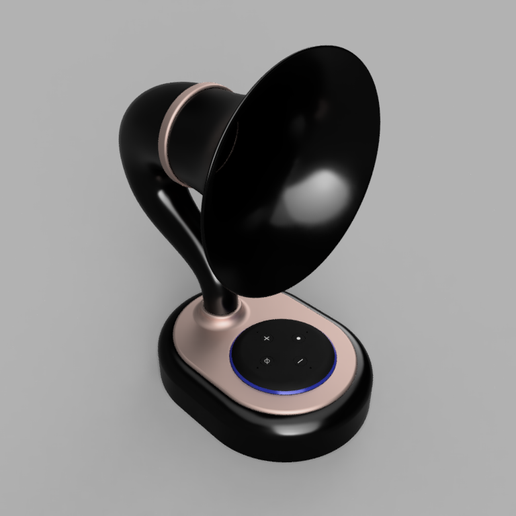

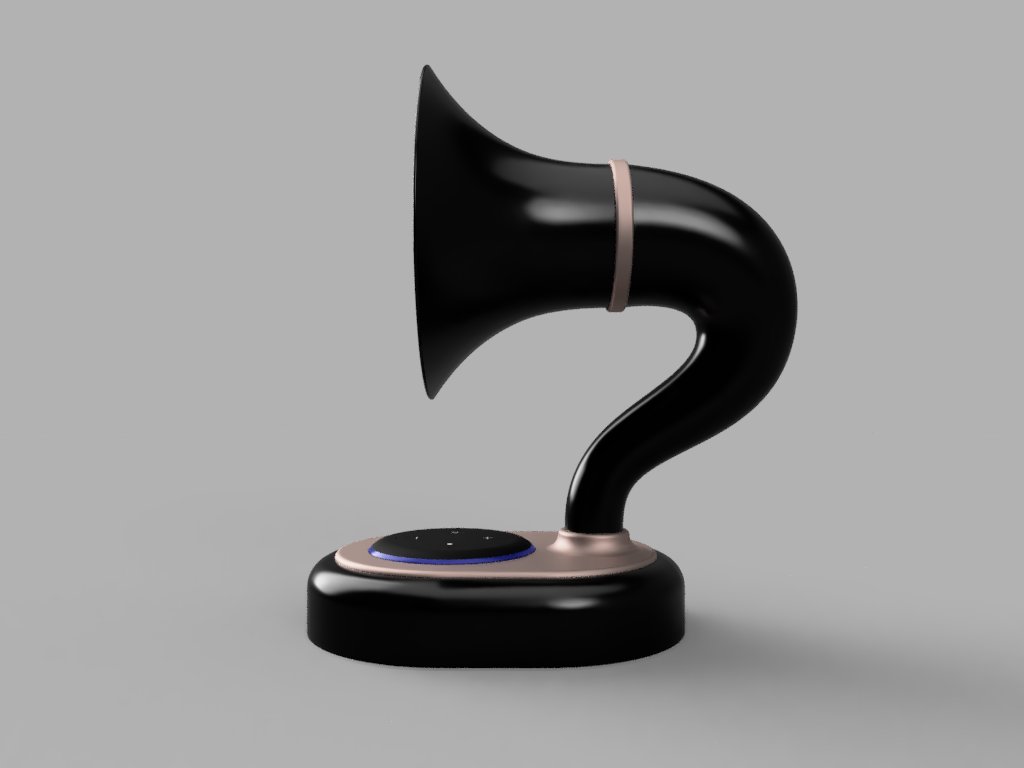

Gramazon 3rd Gen V2 - Amazon Echo Dot 3 Amplifier

?
Creation quality: 4.8/5 (4 votes)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

3D model description

/!\ UPDATE 09/2021 /!\

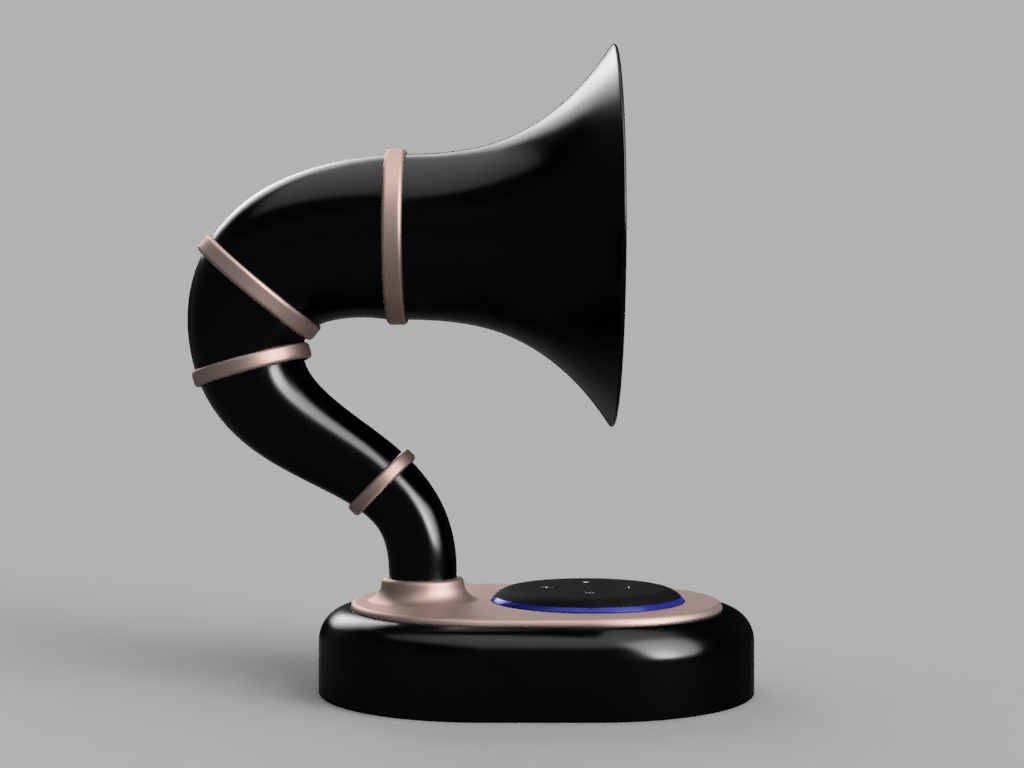

Adding optional rings

  • GG3_V2_Optional_Joint_1.stl -> brackets required

  • GG3_V2_Optional_Joint_2.stl -> brackets required

  • GG3_V2_Optional_Joint_3.stl -> brackets required

  • GG3_V2_Optional_Joints.stl (3 in 1) -> brackets required

/!\ NEW VERSION 2020 /!\

First of all I invite you to have a look at the IamStarGoat thing if you haven't already, to get the details of the original project:

https://www.thingiverse.com/thing:2818405

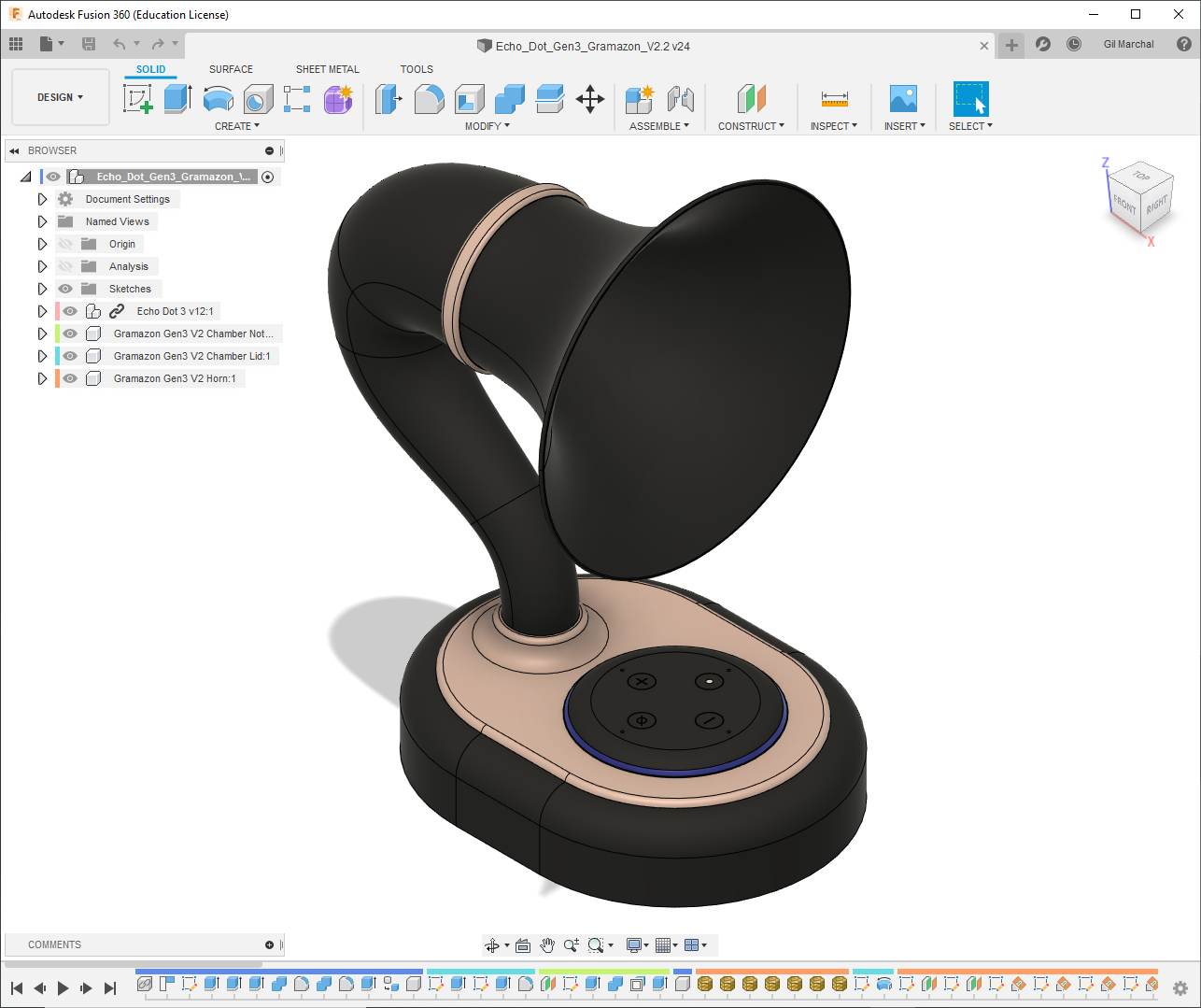

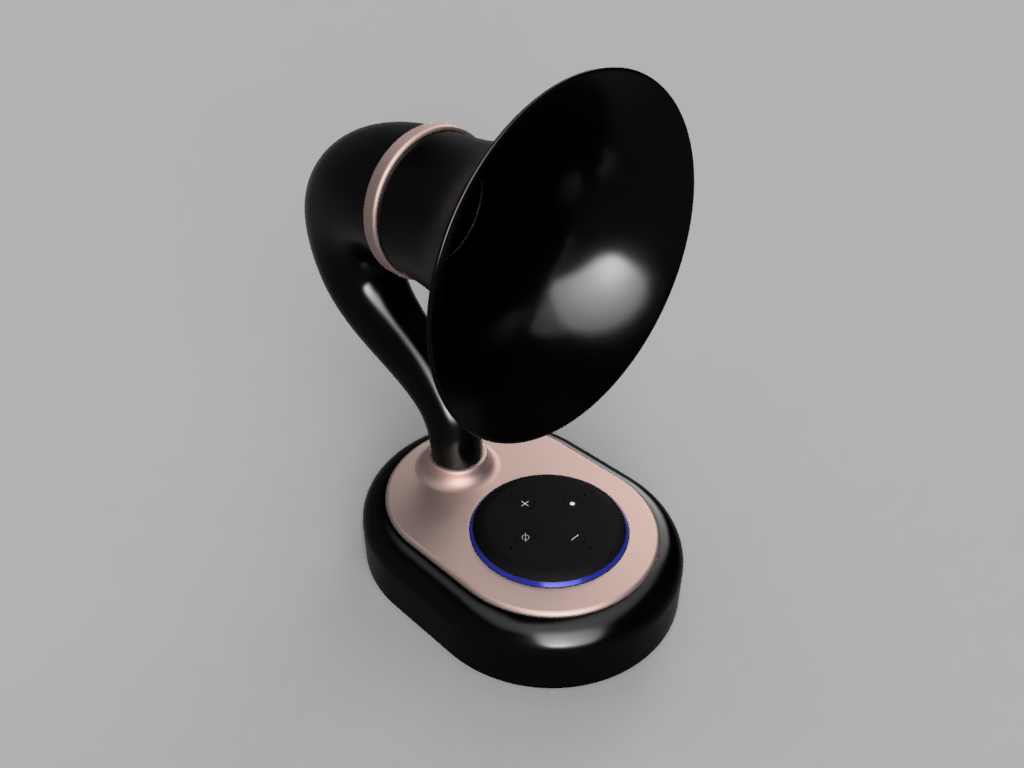

This version has been completely redesigned for echo dot version 3.

Files are already oriented for better printing without supports (except for GG3_V2_Joint).

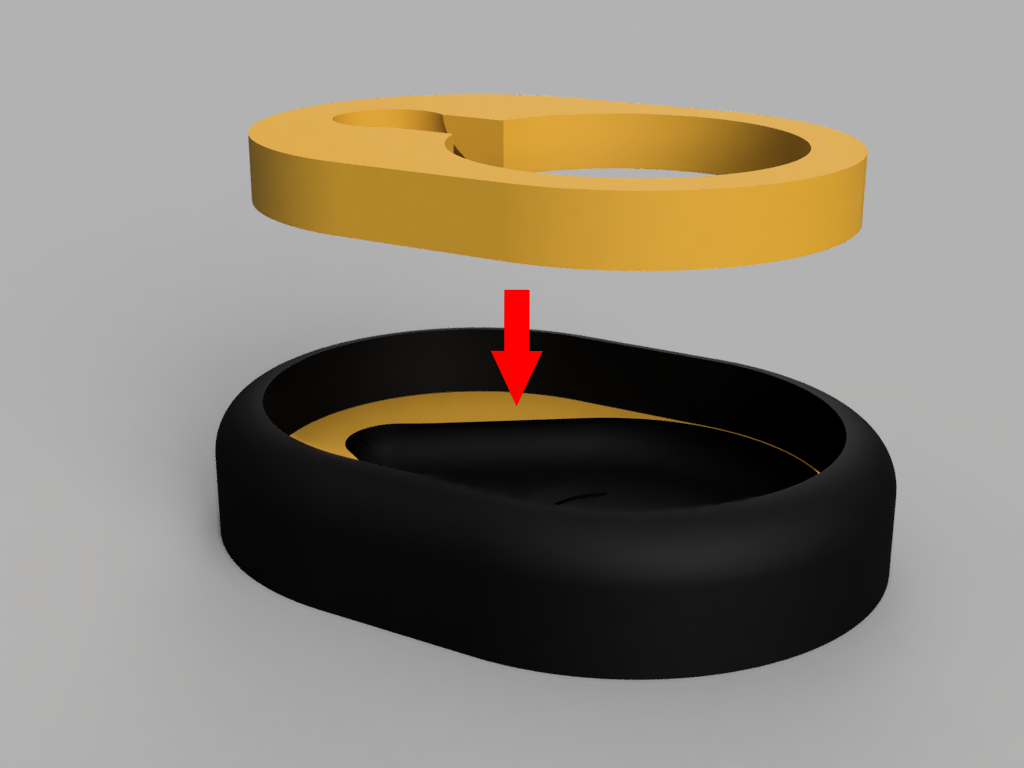

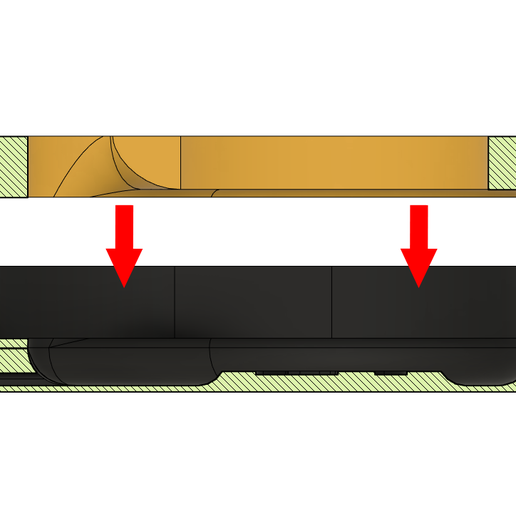

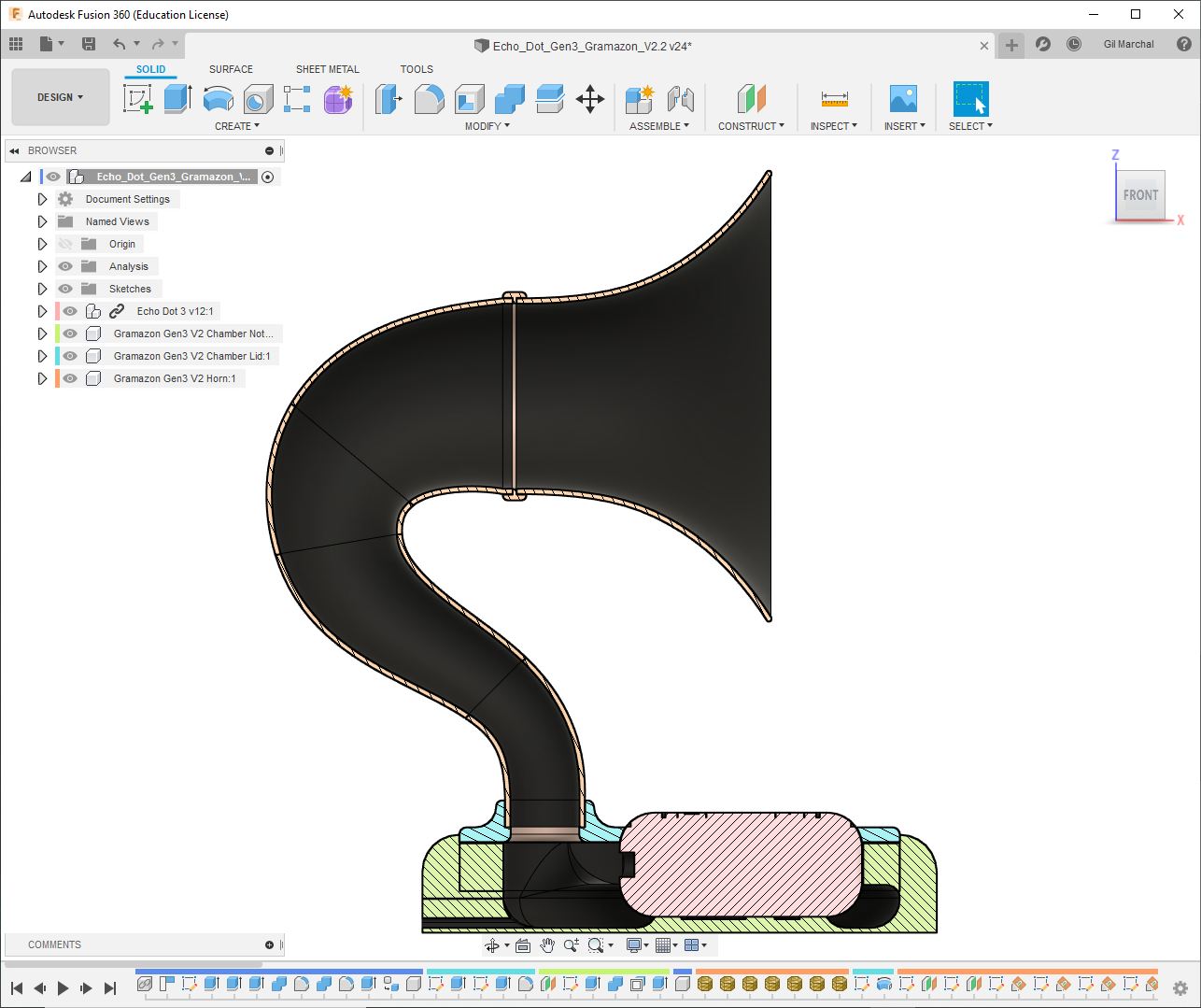

For assembly: turn the GG3_V2_Chamber_Inside upside down and paste it into the GG3_V2_Chamber_Notch.

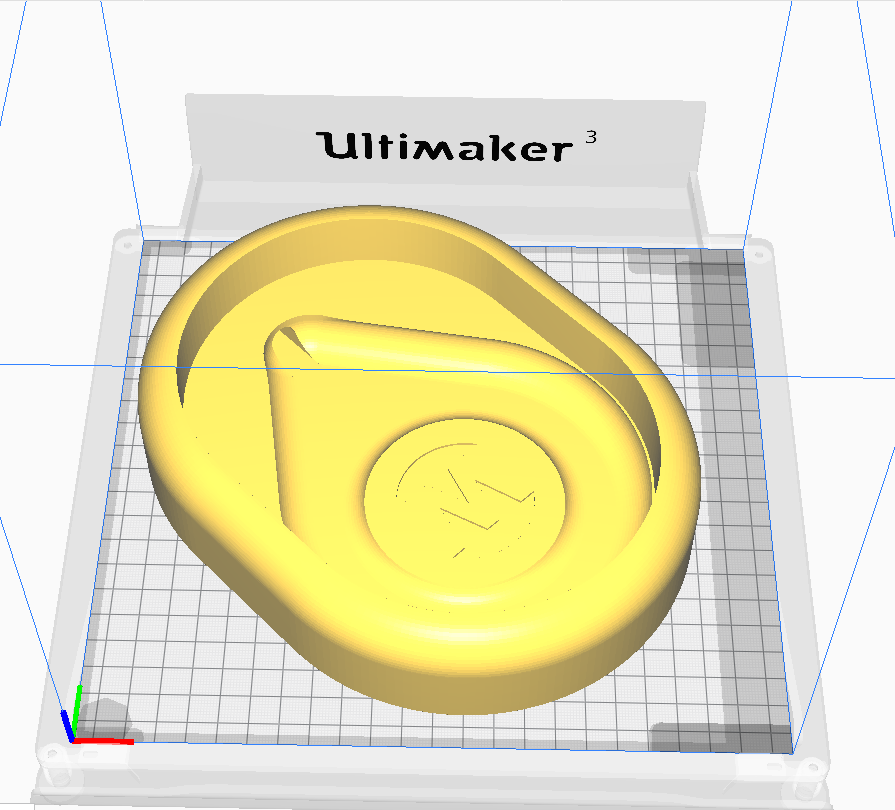

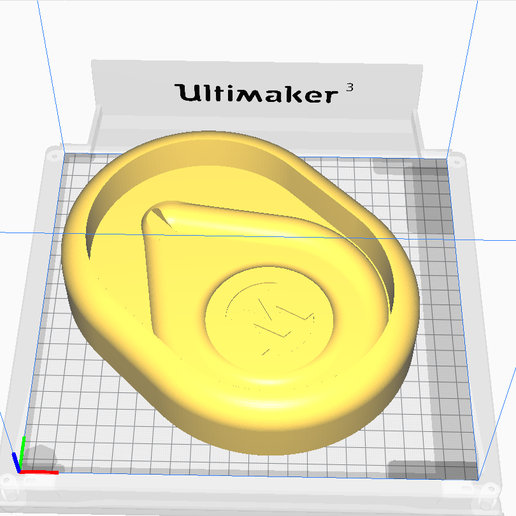

File to print for the base :

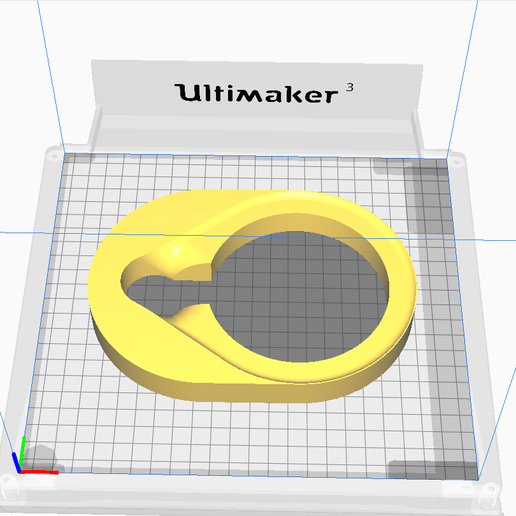

GG3_V2_Chamber_Notch.stl -> no brackets, needs to be rotated 45° to fit on a 20cm tray

GG3_V2_Chamber_Inside.stl -> no supports

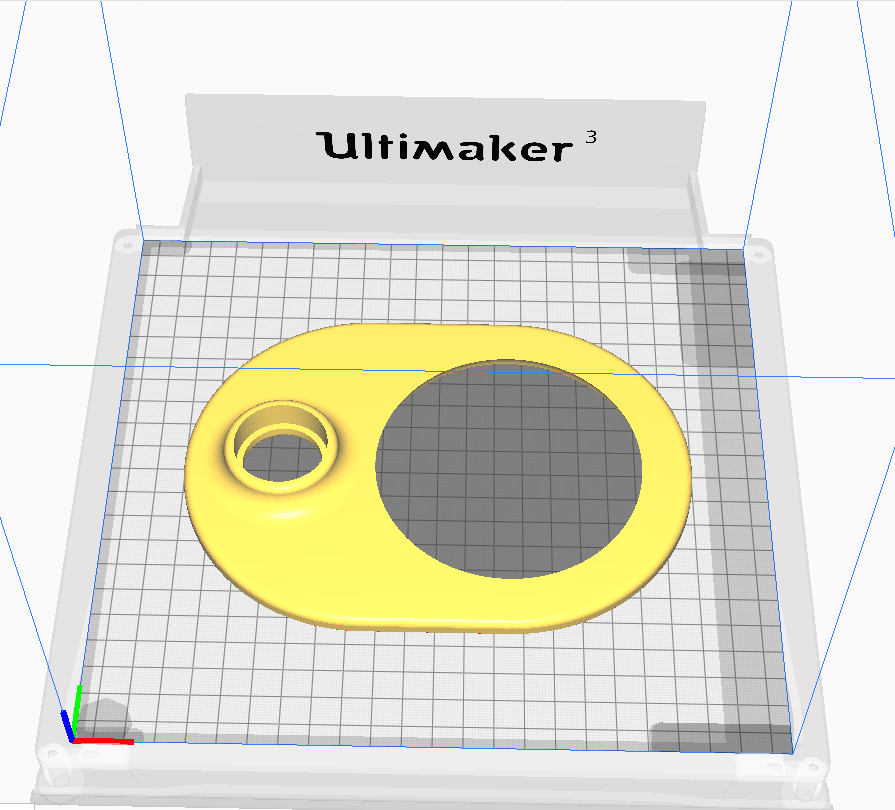

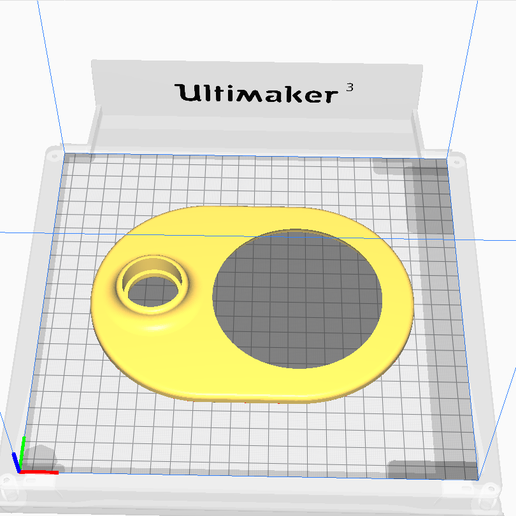

GG3_V2_Chamber_Lid.stl -> no supports

GG3_V2_Holeplug.stl -> no supports

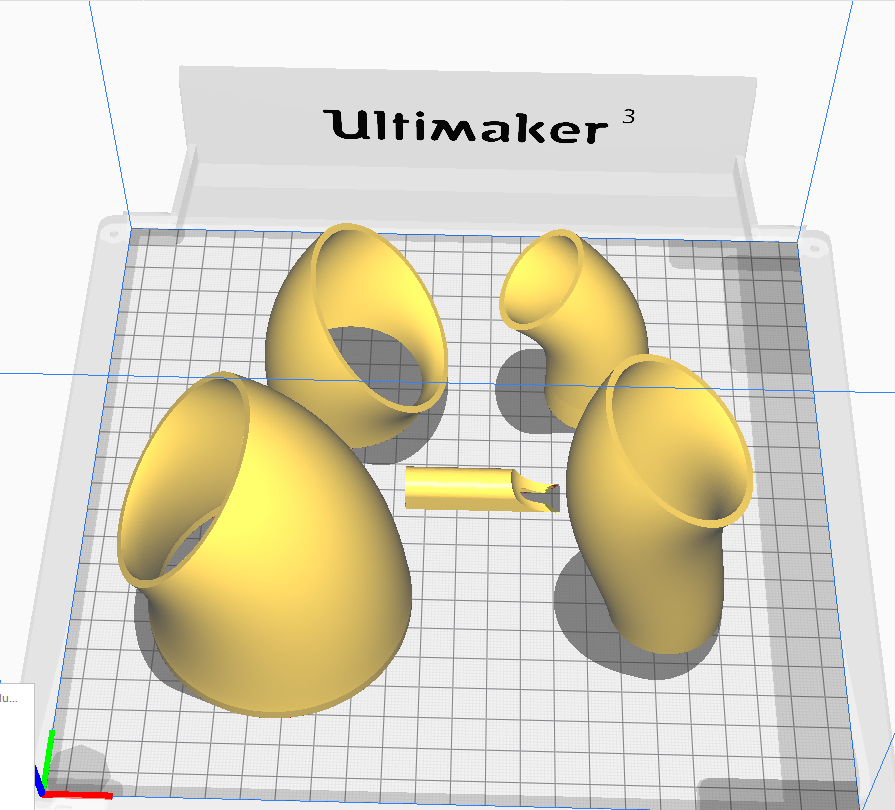

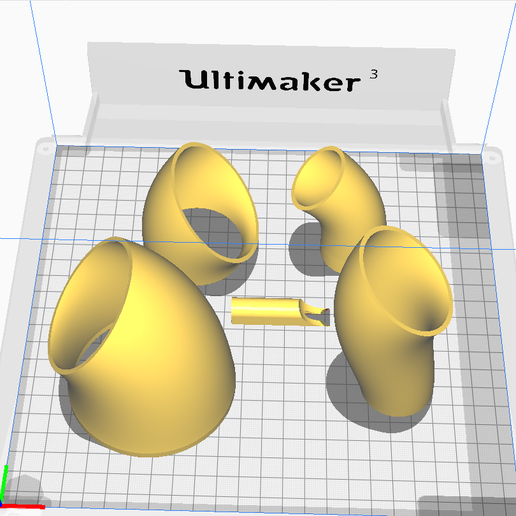

Printable file for neck and horn:

GG3_V2_Neck_01.stl -> no supports

GG3_V2_Neck_02.stl -> no brackets

GG3_V2_Neck_03.stl -> no brackets

GG3_V2_Neck_04.stl -> no brackets

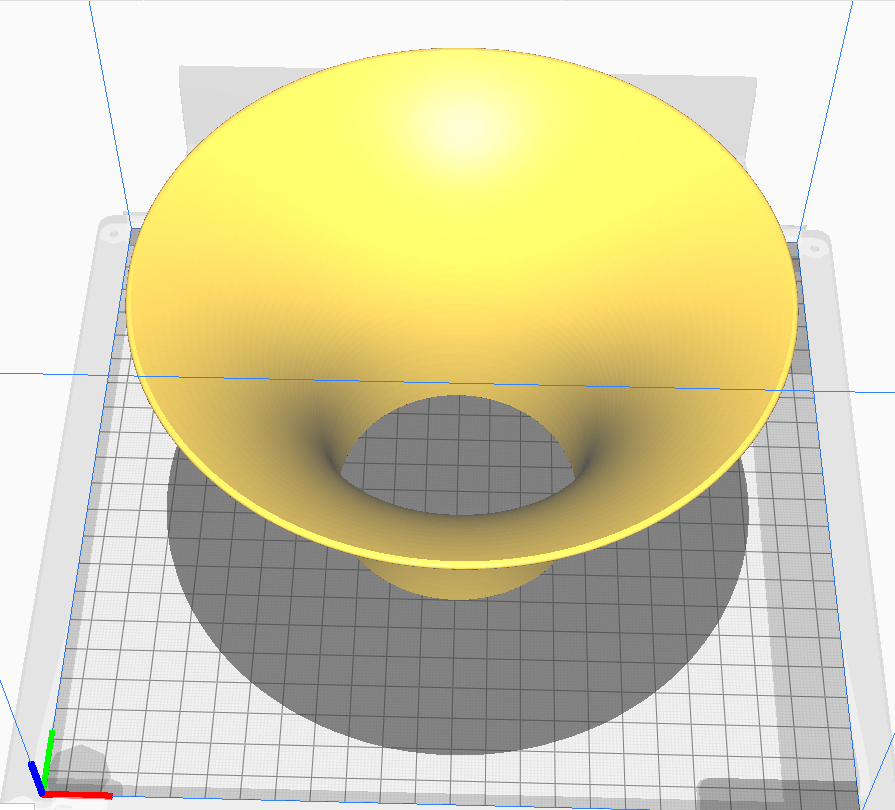

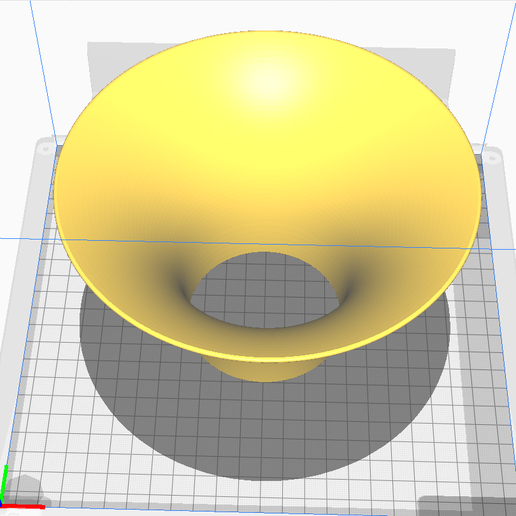

GG3_V2_Horn.stl -> no brackets

File to print for the joint:

GG3_V2_Joint.stl -> supports required

All parts of the neck, horn and joint must be glued together. For the base, only GG3_V2_Chamber_Inside can be glued into GG3_V2_Chamber_Notch.

Alexa tip:

In the mobile app, lower the bass and raise the treble as much as possible for better sound.

Follow me for the latest news, see my creations :)

3D printer file information

  • Design number: 150807
  • 3D design format: STL Folder details Close
    • GG3_V2_Chamber_Inside.stl
    • GG3_V2_Chamber_Lid.stl
    • GG3_V2_Chamber_Notch.stl
    • GG3_V2_Holeplug.stl
    • GG3_V2_Horn.stl
    • GG3_V2_Joint.stl
    • GG3_V2_Neck_01.stl
    • GG3_V2_Neck_02.stl
    • GG3_V2_Neck_03.stl
    • GG3_V2_Neck_04.stl
    • GG3_V2_Optional_Joint_1.stl
    • GG3_V2_Optional_Joint_2.stl
    • GG3_V2_Optional_Joint_3.stl
    • GG3_V2_Optional_Joints.stl

    Learn more about the formats

  • Last update: 2021-09-15 at 13:43
  • Publication date: 2020-05-21 at 16:26

License

CULTS - Private Use

Tags
