Free energy?

?
Creation quality: 3.5/5 (11 votes)
Evaluation of members on the printability, utility, level of detail, etc.

  • 25k views
  • 39 likes
  • 791 downloads
  • 2 comments

Licence CC BY-NC-ND
Publication date 2020-02-13 at 18:19
Design number 108444
3D design format
STL Folder details Close
  • chassis droite.stl
  • chassis gauche.stl
  • entretoise 5mm.stl
  • entretoise 7mm.stl
  • poulie.stl
  • rondelle 5mm.stl
  • rondelle 7mm evasee.stl
  • rotor d.stl
  • rotor g.stl
  • rotor m.stl
  • stator 1d.stl
  • stator 1g.stl
  • stator 1m.stl
  • stator 2d.stl
  • stator 2g.stl
  • stator 2m.stl
  • verrou.stl

Learn more about the formats

3D printer file info

3D model description

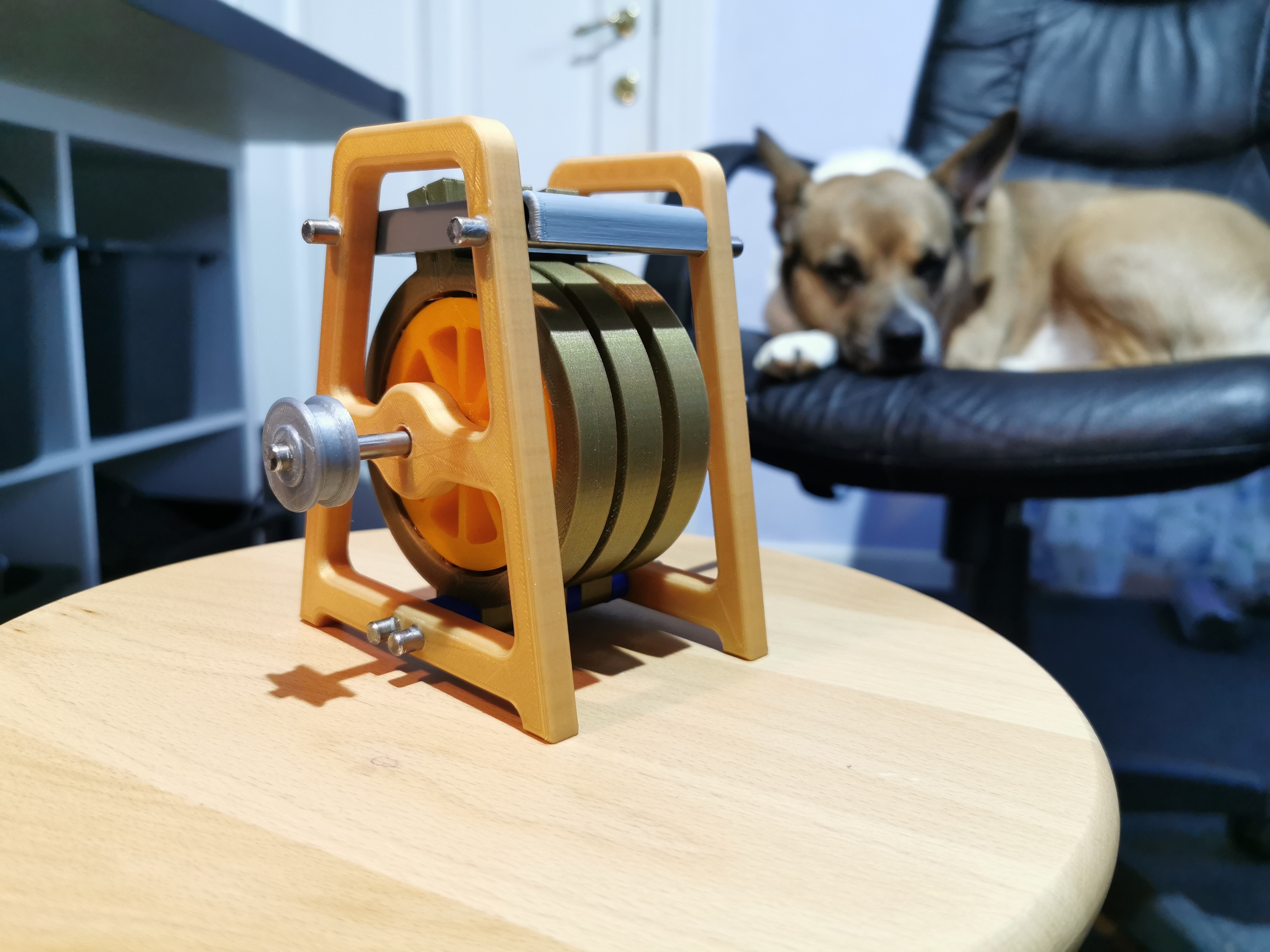

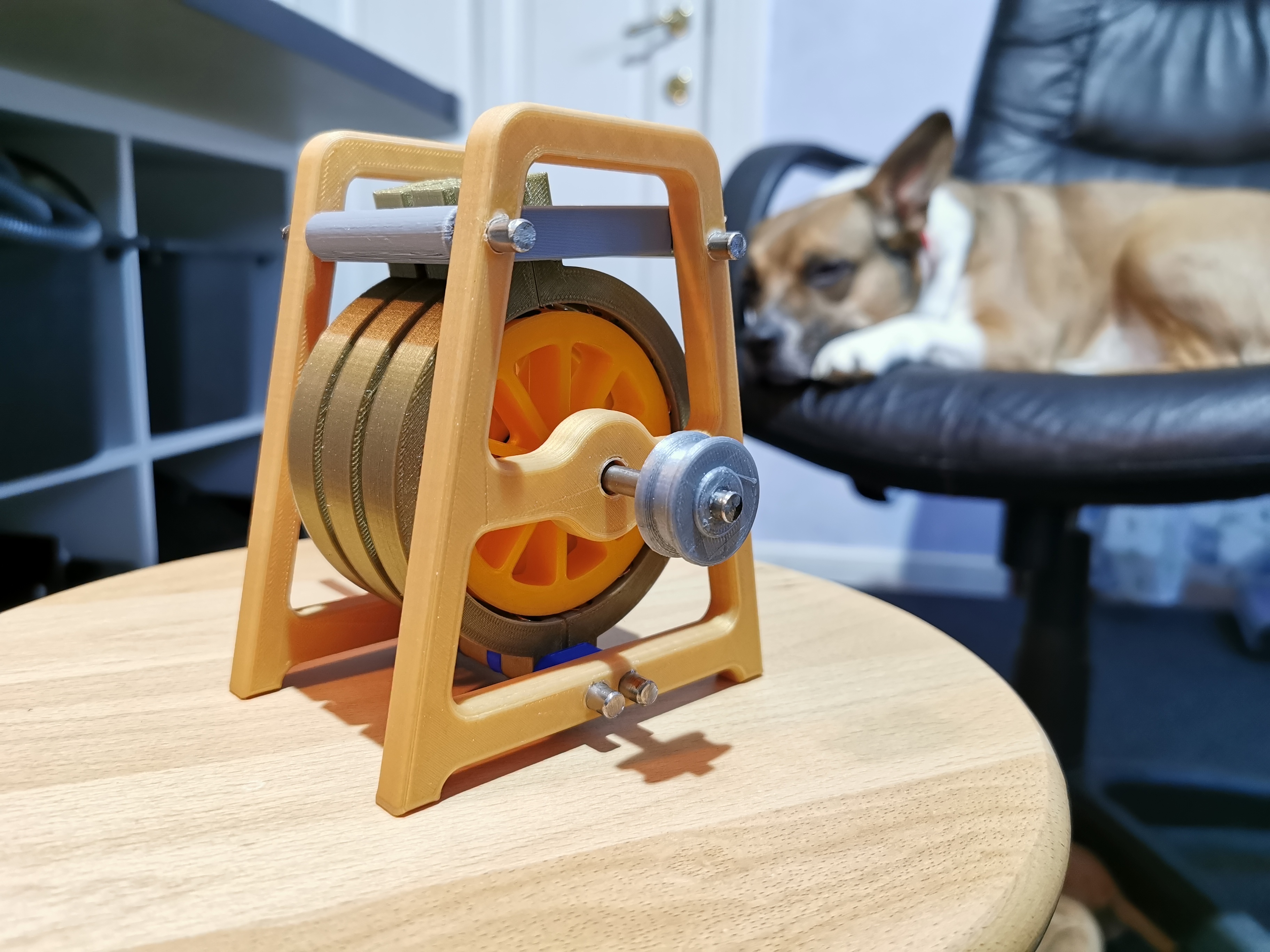

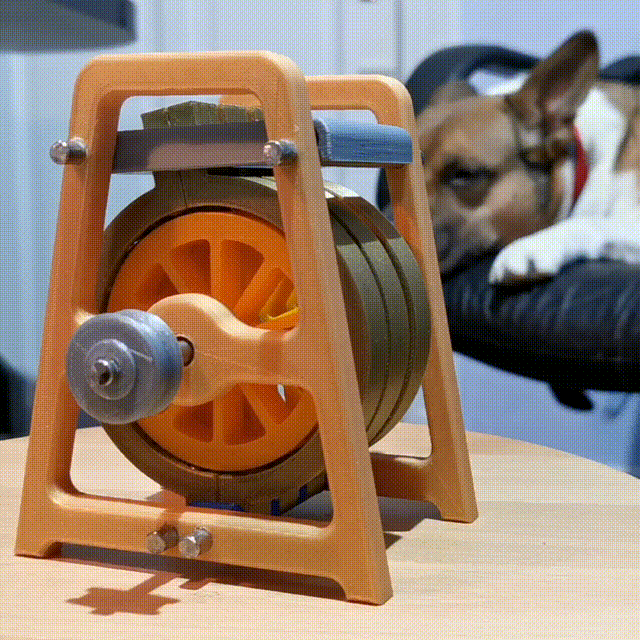

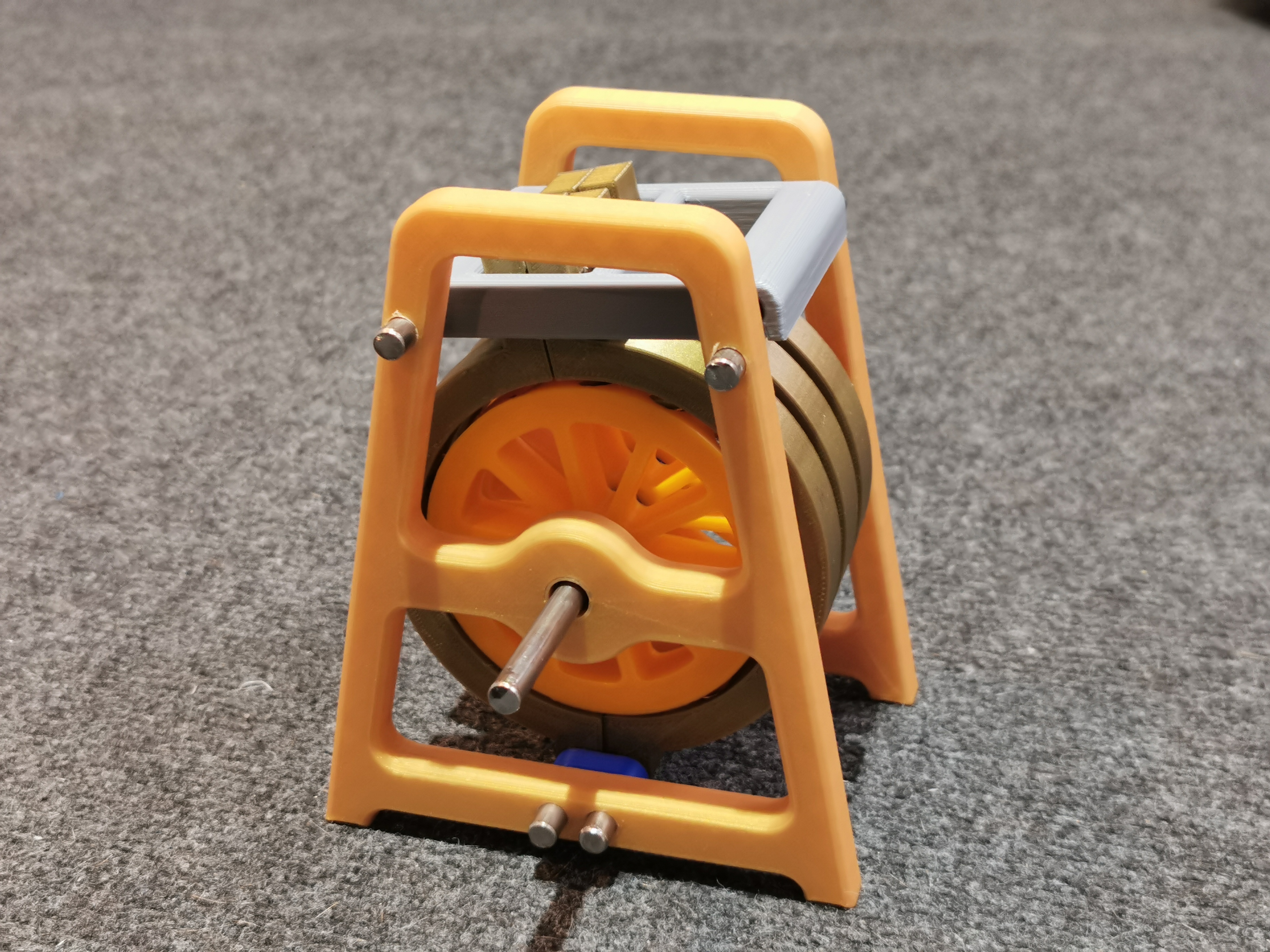

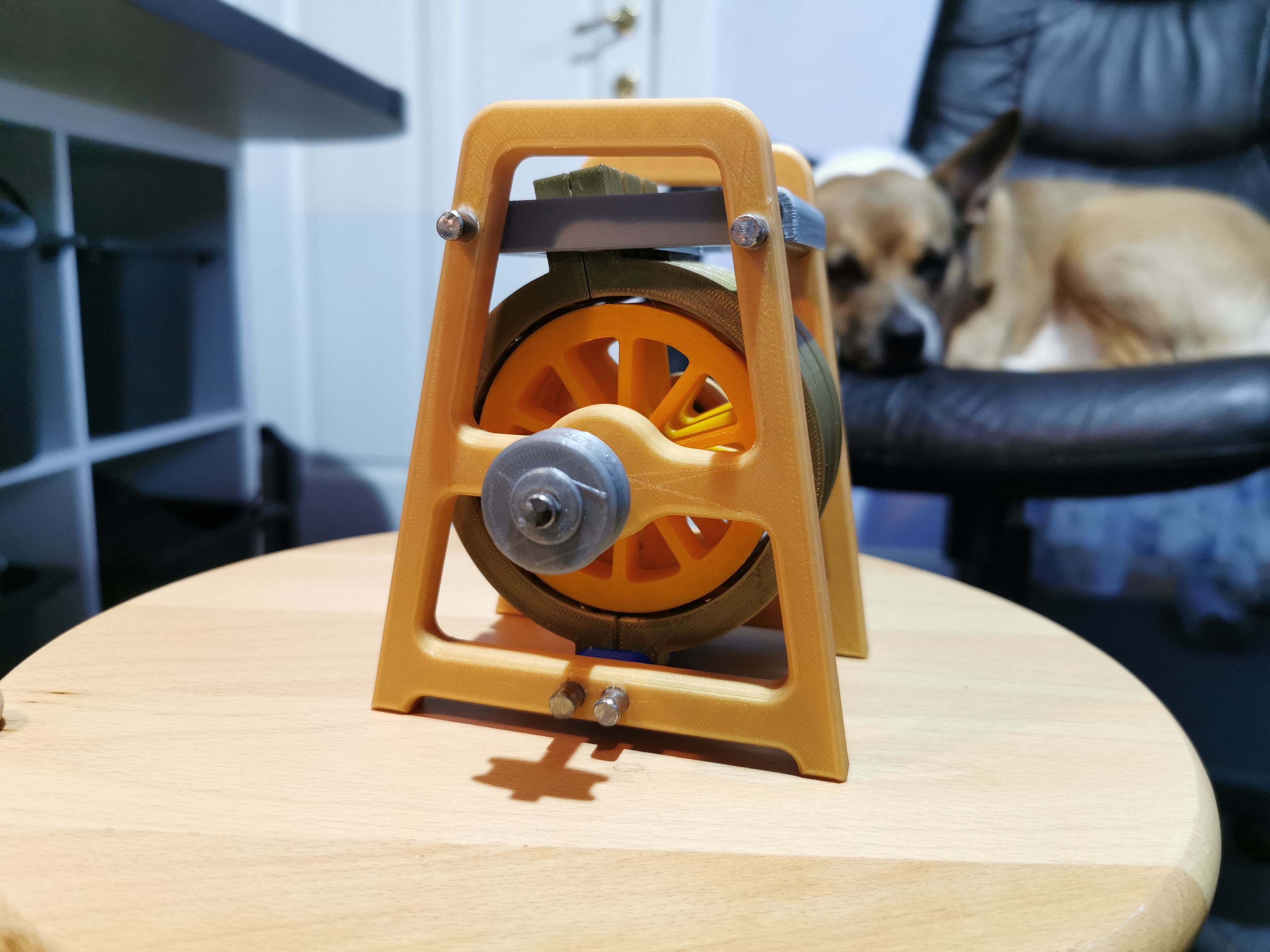

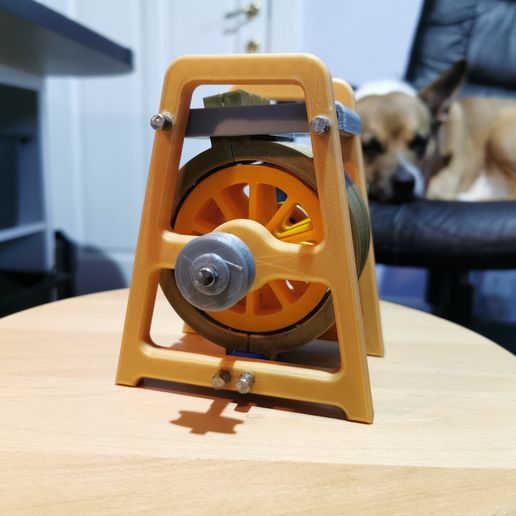

Print a permanent magnet motor to find out.

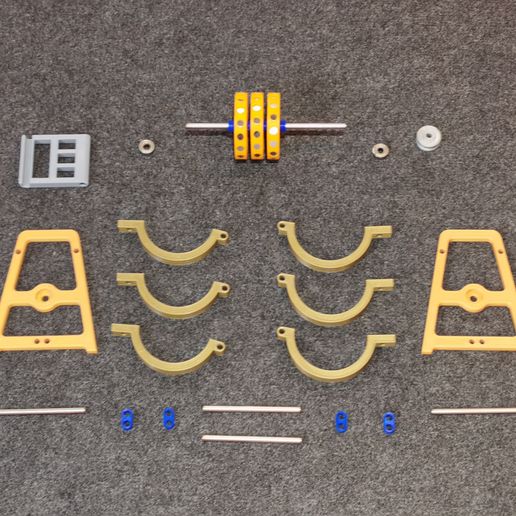

Here are the files to build one.

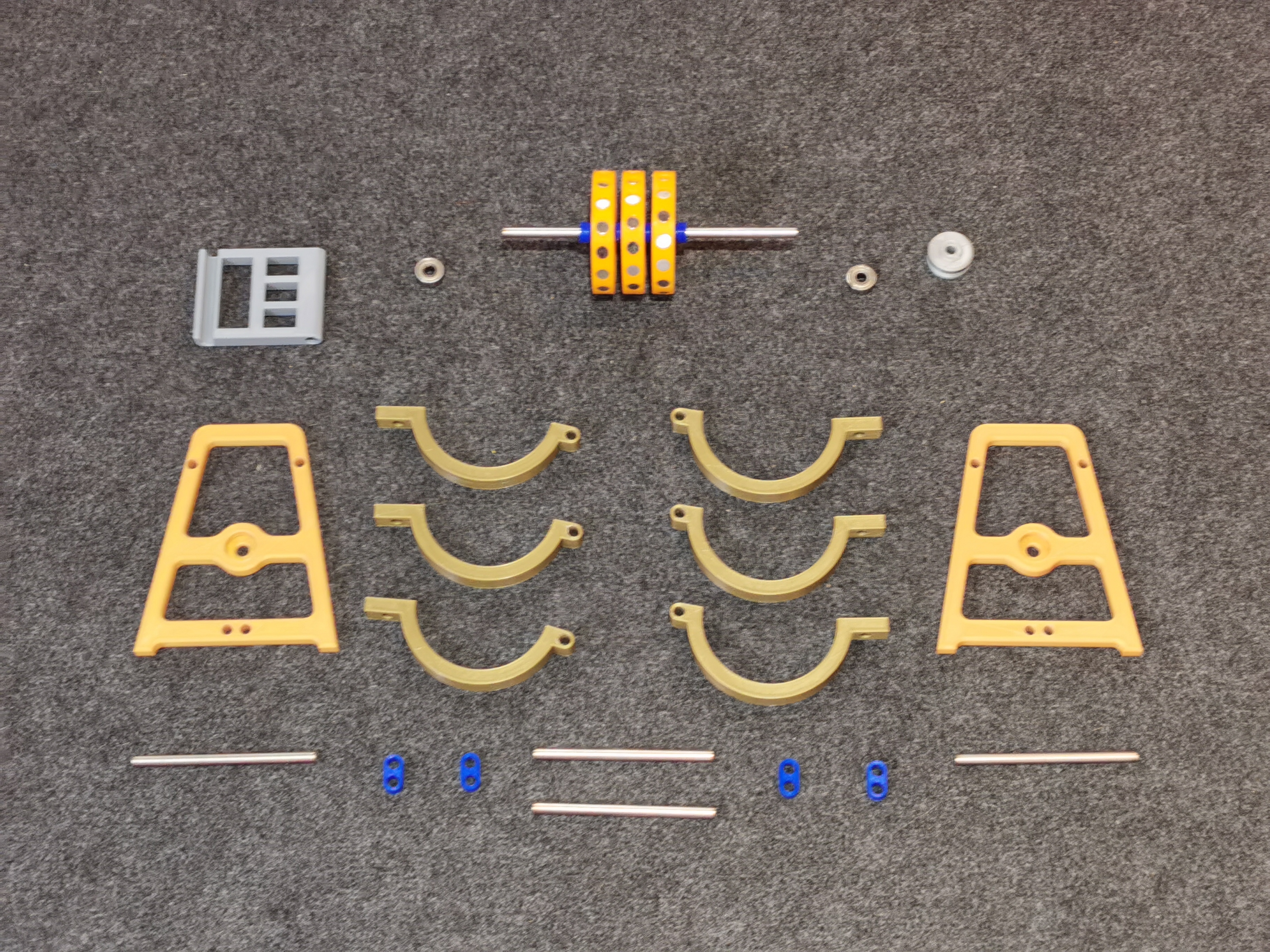

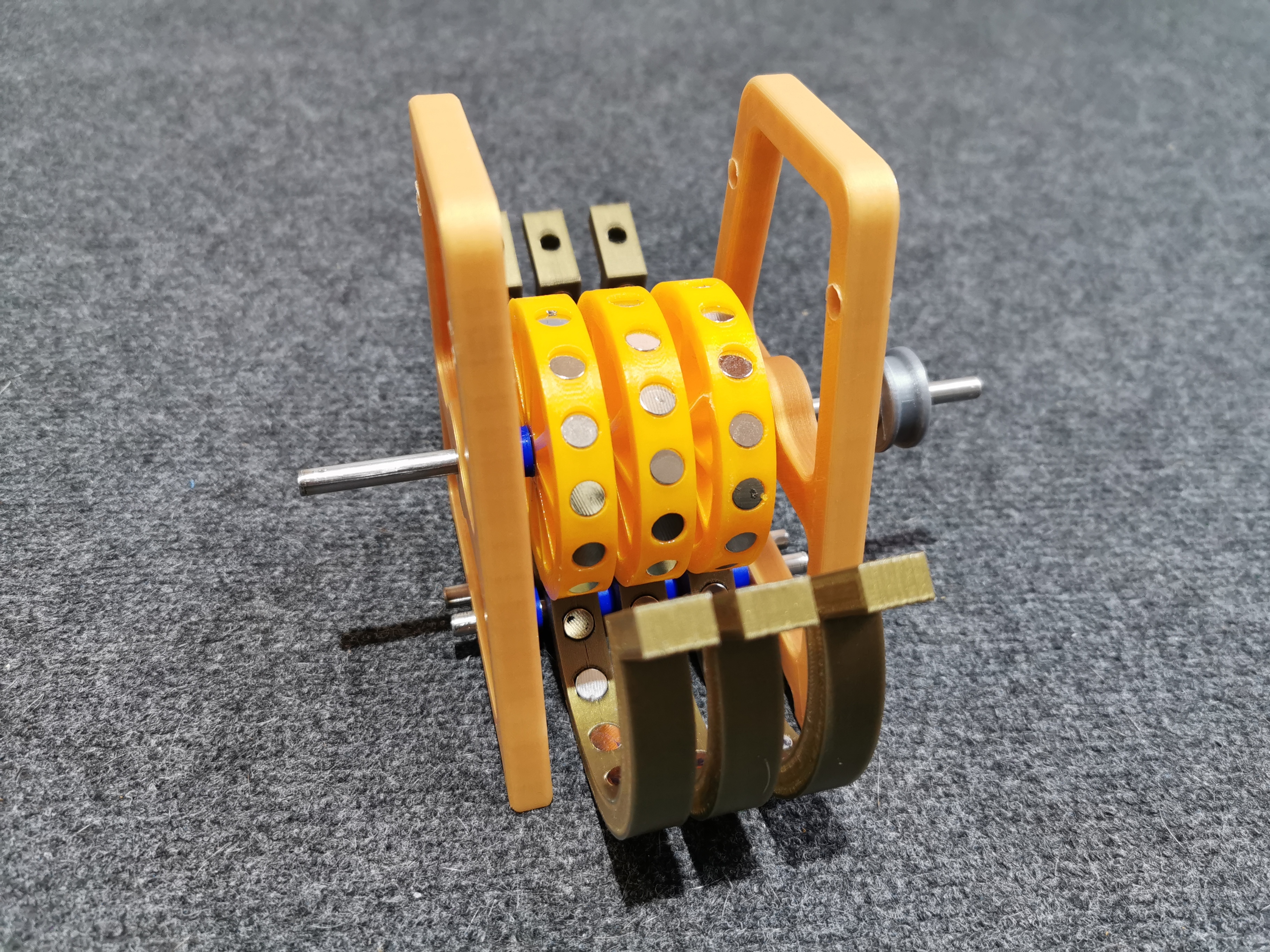

You have to buy 90 permanent magnets of 8x3 mm,

2 ball bearings of 17x6x6 mm,

about 600 mm of metal bar 6 mm in diameter and super glue.

Warning! I'm not saying it works!!!!

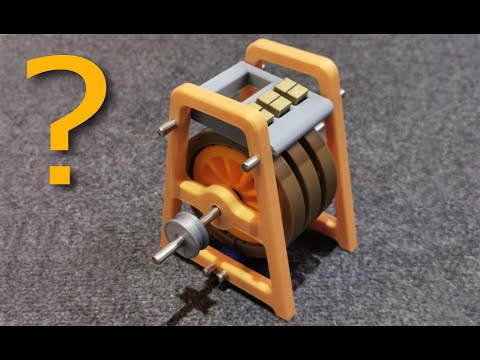

https://youtu.be/JZ10cSdTCSE

Print out a permanent magnet motor to find out.

Here are the files to build one.

You need 90 permanent magnets 8x3 mm,

2 ball bearings of 17x6x6 mm,

about 600 mm of metal bar of 6 mm diameter and super glue.

https://youtu.be/JZ10cSdTCSE

Careful ! I didn't say it works !!!

3D printing settings

PLA, temp 50/215°, 15%, 0.2 mm, 60 mm/sec, no supports.
