F-22 Park Flying Pusher

Hit like if you like this model!

Subscribe to my YT Channel for more flight, build, and test videos of this airframe.

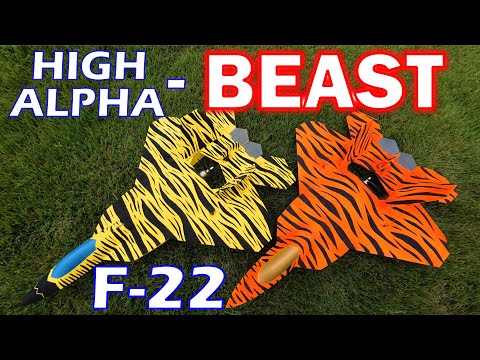

Version 3 FULL BUILD & FLIGHT SHOWCASE:
https://youtu.be/3YMMrJPHBh8

Version 3 Flight Capability:
https://youtu.be/zU20nTk1Njk

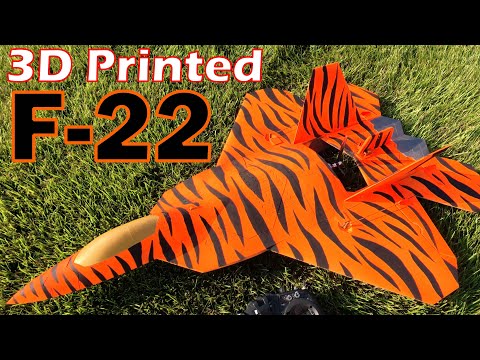

Version 2 Description and Flight Video:
https://youtu.be/9oGepZkPhPE?si=-EchBl172_oqPIsP

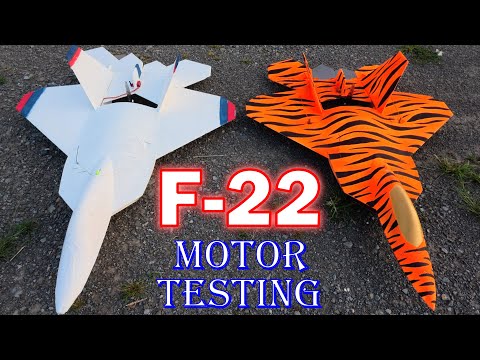

Version 1+2 Motor and Airframe Testing:
https://youtu.be/G0Ak-BdZxgg?si=6jnq00iyVqj1ZjY8

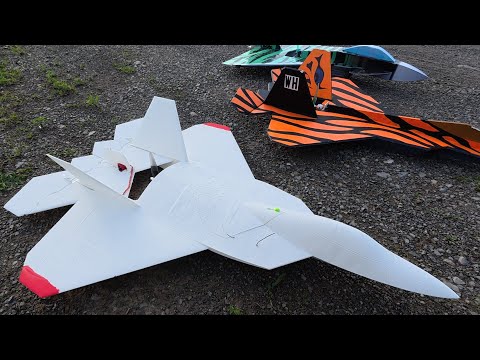

Version 1 Build and Flight:
https://youtu.be/SZtckp67N-w?si=VXq2kB5vEmsCstR6

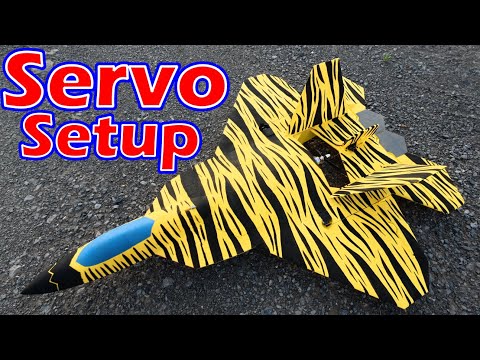

Servo Set-up and Control Throws:
https://youtu.be/ZUesohmxzUo

RC-Groups Thread:
https://www.rcgroups.com/forums/showthread.php?4773875-F-22-Park-Flying-Pusher-by-HoloModel-s-RC#post54070655

This airframe is a phenomenal "Park" flyer, capable of unlimited vertical performance and High-G turns if you follow my print and build recommendations. Designed to print well, be flown ANYWHERE, and minimize construction time. I did the work, so you don't have to!

Features: (Currently Version #3)

⦁ 2-5 Channels (Elevons with optional Flaperons & Rudder)
⦁ NO CUTTING/HINGING ANYWHERE!
⦁ Hinged simply by inserting PLA Filament through hinge-line.
⦁ Hatch with slide-lock using rubberband (NO MAGNETS).
⦁ 9g Servos accessible and replaceable.
⦁ "Vectored" Elevons and Rudder
⦁ Rugged design built to last many flights; capable of high G-Forces.
⦁ High Performance- Vertical flight & tight turns with correct motor/prop.
⦁ Lot of room internally; Will balance with almost any battery size (1300-4400 4S)
⦁ Designed to print well (WITHOUT overhangs, including Panel Lines)
⦁ Print Checklist, Weight Chart, and Print Times included with download
⦁ Servo Set-up and recommended "RATES" included, or check out Build Video! (Uses 1/8in of REFLEX=Up Elevator built in)

Specifications:

⦁ 30in Wing Span (730mm)
⦁ 40in Long (1003mm)
⦁ *400-450g Active Foaming Filament
⦁ *625-745g Without Battery

⦁ *(Depending on Channels, Motor, Pla Brand, Print Settings)

Recommended Motor/Prop Combination:

2836 1500KV 4S motor (recommend Flash Hobby)
2-Bladed 7045-7050 prop (recommend 7045 for first flights)
50A or 60A ESC

Requires:

(2-5) 9G Servos (preferably metal geared)
1X Servo Extension if using Rudder
400-450g Active Foaming LW PLA
ASA for Motor Mount, or Plywood
15g Music Wire or equivalent (Thinner is easier to work with)
Velcro for Battery
CA Glue
1x Small Rubberband
4X M3 Nuts & Bolts

Optional but Recommended (Especially across Wing):

1.55mm Steel Yard Flags, or 1.5mm Carbon Fiber for strength/alignment (along fuse, across wing, front of V-Stabs).

Paint - Panel lines make hand painting easier. Tiger scheme super easy!

Conclusion:

⦁ Designed to print without overhangs, minimize travel moves, and use a minimal amount of LW-PLA. The construction is pretty easy and straight forward.
⦁ I have tested many different Motor/Prop Combinations. I have pushed the motors until they burned out trying to test the limits of the airframe and ASA motor mount. Check out my Videos!
⦁ This airframe will fly with a cheap 2212 motor and 6040 prop, but it was designed for a 7in prop and bigger motor. Read the instructions within the model files, and check out my YT-Channel for my many test flights and combinations of motors and props (Especially if using the 2212).

LINKS to what I USED:

Motor HERE:
https://www.amazon.com/dp/B08M8VS47Y?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_1&th=1
ESC Here:
https://www.amazon.com/Flycolor-Electric-Controller-Airplane-Brushless/dp/B09L5Z7GV7?pd_rd_w=2g088&content-id=amzn1.sym.ad338e02-c4c1-4725-9678-055e5dfcee50&pf_rd_p=ad338e02-c4c1-4725-9678-055e5dfcee50&pf_rd_r=2D917MZEQR4WCB4JAXRJ&pd_rd_wg=i8D9j&pd_rd_r=bebab19e-7f49-4598-b638-96f9dc19824a&ref_=pd_bap_d_grid_rp_csi_pd_ys_c_rfy_rp_crs_0_i&th=1
Prop 7x4.5 HERE:
https://www.amazon.com/dp/B09TDV17JY?ref=ppx_yo2ov_dt_b_fed_asin_title
Prop 7x5 Here:
https://www.amazon.com/dp/B079QHFZ59?ref=ppx_yo2ov_dt_b_fed_asin_title
Velcro HERE:
https://www.amazon.com/dp/B0CGVPMJBP?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_2&th=1
Carbon Fiber HERE:
https://www.amazon.com/dp/B0DGF27SK2?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_1&th=1
Yard Flags HERE:
https://www.amazon.com/Swanson-FLG30100-2-Inch-Marking-30-Inch/dp/B0081ZROR8/ref=sr_1_7?crid=2T07QFC1A1DU2&dib=eyJ2IjoiMSJ9.WwP8OMwcf5-NGnbPkEUuU5mdjNDrAT3LMGVwBtawkbSH3iDpyHNkOmjGN7yY7pKxJBFtrPvr3VnjV9axbR4ep7h_AFtv9VkpIpXrwlRLRip5ggvrBcLgc_NfsF8yajKeSMo5VLCvnpap-j4nqnJFi88dq5vmOaq5sPlZq8ZNs3GRt8pMUCkfCOe7YSfN4m3EM4cYT7k19HO6k7UViZIKj8xZGPuC3pGPr2Vv3Yv9hp3uJmXIPt9mccQll2PuBaZuQ4mFfOFsR1TeZOZyT77IcHrqFMu82nqP-SOf2y4unUc.dpiWm39Fy_ZIdUlYioA-msmxRpKvJLVxyWsEnUUFInU&dib_tag=se&keywords=30in%2Bsteel%2Byard%2Bmarker&qid=1754082899&sprefix=30in%2Bsteel%2Byard%2Bmarker%2Caps%2C94&sr=8-7&th=1
Receiver HERE:
https://lemon-rx.com/index.php?route=product/product&product_id=264
Music Wire HERE:
https://www.amazon.com/dp/B0026GMLSU?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_2

F-22 Version 1 - White
F-22 Version 2- Orange
F-22 Version 3- Yellow

Print Settings:
Print Bed size of 215X215 X250
G-Codes and Editable 3MF Files using PrusaSlicer
Detailed print Settings, Weight, and time chart included.
ASA motor mount (uses metal "X" from motor).
Fuse 1-6 and Wings use infill
Control Surfaces & Tail Pieces print with "Vase" type structure.
FULL Print Settings, Weights, times, and Print CHECKLIST with download.
Wing prints WHOLE if you have a 300x300 bed size.
