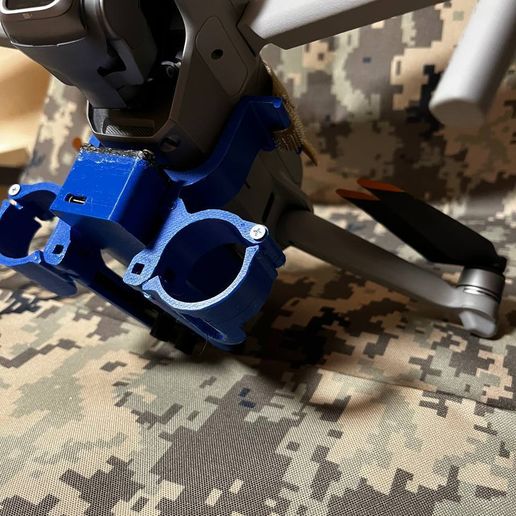

💙💛 Drop system MAVIC, AUTEL or similar 💣💣💣

Compatible drones:
DJI Air 2,
Air 2S,
Mavic 2 Enterprise,
Mavic 3,
Mavic 3T,
AUTEL EVO 2 and others similar to it.
♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦
!!!! Sx1308 stabiliser have to be adjusted to 5v output using screw, attached to blue gearbox!!!!
♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦
Designed to drop different items with your quadcopter. Items can be inserted into 2 round latches for VOG-17 (diameter is 32mm), or fixed by additional velcro latch for other items like grenades, filled bags, small boxes etc.
♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦
Archive contains everything you need:

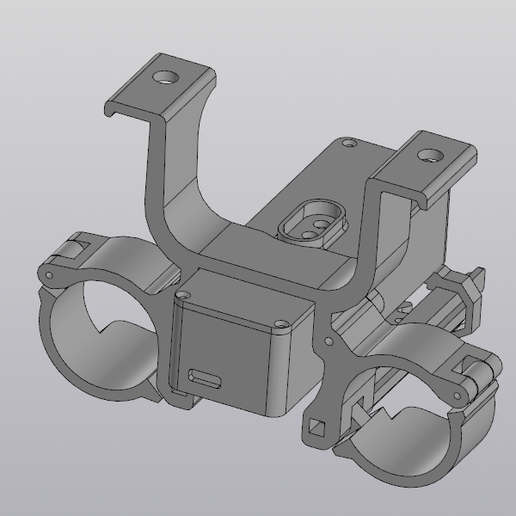

STL,
list of used components,
photos of assembly,
soldering scheme,
firmware for arduino.
♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦
Required for assembling:

PETG or ABS filament - 120g
For dropper:
Battery 3.7v - 1pc
Switch SS12F15VG6 - 1pc
Photoresistor GL5506 - 1pc
Resistor 100kOm 0.25W - 1pc
Charge controller TP4056 - 1pc
Stabilizer Sx1308 - 1pc
Controller Arduino Nano V3 - 1pc
Servomotor Sg90 9g - 1pc
Wires to connect electronics
Bolt M3x20 - 2pcs (latches to beam)
Bolt M3x16 - 2pcs(box to beam)
Screw 2.5x6 - 4pcs(cap to box)
Double-sided foam strip to seal the cap
Round elastic cord to attach dropper to quadcopter
For velcro latch:
Velcro strip
Bolt M3x6 - 4pcs

♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦♦
--By buying this model, you are helping to liberate Ukraine from russian invaders--

Layer Height 0.3
Line Width 0.4
40% infill
Speed 80 mm/s
