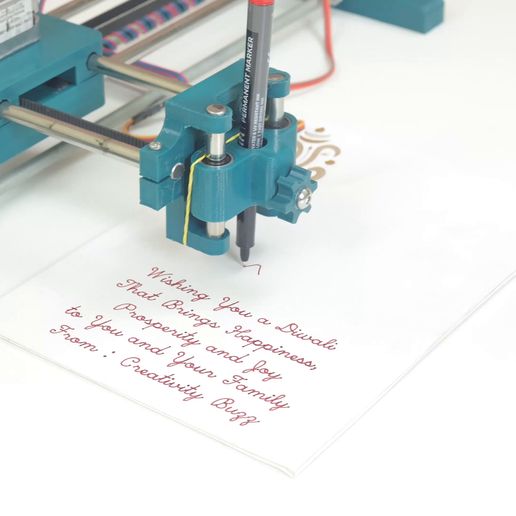

This Pen plotter writing machine used for creative art. It can draw or write perfectly as per your design.

Software to use pen plotter machine.
1) Arduino IDE ( For install firmware)
2) Inkscape ( To make Gcode for writing or Drawing)
3) Universal Gcode sender ( For operating Machine)

You can assemble all parts using this video link

You can use writing machine by watching this video link

To get firmware (code) email your order number to avaghani123@gmail.com

Other Parts List :

Mechanical Parts :

2 pcs 42 cm 8mm MS Rod (Hardness 58-60 HRC )
2 pcs 30 cm 8mm MS Rod (Hardness 58-60 HRC )
2 Pcs 6 cm 8mm Steel Rod (Hardness 58-60 HRC )
2 pcs 42 cm 8mm Threaded Rod
10 Pcs LM8UU Bearings (TSC Brand Heavy Duty)
4 Pcs 623ZZ Bearing
GT2 6mm 160 cm long Belt
2 Pcs GT2 20 Teeth Pulley

Electric Parts :

2 Pcs Nema17 Stepper Motor
1 Pcs MG90 Servo Motor
1 Pcs Arduino Uno Made
1 Pcs V3 CNC Shield
2 Pcs A4988 Stepper Motor Driver
6 Pcs Short Circuit Jumper
1 Pcs 12 Volt 1 Amp Adapter
1 Pcs 1.5 meter A to B USB Cable
1 Pcs Female pin

3D printing settings

Expected Printing Time : 24 Hours
Infill : 50%
Printer : FDM
Material : PLA OR PETG

Categories

All categories › Gadget › Robots / Electronics / Computers
