Digital Camera Pinhole Adapter

Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

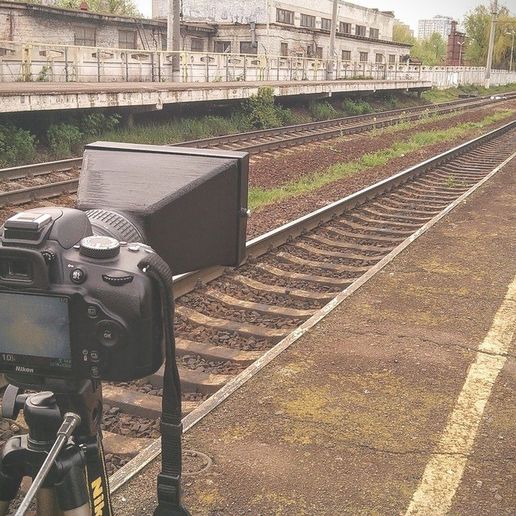

##Pinhole adapter for D(SLR) Camera.

The idea of ​​creating a simple, cheap, lightweight and user-friendly camera has been in my head for a long time. It is my third version of a camera.

* 120mm. min focus distance.
* Screen(Frame) 2:3(100x150mm).
* Minimum focal length of the pinhole camera: 30mm
* This overlays the viewing angle of about 120 ~ 150 degrees with the current screen size.
* Aperture of pinhole 0.3 mm. is the equivalent of the lens with the aperture f1:130

####Extra Parts
* Mount to the lens with Cokin adapter
* Pinhole Lens made from a thin peace of metal like a вeverage can and paint it black. Diameter of hole: 0.3 mm.
* Screen (Sheet of paper 100x150mm)
* Parts mount together with neodymium magnets or rods

####Examples of photos
I made this photos with my Nikon D3200 and kit 18-55 lens.

  • You need a much of light.
  • Tripod using is recommended
  • Focal length 24mm.
  • Aperture for digital camera lens: f1: 4 at 24мм
  • ISO 800-1600
  • Shutter speed 5-30s.

More here

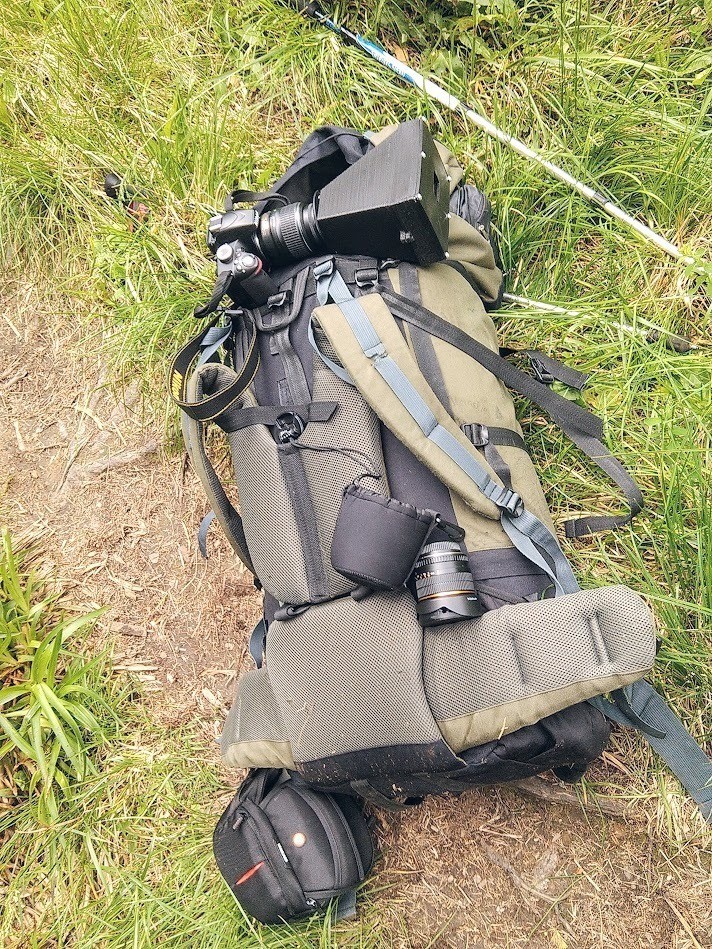

####First Outdoor Hiking Test

More photos here

####Other Sourses
* Didgital pinhole v1.1.

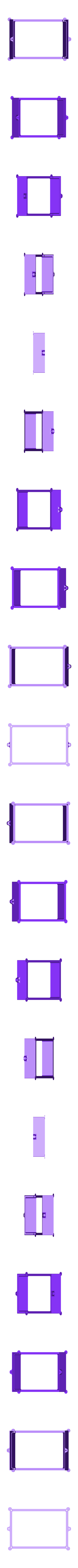

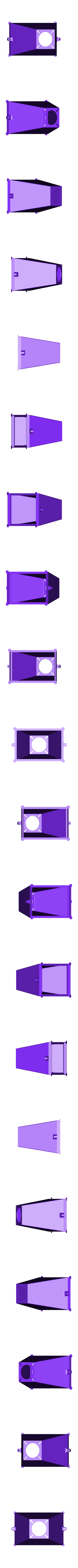

3D printer file information

  • 3D design format: STL Folder details Close
    • Pinhole_3.6.STL
    • Pinhole_front_1.6.STL
    • bayonet_1.3.STL

    Learn more about the formats

  • Last update: 2018-08-09 at 11:04
  • Publication date: 2018-08-08 at 07:48
    Published to Thingiverse on: 2018-07-18 at 20:41


CC BY - Attribution
