Clean & Minimal Google Home Mini Outlet Mount

Download STL Clean & Minimal Google Home Mini Outlet Mount, idmadjDownload STL Clean & Minimal Google Home Mini Outlet Mount, idmadjDownload STL Clean & Minimal Google Home Mini Outlet Mount, idmadjDownload STL Clean & Minimal Google Home Mini Outlet Mount, idmadjDownload STL Clean & Minimal Google Home Mini Outlet Mount, idmadjDownload STL Clean & Minimal Google Home Mini Outlet Mount, idmadjDownload STL Clean & Minimal Google Home Mini Outlet Mount, idmadj

Makes created by the community

Did you 3D print this model?

3D model description

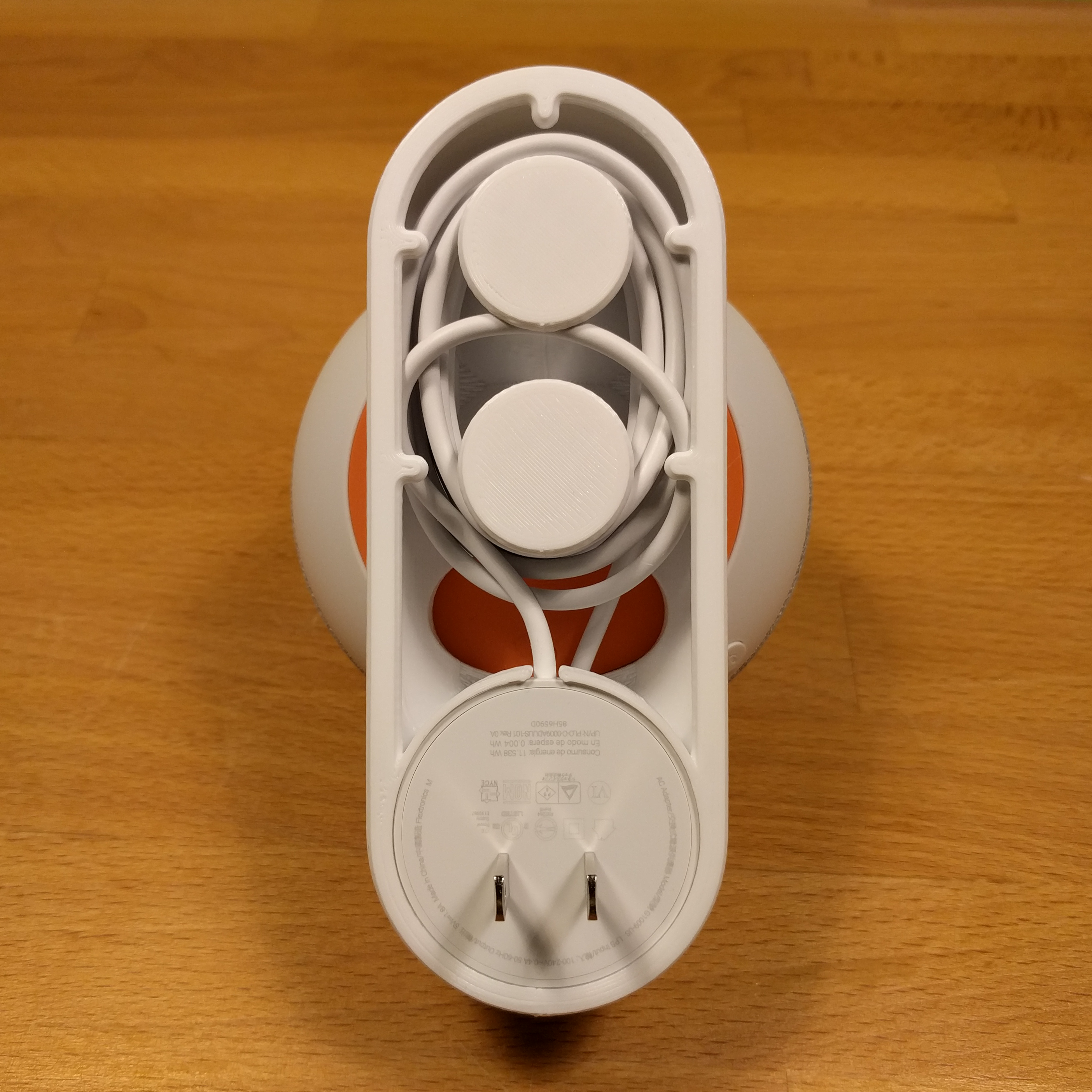

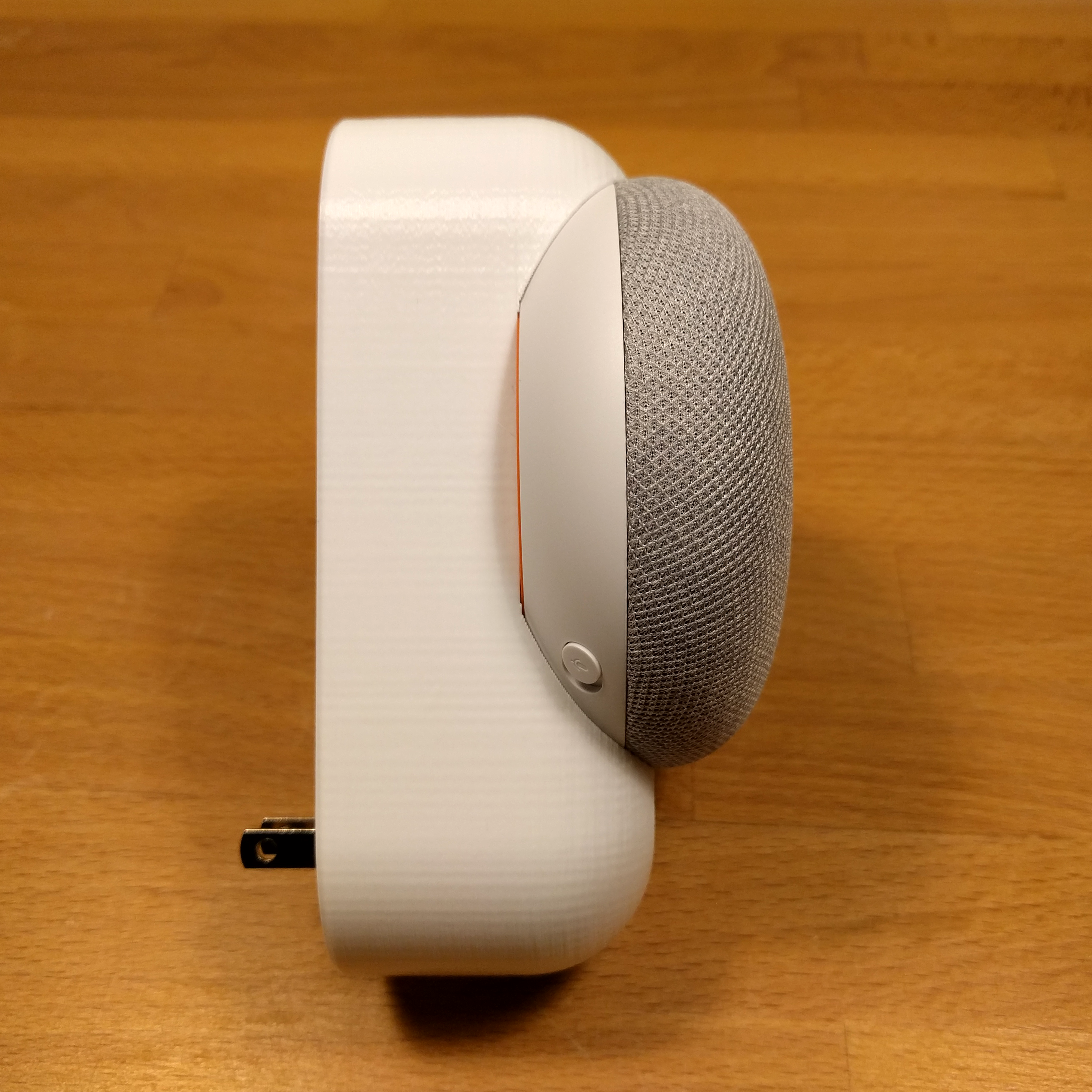

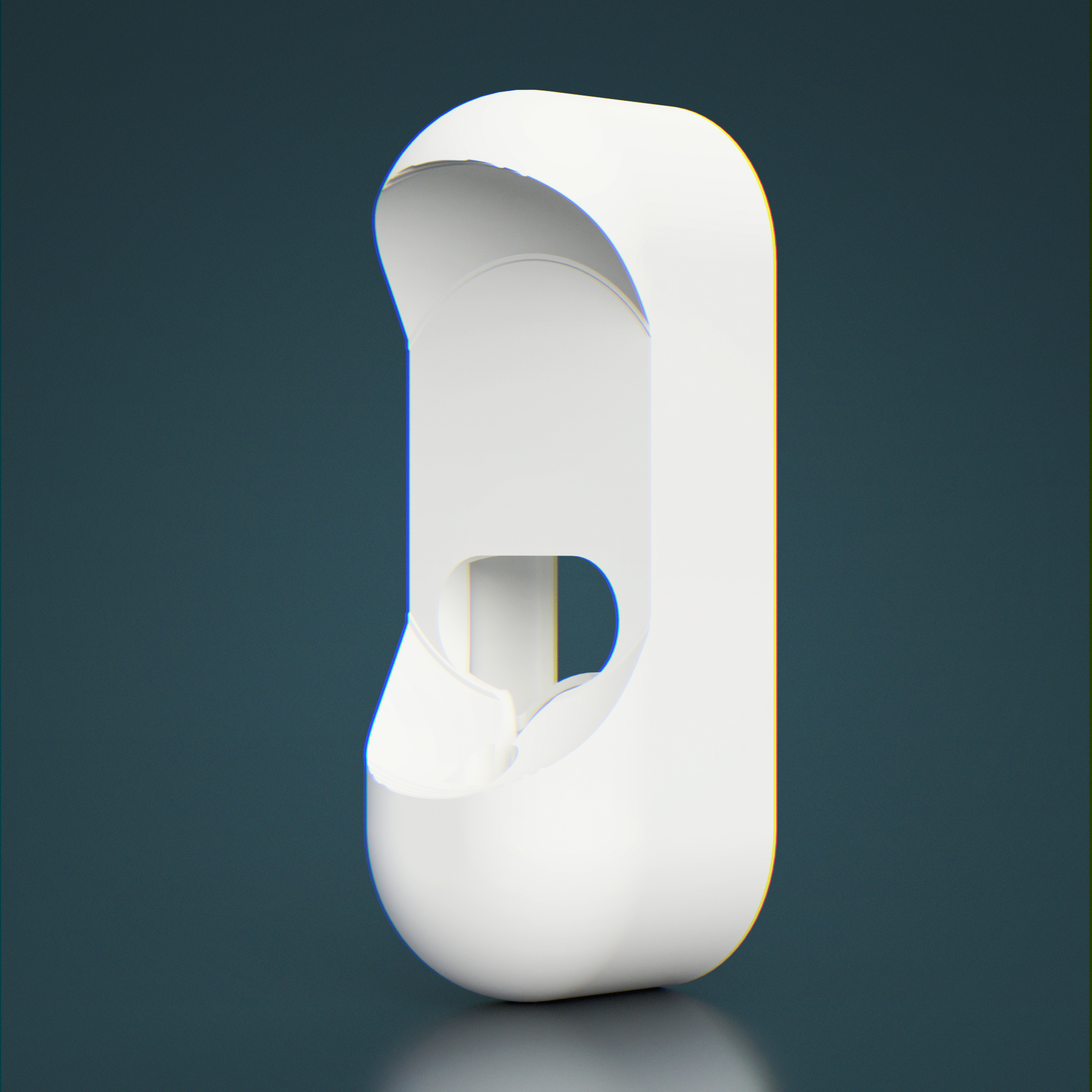

Elegant and modern, this Google Home Mini outlet mount puts all cables and connectors out of sight, in a beautiful enclosure. Perfect for kitchens and bathrooms.

The footprint is minimal and won't block surrounding outlets and switches. Can be mounted upside down. The microphone switch also remains accessible and usable.

Uses the original USB charger for power. No tools or extra hardware required, just print and mount.

Easy to print, no supports required and super simple to assemble. Requires about 80g of material.

Tested with the type A/B plug (US, Canada, Japan and Mexico). It may be compatible with other 45.4×24.2mm plugs. If your plug doesn't fit, message me with the largest diameter and depth of your plug (measured using a vernier caliper or micrometer) and I'll add a variation.

3D printing settings

PLA or PETG highly recommended.

Layer height: 0.3mm or less
Infill: 10% or more
Supports: None
Perimeters: 3 (~1mm shell thickness)

If using Simplify3D, make sure to set "Other" -> "Bridging" -> "Unsupported area threshold" to 10mm².

  • 3D model format: STL and ZIP

Tags

Creator

Designs 8
Downloads 303
Sales $43
Followers

Copyright

©

Similar 3D files

Best sellers of the category Gadget

Related contents


7 comments

Hi there Mattias, sorry this is still not working for you, I'll contact you privately.

Hi again.
Can you slice and send the file to me? So i dont have to buy simply just for this file.
Sincerely Mattias
carnerheim@gmail.com
Thanks

Hi
Sorry for late answer. I will try to slice with simple byt i dont think that work.
Sincerely Mattias

This seems to be the issue. Flashprint doesn't allow vertical separation for linear supports, meaning that they are welded solid to the model. From what I see you are definitely not alone having a hard time removing them. Other slicers leave a small gap between the supports and model (they "skip" a layer) making removal easier.

Cura does a great job with supports, but from my understanding Flashforge printers aren't compatible with it, which only leaves Simplify3D.

Let me know if you can try Simplify3D. We'll figure out something else if that's not a possibility.

Hi
Linear support
Overhang threshold 60
Pillar size 1,5mm
Touch platform only: is on
Shell count 3
Infill 20%
/Mattias

I'm terribly sorry to hear that. Have you tried using needle nose pliers? Just grab the supports and twist, they should come right off.

Also, what vertical separation setting have you used for the supports?

Cant get the support cleaned out. It looks terrably any tip? I use flashprint with auto support.
Mvh Mattias
