Bionic frame 140mm

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 3.3k views
  • 8 likes
  • 73 downloads

3D model description

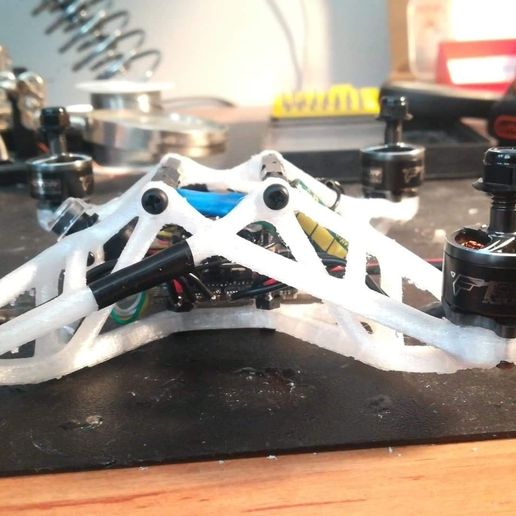

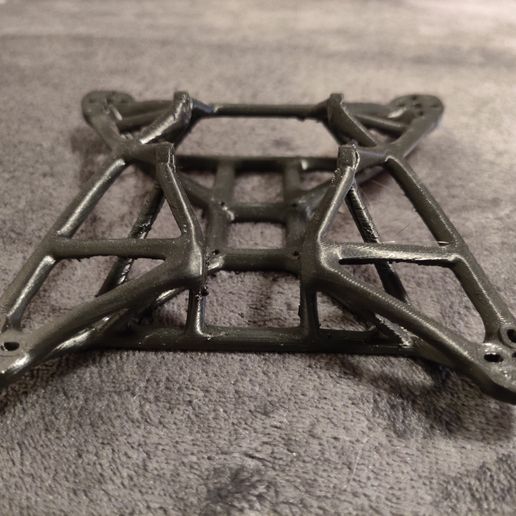

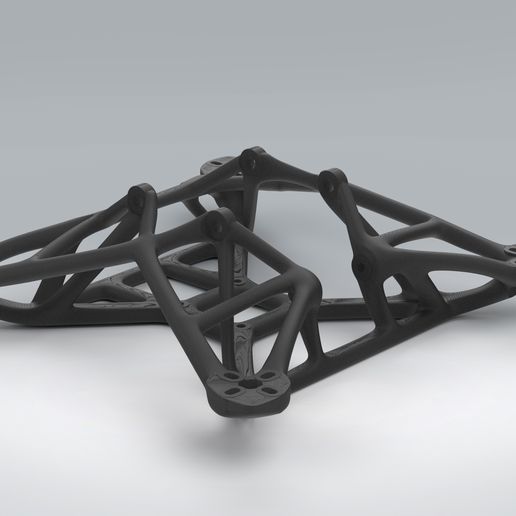

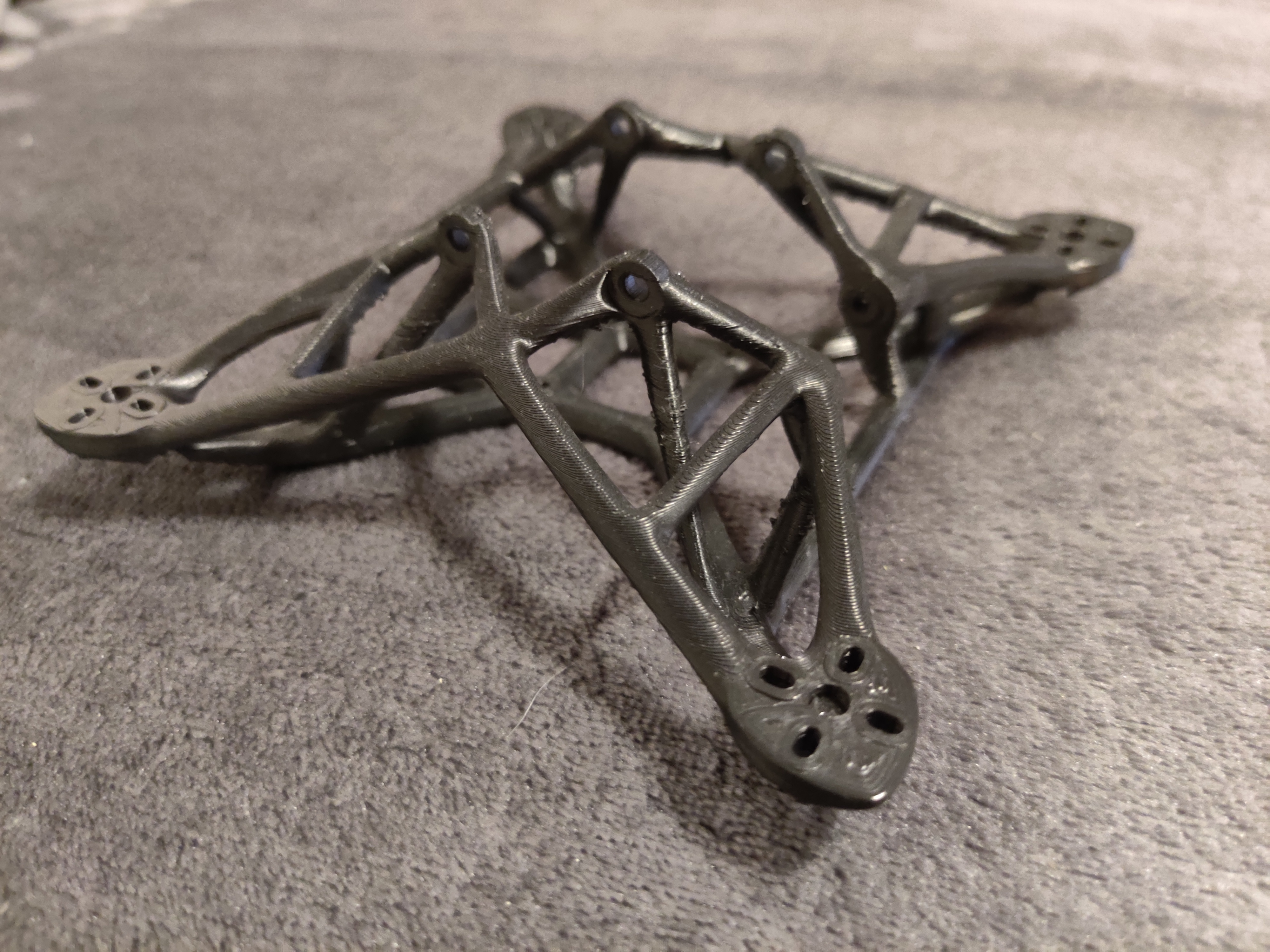

Bionic frame 140mm, perfect for freestyle and racing drones. Created using generative design.
Tested couple of versions.
High durability, high stiffness, low mass.

Also 3 inch version with extra 25,5 x 25,5mm holes:
https://cults3d.com/en/3d-model/gadget/bionic-frame-140mm-with-extra-25-5x25-5mm-holes\

5 inch version:
https://cults3d.com/en/3d-model/gadget/bionic-frame-225mm

True X,
140mm Wheelbase,
propeller 3 inch.
20 x 20mm stack mount (enough high for ESC, FCO, VTX tower or AIO).
Mounting holes for motors: 2mm on wheelbase 9 - 12mm
Place for micro FPV camera (20mm) but also nano with adapter.

You will need two M3x35mm aluminium/nylon standoff with M3 screws.

Using 20% infill and 3 shells, PETG mass about 23 grams, and rigid.
Using 20% infill and 3 shells, PA12+CF mass about 27 grams, but then it's super rigid!

Download and print in some cool color, or if You are in Europe We can print it for You!
Just write on: kontakt@drzewniane.pl


3D printing settings

Technology: FDM, SLS,
Supports: YES,
Material: PA12, PETG, PA12+CF
Shells: 3
Infill: 20%.

3D printer file information

  • 3D design format: STL Folder details Close
    • bionic frame mini.stl

    Learn more about the formats

  • 3D model size: X 116 × Y 116 × Z 35.7 mm
  • Last update: 2021/01/12 at 13:55
  • Publication date: 2020/09/03 at 22:06

License

CC BY NC ND

Tags

Creator

Engineer,
drone designer since 2017,
Generative design fan,
FPV fanboy.

Issue with this design? Report a problem

Makes created by the community

Best sellers of the category Gadget


Add a comment

2 comments

Hi

Great design!
Have printed it in my HP MJF 580 and it works really great. Is it possible to get a version for 3mm motorscrews and more material around the motormounts for a 6s beast? Or is it possible for you to share the step files?

I created a VTX tray for this one.

https://www.thingiverse.com/thing:4729252

Thanks for posting this frame. Just finished building it today and hope to fly it today.
