Apple Desktop Bus (ADB) to USB Dongle

Download free STL file Apple Desktop Bus (ADB) to USB Dongle • 3D print model, ehans1cDownload free STL file Apple Desktop Bus (ADB) to USB Dongle • 3D print model, ehans1cDownload free STL file Apple Desktop Bus (ADB) to USB Dongle • 3D print model, ehans1cDownload free STL file Apple Desktop Bus (ADB) to USB Dongle • 3D print model, ehans1cDownload free STL file Apple Desktop Bus (ADB) to USB Dongle • 3D print model, ehans1c

Did you 3D print this model?

3D model description

I designed this adapter for my Apple Extended Keyboard. The goal was to create an ADB to USB adapter that would not require me to modify my keyboard in anyway. The only vintage computer part that was harmed in the making was a spare ADB cable I had lying around.

Assembly instructions can be found on hasu@tmk's GitHub page (see link below). Without his firmware, my Apple Keyboards would still be in storage collecting dust.

Parts List:

  • Teensy 2.0 Microcontroller
  • 1-10 kOhm resistor x1
  • Self-Tapping Plastic Screw x 4
  • A ADB cable (this will need to be cut and spliced for the adapter)

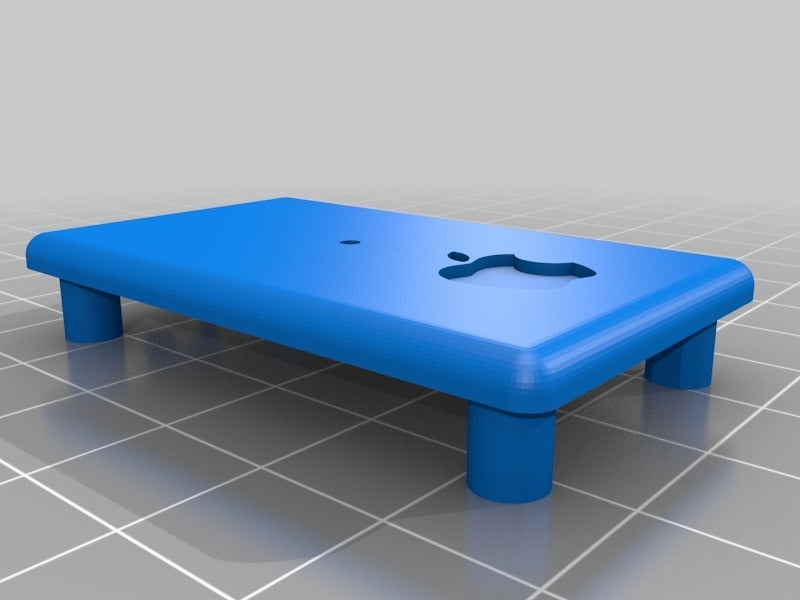

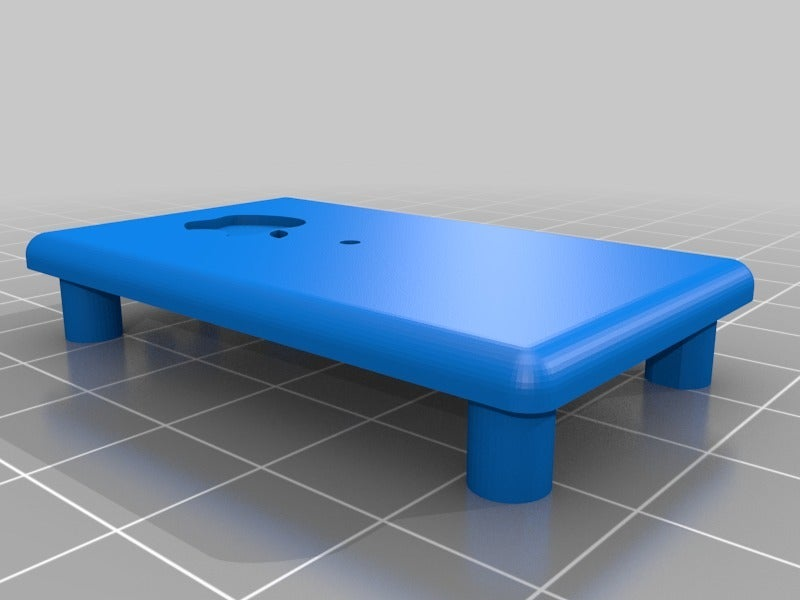

  • 3D Printed Housing (found on this page!)

Firmware & Instructions:

The firmware and assembly instructions can be found on hasu@tmk's GitHub page. See the following link below:

https://github.com/tmk/tmk_keyboard/blob/master/converter/adb_usb/README.md

  • 3D file format: STL

Tags

Creator

License

CC BY
