another geiger miller tube case

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 853 views
  • 2 likes
  • 7 downloads

3D model description

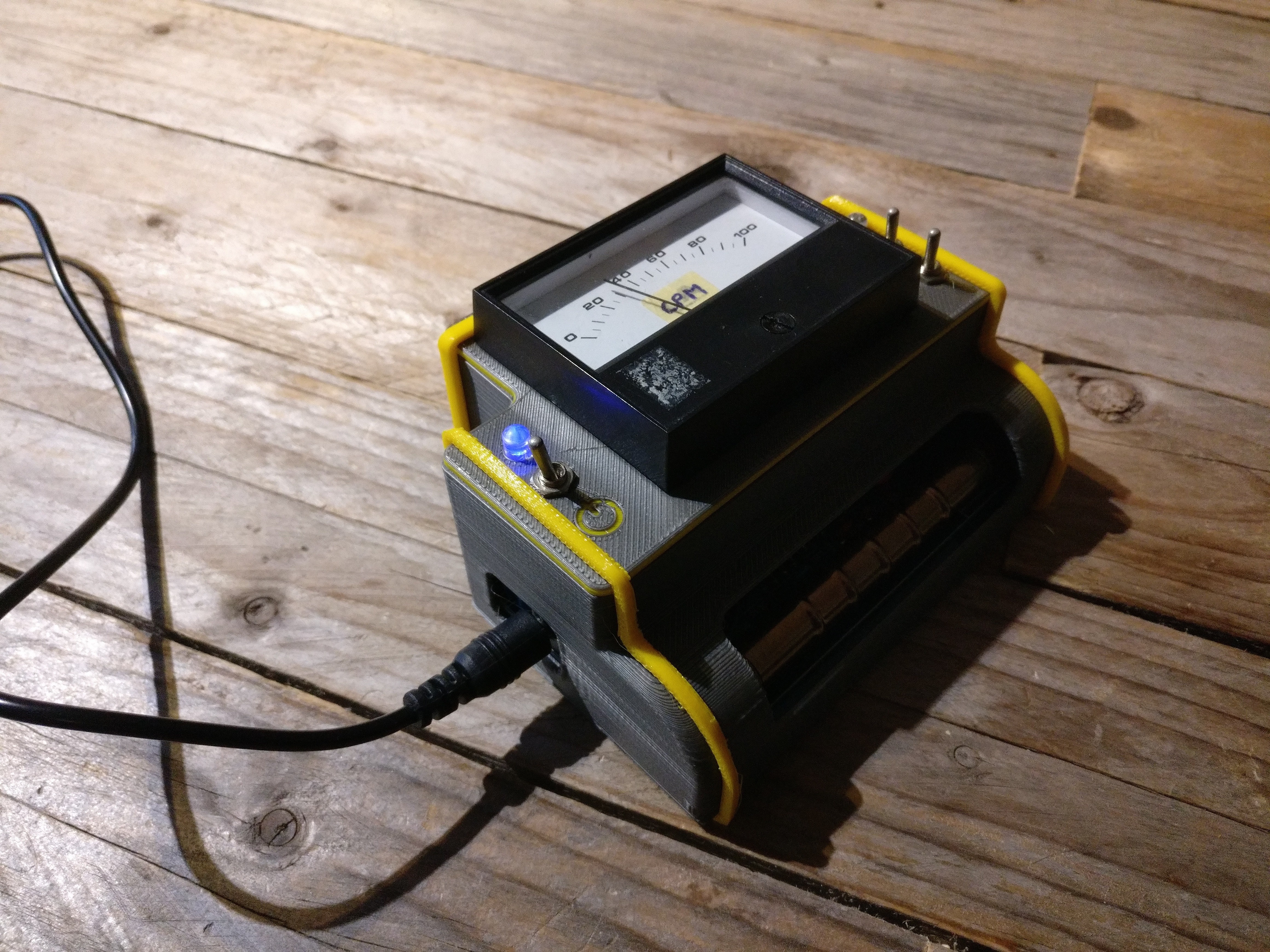

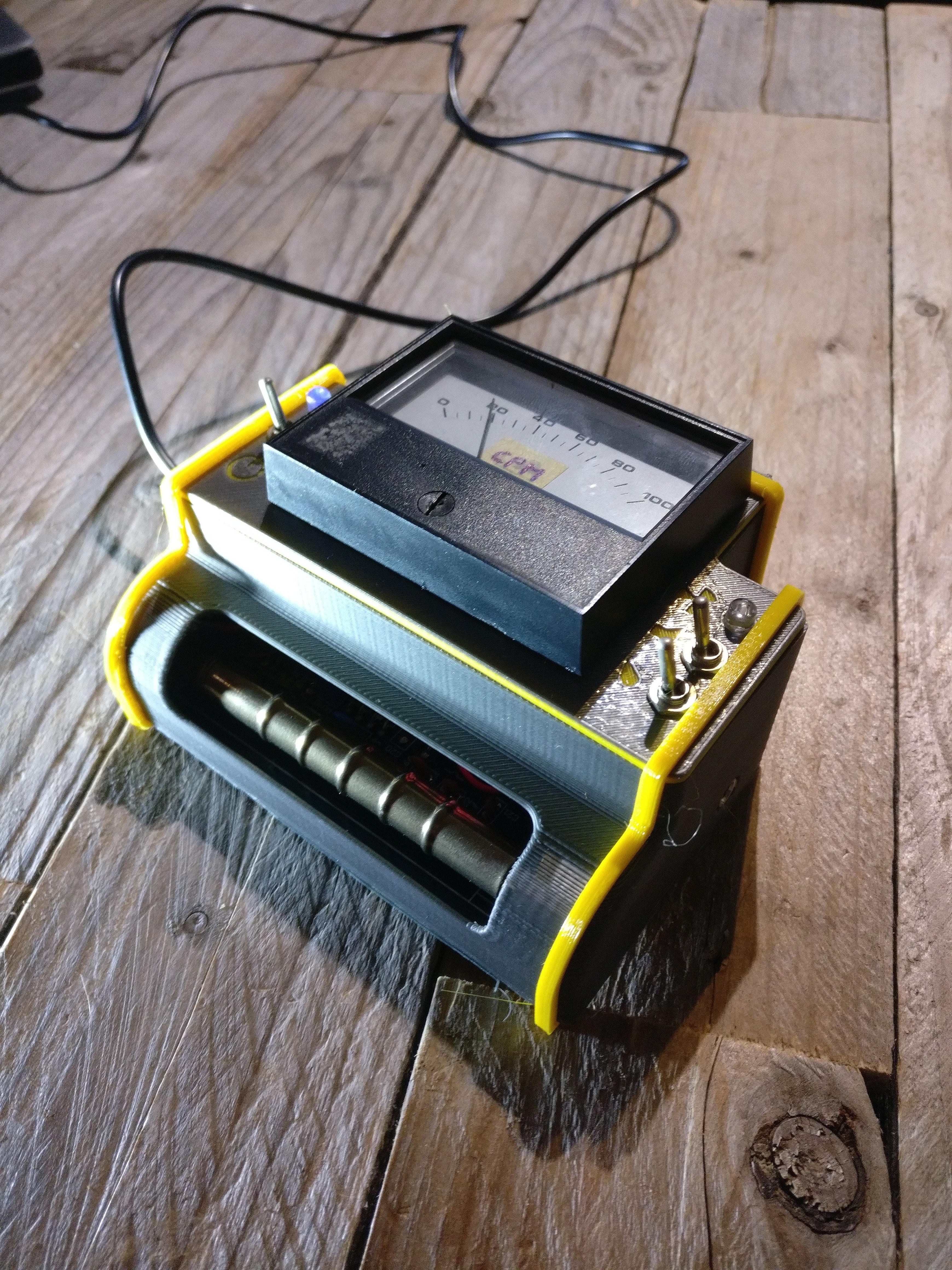

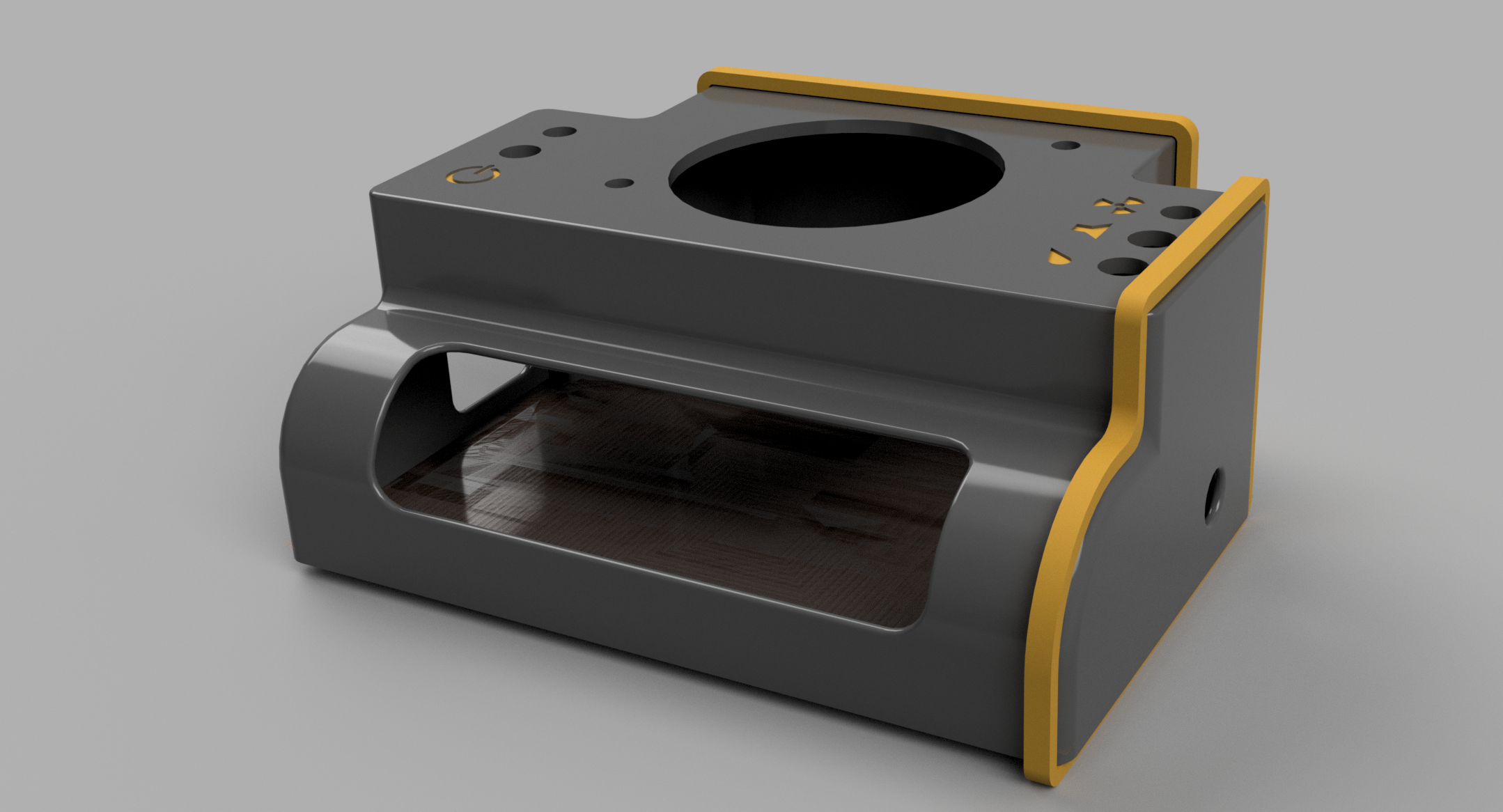

A case for my geiger miller tube kit wich cam from alibaba:
https://www.aliexpress.com/snapshot/0.html?orderId=87249775515840&productId=32336592385

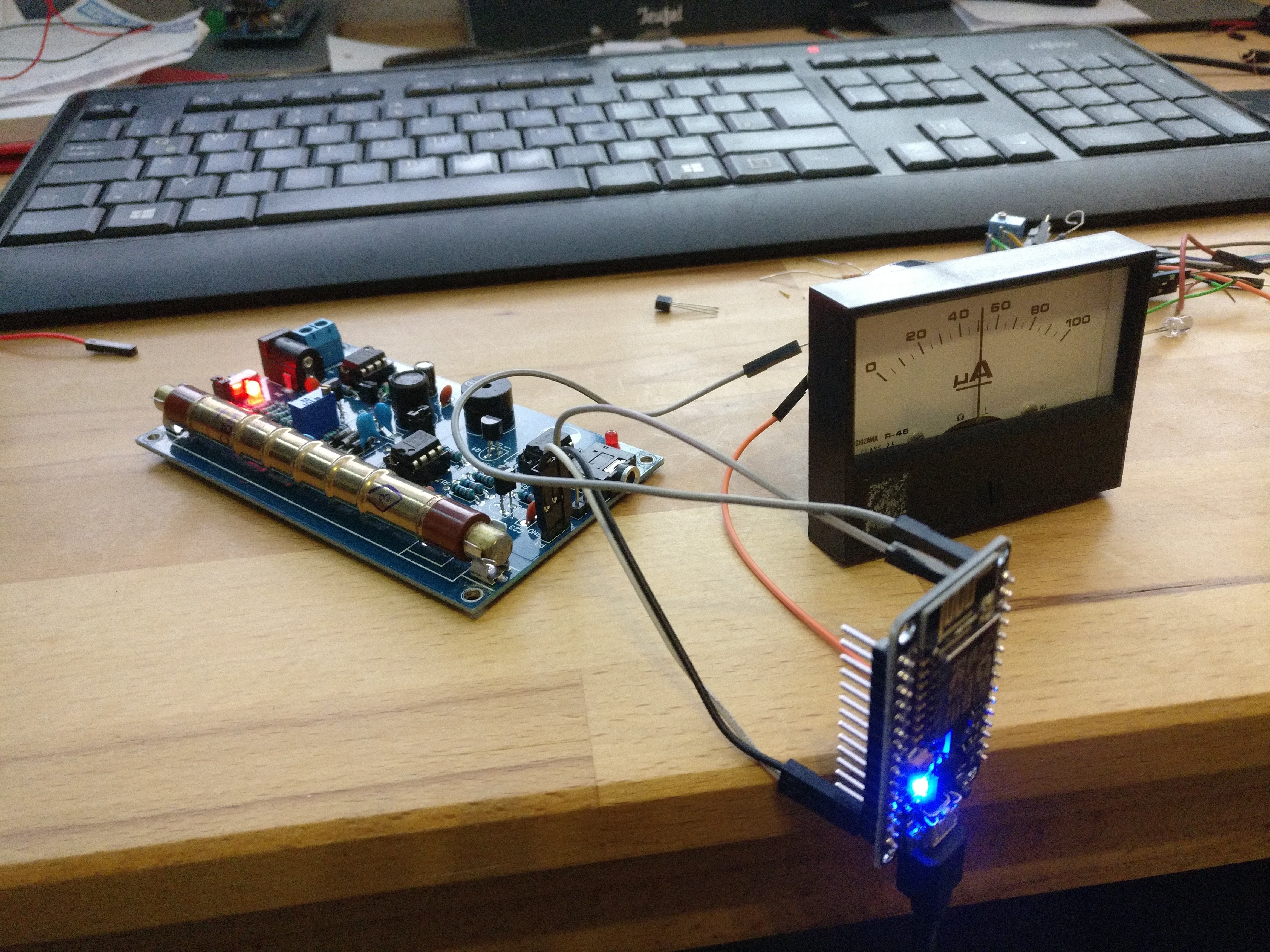

Added an ESP8266 and a analogue gauge and switched the included tube with a SBM-20.
A short demonstration can be found here:
https://youtu.be/QaKmL0v2C70

The ESP is running self written software but this guide was very helpful:
https://youtu.be/K28Az3-gV7E

Notice:
The tolerances of this version are a bit too small. The PCB only fitted with a little force.


3D printing settings

Layer-height:
0.15 mm for the lid
0.2 mm for the brackets
0.25 mm for the case

50 % infill

Made a filament-change in the middle of the printing of the lid to achieve the nice effect on the icons.
