Camera body cap (M42 Lens mount)

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.9k views
  • 4 likes
  • 49 downloads

3D model description

Since I wanted to use the old lens of my granddads camera, I needed a body cap for the old camera body. I could not find the original one and quickly designed a new one in Fusion 360.

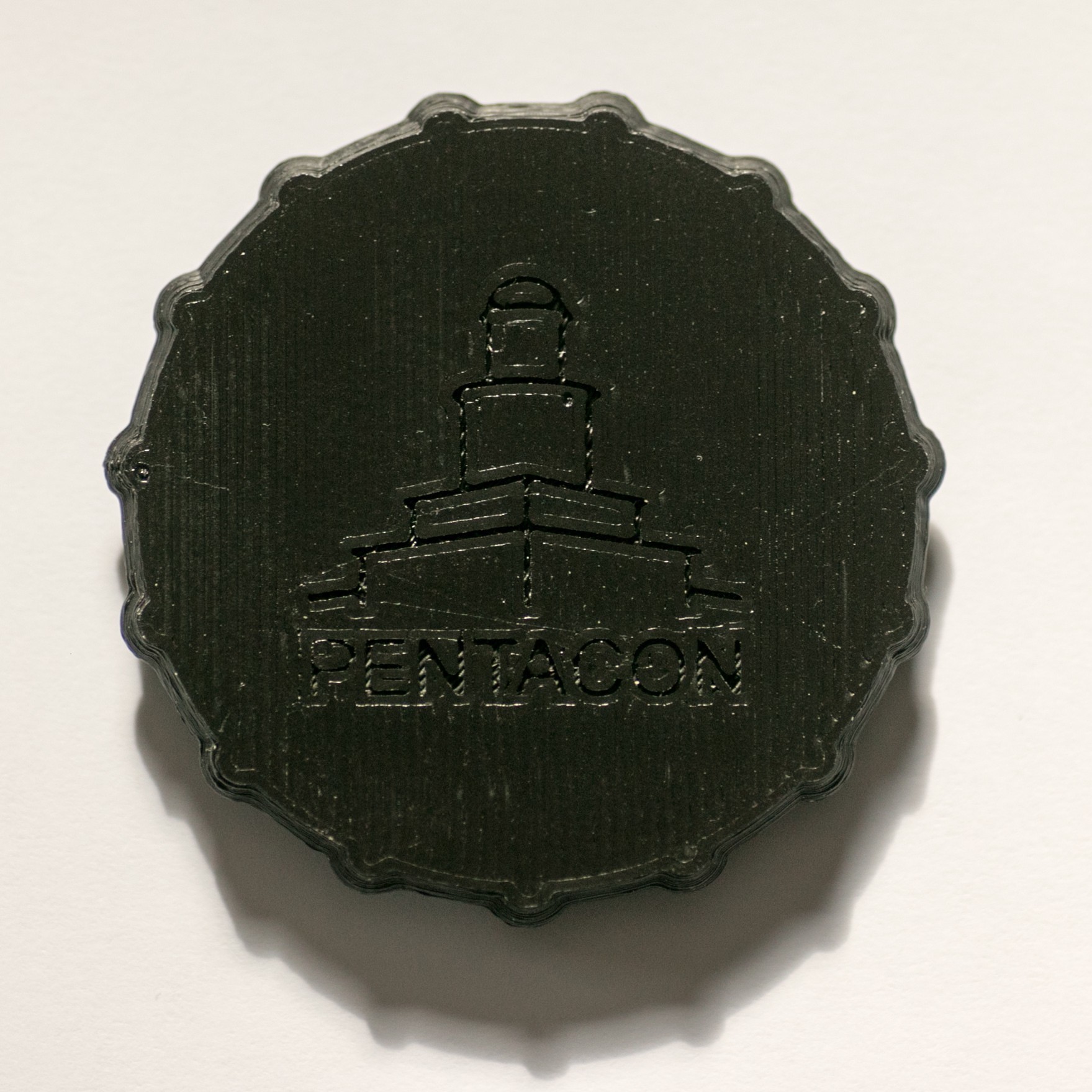

The camera has a M42 lens mount and was manufactured by PENTACON. Therefore I embossed the Logo (found on Wikipedia: https://de.wikipedia.org/wiki/Pentacon ) on the front of the Cap. I also added a version without any Logo.

Link to a live view of the Fusion 360 file: https://a360.co/2GzoCND

#HP3D


3D printing settings

Perimeters: 2
Infill: 20 %
Lower 4 mm: 0.2 mm layer height
Thread: 0.1 mm layer height

3D printer file information

  • 3D design format: STL Folder details Close
    • Body Cap (Pentacon Logo).stl
    • Body Cap.stl

    Learn more about the formats

  • Last update: 2018/06/24 at 23:07
  • Publication date: 2018/03/27 at 11:41

License

CC BY NC SA
