stable radiatior hook

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.3k views
  • 8 likes
  • 153 downloads

3D model description

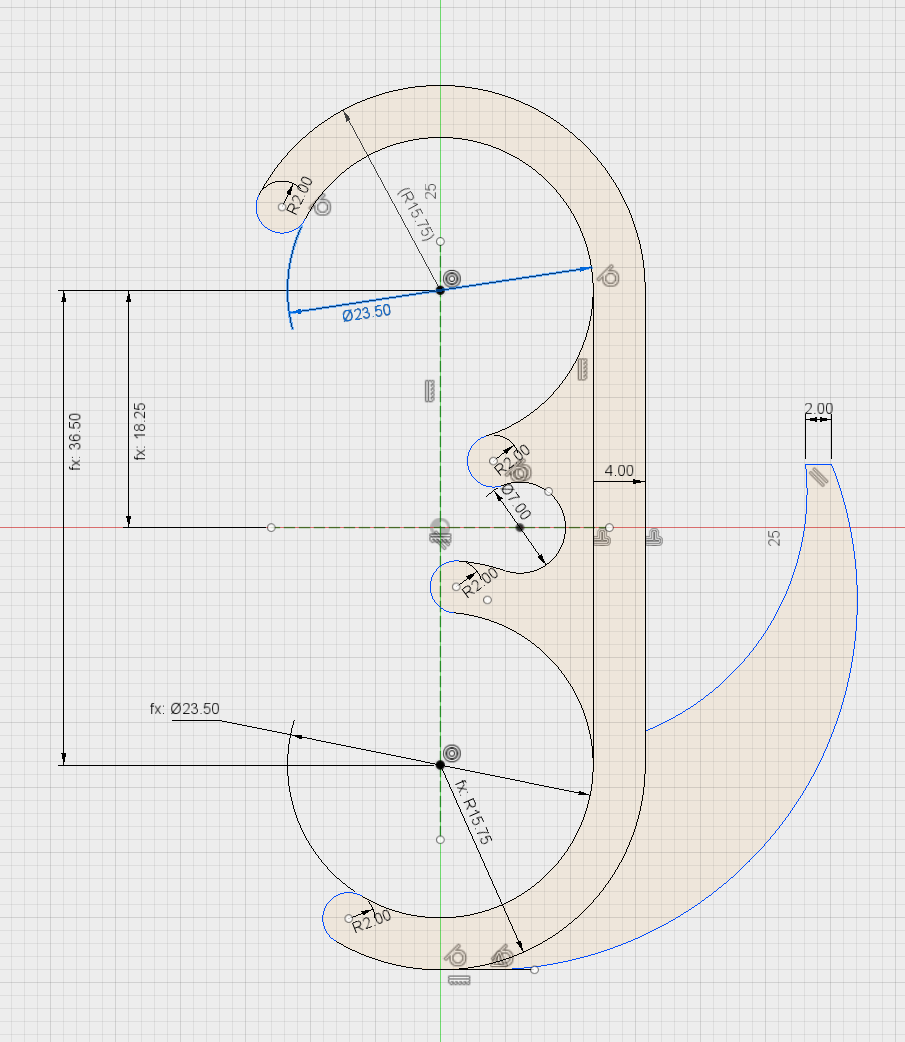

A simpel but stable radiator hook (pipe diameter: 23.5 mm, pipe distance: 13 mm). Object can be edited with the included fusion 360 file.

There are 2 versions included (left and right)

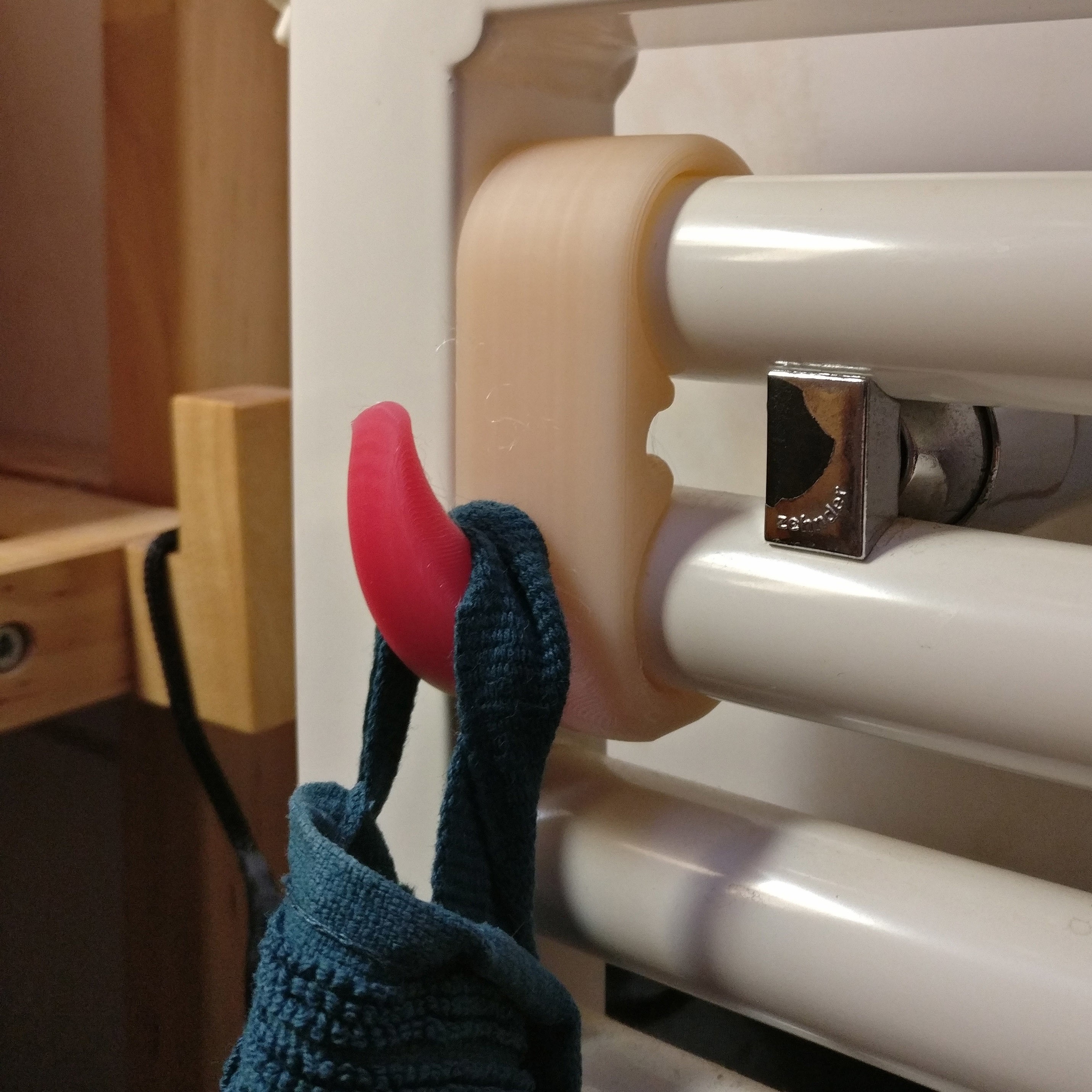

printed in a color changing PLA which indicates if the radiator is heating.

Update 01.12.2017:

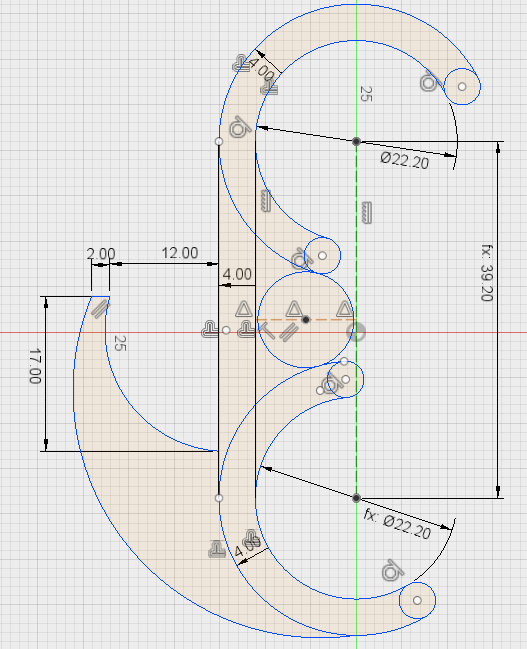

Added a version for a radiator with a pipe diameter of 22.2 mm and a pipe distance of 17 mm.

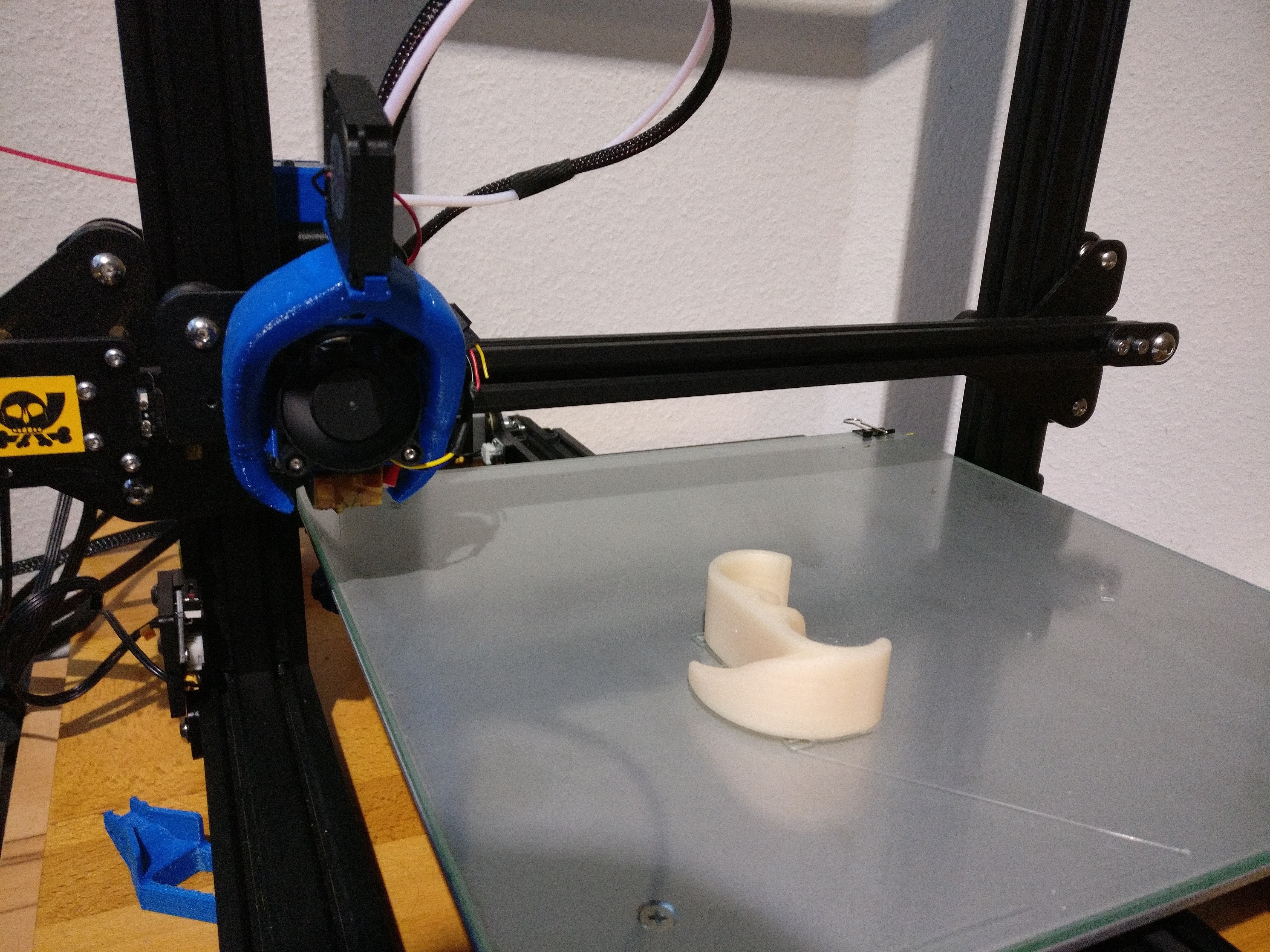

3D printing settings

0.2 mm layer height, 15 % infill

  • 3D file format: STL and ZIP
  • Last update: 2017/12/01 at 11:13
  • Publication date: 2017/11/26 at 18:11

Tags

Creator

License

CC BY NC SA
