triangular lithophane lamp

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 2.3k views
  • 6 likes
  • 133 downloads

3D model description

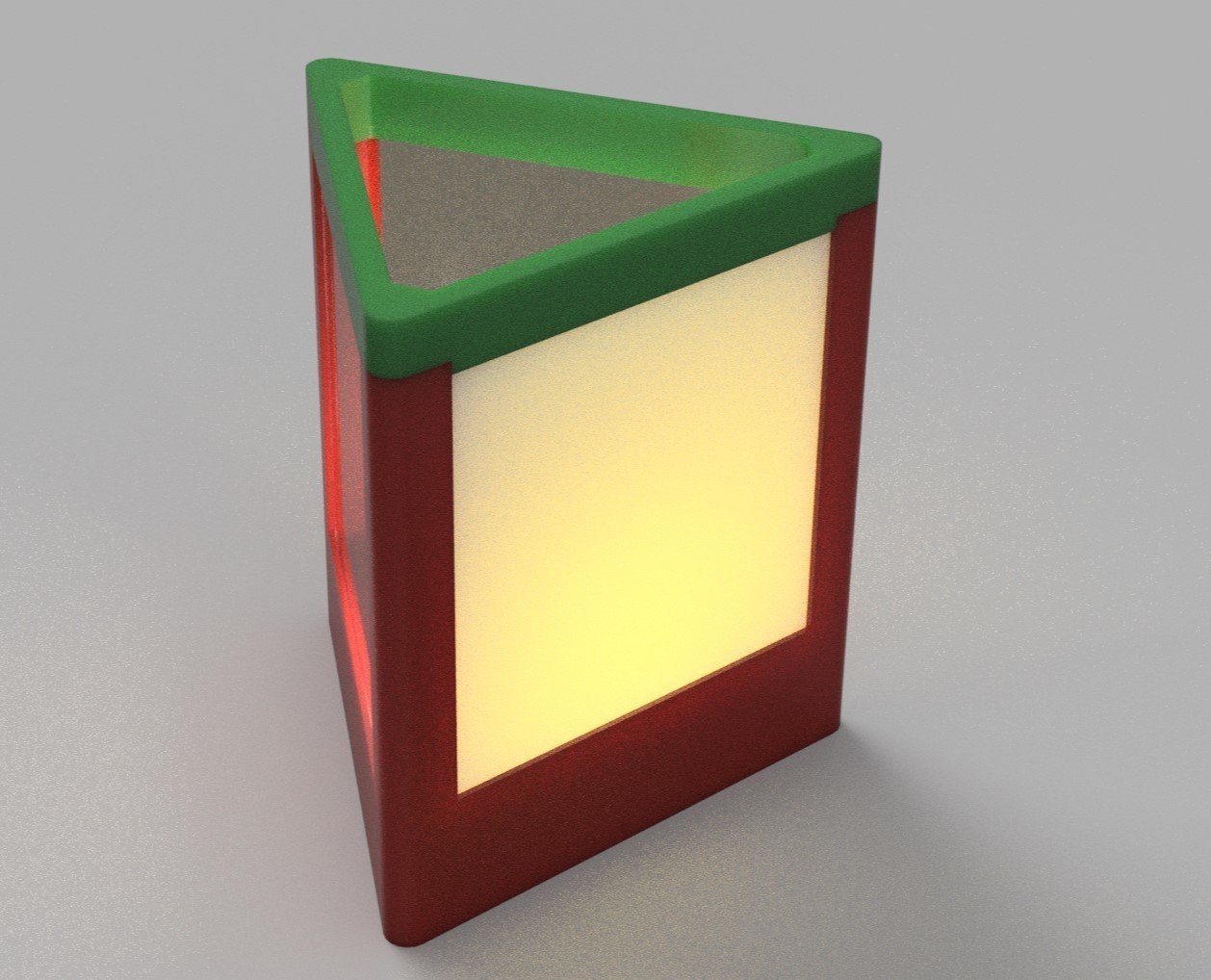

A simple lamp / lantern with a triangular shape for 3 lithophanes (sized 70 x 70 x 2 mm) and standard flicker LED candles (diameter about 38 mm).

PLEASE DO NOT USE REGULAR CANDLES!

The lithophanes were created using this wonderfull tool: http://3dp.rocks/lithophane/
used the following settings to create the lithophanes: Flat, size 70 x 70 mm, 2 mm border and thickness.

The Fusion 360 file can be downloaded here: https://a360.co/2CmfcSk


3D printing settings

Case: 0.3 mm layer height, 15 % Infill, 2 perimeters
Lithophane: 0.1 mm layer heigt, 100% infill

3D printer file information

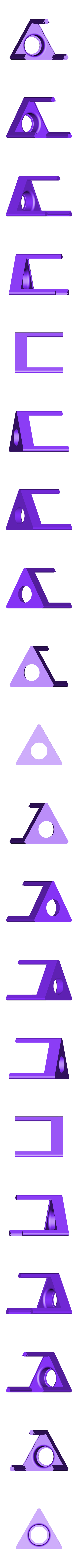

  • 3D design format: STL Folder details Close
    • Lid.stl
    • Lithopane blank.stl
    • Main Body.stl

    Learn more about the formats

  • Publication date: 2018/12/21 at 17:16

License

CC BY NC SA
