CASE FOR LATTEPANDA SIGMA

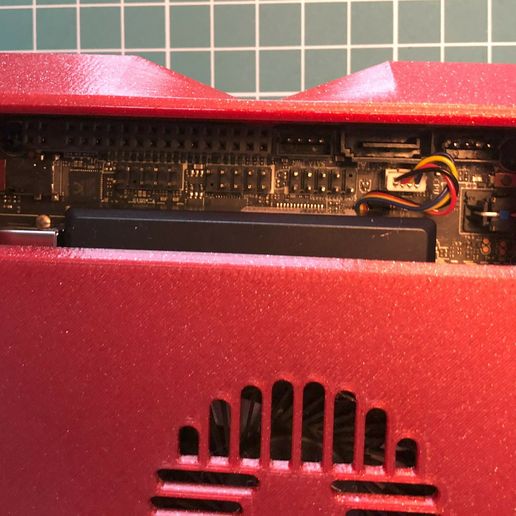

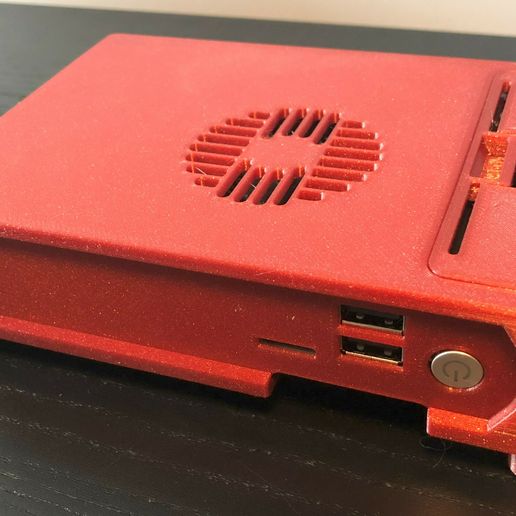

At the time of writing, there is no dedicated case available for purchase for the LattePanda Sigma. I decided to create my own design, matching the connectors and cooling system as well as commercial mass-produced solutions. I also wanted access to the Arduino connectors. Variant A (vs. B) of the housing also has holes in the lower part for cable outlets. All this work required several test prints but I'm happy with the result and that's why I decided to post it here.

external dimensions: 174.4 mm x 110.4 mm x (45.8 mm + rubber pad thickness - 2 mm)

All parts are already in the correct orientation for 3D printing. STL and 3MF files are uploaded.

Assembly: https://youtu.be/NVTibAKEd6k

What should be printed and in what quantity:
1x cgs_top
1x cgs_flap (the only part requiring supports!)
1x cgs bottom_va (variant with lower cable holes) or cgs_bottom_vb (variant without lower cable holes)
1x cgs_front_va or cgs_front_vb
1x cgs_rear_va or cgs_rear_vb
2x cgs_foot (with holes for rubber pads) or cgs_foot_no_rubber (no holes for rubber pads)
4x cgs_washer (only if M4x14 screws are used instead of M4x12)

What is needed beyond the printed parts:
1x Lattepanda Sigma
8x M4 hex nut (most popular type: DIN 934 / ISO 4032),
4x M4x14 or M4x12 socket head screw (DIN 912 / ISO 4762),
4x M4x20 socket head screw (DIN 912 / ISO 4762),
1x Metric allen key wrench size 3 (tool),
(Optionally) 4x self-adhesive rubber pads with a diameter of 10 mm and a height of 4-5 mm.

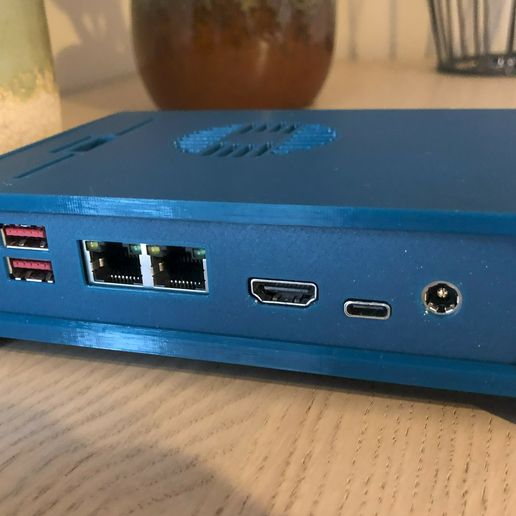

Note: I adapted the location and sizes of the connector holes to my LattePanda Sigma. Just in case, I made "enlarged_holes" versions for the cgs_front and cgs_rear models.

LICENSING:
Remember that the model is licensed solely for personal use. You can obtain a commercial license, allowing you to sell 3D prints of my models, through paid subscription:

https://www.patreon.com/gusforge

Remember that it is prohibited to share or resell original or modified digital models.

Infill: 50%or higher
Layer height: 0.2 mm
Material: PETG
Nozzle: 0.4
Supports: only for "cgs_flap" (1 small part), not needed for other parts
