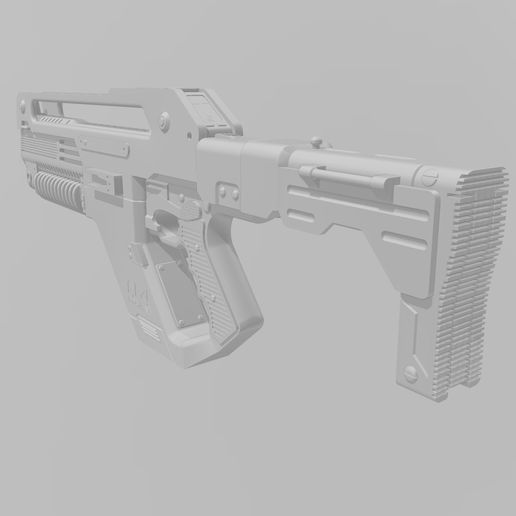

Romulus Pulse Rifle (Aliens) STL

My interpretation of the New Pulse Rifle.

All the parts have been laid out into plates and split by colour in my personal preferred orientations. The files in their current arrangements would require a Bambu sized build plate (256x256x256mm).

Please use the 'split to objects' tool within your slicer and arrange yourself if you use a smaller printer.

The largest object has a height of 234mm and will need splitting if your printer cannot reach these heights.

You will need some good bed adhesion to print the 'Front and Rear Shroud' in their current orientation (use brim 20mm width), please use the additional V2 files supplied for these parts if the parts fail to stick to the bed.

Please use the images provided for guidance on what parts go where, all the seperate parts have been highlighted in bright colours to better show this.

The 'joining blocks' file consists of blocks that are used to guide and join some of the components together to erase the chance of misalignment of the parts when gluing together.

Please note, you'll need a few additional items to complete this in full (not absolutely necessary, your own preference)....

6mm (diameter) black wire/cord, or some 7mm conduit tubing (best option) either one 45cm in length. Fittings for both provided.

22x M3 5mm Socket heads (see image provided for where these go).

There are a lot of parts to this model but I did the best to ensure that everything could be printed out with as little support as possible. Tree supports are recommended also.

Any questions, feel free to ask.

Update 22/08/24...

Added a printable stencil that can be used to spray paint the red detailing on the sides. Adjust your wall settings to 'Arachne' when printing the stencils as the walls are very thin.

Update 30/09/24...

I have removed the overhang from the 'handle' component that bridges between the grip and the mag well and made it a separate part so that they can be printed without the previous support scaring. Please use the new 'handle split' file instead of the 'handle' file that is found in the original Zip.
