Laser Cut DuoGraph Drawing Machine

Demo Video: https://youtu.be/-7FGRcxL1E4

The assembly instructions can be found with this link:
https://docs.google.com/presentation/d/1Wo0HMYsGPh8P8BesDegezKgQbkkzSEzrfwwzTM3tPzk/edit?usp=sharing
(Note: I am currently working on these instructions, and will be subject to lots of changes)
Just posting it here for those who want early access and want to start making their own.

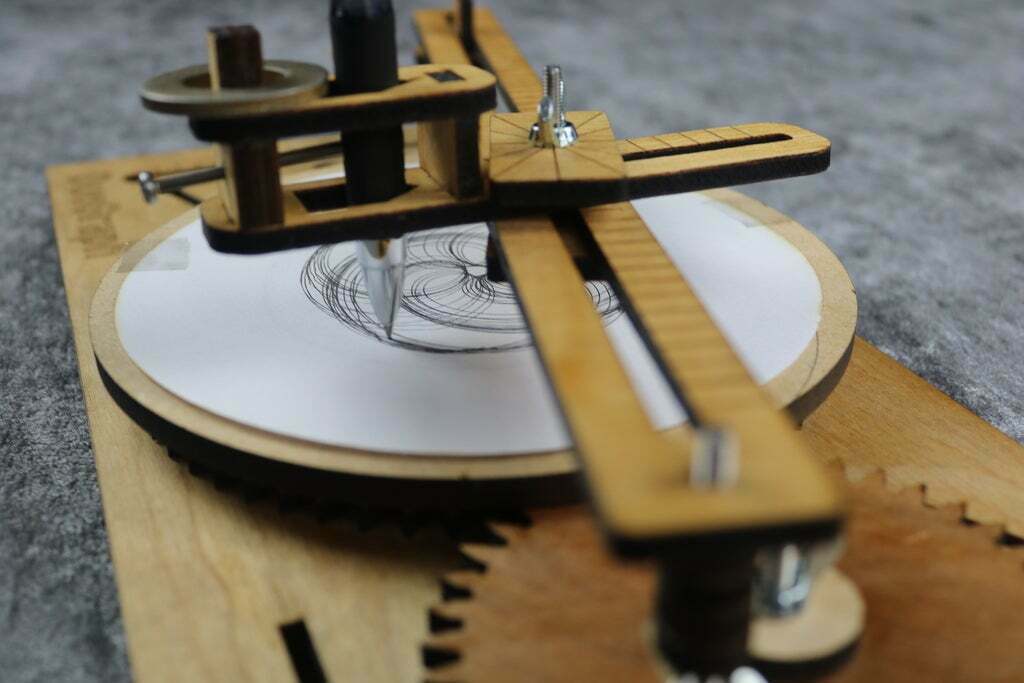

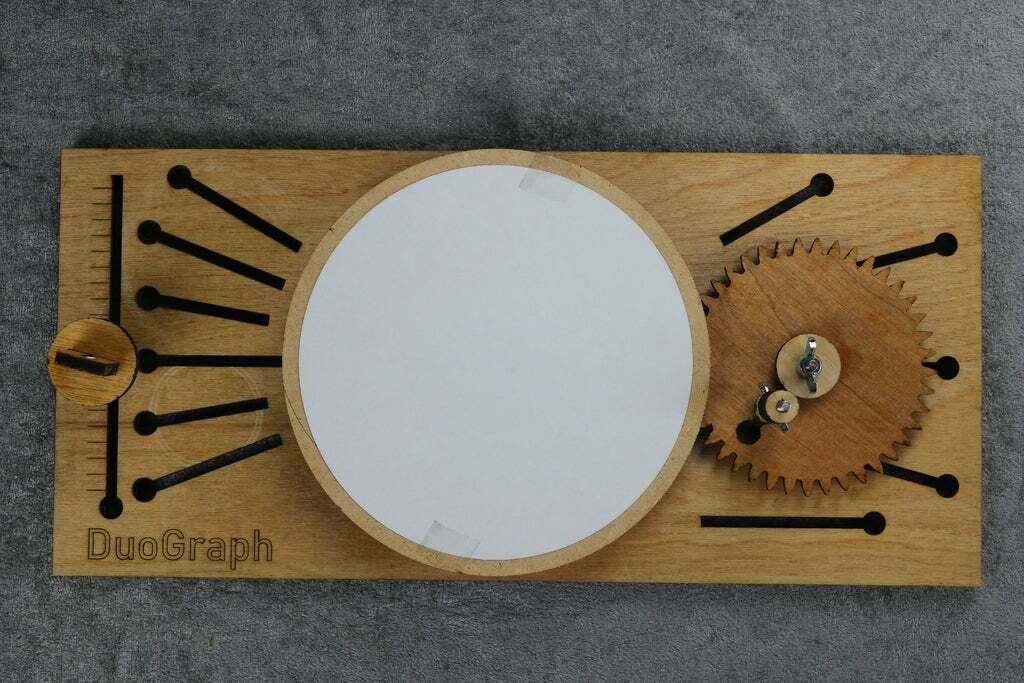

This drawing machine allows you to create intricate patterns. Even the simplest setups can make some amazing designs. The DuoGraph drawing machine can create patterns that are 6 inches in diameter. This is a fun and easy build taking only 3 weekends at most. All you need is access to a laser cutter and some hardware.

The way this drawing machine is designed, allows for endless amounts of drawing setups and possibilities. For example, you can customize your drawing by:

• Selecting different gears
• Adjusting the position of the arms
• Using a different drawing utensil
• Adjusting the location of the gear by selecting a different slot

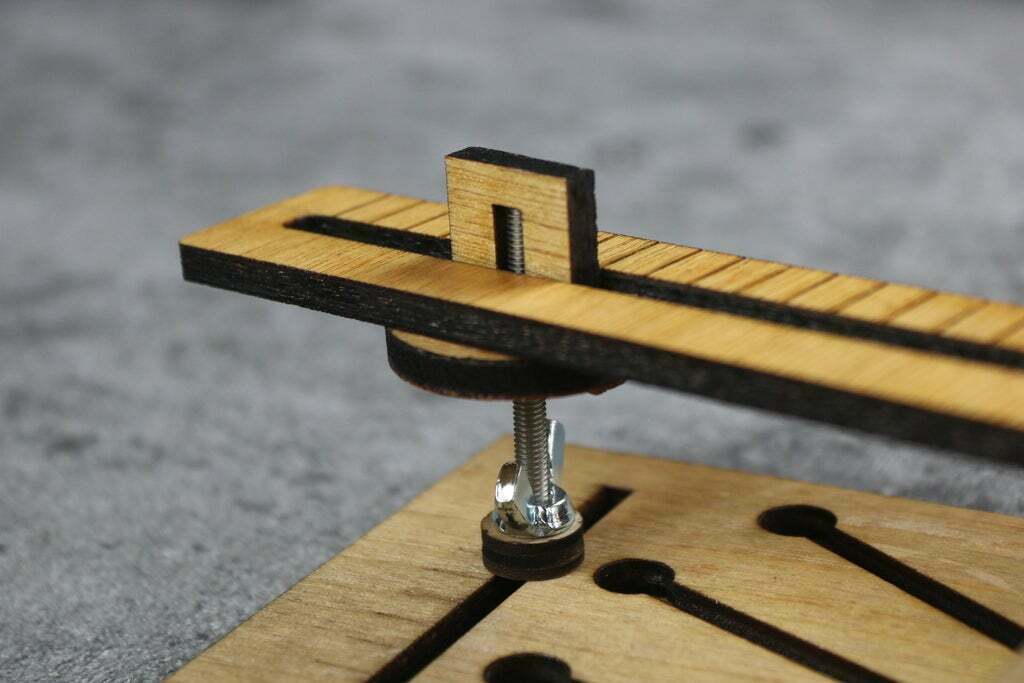

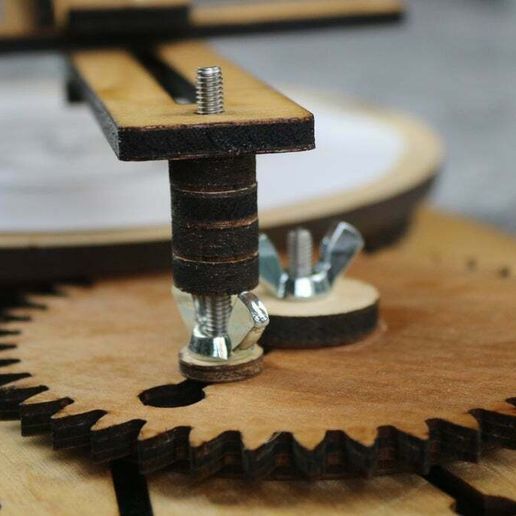

• Adjusting the position of the screw on the gear

I have recreated the DuoGraph drawing machine by Joe Freedman:
https://www.kickstarter.com/projects/1765367532/duograph-drawing-machine

All of the files to create the DuoGraph drawing machine are provided in a variety of formats (For maximum compatibility). Not to mention, the parts are nested(Organized), allowing for more efficient laser jobs.

Files included:

• Prime set of gears: 9, 23, 29, 31, 37, 41, and 47 teeth
• Divisible set of gears: 20, 25, 30, 35, 36, 39, 40, 42, and 45 teeth
• Geared turntable consisting of 60 teeth
• 2 connecting rods
• Pen holder
• Washers
• Templates of different sizes in order to cut out circle paper
