Gyroid Patch Frame

Creation quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.

  • 1 like

Licence CC BY
Publication date 2023-04-05 at 23:01
Published to Thingiverse on: 2023-04-05 at 03:05
Design number 1153732
3D design format
Folder details Close
  • GyroidPatchFrameA.stl
  • GyroidPatchFrameB.stl

Learn more about the formats

3D printer file info

3D model description

####Gyroid Patch Frame

#####It is really fun to watch the soap films interact with each other.

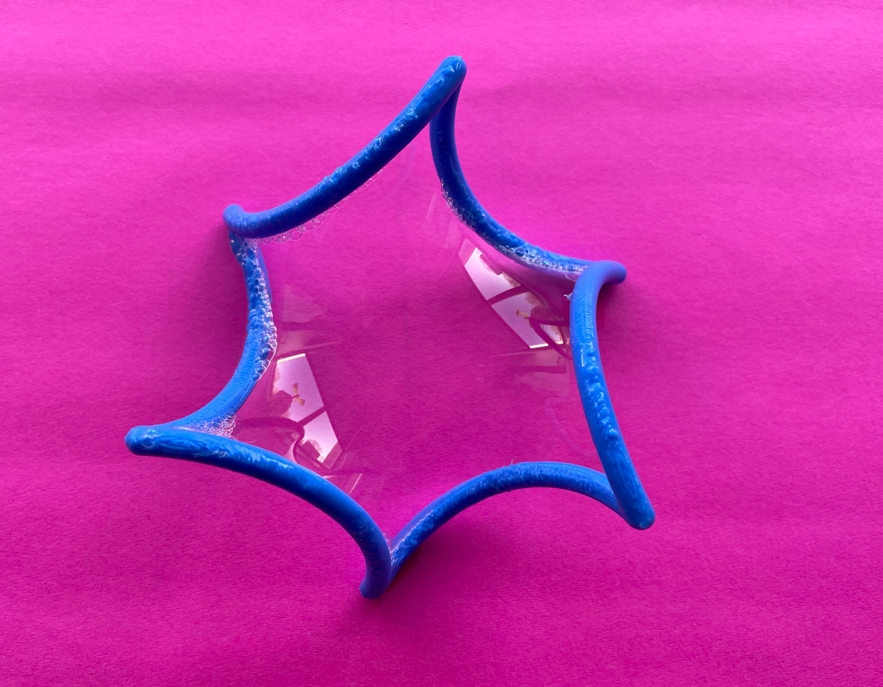

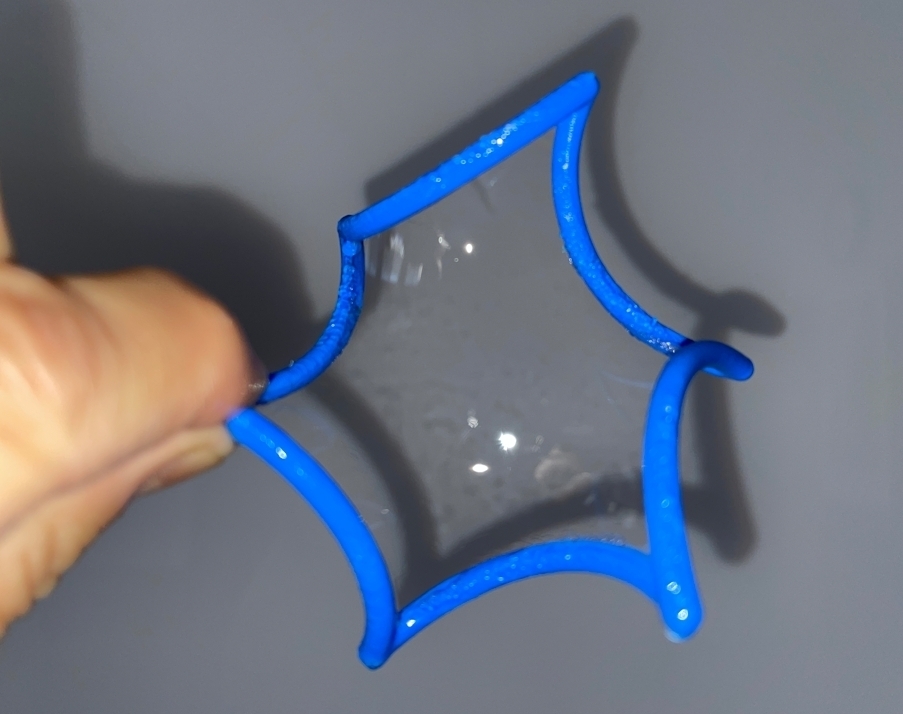

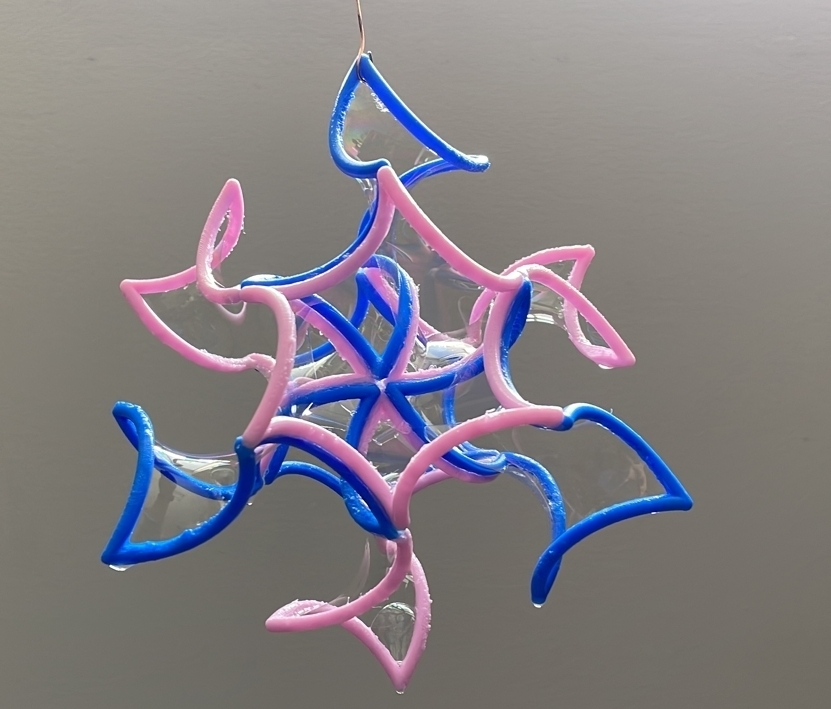

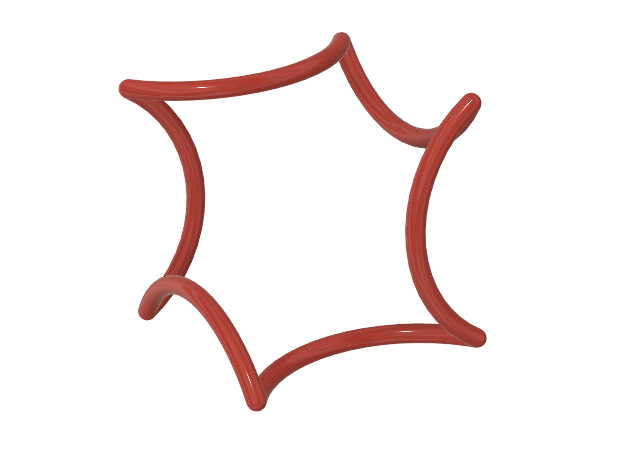

The gyroid patch frame is a derivative of my previous design ( While the wire frame works fine, it is not quite accurate and is hard to assemble for a large structure. The present frame is also designed around a cube. Once printed (with minimal support), it can be used to get a pretty accurate soap film that mimics a gyroid patch. Eight frames can be glued together (using contact glue such as Gorilla clear grip) for a gyroid cell skeleton. If you dip it in soapy water and pull it up slowly, you may be able to get a soap-film model for a gyroid unit.

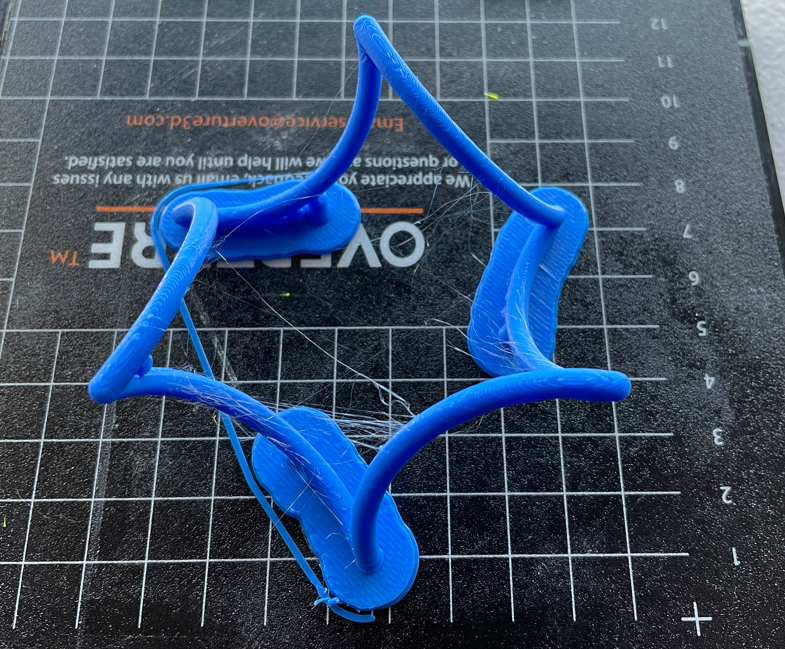

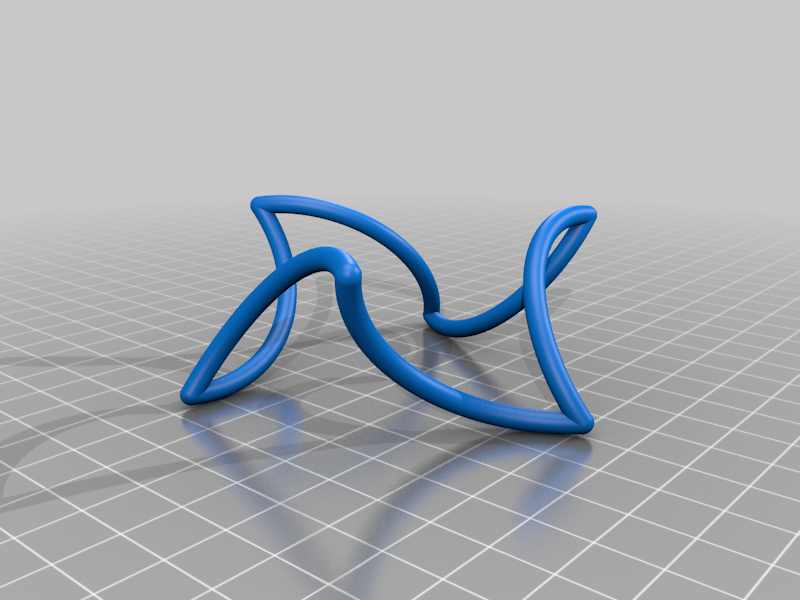

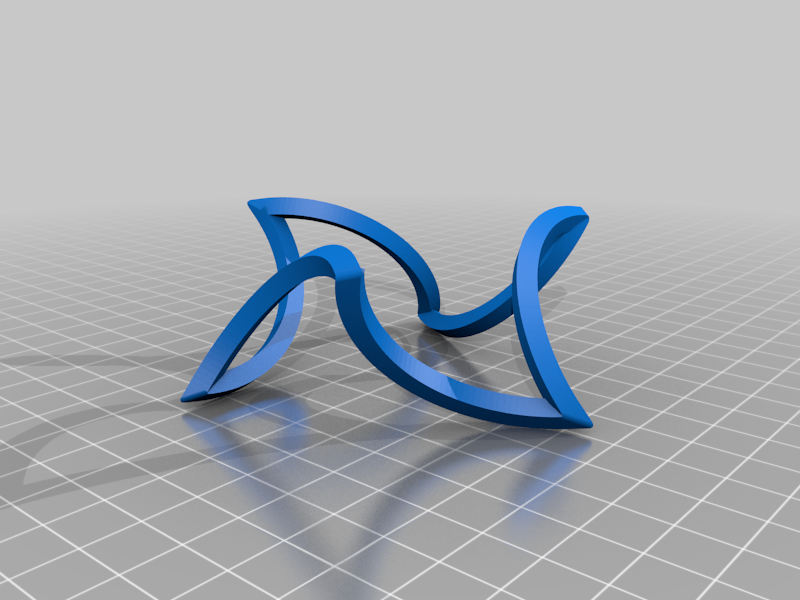

Two versions are included: circular and square frames. To facilitate printing, I rotated the model so it touches the bed at three points.
