3D model description

Hi!

This time i made a printable version of 'BIT', first CGI character of 1982 movie TRON

https://www.youtube.com/watch?v=_fGujzulsas

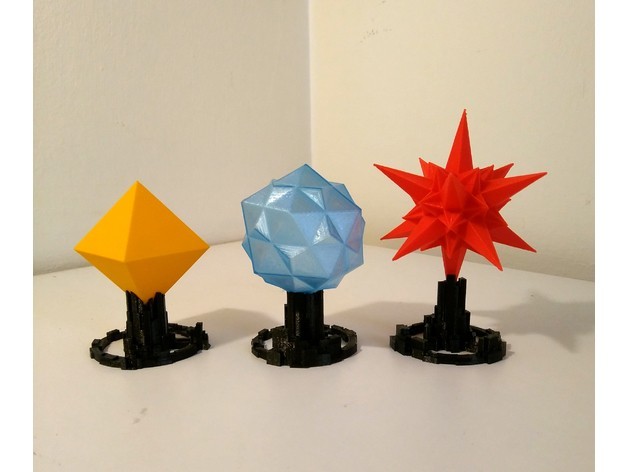

There is 4 figures/states with their stands.

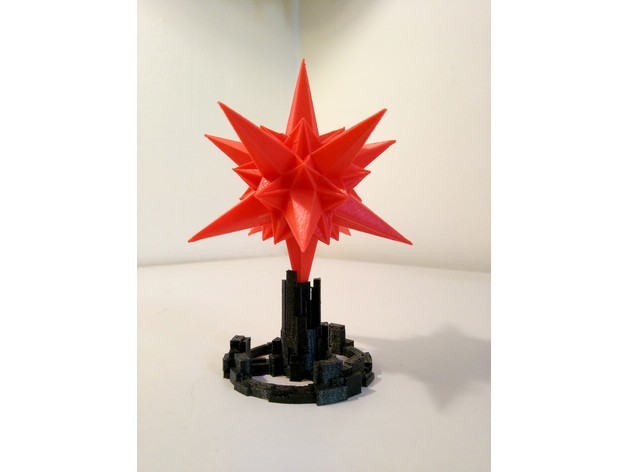

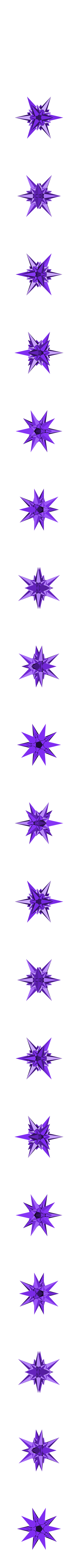

NO: Red Second stellation of icosahedron

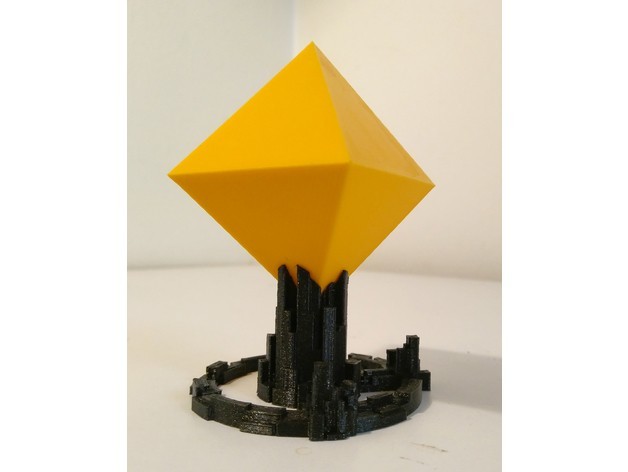

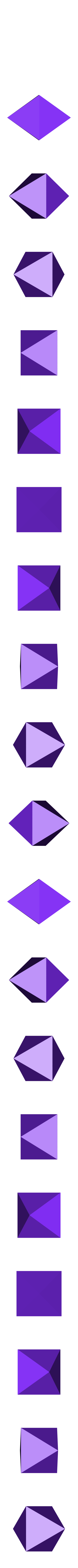

YES: Yellow octahedron

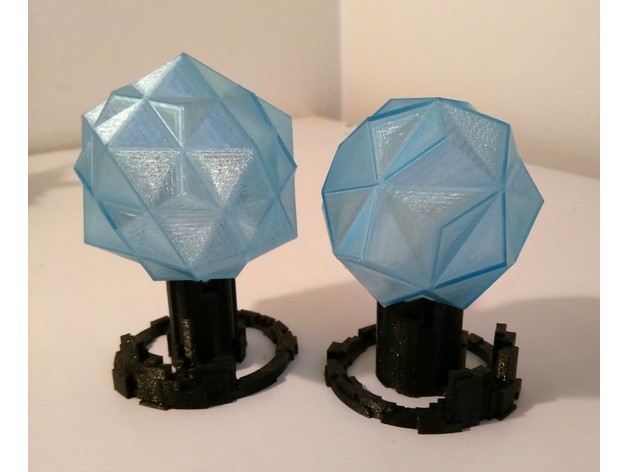

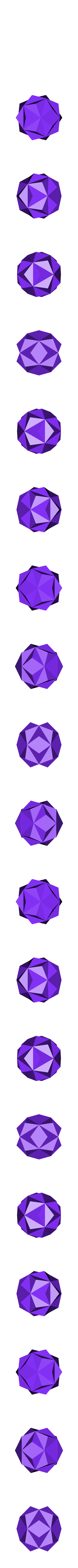

IDLE 1: Blue Compound of icosahedron and dodecahedron
IDLE 2: Blue Small TriAmbic icosahedron
About the files:
For an easier print i've included some extra files:

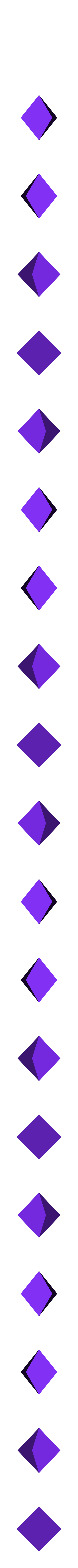

bit_yes_layflat.stl : The octahedron laying in a face. You may need some infill to avoid gaps in the roof
bit_no_half.stl: Print two of this and use superglue to create the full stellated icosahedron. (no supports needed

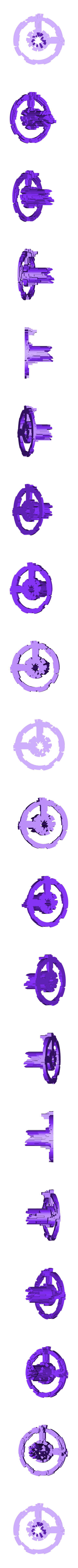

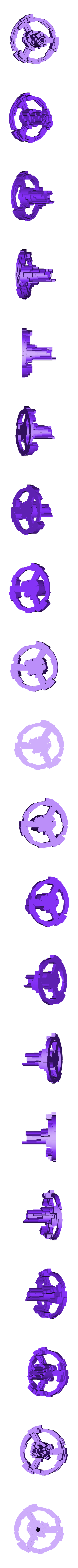

Each stand fits with their corresponding figure. I've used a small ball of 'Blu-tack' to stick the stand and the figure. A bit of superglue will also work.

Credits to:
I've used some Opensad resources for the bit states:
Polyhedra in OpenSCAD: http://kitwallace.co.uk/3d/solid-index.xq (Generate Openscad files for lots of polyhedra)

The 59 stallations of icosahedron (WRL format): http://www.georgehart.com/virtual-polyhedra/stellations-icosahedron-index.html

And one of the polyhedra found in https://www.thingiverse.com/thing:192584

See below for some printing tips

Hope you enjoy it!
Have fun!

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • Archive.zip
    • bit_idle_1.stl
    • bit_idle_2.stl
    • bit_no.stl
    • bit_no_half.stl
    • bit_yes_layflat.stl
    • bit_yes_up.stl
    • stand_idle1.stl
    • stand_idle2.stl
    • stand_no.stl
    • stand_yes.stl

    Learn more about the formats

  • Publication date: 2018/07/18 at 16:43

License

CC BY

Creator

Hi all! , I'm Fernando Jerez, computer science teacher, amateur designer and electronics noob.
Love procedural/generative stuff, robots, and all kind of 3D printable stuff.
Hope you enjoy my designs.

Contact me by private message: @ferjerez3d (Instagram,Twitter)
