3D model description

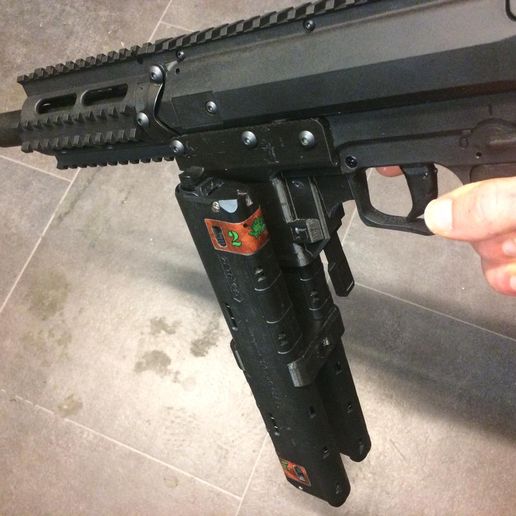

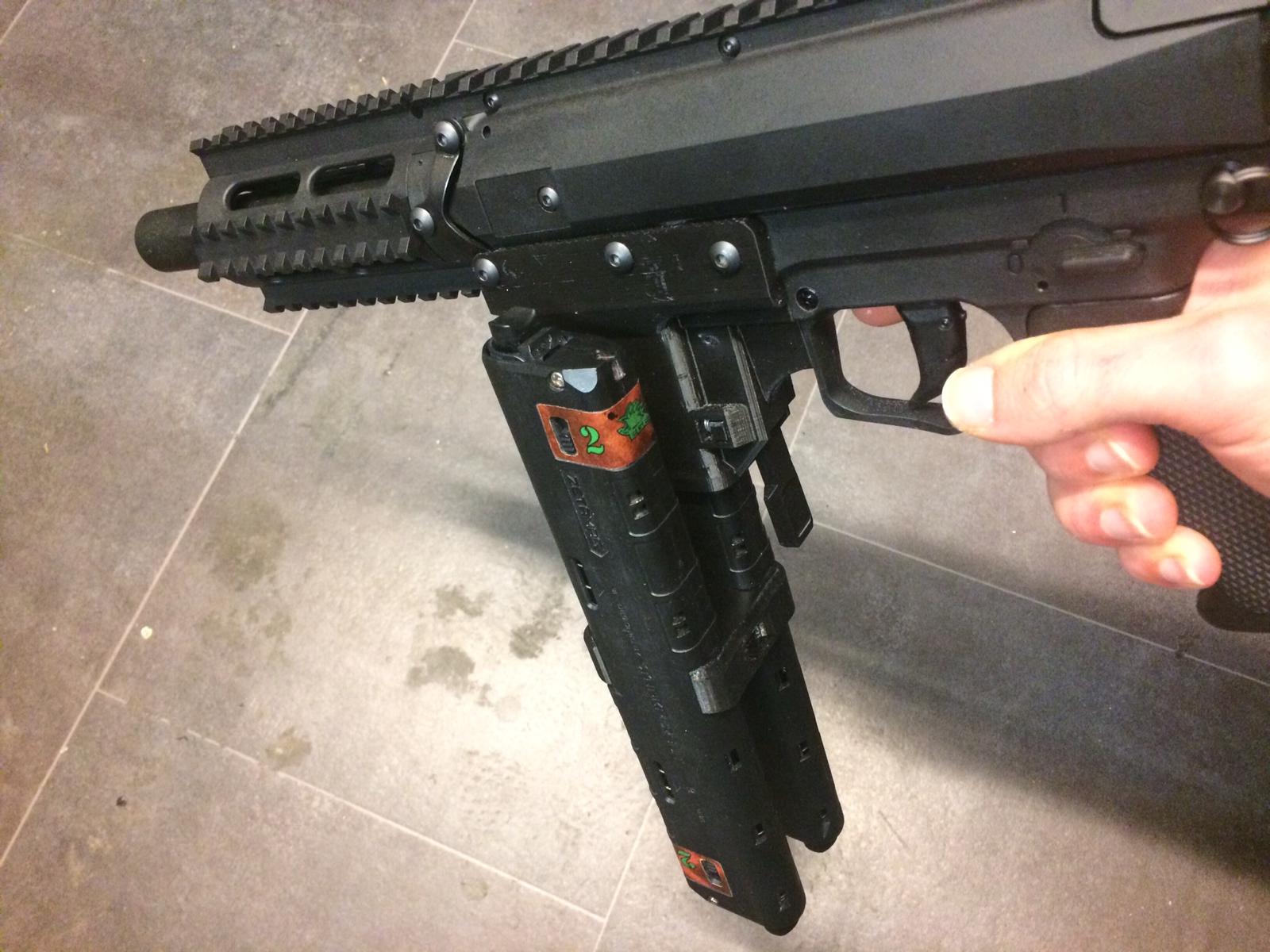

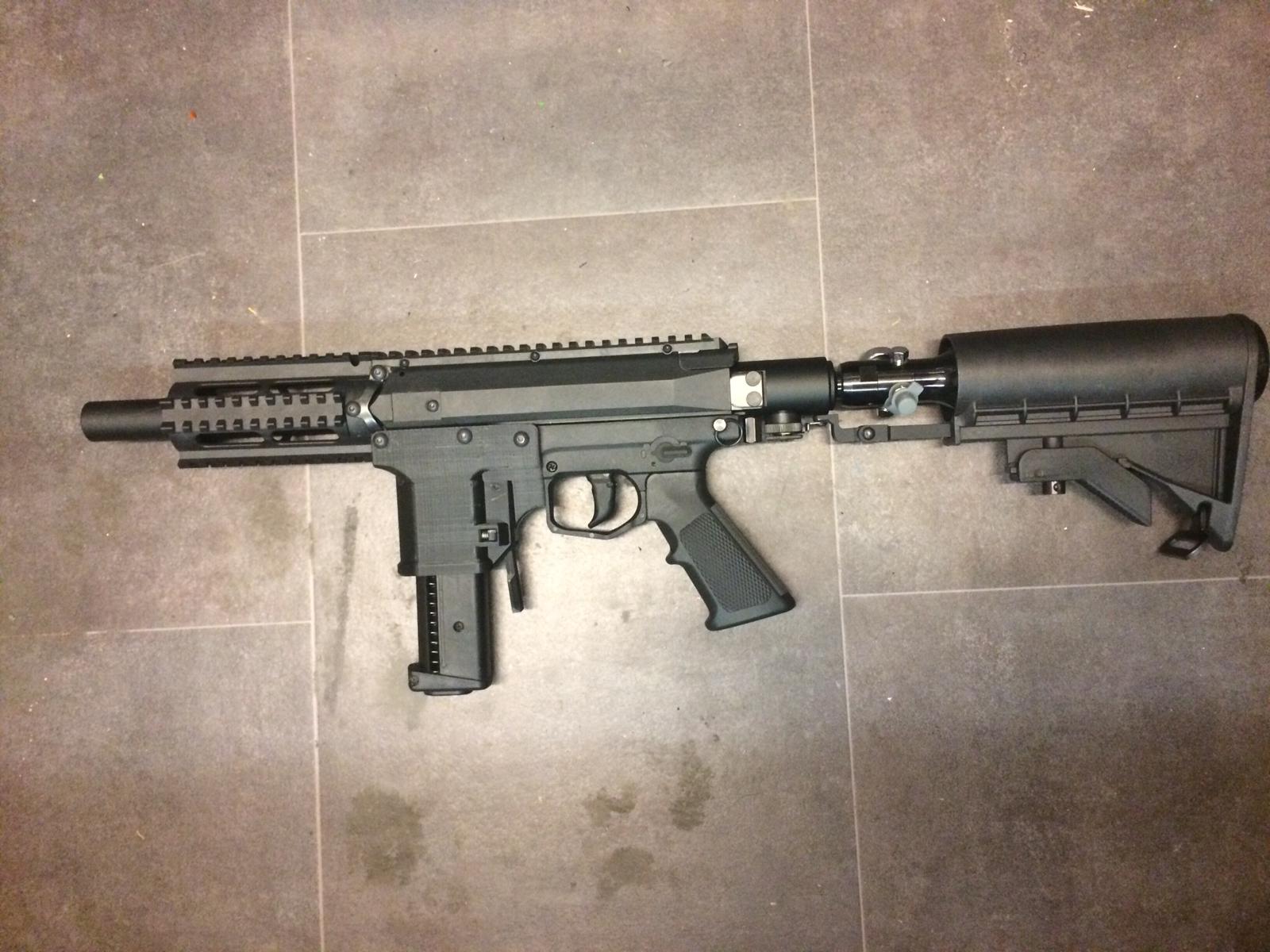

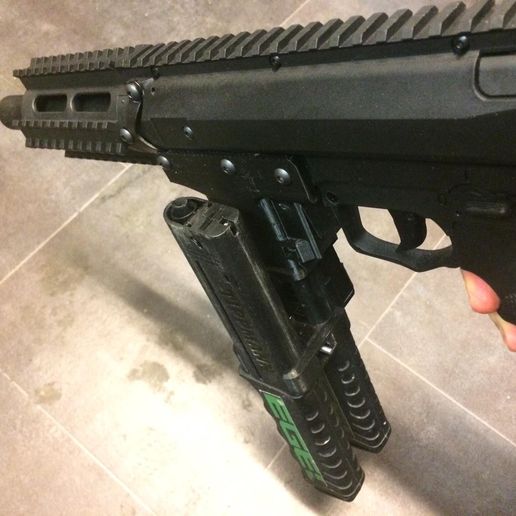

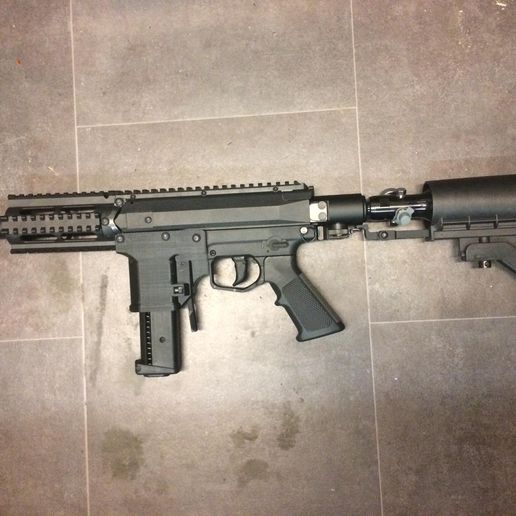

the benefit of this design over the original Milsig adapter is that this one is compatible with Tippmann magazine. with that said the mags from milsig that lock at the back of the mag are not compatible with this mag well.

this mag well have only be fitted and tested on the Valken M17. but it should also work for the Milsig M17 models…

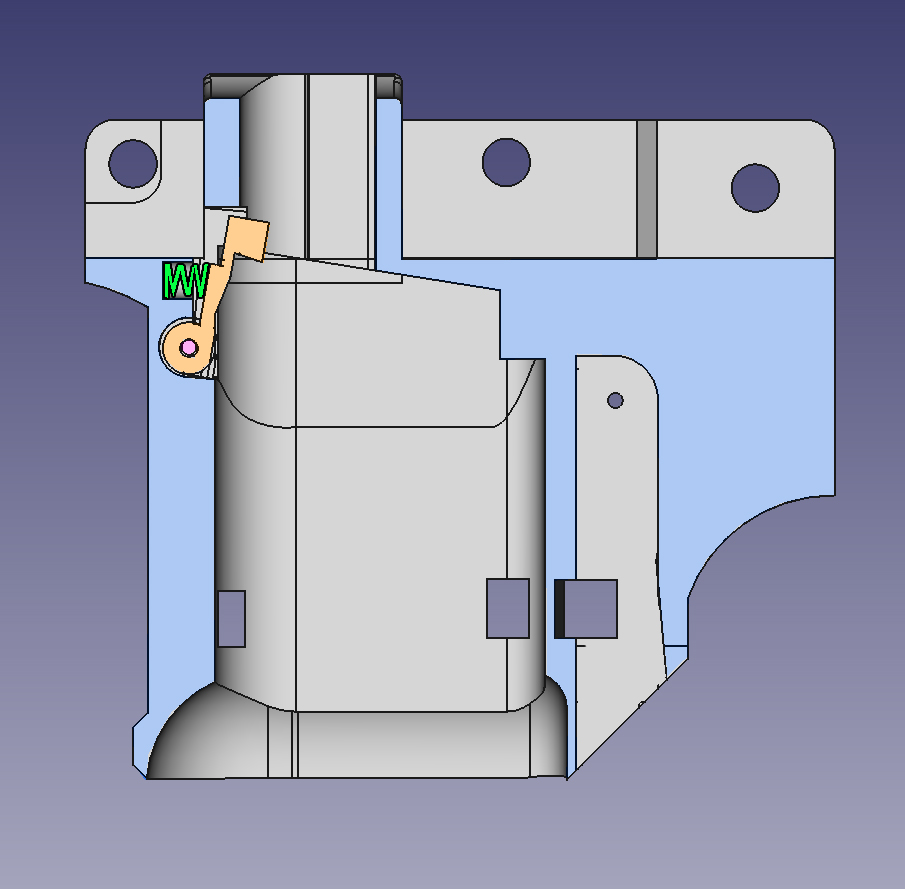

metal pins can be used to lock the mag catch parts in place or small pieces of filament.

and 2 springs are needed 1 for the mag catch in a size of OD 5mm,wire 0.40mm, 15mm long
and 1 for the ball detent in a size of OD 4mm, wire 0.30mm, 10mm long

for installation and other information is it best to watch the movie
https://youtu.be/D2riZ9yF0FM
https://odysee.com/@UntangleWORKS:a/UNW-Valken-M17-tipx-mag:d

3D printing settings

about the print settings. for paintball use, do I use 8 layers of a wall thickness
and print in a 40% infill
