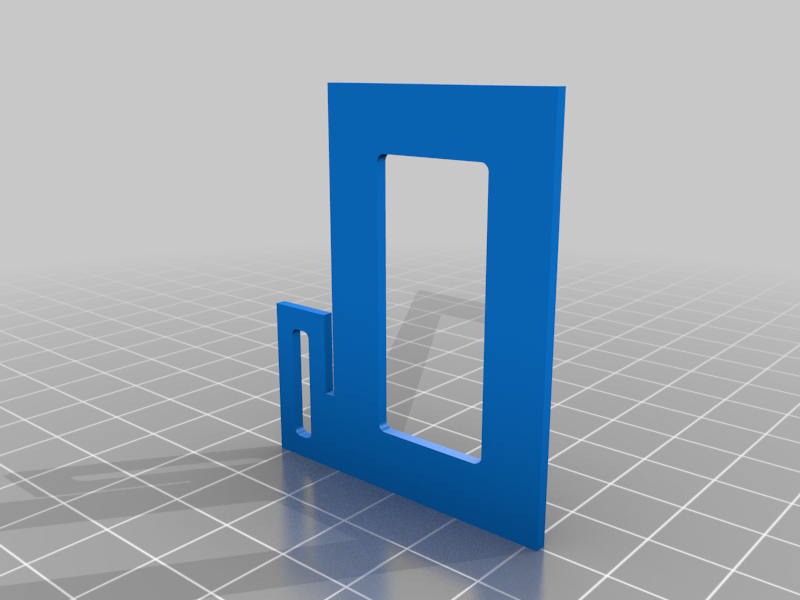

  • Frame_D.STL 1.5 × 42.75 × 51.0 mm
  • Frame_E.STL 50.5 × 29.300001 × 3.5 mm
  • Pulley.STL 9.998646 × 9.999322 × 6.4 mm
  • Pulley_Motor.STL 5.517083 × 9.646939 × 9.646305 mm
  • lain_bearing.STL 7.99934 × 7.99967 × 10.0 mm
  • lain_bearing_blind_hole.STL 8.0 × 8.0 × 11.0 mm

Learn more about the formats
Publication date
?
Published to Thingiverse on:
Design number 123607
Design author perinski
perinski

perinski

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

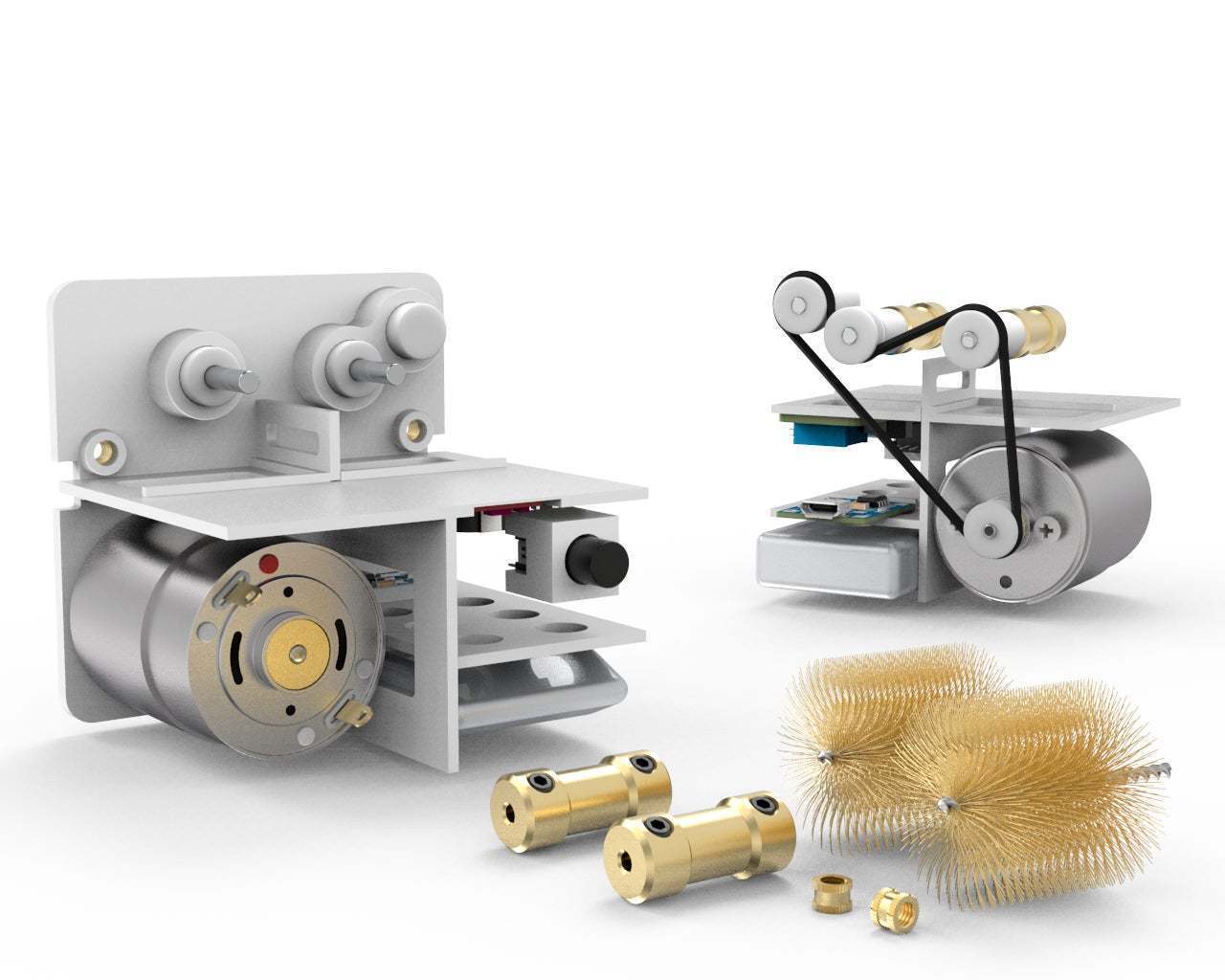

Soldering Tip Cleaner

While another similar model is under development, I decided to please you with another useful little thing, for those who are dealing with a soldering iron.

Also, there will soon be a detailed video on the assembly of this device.

But if you thought it was difficult to do this, there are ready-made alternatives, but their price is not small. For example this or this. However, there are many options.

See the video for details:
In the process of video editing. Coming soon... In addition to the assembly process of the device itself, I shot a video about creating a spiral brush. Subscribe to my channel and you will not miss the news :)
I will add the connection scheme as well...

Parts links below:

Motor 380 series
MT3608 DC-DC Step Up Converter
TP4056 Charging Board
TTP223 Capacitive Touch Switch Button
N-Channel MOSFET IRFR120N Or another n-channel mosfet, not fundamentally
LiPo Battery 3.7V 1400mAh
Button Switch 7X7
Button Switch Cap
Shaft Coupling 2->3mm
Stainless steel axle 3mm
Wire 0.2-0.3mm (not the best choice, but the other did not find)
Cleaning Brush fiberglass
Spiral Twisted Brass Wire Tube Brush (Easy to make by yourself)
Belt Wheel Sets

Screws M3
Insert Nuts M3
High Temperature Resistant Adhesive Tape

Aluminum profile 15x2mm - bought an in a hardware store

Links to used tools:

Mini Metal Lathe
Belt Sander
Mini Wireless Grinder
Polishers Buffers Abrasive
Reamers
Micro HSS Steel Twist Drill Bit
Dremel Tools
NOGA deburring tool and Blades
AB Glue Epoxy
Super Glue 502
E8000 Strong Liquid Glue

My favorites filament:

My some other things:
