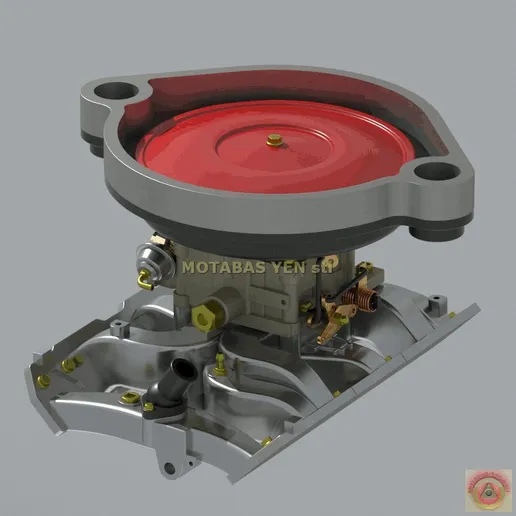

RAM AIR IV PERFORMANCE UPGRADE KIT for Pontiac Engines

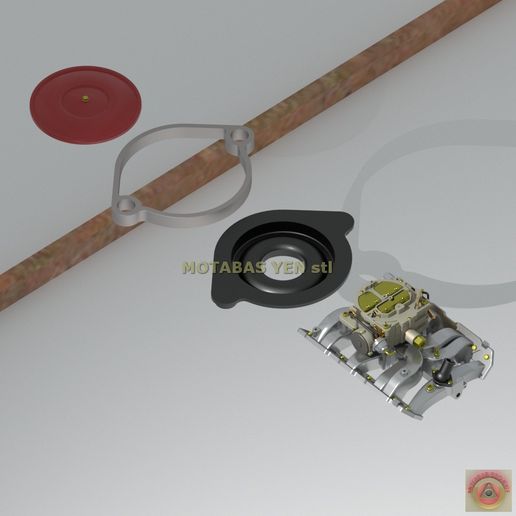

RAM AIR IV intake system for Pontiac 400/455 engines. The kit includes a Rochester 800CFM quad-barrel carburetor, intake manifold, and a highly detailed, modular Ram Air IV system.
This upgrade kit was often used on Pontiac GTO, Pontiac Firebird, and other Pontiac-branded vehicles.
The engine is not included, it is available separately.

• PONTIAC 400-455 - ENGINE

Disclaimer:
- The resale of my files is NOT allowed
- Printing for commercial use is NOT allowed
- File modification is not allowed
For authorizations and concessions please contact me here on Cults.

The photos represent the engine made with a resin printer, some photos are renderings of the project I made.
It is possible to print with FDM printer at moderate speed but obviously the level of detail will be lower and in some cases the supports will be necessary.
These are my printing parameters using Elegoo printers and YAJO standard resin.

PRINTER............BASE EXPO....NORMAL EXPO....RES

JUPITER............37sec.............2,0sec.................0,050mm

MARS 2 PRO.......45sec.............4,5sec.................0,050mm

SATURN.............35sec.............3,5sec.................0,050mm

Change scale:

1/10 > 1/25 -40,00 %

1/10 > 1/24 -41,66 %

1/10 > 1/18 -55,55 %

1/10 > 1/16 -62.5%

1/10 > 1/12 -83,33 %

1/10 > 1/8 -125 %
