[25.01.2024 9:00 UTC | bottom.stl split into 3 parts to fit 220x220]
[20.08.2023 12:50 UTC | fixed sides, arches and top_front.stl ]

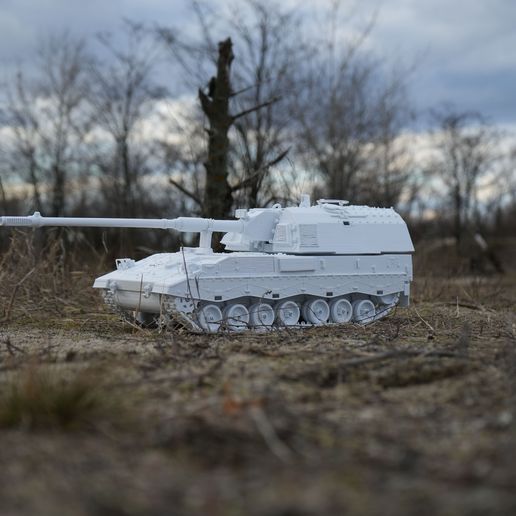

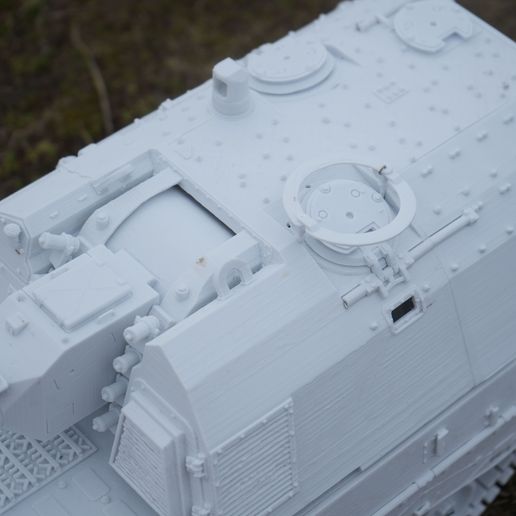

Fully functional radio controlled model of PzH2000.
Can be turned into stand model by using plastic gearbox rod (check Google Drive)

Manual, electronics │Live preview | Video

Based on Heng Long TK-7.1. Does not support BB unit.
supported:
- engines \ gearboxes (plastic / metallic)
- turret rotation
- canon lifting
- smoke
- x2 40mm speakers
- fully functional suspension
- recoil & elevation on SG90 servos

important note
SG90 is way too weak to move 60cm barrel. You need 120-170g counterweight to compensate barrel weight.

Some numbers:
scale: 1/16
width: 215mm
length: 500mm
height: 200mm
weight: 3,100 g
required printer area: 220x220

Please contact us on Discord in case of any troubles

3D printing settings

PETG is preferable
use higher infill for levers and torsion bars if they are too soft
