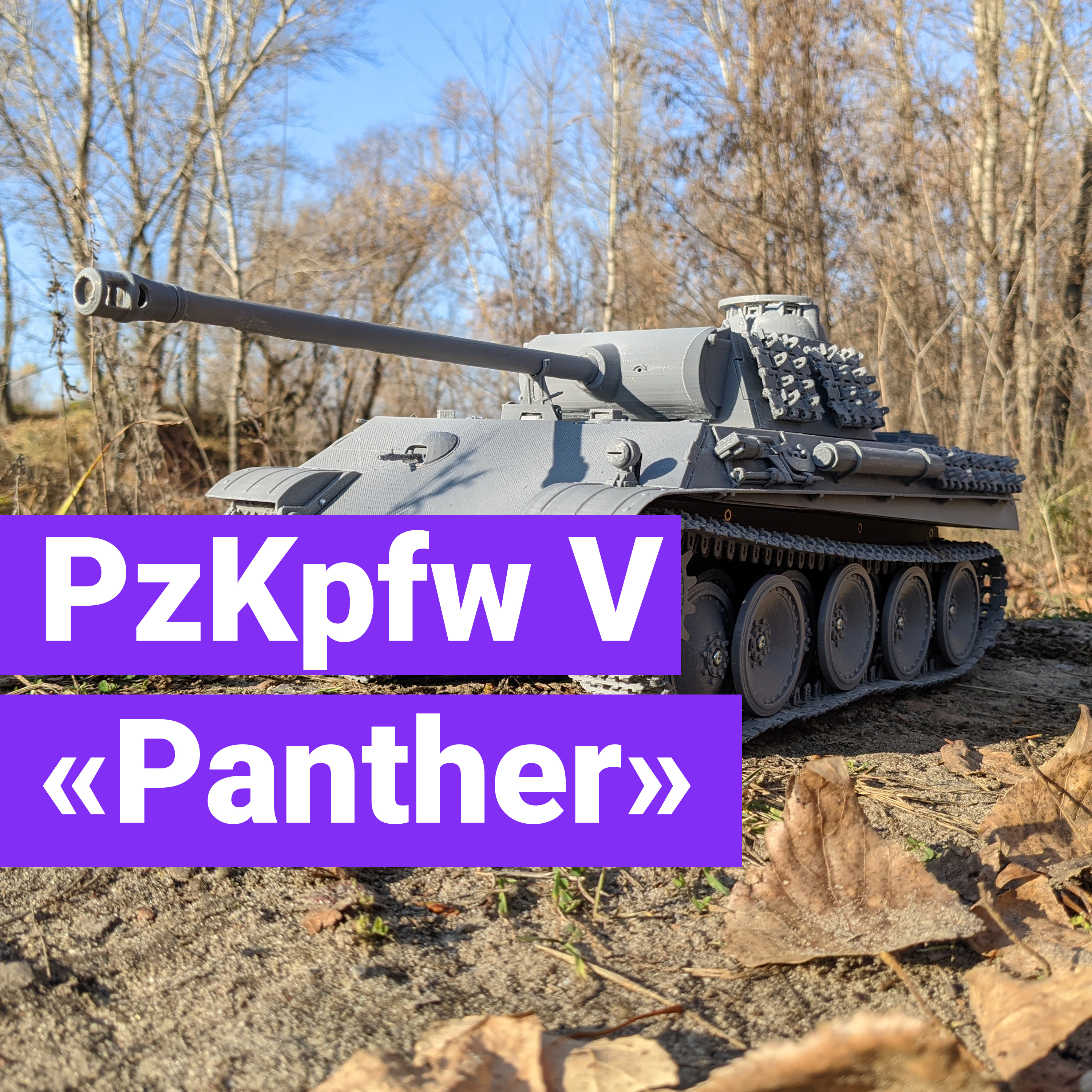

Panzerkampfwagen V «Panther» (G)

?
Creation quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

[11.10.2022 19:00 UTC | fixed torsion bars length]
[14.02.2022 15:40 UTC | new elevation unit, new bullets pipe, tight fixing torsion bars]

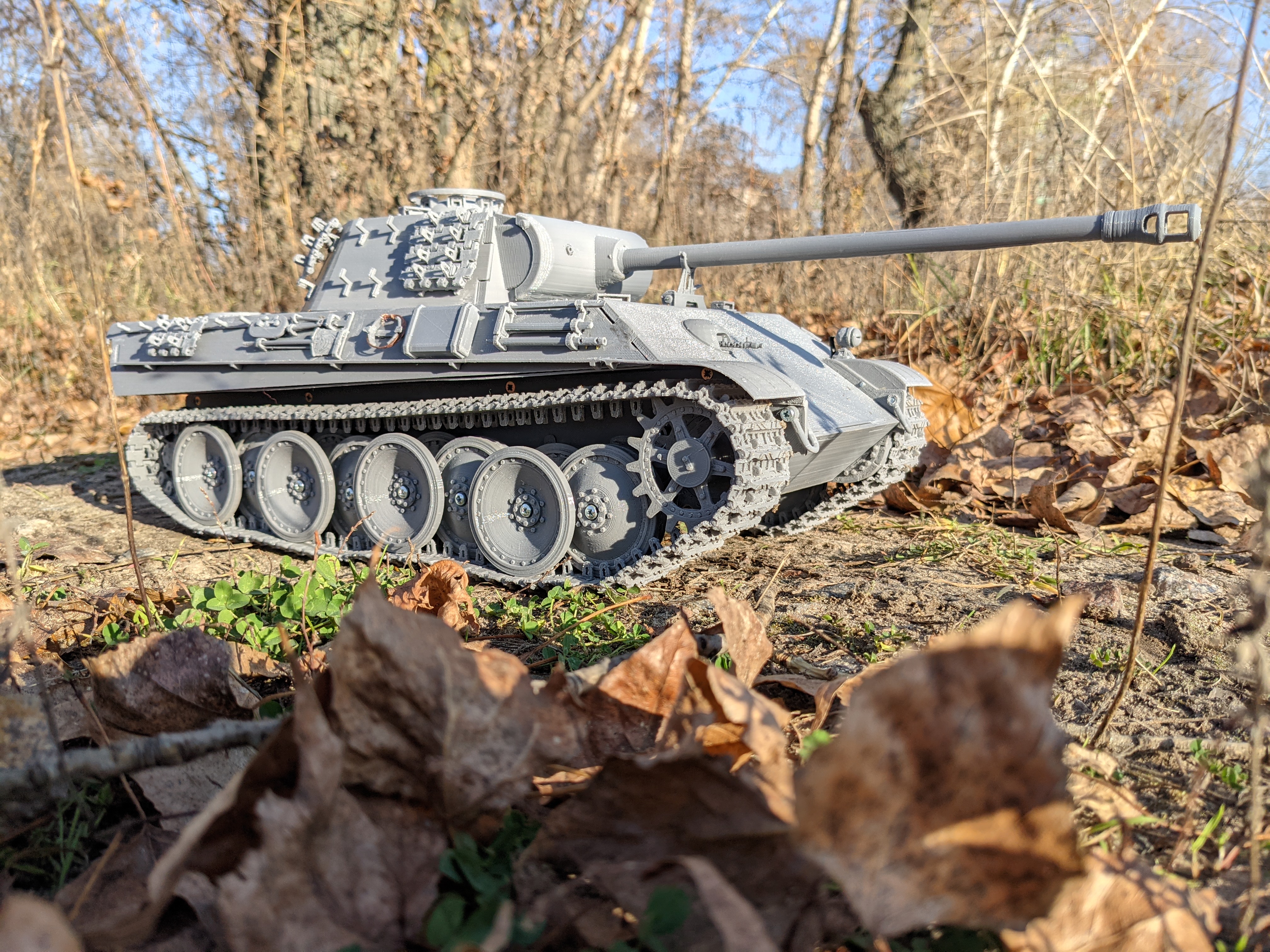

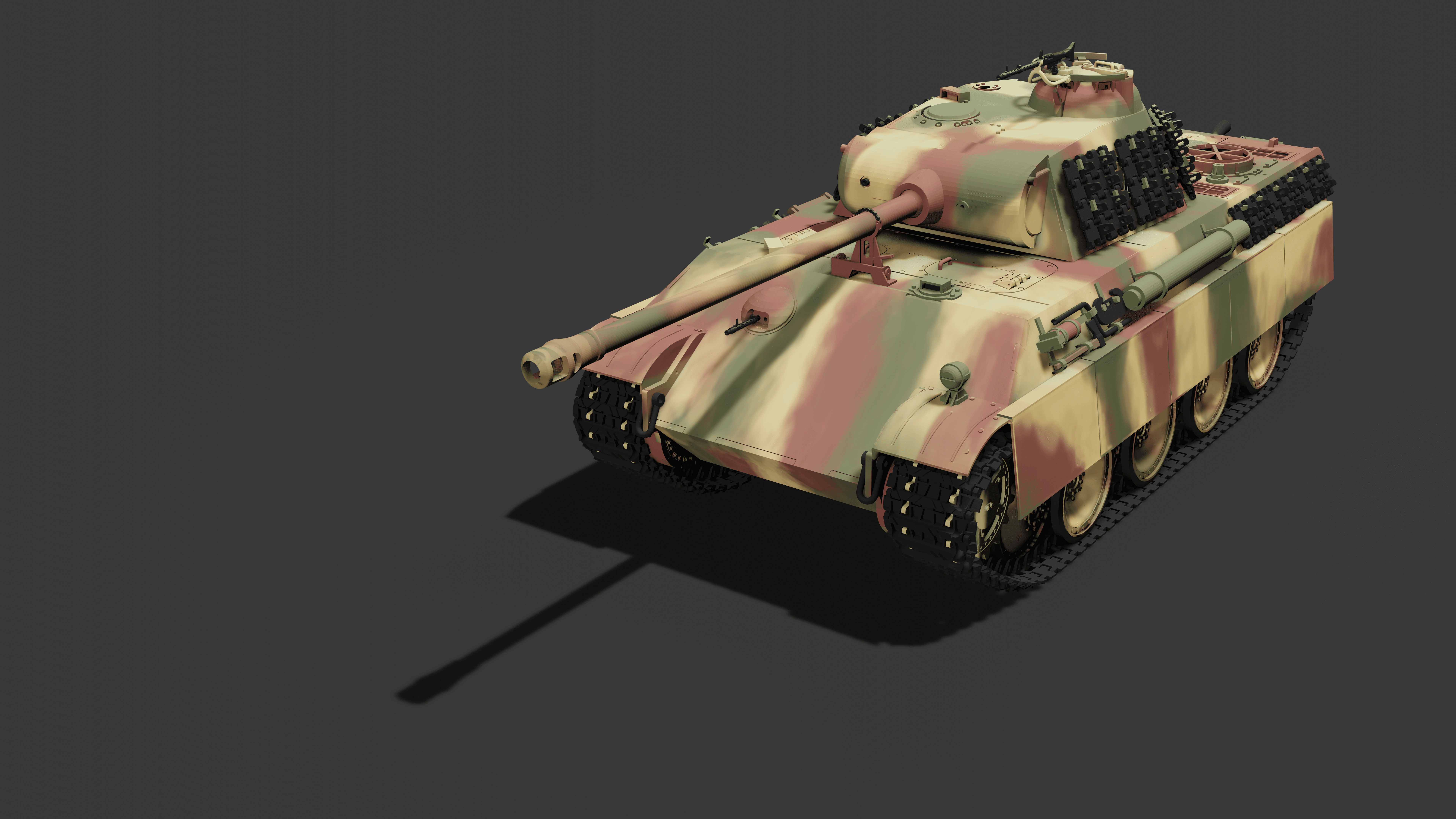

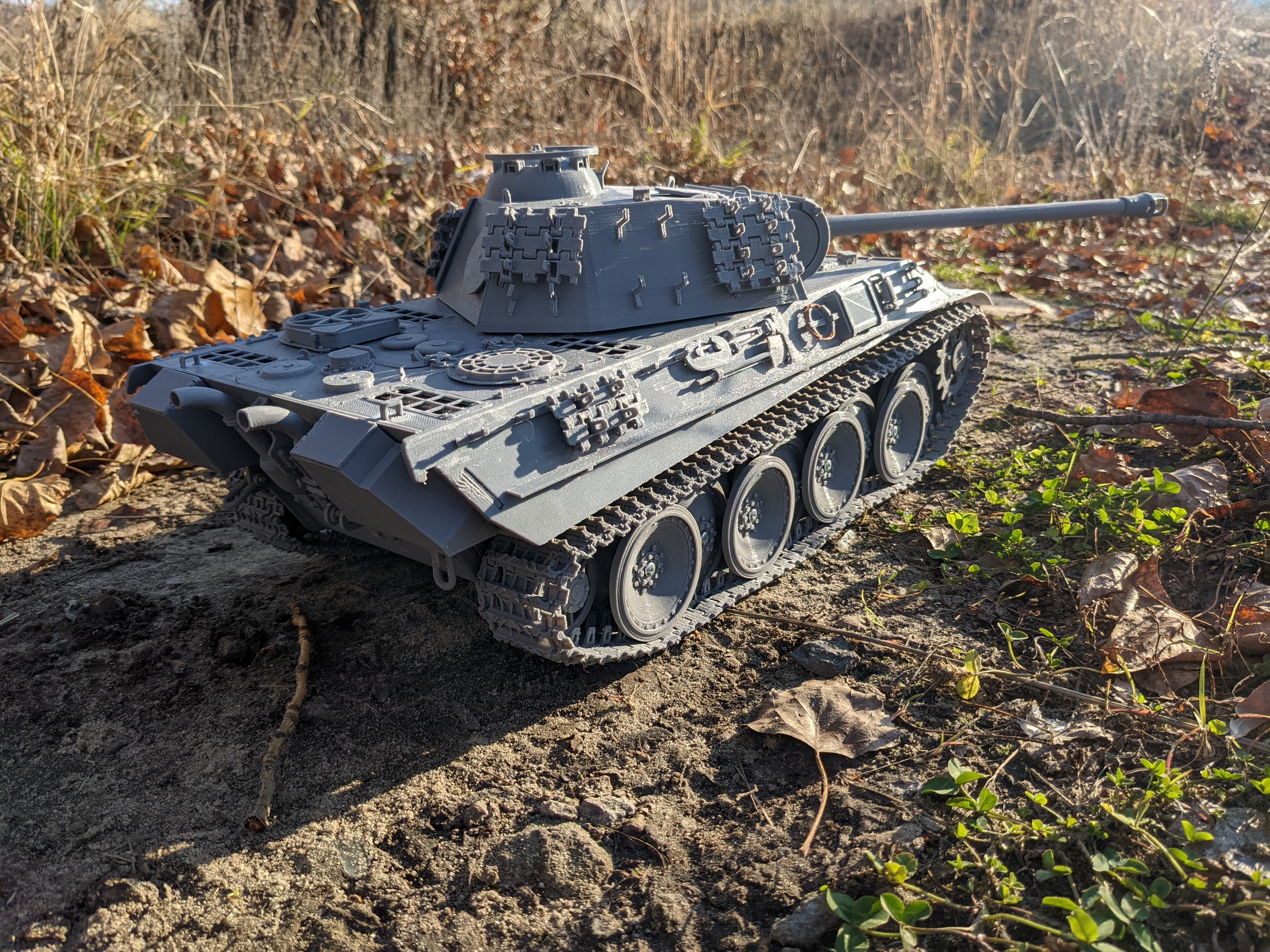

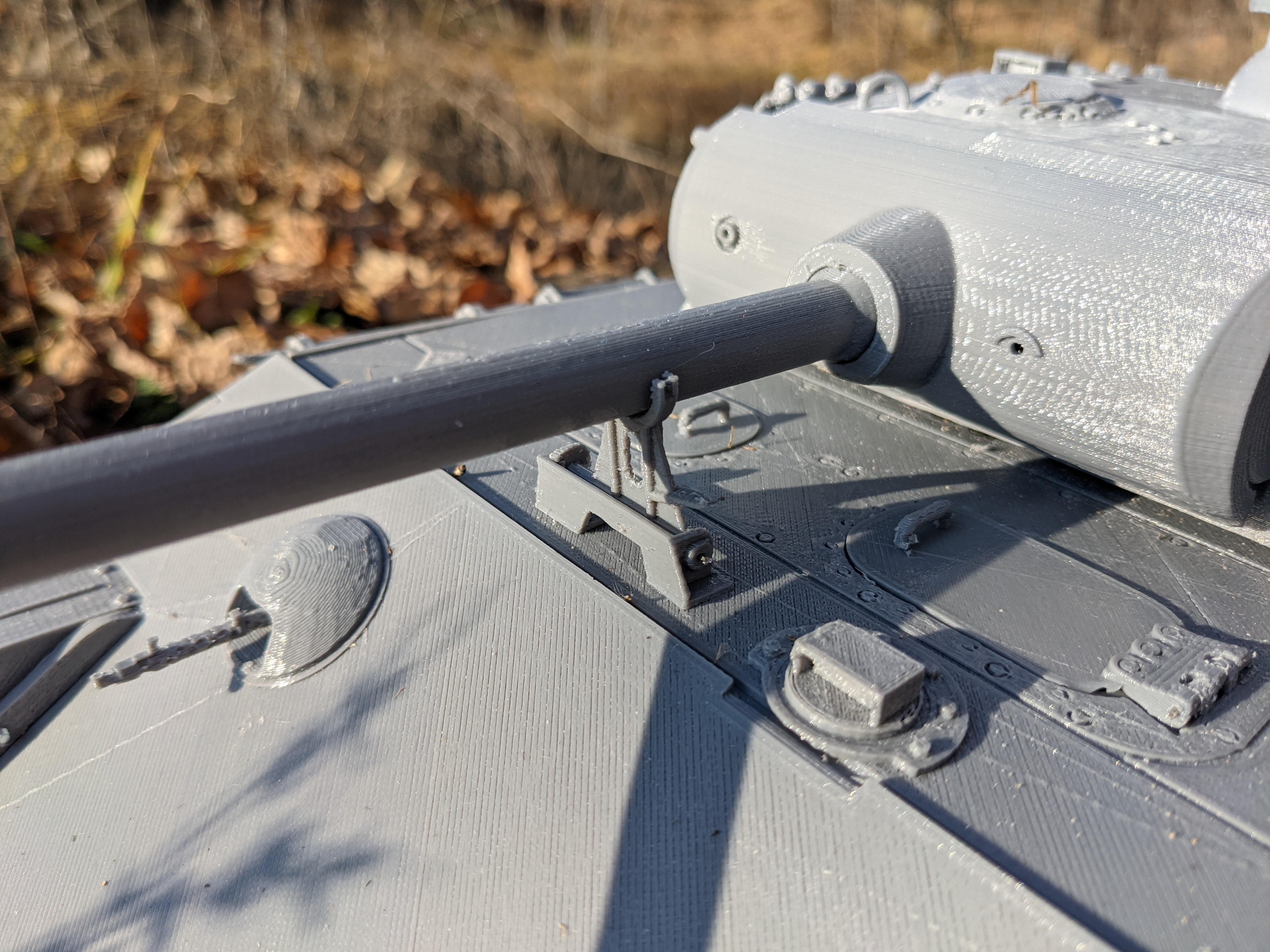

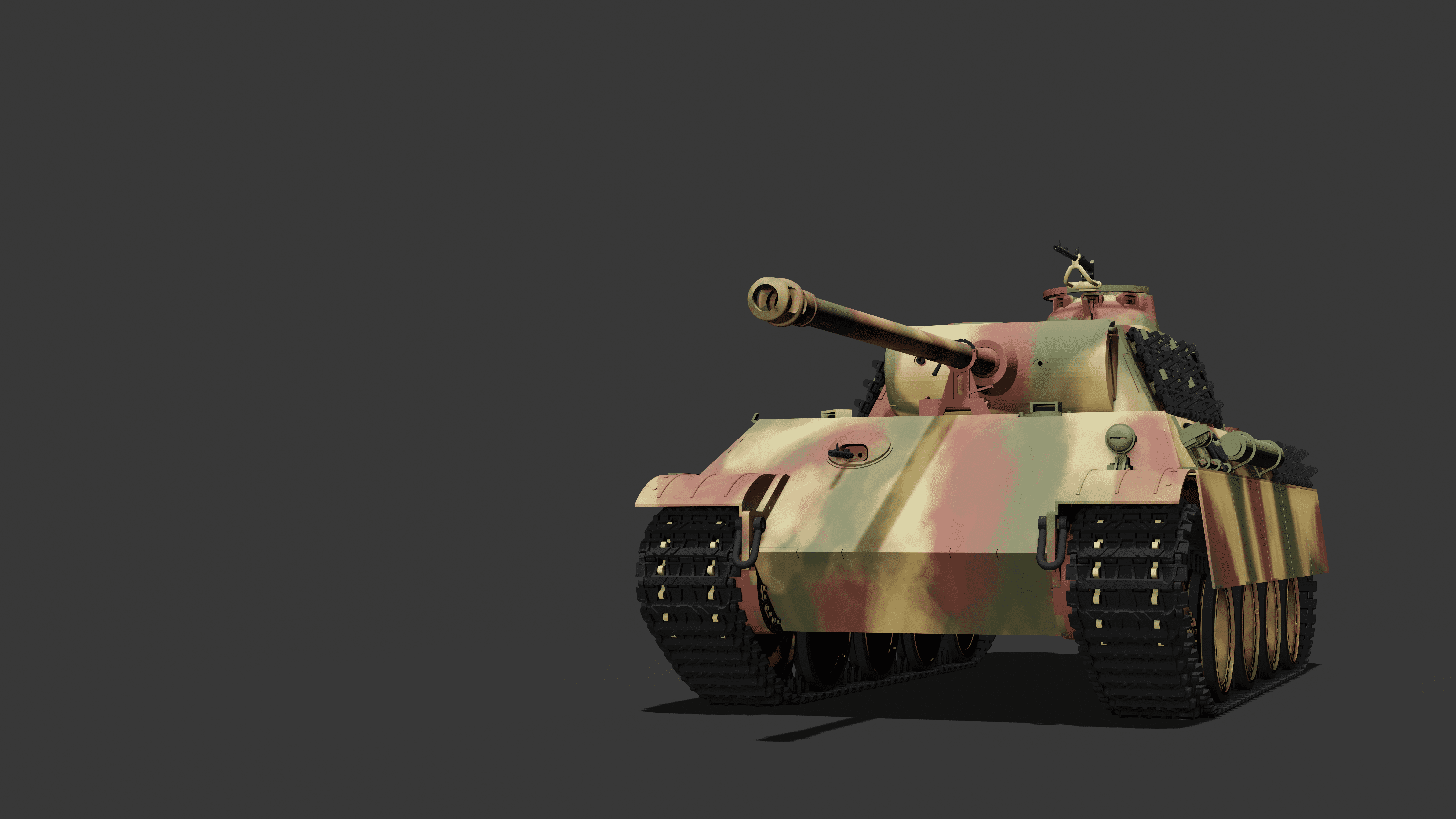

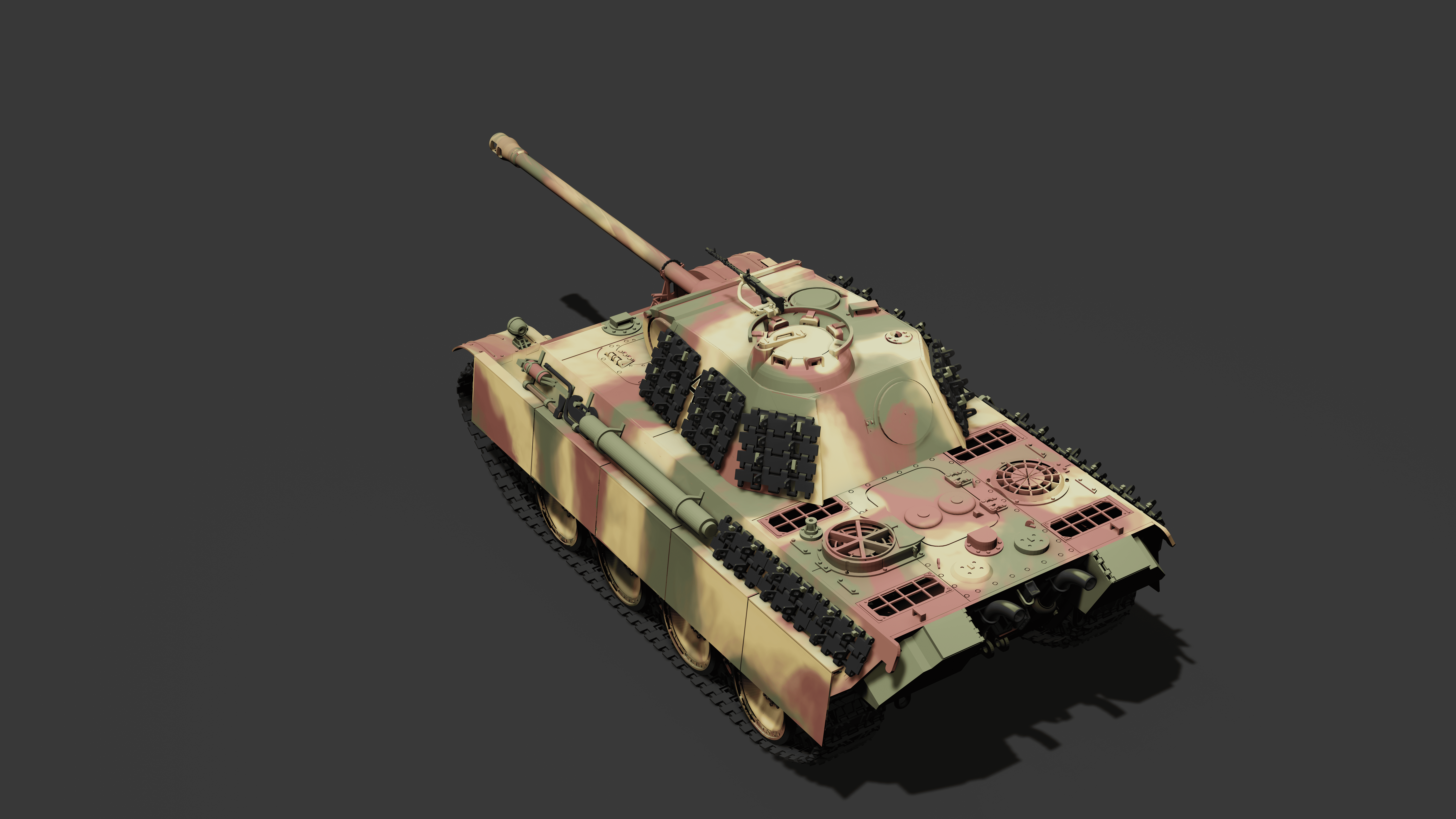

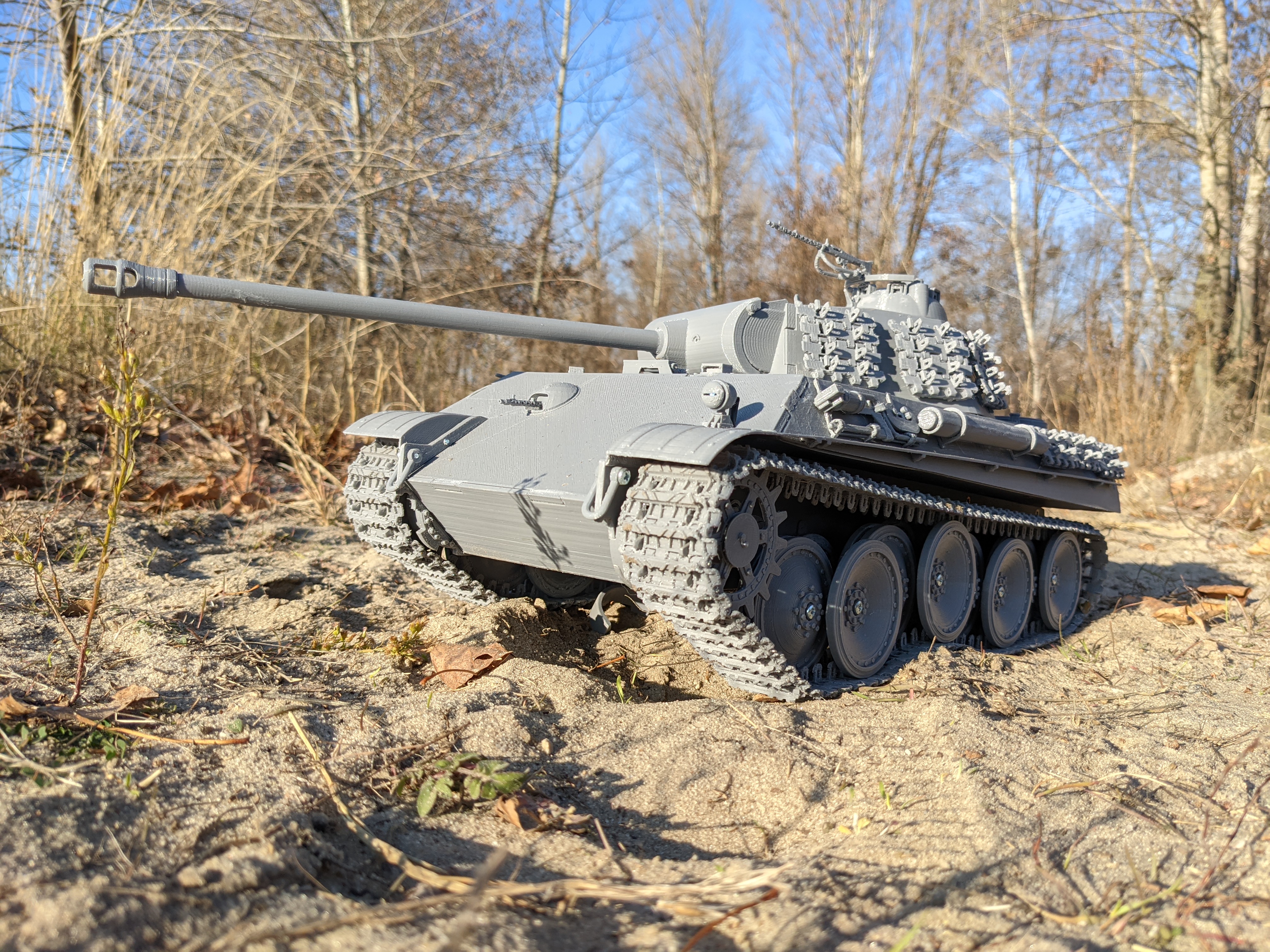

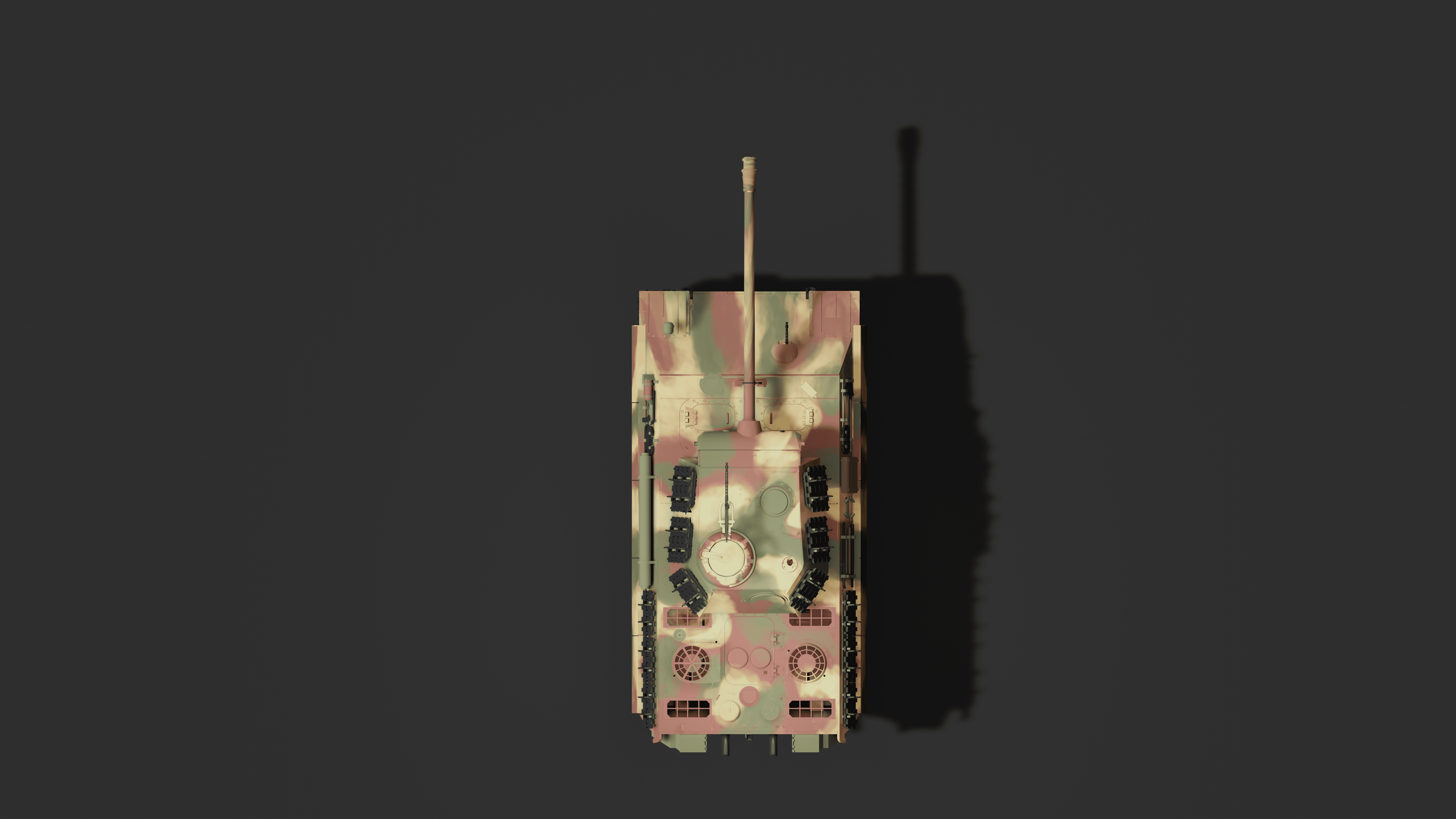

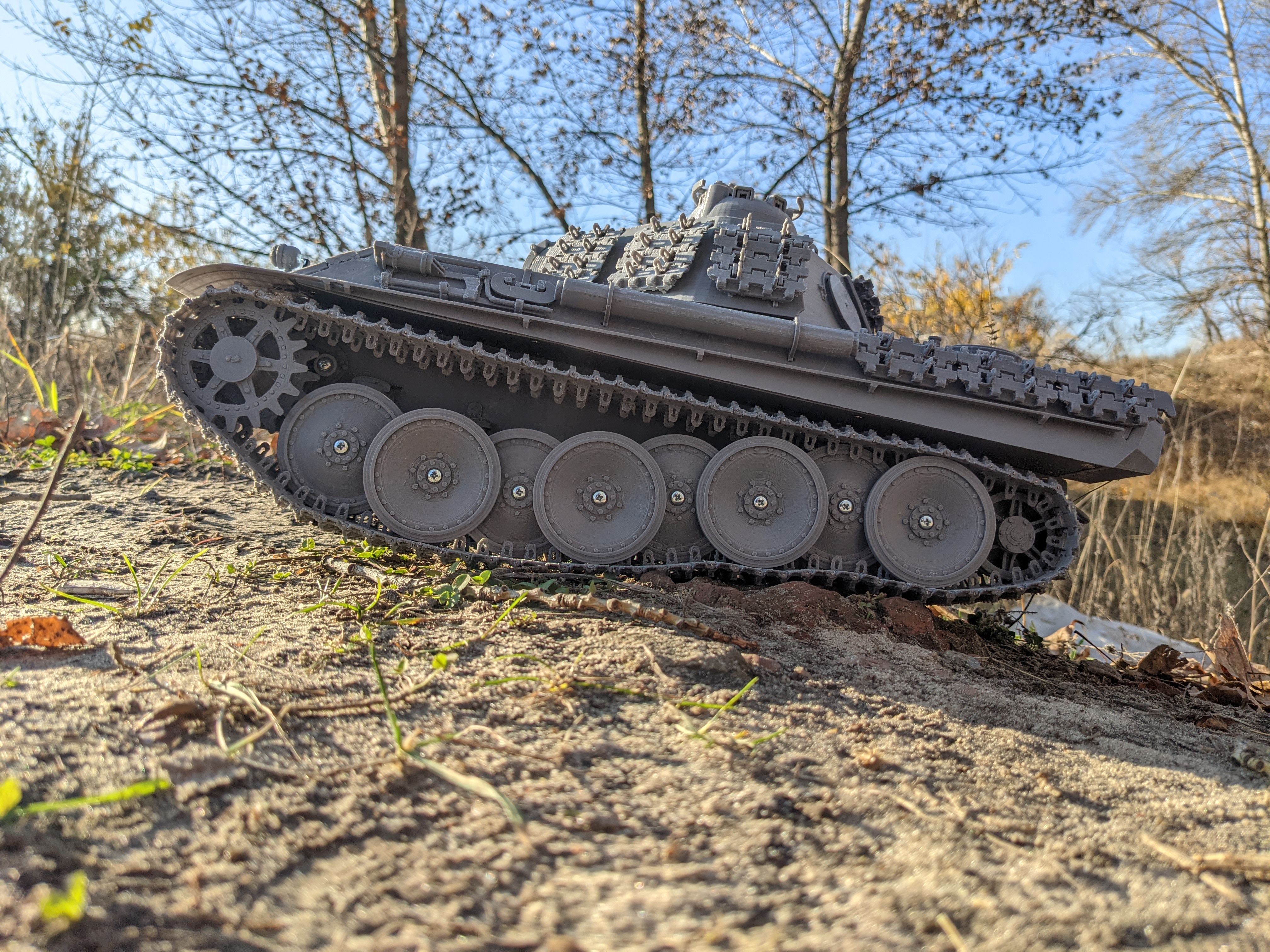

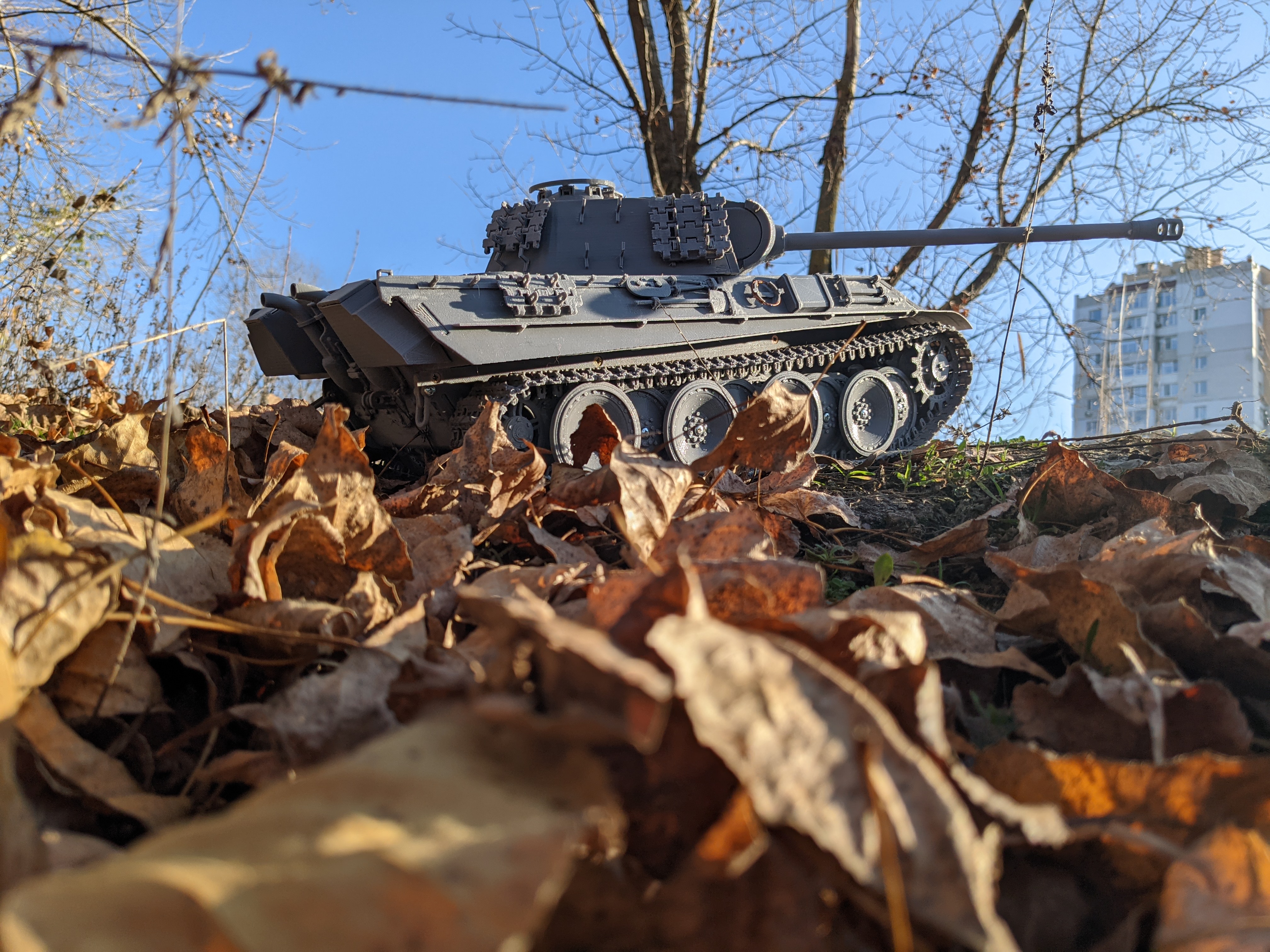

Fully functional radio controlled model of Panther G.
Can be turned into stand model by using plastic gearbox rod (attached in archive)

Peripheral:
- engines \ gearboxes (plastic / metallic)
- turret rotation
- canon lifting
- smoke
- fully functional gun
- bullets loading
- x2 40mm speakers
- front light
- fully functional suspension
- rubber wheels (you can print rubber tires separately)

Some numbers:
scale: 1/16
width: 220mm
length: 430mm
height: 190mm
weight: 2,500 g
required printer area: 180x180

Simple manual, list of all electronics + links, RC pinout and keys binding: https://drive.google.com/drive/folders/1ZZDYueyLooMjHR3t7VjYSCDIOt9lIG1h

Video: https://youtu.be/uxjXumyjDfk


3D printing settings

Torsion levers - 40-50% filling
Use thicker torsions for front side (because of gearbox weight)

Nozzle: 0.2mm

3D printer file information

  • 3D design format: ZIP Folder details Close
    • panther_g.zip
      • hull/arch.stl
      • hull/bottom.stl
      • hull/cut/arch1.stl
      • hull/cut/arch2.stl
      • hull/cut/bottom1.stl
      • hull/cut/bottom2.stl
      • hull/cut/bottom3.stl
      • hull/cut/side_left1.stl
      • hull/cut/side_left2.stl
      • hull/cut/side_left3.stl
      • hull/cut/side_right1.stl
      • hull/cut/side_right2.stl
      • hull/cut/side_right3.stl
      • hull/cut/top1.stl
      • hull/cut/top2.stl
      • hull/cut/top3.stl
      • hull/cut/top_side_left1.stl
      • hull/cut/top_side_left2.stl
      • hull/cut/top_side_left3.stl
      • hull/cut/top_side_right1.stl
      • hull/cut/top_side_right2.stl
      • hull/cut/top_side_right3.stl
      • hull/engine_cover.stl
      • hull/front.stl
      • hull/guard.stl
      • hull/guards_rail.stl
      • hull/guard_front_left.stl
      • hull/guard_front_right.stl
      • hull/mount_switch_large.stl
      • hull/mount_turret_rotation.stl
      • hull/rear.stl
      • hull/side_left.stl
      • hull/side_right.stl
      • hull/top.stl
      • hull/top_side_left.stl
      • hull/top_side_right.stl
      • hull/torsion_cover1.stl
      • hull/torsion_cover2.stl
      • hull/torsion_cover3.stl
      • hull/vertical_plate_front.stl
      • hull/vertical_plate_rear.stl
      • stuff/18650_case.stl
      • stuff/axe.stl
      • stuff/barrel_support.stl
      • stuff/barrel_support_jack.stl
      • stuff/barrel_support_latch.stl
      • stuff/cargo_cover.stl
      • stuff/cargo_main.stl
      • stuff/conditioner.stl
      • stuff/crowbar.stl
      • stuff/engine_hooks.stl
      • stuff/exhaust.stl
      • stuff/exhaust_holder.stl
      • stuff/front_doors.stl
      • stuff/grille_round.stl
      • stuff/grille_square.stl
      • stuff/gun_scrapper.stl
      • stuff/hammer.stl
      • stuff/hook.stl
      • stuff/jack.stl
      • stuff/jack_holder.stl
      • stuff/light.stl
      • stuff/light_cover.stl
      • stuff/mg34.stl
      • stuff/mg34_front.stl
      • stuff/mg34_stand.stl
      • stuff/mount_gun_scrapper.stl
      • stuff/mount_leftside_1.stl
      • stuff/mount_rightside_1.stl
      • stuff/mount_rightside_2.stl
      • stuff/mount_rightside_3.stl
      • stuff/mount_tracks.stl
      • stuff/pull_hook.stl
      • stuff/scissors.stl
      • stuff/shovel.stl
      • stuff/speakers_case.stl
      • stuff/speakers_connector.stl
      • stuff/speakers_cover.stl
      • stuff/speakers_mount.stl
      • stuff/starter.stl
      • stuff/toolbox.stl
      • stuff/top_rear_hooks.stl
      • stuff/track_measure_40mm.stl
      • stuff/wrecking_tool.stl
      • suspension/balancer.stl
      • suspension/drive_sprocket.stl
      • suspension/drive_sprocket_cover.stl
      • suspension/fake_gearbox_rod.stl
      • suspension/idler_balancer.stl
      • suspension/idler_cover.stl
      • suspension/idler_inner.stl
      • suspension/idler_nut.stl
      • suspension/idler_outer.stl
      • suspension/idler_protector.stl
      • suspension/limiter.stl
      • suspension/reducer_cover.stl
      • suspension/reducer_protector.stl
      • suspension/reducer_support_roller.stl
      • suspension/torsion_hard.stl
      • suspension/torsion_soft.stl
      • suspension/track.stl
      • suspension/track_support.stl
      • suspension/wheel_inner.stl
      • suspension/wheel_inner_rubbered.stl
      • suspension/wheel_outer.stl
      • suspension/wheel_outer_rubbered.stl
      • suspension/wheel_rubber.stl
      • turret/balancer.stl
      • turret/balancer_cover.stl
      • turret/base.stl
      • turret/bullets_pipe.stl
      • turret/cut/mantlet1.stl
      • turret/cut/mantlet2.stl
      • turret/door_commander.stl
      • turret/door_loader.stl
      • turret/door_loader_arm.stl
      • turret/door_loading.stl
      • turret/door_loading_arm.stl
      • turret/elevation_mount.stl
      • turret/front.stl
      • turret/gear.stl
      • turret/mantlet.stl
      • turret/muzzle_break.stl
      • turret/sides.stl
      • turret/top.stl
      • turret/top_hook.stl
      • turret/track_hook.stl

    Learn more about the formats

  • Last update: 2022-10-11 at 20:56
  • Publication date: 2021-11-23 at 17:31

Copyright

©

Tags

Creator

Ukraine needs all the help it can get.
Special aid account to support the Armed Forces of Ukraine.
UA843000010000000047330992708
International Charitable Foundation «COME BACK ALIVE»


Our goal

We help everyone who is interested in radio controlled tanks print their own favorite one and enjoy its running. Our goal is to create models that everyone can afford to build, so we use different approaches to make them simplier and cheaper. Models by itself are pretty similar and quite simple.

Community

Join our Discord and communicate with other members, share ideas and your advice! Please, leave your feedback after your tank is done. It will help us a lot. You can also show your builds to other members on server or propose new tank. Also, #schedule channel contains list of tanks that are already done, in progress or will be done soon.

Tech

All models starting with Sho't Kal are based on Heng Long TK-7.1 electronics. Older ones on Heng Long TK-7.0. Because of similar accessories you can also use Taigen or any other one with partial support.
Elevation and recoil are based on SG90 servos. All new tanks come with elevation & recoil. Older tanks will be updated in free time.

We do not provide assembly manual for each tank. Because all of them are similar inside - we've made one general manual with an example of King Tiger. rc3dtanks.site provides live preview of all models and helps you to understand how everything connected inside of the vehicle.

Manual, electronicsInstagramDiscordYouTube

Copyright

It is strictly forbidden to sell .stl files.
If you provide service of printing and building our tanks, you should contact us and discuss amount of fee that will also help us to improve the whole thing.
