Frog Fishing Lure (4 Versions)

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 5k views
  • 6 likes
  • 24 downloads

3D model description

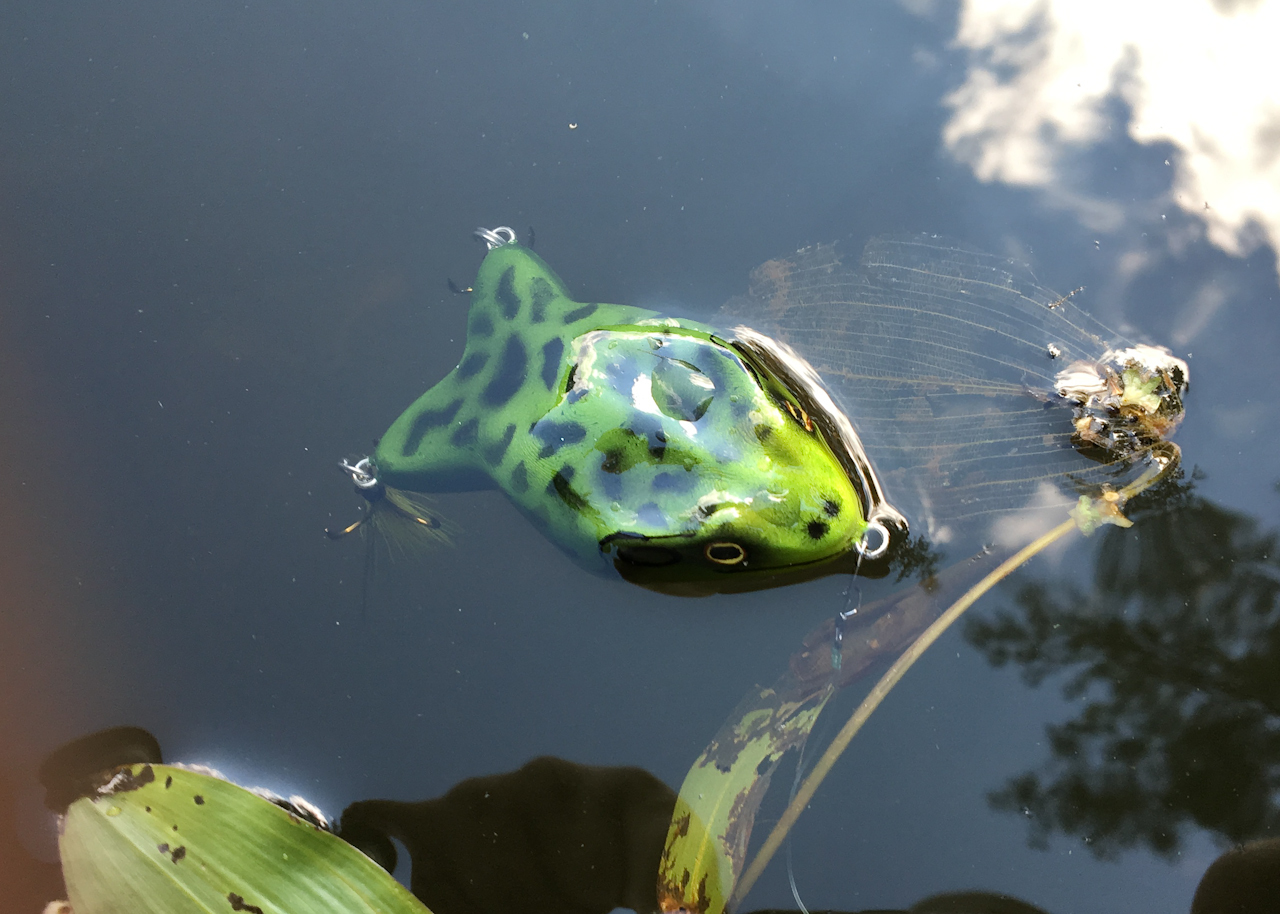

This is a hard body top water frog lure I designed. There are 4 different versions.

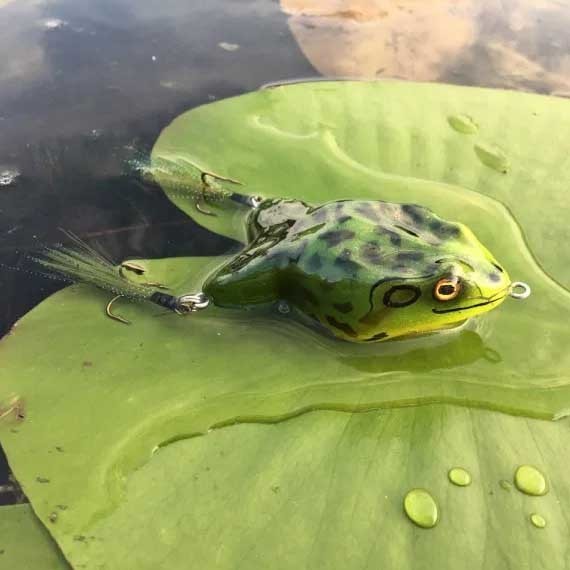

FrogV1 = Two rear treble hooks.
Frog Weedless = One Weedless Hook (uses Gamakatsu 65114 Wire Guard Worm Hook)

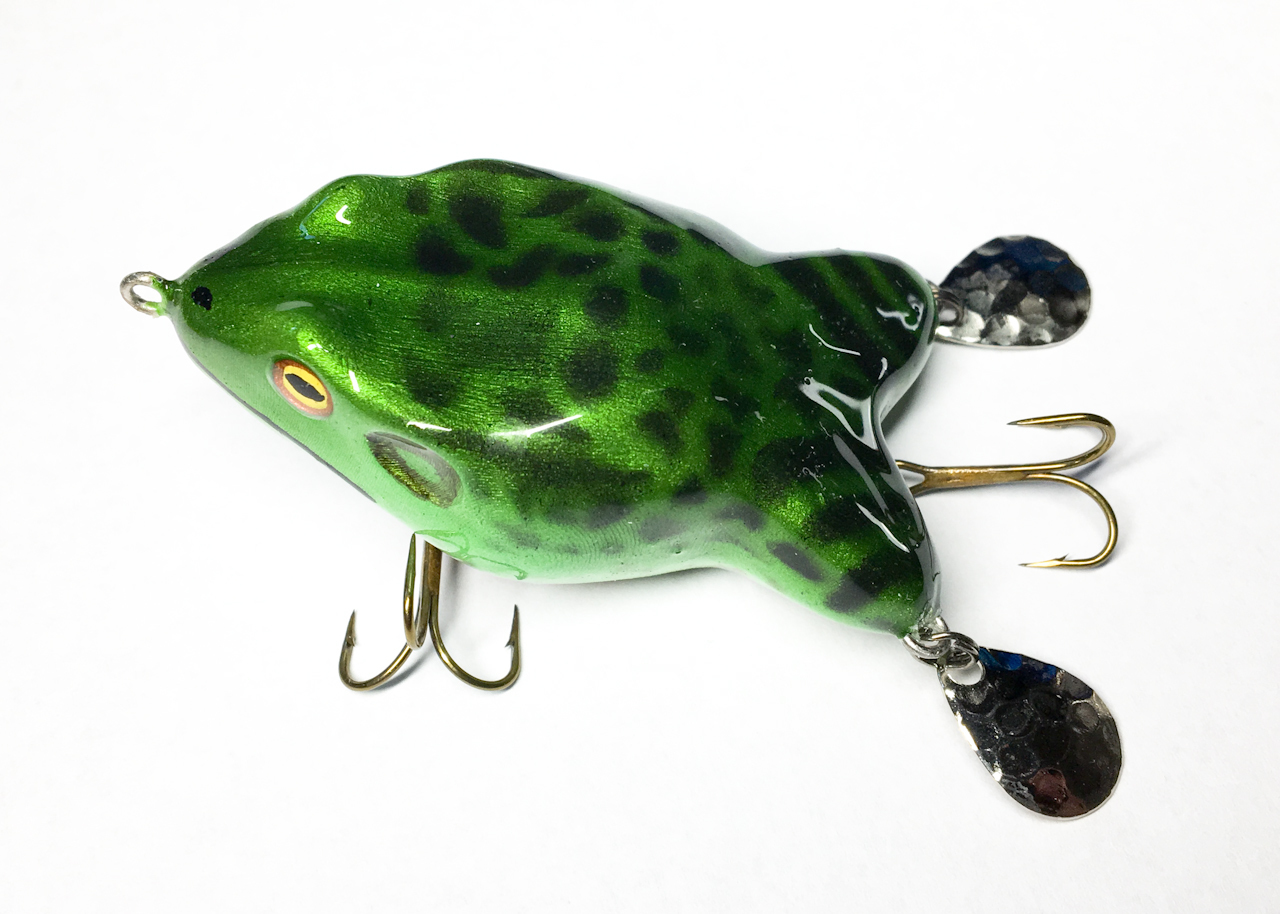

Frog Belly Hook = Two treble Hooks under the body.

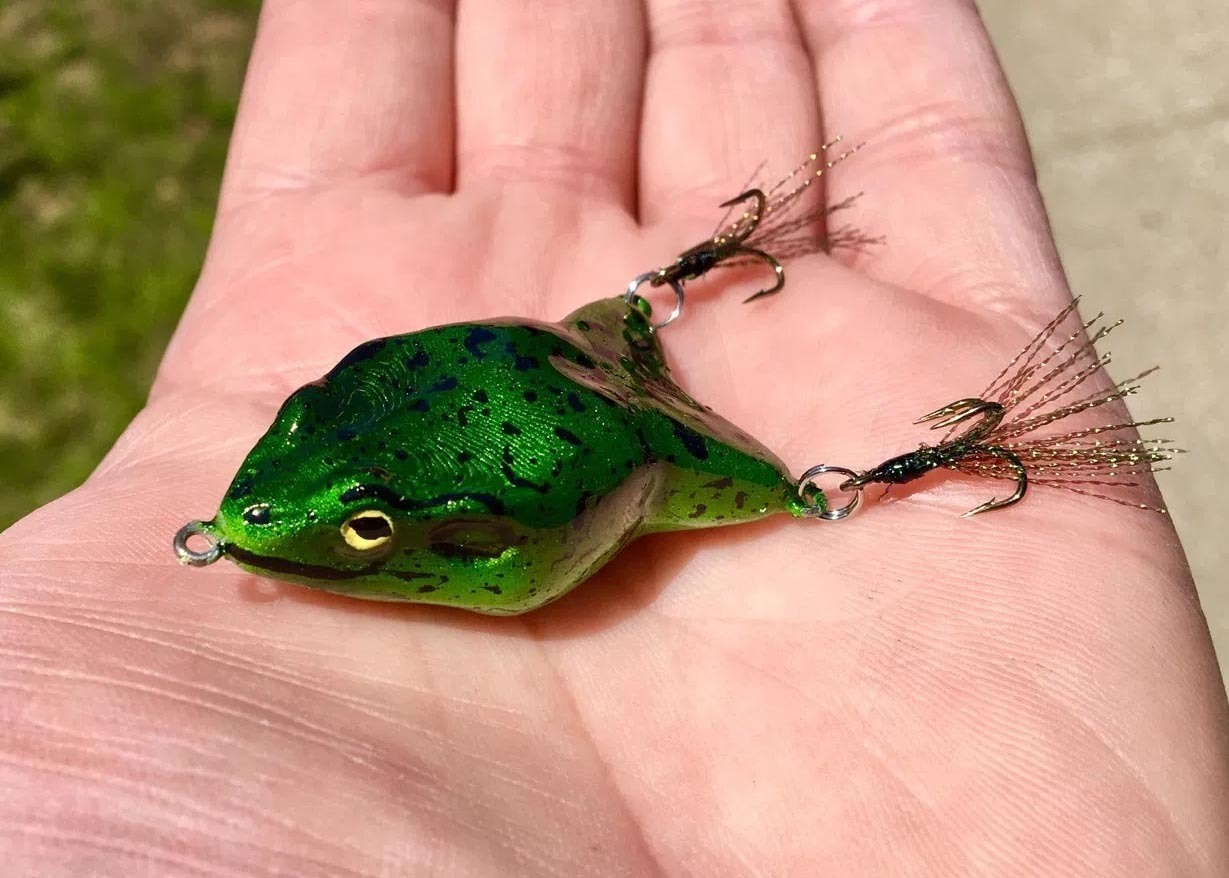

Frog Baby = Smaller version of FrogV1

The lures are printed in two halves and then glued together.

See https://www.theneverendingprojectslist.com/fishingprojects/froglure/ for build video/pictures

Hardware Required to Assemble Lures

Alignment Pins (made from 1.75mm filament)
(3-5) #6 Figure 8 Hook Hangers (Available from https://lurecomponents.worthco.com)

Baby Frog Ultralight Version requires #0 Stainless Steel Sinker Eyes available from https://www.lurepartsonline.com/Brass-Sinker-Eyes

.25" Stainless steel balls for weights
.177 BB's for Baby Frog.

Tools Required to Assemble

Razor Blade/Knife
Drill and Bits (1.8mm or a 5/32")
Lighter
CA Glue (superglue)
CA Accelerator
Sand Paper
Paint
Epoxy (to seal everything up)

NOTICE - My files and designs are all Copyrighted © and are exclusively for private and personal use. Even if you purchased these files that Copyright means you are NOT allowed to sell the model or any derivative of the model for economic or financial gain. For example, you cannot sell the digital model, a derivative or adaptation of that model, nor can you sell prints of the model. I do however grant permission for persons who purchase any soft bait molds to sell the rubber soft baits you make with one of my printed soft bait molds.... but again you CAN NOT sell the actual models of the baits.


3D printing settings

I print these lure in PLA+ with the following settings
(You'll have to experiment with what works best for you.)

Top Layers = 3
Bottom Layers = 3
Perimeter Outlines = 3
Layer Height = .10 mm
Infill = 25%
(I used 70% infill on FrogV1)
(40% on the Baby Frog.)

You can experiment with different infills and weights to get it to float how you like.
Supports = I do not use them but you can if you need too.

3D printer file information

  • 3D design format: STL Folder details Close
    • Frog Baby.STL
    • Frog Belly Hook.STL
    • Frog Stencils.STL
    • Frog Weedless.STL
    • FrogV1.STL
  • Last update: 2020/07/13 at 10:45
  • Publication date: 2020/07/08 at 15:40

Copyright

©

Tags

Creator

Hi... I'm Steve Thone and I make things.... these are some of those projects.

Visit my website to see more of my work. https://www.theneverendingprojectslist.com
